Answer
Feb 09, 2026 - 06:01 AM
Difference between the Lippert Under-Chassis Storage System Part No. JCKD-175180 and Part No. JCKD-236558:
✅ Lippert 175180 – Standard Under-Chassis Storage System
-
Rack Length: ~96 inches
-
Width: ~19.125 inches
-
Box Size: Two detachable storage bins, each approx 27-7/8″ L × 17″ W × 8″ D
-
Weight Capacity: Up to 100 lbs per bin
-
Application: Standard double-bin underchassis storage — slightly shorter overall length compared to the 236558 unit.

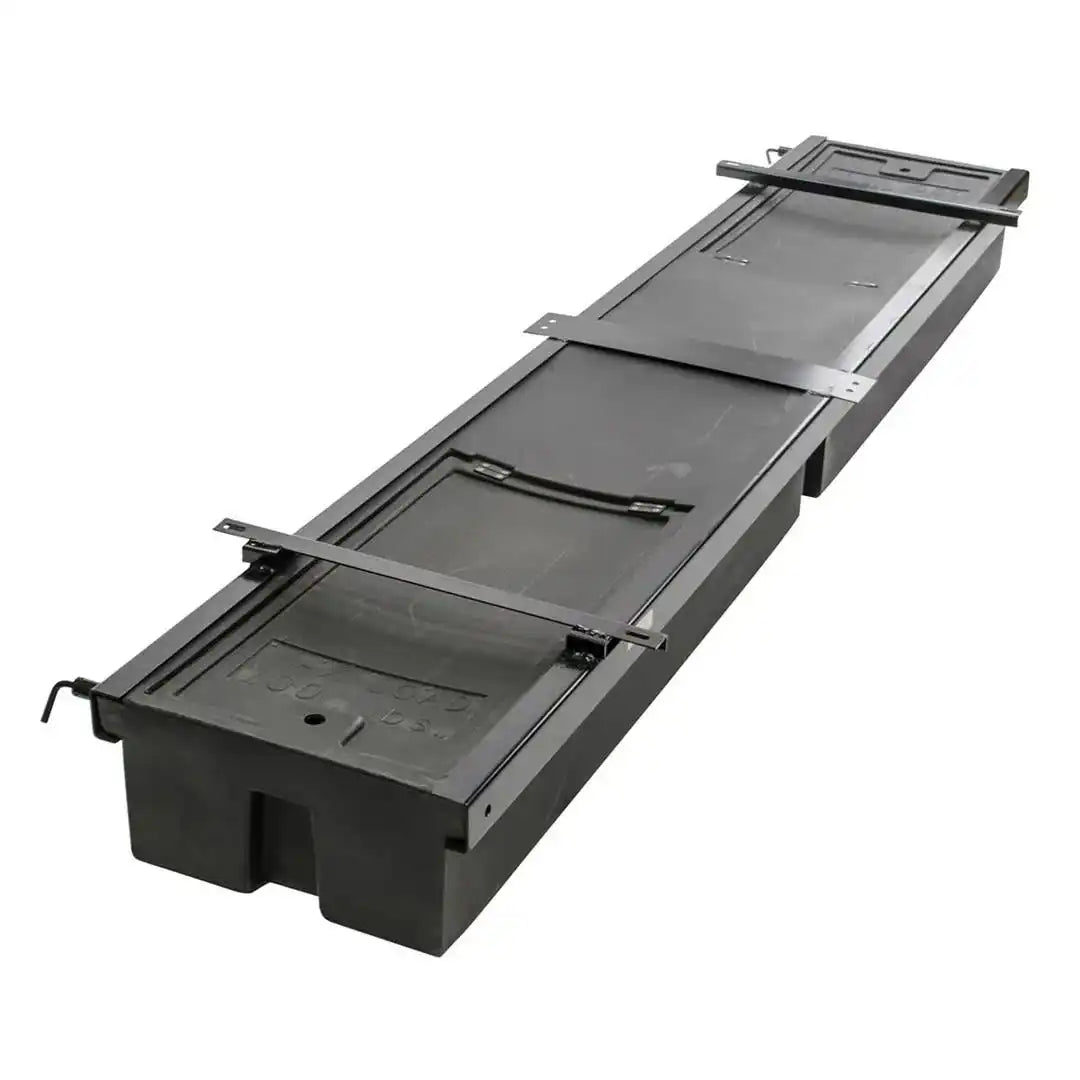

✅ Lippert 236558 – Large Under-Chassis Storage System
-
Rack Length: ~99-1/2 inches
-
Width: ~19.125 inches
-
Box Size: Two larger detachable bins approx 48″ L × 17″ W × 8–9″ D
-
Weight Capacity: Up to 100 lbs per bin
-
Application: Larger double-bin storage — longer frame and larger individual bins than the 175180, giving you more total storage space under the chassis.
📌 The Key Differences
-
Size:
• 175180 is shorter (~96″ long) with smaller bins.
• 236558 is longer (~99.5″ long) with larger cargo boxes — more capacity and reach.
-
Capacity per bin: Both hold roughly 100 lbs per bin, but because 236558 has larger bins overall, it gives more volume and storage utility.
-
Design: Same basic under-chassis slide-out bin concept with spring-loaded latch, but 236558 offers larger total storage space.
Source: mytruckpoint.ca
