Fabtech K1159M 6 RTS SYS W/STEALTH 2020-22 GM 2500HD 4WD.
- Regular price
- $3,419.17 CAD
- Regular price
-
$4,432.30 - Sale price
- $3,419.17 CAD
- Unit price
- per
Take 10% off select products at checkout.
Savings auto-applies on selected products at checkout. Exclusions apply.
Couldn't load pickup availability
Description
xThis high quality 6" lift kit for the GMC Sierra and Chevy Silverado 2500HD has been designed to improve the offroad capability of the vehicle while providing a smooth highway ride. The Fabtech lift kit retains the factory load carrying capacity of the vehicle that is perfect for owners that use their truck for towing and hauling. The heart of this lift kit is Fabtechs cutting edge RTS design. The RTS is a bracket system that keeps the torsion bars in the factory location while providing lift. This feature provides superior ground clearance at the frame as there are no torsion bars hanging down to become high centered on or damaged when offroading. It provides a very clean appearance to the vehicle. Another important aspect of this GM 2500HD lift kit is the lower control arm crossmembers. They are arched at the bottom to provide ground clearance and have a skid plate to protect the front differential against offroad obstacles. The crossmembers and bracketry are built with 1/4" thick steel that provides strength and rigidity to the vehicles suspension. The superior build quality and design of the components allows for a fast installation time with only four holes to drill and no cutting of the front diff housing. This heavy duty GMC Sierra and Chevy Silverado 2500HD lift kit is built with the highest quality components and is designed to provide years of trouble free service while offering a great ride. FEATURES: Torsion bars remain in the factory frame location for maximum ground clearance. RTS Torsion bar brackets index the bars at factory setting for a smooth ride. Heavy duty bracketry constructed of 1/4" thick steel for additional suspension strength. Near factory track width helps keep tires under the fenders. Front & Rear bump stop brackets eliminate over cycling of suspension. CROSSMEMBERS: 1/4" thick steel lower control arm Crossmembers are arched for maximum ground clearance. The welded box design of these Crossmembers provides additional strengt

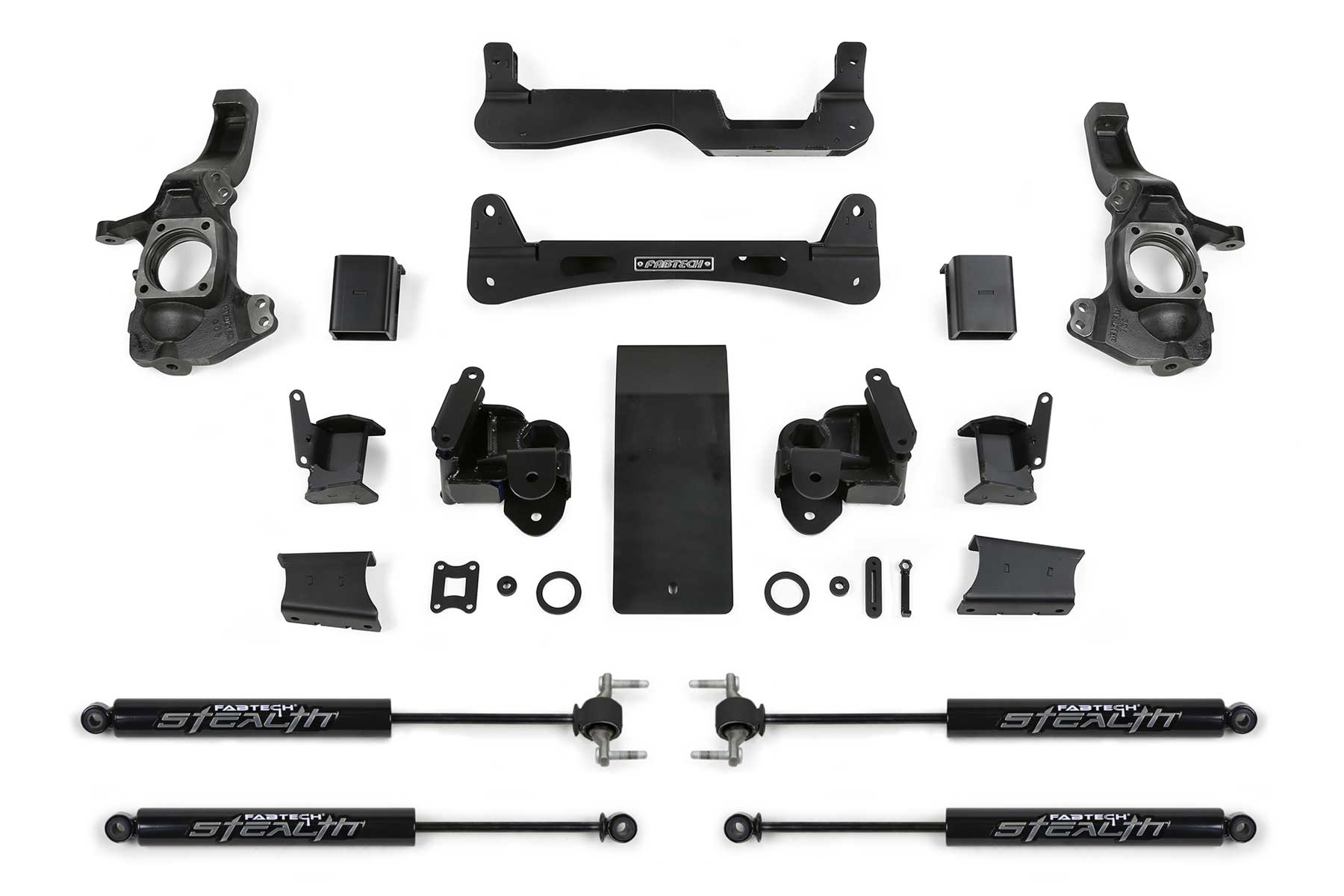

Lift Kit Suspension; RTS ™ System; 6 Inch Front Lift; 6 Inch Rear Lift; With Front And Rear Stealth Shock Absorbers; Black Components; With Front Knuckles/ Front And Rear Crossmembers/ Rear Lift Blocks/ U Bolts/ Torsion Bar Brackets/ Bump Stop Brackets/ Stabilizer Bar Mounts/ Skid Plate/ Tie Rods/ Front Differential Mounts/ Installation Hardware
Note
- Cannot Use OEM Wheels
Features & Benefits
- Heavy-Duty Bracketry Constructed Of 1/4 Inch Thick Steel For Additional Suspension Strength
- Torsion Bars Remain In The Factory Frame Location For Maximum Ground Clearance
- RTS ® Torsion Bar Brackets Index The Bars At Factory Setting For A Smooth Ride
- Front And Rear Bump Stop Brackets Eliminate Over Cycling Of Suspension
- Limited Lifetime Warranty
Attributes
- Front Lift Amount (IN): 6 Inch
- Rear Lift Amount (IN): 6 Inch
- Maximum Tire Size: 37 x 12.50
- Front Lift Type: Steering Knuckles
- Rear Lift Type: Blocks And U-Bolts
- Shock Type: Hydraulic
- Wheel Backspacing (IN): 5.75
- Minimum Wheel Diameter: 18
- Wheel Offset (MM): 19.05
- Shocks: With Shocks In Kit
- Color: Black Components/ Black Shock Absorbers
Vehicle Fitment
