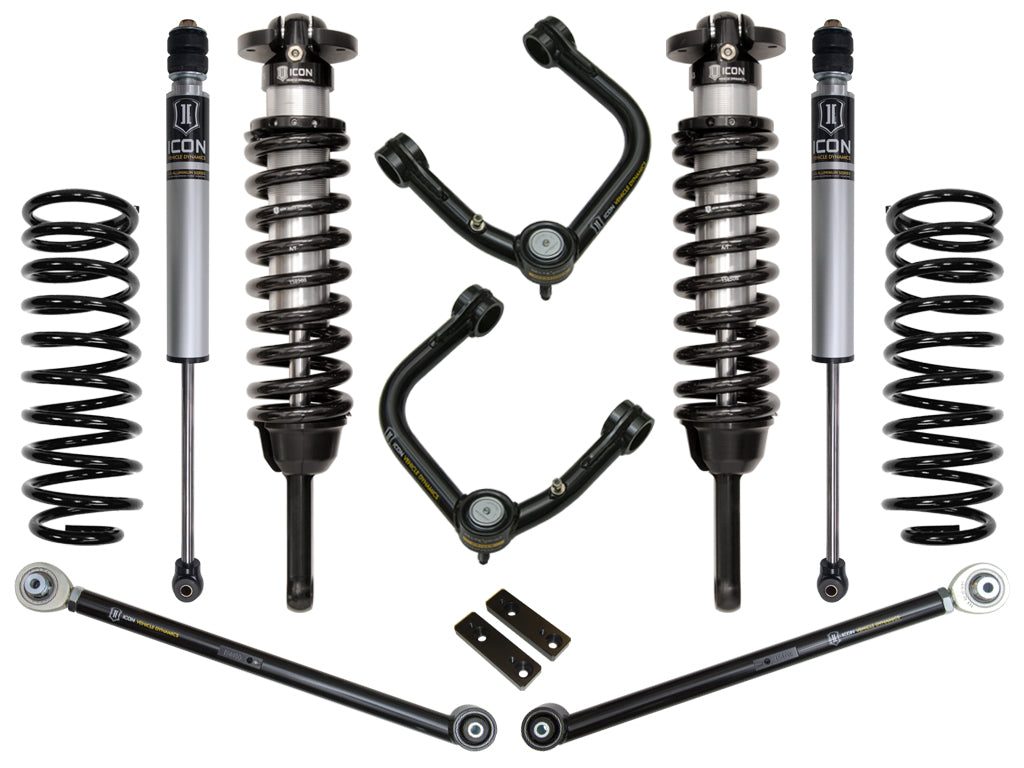

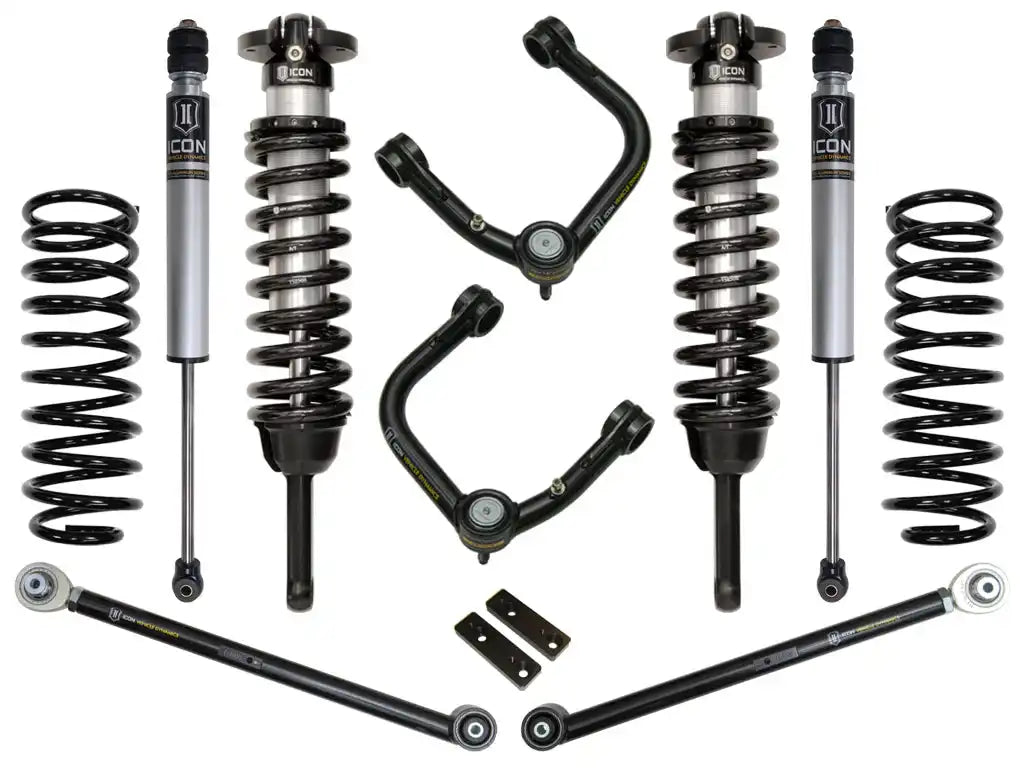

ICON Vehicle Dynamics K53053T 03-09 4RUNNER/FJ 0-3.5" STAGE 3 SUSPENSION SYSTEM W TUBULAR UCA

Product Description

This system features upper control arms with ICON's patented Delta Joint. The Delta Joint is a heavy-duty high angle ball joint that combines the durability of a ball joint with the performance characteristics of a traditional uniball. While the industry standard uniball does a great job of allowing the control arms of a vehicle to articulate with little bind, they do have an inherent weakness that leaves more to be desired when used in a daily driven application - exposure to the elements. The Delta Joint features a zinc plated housing providing the first layer of corrosion resistance, while a tough grease seal keeps potentially harmful elements out of the inner workings of the joint. Metal on metal construction and a greaseable design increase the longevity of the Delta Joint while at the same time allowing for noise-free operation. What makes the Delta Joint unique is that it brings the best of both worlds to ICON upper control arms with features that make it more robust than a uniball, and at the same time capable of greater angularity than a typical ball joint.

Lift Kit Suspension; Stage 3; 0 To 3-1/2 Inch Front Lift; 2 Inch Rear Lift; With Front Coil Over Shock Absorbers And Rear Shock Absorbers In Kit; Black Components/ Gray Shock Absorbers; With Front Coil Over Mounts/ Rear Coil Springs/ Front Upper Tubular Control Arms/ Tubular Trailing Arms/ Installation Hardware

Features & Benefits

• Increased wheel travel and ride quality over stock
• Bolt-on system means no cutting or welding necessary for install
• Vehicle specific tuned front and rear shocks for superior shock damping and control
• Adjustable coilovers provide 0-3.5" of front lift height
• Extended Travel coilovers matched with ICON UCA provides increased front droop travel
• Tubular rear lower links offer increased strength, improved geometry, and pinion angle adjustment
• 6061 aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated coilover shock body with 7/8" shaft
• FK Rod End bearings for extended longevity and minimal deflection
• 2.0 Aluminum Series rear internal reservoir shocks with 5/8" shafts

Attributes

• Front Lift Amount (IN): 0 To 3-1/2 Inch
• Rear Lift Amount (IN): 2 Inch
• Maximum Tire Size: 33 x 11.25
• Front Lift Type: Coil Over Shock Absorber
• Rear Lift Type: Coil Spring
• Shock Type: Nitrogen Gas Charged
• Wheel Backspacing (IN): 4.75
• Wheel Offset (MM): 0
• Shocks: With Shocks In Kit
• Color: Black Components/ Gray Shock Absorbers

• GTIN: 00840103416830
• Brand Name: ICON Vehicle Dynamics
• 1078: 650
• 2064: Steel
• 2371: Yes
• 30: Yes
• 3096: Black
• 3097: Yes
• 3390: Performance
• 5520: 3.5
• 7325: 2
• 7326: 2
• Add-On Part: 198000 - 2 PIN COILOVER SPANNER WRENCH KIT
• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
• Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 4.75” Backspace / 0mm Offset

Extended Information:

• Country of Origin: US
• Emissions : Emissions Compliance Exempt
• Life Cycle Status: Available To Order

Installation Instructions

• I58645_REVC.pdf
• I58451DJ_REVF.pdf
• I56505_REVC.pdf
• I54000T_REVB.pdf

Warranties

• ICON_Warranty_2023_1730.pdf

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 27.0000 x 12.0000 x 6.0000 inches
• Weight: 131.0000 lb
