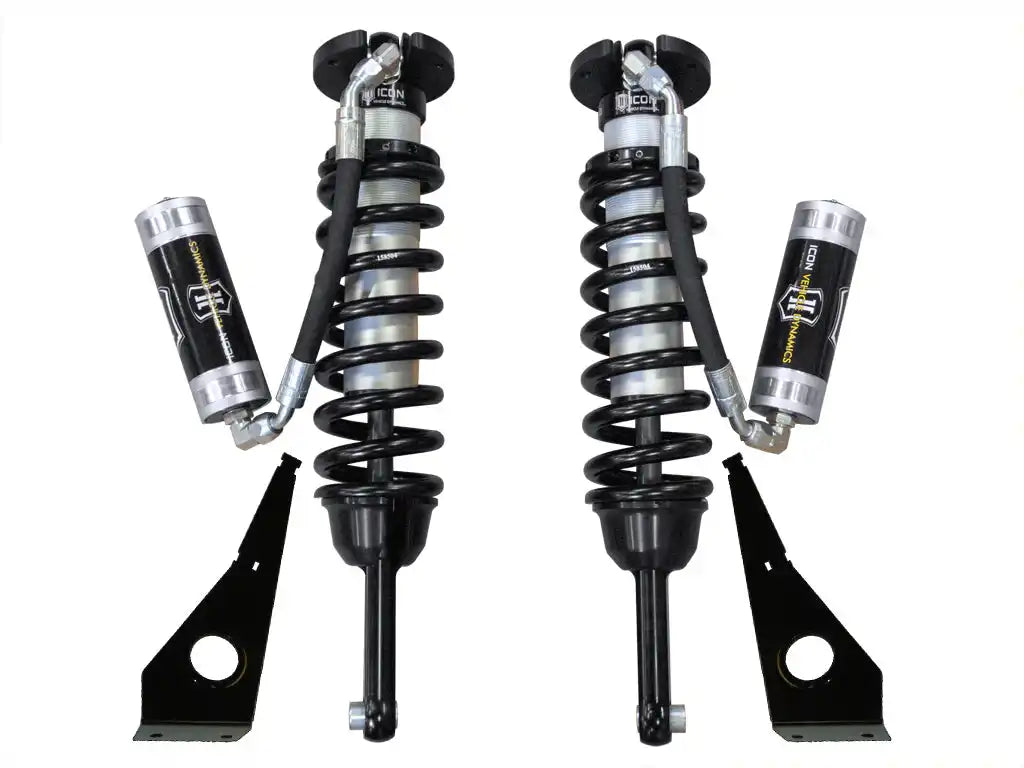

ICON Vehicle Dynamics FRDK_58740 07-09 FJ/03-09 4RUNNER 2.5 VS RR COILOVER KIT
ICON Vehicle Dynamics FRDK_58740 07-09 FJ/03-09 4RUNNER 2.5 VS RR COILOVER KIT

ICON Vehicle Dynamics FRDK_58740 07-09 FJ/03-09 4RUNNER 2.5 VS RR COILOVER KIT

Vendor: ICON Vehicle Dynamics
SKU: FRDK_58740
Availability: Out of stock. Chat\Call to Order
Product Type: Coilover Spring and Shock Assembly
$2,461.85 CAD
$2,339.94
$2,461.85 CAD
Found Better Price? Get Price Match!
Take 10% off select products at checkout.
Savings auto-applies on selected products at checkout. Exclusions apply.
  • TruckPoint
Description
Description
x
ICON Vehicle Dynamics has taken their already perfect performing coilover shocks and given it the heat dissipation and long lasting performance of a full blown race shock. All of this has been developed to bolt on and install with ease. They increase suspension travel and dramatically increase the capabilities of your FJ Cruiser or 4Runner's front suspension. These coilovers come complete with all the hardware necessary to complete the installation as well as a sway bar relocation bracket kit to adjust the location of the sway bar to clear the larger shock.
  • Adjustable ride height from 0" - 3"
  • Mounting Bracket Orients Reservoir for Optimum Tire Clearance
  • External Reservoir Ensures Maximum Cooling
  • Chrome-silicon spring
  • 250 PSI nitrogen-charged internal reservoir
  • Race shock piston with flutter stack compression valving
  • Kit Includes Sway bar relocation brackets
  • Kit also Includes Reservoir Mounting Brackets
  • Cad-plated threaded body / Extreme Weather Plating Option Available
  • Billet aluminum upper mount
  • 5/8" PTFE-lined spherical bearing
  • Completely re-buildable
  • Hose Length Optimized for Increased Fluid Transfer

Attributes:

  • GTIN: 00840103404325
  • Brand Name: ICON Vehicle Dynamics
  • 2917: yes
  • 3390: Performance
  • 408: Center of Eylet
  • 409: Top of Upper Mount Plate
  • 48: Eyelet
  • 49: Mounting Plate
  • 50: No
  • 51: yes
  • 52: 2.5
  • Add-On Part: 191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25)
  • Adjustable Damping: NO
  • Coil Over Springs Included: Yes
  • Damping Type: Oil
  • Dust Shield: No
  • OEM Wheels & Tires Fitment: Yes
  • Recommended Aftermarket Tires: 33" x 11.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
  • Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 4.75” Backspace / 0mm Offset
  • Remote Reservoir: Yes
  • Service Parts: 191016 - 7.5" FINNED RESI UPGRADE KIT
  • Shaft Diameter: 0.875
  • Spring Color: Black
  • Spring Material: Steel
  • Spring Rate: 650

Extended Information:

  • Country of Origin: US
  • Emissions : 4
  • Life Cycle Status: Available To Order

Packing Information:

  • Quantity of Each: 1.0
  • Package UOM: EA
  • Dimension: 27.0000 x 12.0000 x 8.0000 inches
  • Weight: 52.0000 lb
