ICON Vehicle Dynamics FRDK_K53157 07-21 TUNDRA RXT STAGE 3 SYSTEM
ICON Vehicle Dynamics FRDK_K53157 07-21 TUNDRA RXT STAGE 3 SYSTEM

ICON Vehicle Dynamics FRDK_K53157 07-21 TUNDRA RXT STAGE 3 SYSTEM

Vendor: ICON Vehicle Dynamics
SKU: FRDK_K53157
Availability: Out of stock. Chat\Call to Order
Product Type: Suspension Lift Kit
$5,378.64 CAD
$5,378.64
$5,378.64 CAD
Found Better Price? Get Price Match!
Take 10% off select products at checkout.
Savings auto-applies on selected products at checkout. Exclusions apply.
  • TruckPoint
Description
Description
x

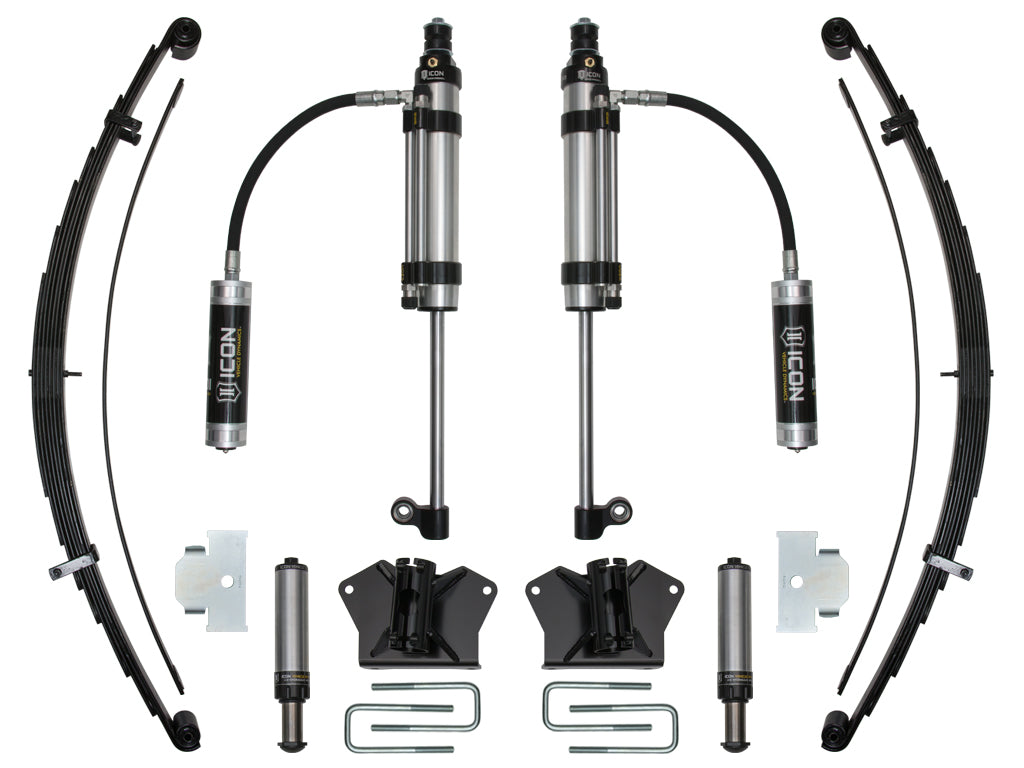

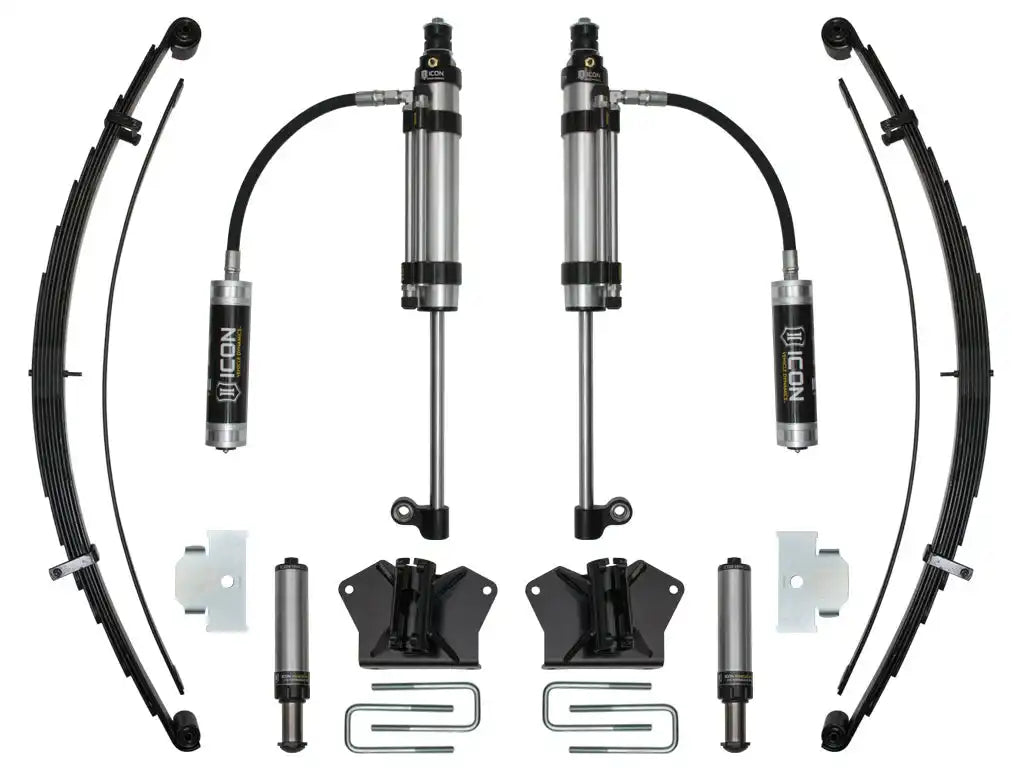

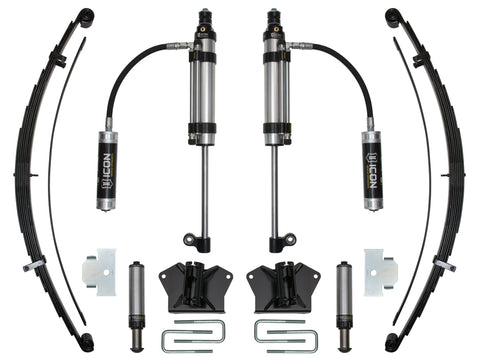

Through an accelerated testing process dubbed the “ICON1K” R&D program, ICON has spent over a year pushing the Tundra to off-road extremes to identify limiting factors in OE components and further extrapolate performance out of this vehicle. In a push to provide unparalleled ride quality and vehicle dynamics for everything from high-speed desert running to off the grid expedition, the RXT Rear Suspension System was born. The RXT Rear Suspension System is a combination of an all-new ICON multi-rate leaf spring, a hydraulic rear bump stop kit, and three RXT-specific 2.5 Aluminum Series rear shock options. Installation of this system replaces the aforementioned “limiting factors” and completely redefines the potential of the 2007-2021 Toyota Tundra with a 20% increase in wheel travel and the ability to adjust the leaf spring rate to compensate for varying vehicle setups.

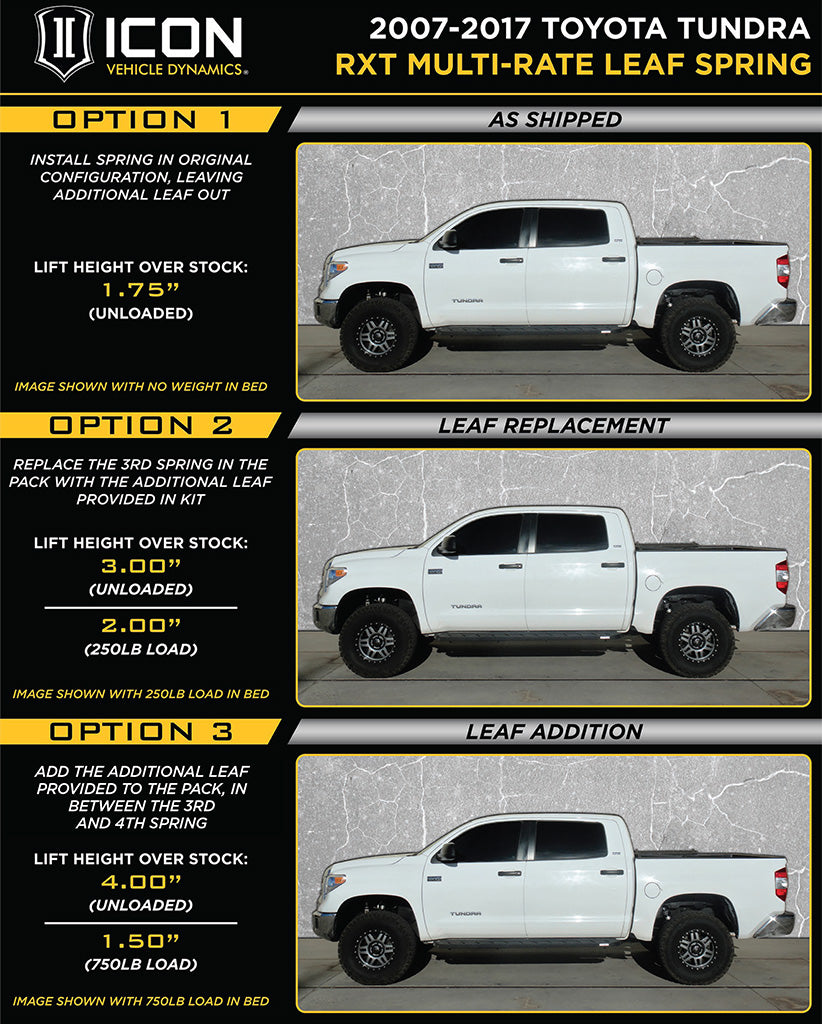

  • ICON RXT Multi-Rate Leaf Spring: 3 user-adjustable spring rates for unique vehicle configurations
  • ICON RXT Rear Shock: Omega Series two-tube bypass allows for 28 settings of compression and rebound damping adjustment
  • ICON RXT Rear Shock: 2.5 Aluminum Series shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
  • ICON RXT Rear Shock: 10” aluminum reservoirs provide generous oil and nitrogen volume for consistent damping as shock temperature increases
  • ICON RXT Rear Shock: Shocks are fully rebuildable and revalveable
  • ICON RXT Rear Shock: Simple and straightforward installation
  • ICON RXT Rear Shock: “ICON 1K” tested under rigorous off-road conditions to validate tune, performance, strength, and durability
  • ICON Hydraulic Rear Bump Stop Kit: 2.5” travel bump stop reduces rear end ‘kick’ and improves overall performance
  • ICON Hydraulic Rear Bump Stop Kit: Position sensitive technology exponentially increases bottom-out resistance
  • ICON Hydraulic Rear Bump Stop Kit: Vehicle specific bump stop tune to provide smooth engagement and best ride quality
  • ICON Hydraulic Rear Bump Stop Kit: Direct bolt-in to OEM bump stop location makes for an easy and straightforward install
  • ICON RXT Multi-Rate Leaf Spring: Military wrap front eyelet for increased durability
  • ICON Hydraulic Rear Bump Stop Kit: Heavy duty 1.25” CNC machined nitro steel shaft
  • ICON Hydraulic Rear Bump Stop Kit: CAD plated body for maximum corrosion resistance
  • ICON Hydraulic Rear Bump Stop Kit: Double sealed high pressure Schrader valve
  • ICON Hydraulic Rear Bump Stop Kit: Operating range of 50-250 PSI
  • ICON Hydraulic Rear Bump Stop Kit: Replaceable noise-reducing striker pad
  • ICON Hydraulic Rear Bump Stop Kit: Fully serviceable
  • ICON Hydraulic Rear Bump Stop Kit: “ICON 1K” tested under rigorous off-road conditions to validate tune, performance, strength, and durability
  • ICON RXT Multi-Rate Leaf Spring: Galvanized leaf separators reduce friction and aid in corrosion resistance
  • ICON RXT Multi-Rate Leaf Spring: Leaf tip inserts reduce noise and increase ride comfort
  • ICON RXT Multi-Rate Leaf Spring: Potential for increased wheel travel when used with RXT shock without sacrificing up-travel (up to 20% over stock)
  • ICON RXT Multi-Rate Leaf Spring: “ICON 1K” tested under rigorous off-road conditions to validate tune, performance, strength, and durability
  • ICON RXT Multi-Rate Leaf Spring: Direct bolt-in to OEM spring location makes for an easy install
  • ICON RXT Rear Shock: Unique side-mounted lower eyelet allows for increased travel while utilizing factory mounting location
  • ICON RXT Rear Shock: Vehicle-specific tuned shocks provide increased damping and oil volume

Attributes:

  • GTIN: 00840103417585
  • Brand Name: ICON Vehicle Dynamics
  • 2064: Steel
  • 2371: Yes
  • 30: Yes
  • 3096: Black
  • 3097: Yes
  • 3390: Performance
  • 5520: 4
  • 6111: 8
  • Add-On Part: 252012 - -4 TO -10 HOSE SHIELD KIT
  • OEM Wheels & Tires Fitment: Yes
  • Recommended Aftermarket Tires: 35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
  • Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.75” Backspace / 25mm Offset

Extended Information:

  • Country of Origin: US
  • Emissions : Emissions Compliance Exempt
  • Life Cycle Status: Available To Order

Packing Information:

  • Quantity of Each: 1.0
  • Package UOM: EA
  • Dimension: 55.0000 x 40.0000 x 19.0000 inches
  • Weight: 235.0000 lb
