ICON Vehicle Dynamics FRDK_K214554T 09-12 RAM 2500/3500 4.5" STAGE 5 SUSPENSION SYSTEM
ICON Vehicle Dynamics FRDK_K214554T 09-12 RAM 2500/3500 4.5" STAGE 5 SUSPENSION SYSTEM

ICON Vehicle Dynamics FRDK_K214554T 09-12 RAM 2500/3500 4.5" STAGE 5 SUSPENSION SYSTEM

Vendor: ICON Vehicle Dynamics
SKU: FRDK_K214554T
Availability: Out of stock. Chat\Call to Order
Product Type: Suspension Lift Kit
$7,240.42 CAD
$7,240.42
$7,240.42 CAD
Found Better Price? Get Price Match!
Take 10% off select products at checkout.
Savings auto-applies on selected products at checkout. Exclusions apply.
  • TruckPoint
Description
Description
x

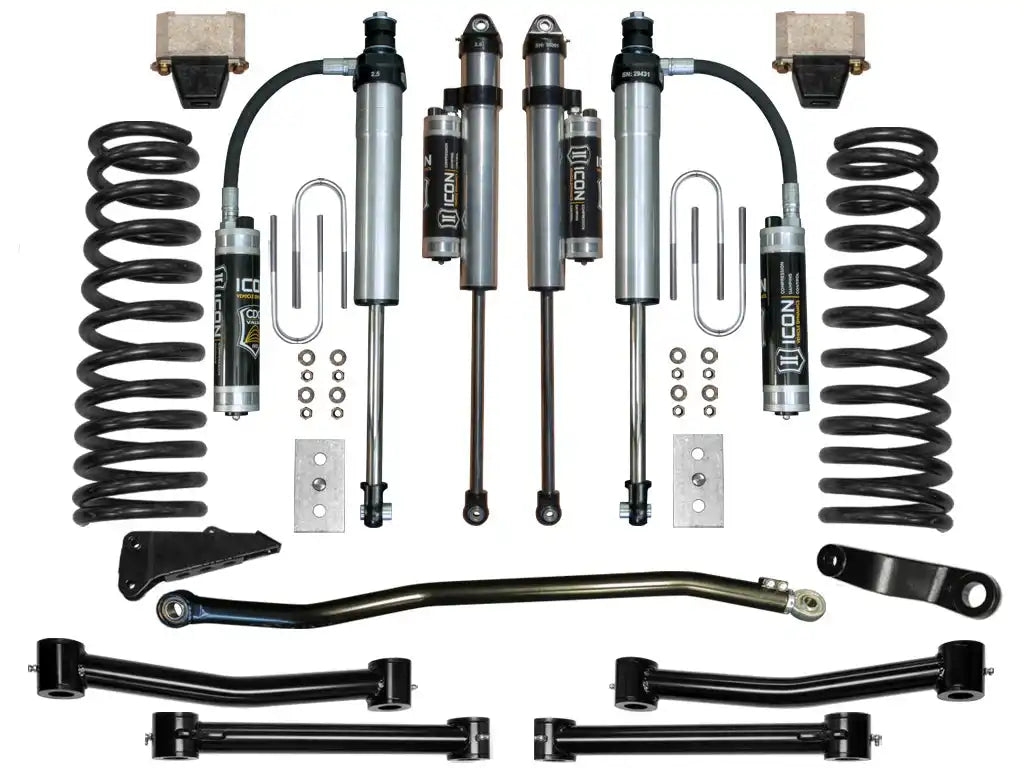

2009-2012 Ram 2500/3500 4.5" Stage 5 Suspension System utilizes the same technology as the 2.5" systems while adding lift height, ground clearance, and user adjustability. Additional engineered front-end components are added to ensure proper steering geometry with improved function throughout the entire travel range whether on or off road. The Stage 5 System is comprised of dual rate coil springs, tubular steel upper & lower link arms, polyurethane bump stops w/ billet extension, sway bar drop brackets, forged pitman arm, track bar drop bracket, 2.5 Aluminum Series shocks w/ CDCV, and bearing style adjustable track bar. ICON 2.5 Aluminum Series shocks extend the performance of the kit by increasing the duration of consistent damping regardless of situation, and give you the ability to tune the compression damping with the turn of an external knob. These shocks include FK bearings, one-piece impact extruded aluminum cylinders, and 7/8" shafts for strength. The adjustable track bar with bearings not only improves rigidity over flexible factory joints, but offers adjustability to center the front axle under the truck. ICON steel upper & lower links increase performance, strength, and range of alignment. These link arms decrease the bind found in the factory link bushings. This ultimate performance system with billet link arms offers extraordinary diversity across any terrain, all while keeping a smooth highway feel. Installing this kit allows proper clearance for 35" tall tires with no modifications, and some 37" tires with minor fender well trimming for clearance. With the endless hours ICON has spent testing and tuning our suspension components and shocks together, you can rest assured you have the best suspension solution on the market.
  • ICON engineered dual rate coil springs with match tuned 2.5" V.S. Series shocks with CDCV
  • Adjustable track bar with PTFE lined FK bearings
  • 2.5 Aluminum Series front and rear shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
  • Heavy-duty steel upper and lower link bars
  • Increased wheel travel and ride quality over stock with no change in towing capacity
  • Correctly positioned steering and track bar components
  • Level stance front to rear
  • Less body roll than stock
  • No drive shaft modifications needed

Attributes:

  • GTIN: 00840103415710
  • Brand Name: ICON Vehicle Dynamics
  • 2064: Steel
  • 2371: Yes
  • 30: Yes
  • 3096: Black
  • 3097: Yes
  • 3390: Performance
  • 5520: 4.5
  • 7325: 2
  • Add-On Part: 191014 - .25" COLLAR SPANNER PIN WRENCH
  • Dual Rate Coil Springs: Yes
  • OEM Wheels & Tires Fitment: Yes
  • Recommended Aftermarket Tires: 35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required)
  • Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.25” BS / 13mm Offset

Extended Information:

  • Country of Origin: US
  • Emissions : Emissions Compliance Exempt
  • Life Cycle Status: Available To Order

Packing Information:

  • Quantity of Each: 1.0
  • Package UOM: EA
  • Dimension: 26.0000 x 19.0000 x 10.0000 inches
  • Weight: 277.0000 lb
