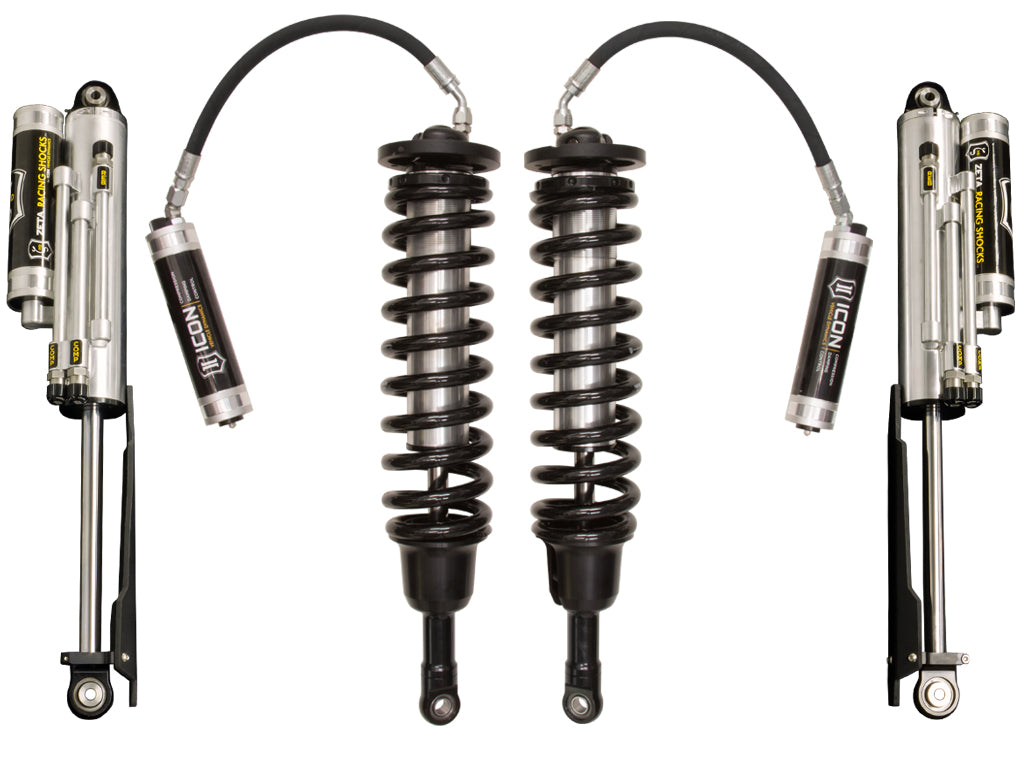

ICON Vehicle Dynamics FRDK_K93051 10-14 FORD RAPTOR STAGE 1 SUSPENSION SYSTEM

Our Rear Zeta Ford SVT Raptor Shocks are a true 3.0” (inside and out), three tube External Bypass shock. These are far from the norm when compared to a traditional bypass shock you see on Trophy Trucks and other off-road race vehicles. Each bypass valve has a specific port design and individually equipped with a different spring rate to ensure proper performance at each zone of shock travel. These same bypass valves feature dampened valve stops for quiet and precise operation. That means no clicking noises as you hit bumps or road chatter driving down the road. The biggest difference in these shocks versus an industry standard bypass shock, are the “Easy-to-Adjust” knobs and the replaceable bypass tubes. The “Easy to Adjust” Hi Resolution Clicker Knobs do not require any tools for adjustment, and can be adjusted in seconds from plush off-road performance to firm on road manners for extra control while driving the mountains or towing a trailer. Another unique feature of this shock is the replaceable bypass tubes that can be swapped out during a standard rebuild if any damage were to occur, where a normal bypass shock body would need to be completely replaced, saving you hundreds of dollars.

• Key Features of the Raptor Front 3.0 Coil Over Shock:
• Com 12 PTFE Lined Bearings Ensure Maximum Strength and Durability
• Oversized 1” Heavy Duty CNC Machined Shock Shafts
• Extended Droop Travel and Increased Overall Performance on and off road
• Key Features of the Raptor Rear 3.0 Bypass Shock:
• 3.0 OEM Replacement PiggyBack Reservoir Zeta 3 Tube Bypass Rear Shocks
• Easy-to-Adjust Detended Adjustment Knobs Offer Quick Adjustability without the Use of Tools
• High Resolution Bypass Valves Designed for Noticeable Fine Tune Adjustments in Rebound and Compression
• High Flow CNC Machined Welded Bypass Blocks designed to Increase Fluid Flow for Enhanced Performance & High Definition Tuning
• Replaceable Bypass Tubes That Can Easy Slide in to Position if you were to Dent or Damage One
• Direct Bolt in to OEM Location with Bypass Adjustment Knobs Easily Accessible for Tuning Adjustment
• 3.0 OEM Replacement Remote Reservoir Compression Adjustable Front Coil Over Shocks
• Special Engineered Dampened Valve Stops for Quiet and Precise Operation without the Standard Bypass Loud “Clicking” Noise you will find with Other Brands
• Multi Stage Cad Plated Finish with Polished and Anodized Top Cap / Rod Ends
• UHMH Machined Shaft & Rod End Protective Shin Guards Standard with Every Kit
• Internal Hydraulic Bump Zone Designed for Maximum G-out Control in the Last 40% of Travel
• Easy-to-Adjust High Resolution Compression Adjuster Offers Fine Tuning Adjustments For All Types of Terrains
• Direct Bolt in to OEM Location and Optimum Reservoir Positioning for Superb Heat Dissipation and protection
• Nitrogen Charged 6063-T832 Aluminum 10” Remote Reservoirs that are Precision CNC Honed & Hard Anodized
• Adjustable Ride Height from 1 – 3” of Lift
• ICON Engineered Eibach 3 5/8” ID High Quality Chrome Silicon Steel Springs that offer increased travel and performance

Attributes:

• GTIN: 00840103419787
• Brand Name: ICON Vehicle Dynamics
• 2064: Steel
• 2371: NO
• 30: Yes
• 3096: Black
• 3097: Yes
• 3390: Performance
• 5520: 3
• 7325: 2
• Add-On Part: 198000 - 2 PIN COILOVER SPANNER WRENCH KIT
• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Tires: 35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
• Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5” Backspace / 6mm Offset

Extended Information:

• Country of Origin: US
• Emissions : Emissions Compliance Exempt
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 38.0000 x 10.0000 x 8.0000 inches
• Weight: 150.0000 lb
