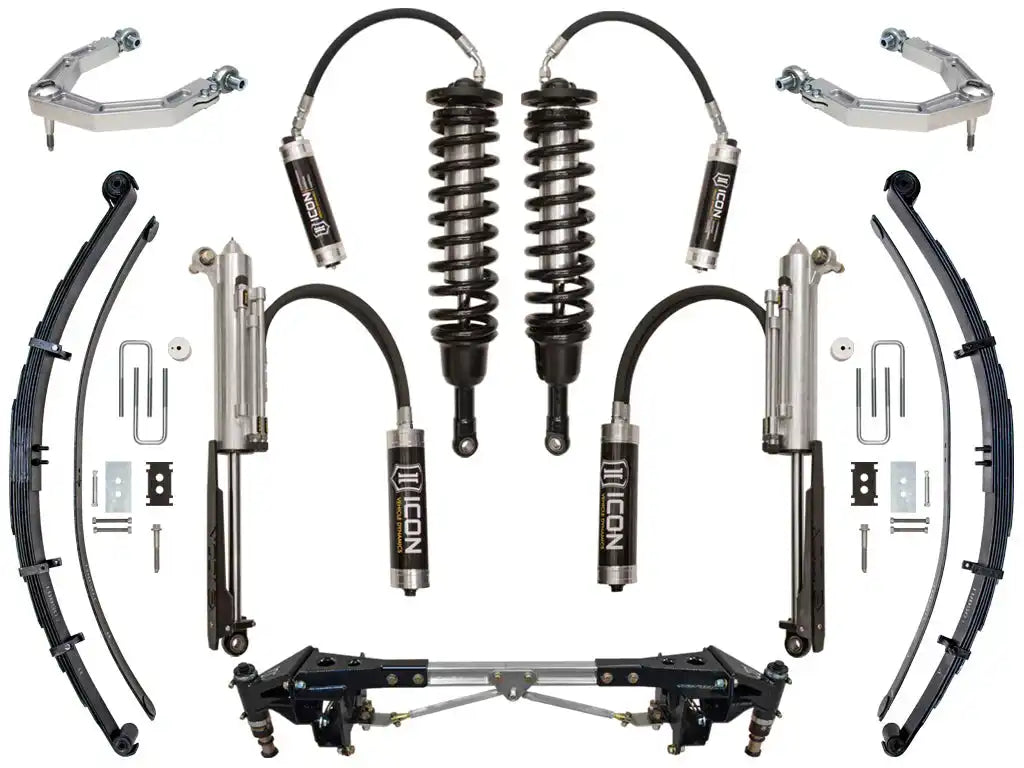

ICON Vehicle Dynamics FRDK_K93054 10-14 FORD RAPTOR STAGE 4 SUSPENSION SYSTEM
ICON Vehicle Dynamics FRDK_K93054 10-14 FORD RAPTOR STAGE 4 SUSPENSION SYSTEM

ICON Vehicle Dynamics FRDK_K93054 10-14 FORD RAPTOR STAGE 4 SUSPENSION SYSTEM

Vendor: ICON Vehicle Dynamics
SKU: FRDK_K93054
Availability: Out of stock. Chat\Call to Order
Product Type: Suspension Lift Kit
$17,535.94 CAD
$17,535.94
$17,535.94 CAD
Found Better Price? Get Price Match!
Take 10% off select products at checkout.
Savings auto-applies on selected products at checkout. Exclusions apply.
  • TruckPoint
Description
Description
x
ICON RXT Multi-Rate Leaf Spring:
  • Key Features of the Raptor Front 3.0 Coilover Shock:
  • Oversized 1” Heavy Duty CNC Machined Shock Shafts
  • Extended Droop Travel and Increased Overall Performance on and off road
  • Key Features of the Raptor Upper Control Arms:
  • 6061 Billet Aluminum
  • Precision CNC Machined
  • Patented Delta Joint (U.S. Patent No. 10,731,700)
  • RSMX PTFE Lined 7/8” Rod Ends
  • Easily Adjustable on the Vehicle for Perfect Wheel Alignments
  • 17-4 Stainless Steel Taper Adapter Pin Provides OEM Like Fitment
  • O-ring sealed dust cover
  • 3.0 OEM Replacement Remote Reservoir Compression Adjustable Front Coilover Shocks
  • Key Features of Hydraulic Bump Stop System:
  • Designed for increased leaf spring clearance so there is no loss in up travel with stock or aftermarket springs
  • Easy bolt on installation without having to remove the truck bed
  • 6061 Solid billet cross bar that is polished & anodized
  • Bump stop striker pad does not require leaf spring disassembly
  • Comfortable on road manners with sufficient damping capability under extreme load
  • Hydro-pneumatic bump stop increases bump energy capacity
  • Velocity sensitive Hydro-pneumatic bump stop increases the amount of energy absorbed the faster it is hit
  • Reduces rear end kick and improves overall performance
  • Clamshell brackets strengthen frame in critical areas preventing frame damage from extreme off road use
  • Internal Hydraulic Bump Zone Designed for Maximum G-out Control in the Last 40% of Travel
  • Cross member and tension rods stabilize frame rails and prevent twisting under hard impacts
  • Increases frame rigidity and improves overall vehicle dynamics
  • Industry first billet cross beam
  • Pre-tuned and Nitrogen charged for most Ford Raptors
  • Integrated adjustability for future ICON Raptor specific products
  • Key Features of the Raptor RXT Multi-Rate Leaf Spring:
  • 3 User-adjustable spring rates for unique setups
  • Triple military wrap front eyelet and rear half wrap for increased durability
  • Rebound leaf reduces severe axle wrap
  • Tip inserts and leaf separators to reduce friction and improve ride comfort
  • Easy-to-Adjust High Resolution Compression Adjuster Offers Fine Tuning Adjustments For All Types of Terrains
  • OE style bonded rubber bushings that are maintenance free and do not squeak
  • Bump stop extensions included for use when no aftermarket bump stop kit is installed
  • New Ford OE front spring eye bolts included for easy removal and re-installation of springs
  • Key Features of the Raptor RXT Rear 3.0 Bypass Shock:
  • 3.0 RXT 3 tube bypass rear shock with 3.0 remote reservoir
  • Unique side-mounted upper eyelet allows for increased up-travel while utilizing factory mounting location
  • Recirculating Dual Hose Reservoir (Patent Pending) keeps shock temperatures low by pumping heat to the reservoir for increased dissipation
  • Anti-Wobble Link (Patent Pending) keeps bypass tubes clear of leaf spring and tire
  • Easy-to-Adjust detented adjustment knobs offer quick adjustability without the use of tools
  • High resolution bypass valves designed for noticeable fine tune adjustments in rebound and compression
  • Direct Bolt in to OEM Location and Optimum Reservoir Positioning for Superb Heat Dissipation and protection
  • High flow CNC machined welded bypass blocks designed to increase fluid flow for enhanced performance & high definition tuning
  • Replaceable bypass tubes that can easily be replaced if damaged
  • Direct bolt in to OEM location with bypass adjustment knobs easily accessible for tuning adjustment
  • Special engineered damped valve seats for quiet and precise operation without the standard bypass loud “clicking” noise you will find with other brands
  • Multi stage cad plated finish with polished and anodized top cap / rod ends
  • Protective shin guards standard with every kit
  • Nitrogen Charged 6063-T832 Aluminum 10” Remote Reservoirs
  • Adjustable Ride Height from 1 – 3” of Lift
  • ICON Engineered Eibach Springs Offer Increased Travel and Performance
  • Com 12 PTFE Lined Bearings Ensure Maximum Strength and Durability

Attributes:

  • GTIN: 00840103419817
  • Brand Name: ICON Vehicle Dynamics
  • 2064: Steel
  • 2371: NO
  • 30: Yes
  • 3096: Black
  • 3097: Yes
  • 3390: Performance
  • 5520: 3
  • 7325: 2
  • Add-On Part: 191014 - .25" COLLAR SPANNER PIN WRENCH
  • OEM Wheels & Tires Fitment: Yes
  • Recommended Aftermarket Tires: 35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
  • Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5” Backspace / 6mm Offset

Extended Information:

  • Country of Origin: US
  • Emissions : 4
  • Life Cycle Status: Available To Order

Packing Information:

  • Quantity of Each: 1.0
  • Package UOM: EA
  • Dimension: 48.0000 x 48.0000 x 10.0000 inches
  • Weight: 498.0000 lb
