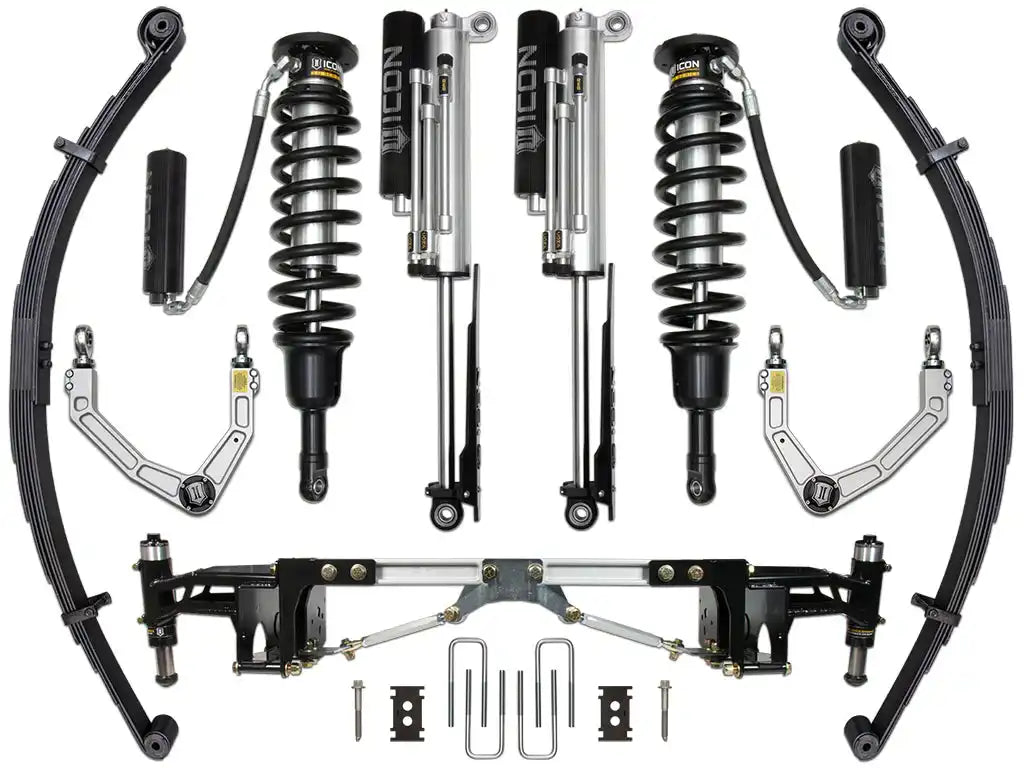

ICON Vehicle Dynamics FRDK_K93154 17-20 FORD RAPTOR STAGE 4 SUSPENSION SYSTEM
ICON Vehicle Dynamics FRDK_K93154 17-20 FORD RAPTOR STAGE 4 SUSPENSION SYSTEM
ICON Vehicle Dynamics FRDK_K93154 17-20 FORD RAPTOR STAGE 4 SUSPENSION SYSTEM

ICON Vehicle Dynamics FRDK_K93154 17-20 FORD RAPTOR STAGE 4 SUSPENSION SYSTEM

Vendor: ICON Vehicle Dynamics
SKU: FRDK_K93154
Availability: Out of stock. Chat\Call to Order
Product Type: Suspension Lift Kit
$16,854.24 CAD
$16,854.24
$16,854.24 CAD
Found Better Price? Get Price Match!
Take 10% off select products at checkout.
Savings auto-applies on selected products at checkout. Exclusions apply.
  • TruckPoint
Description
Description
x
ICON Vehicle Dynamics products are proudly designed, manufactured, and assembled in Riverside, California by a team of passionate off-road enthusiasts. With a reputation for quality, performance, and service it's clear that ICON Vehicle Dynamics is the top choice for performance suspension systems and shock absorbers for the 2017-2020 Ford F150 Raptor.
  • 3.0 SERIES COILOVER SHOCK KIT
  • High quality ICON-engineered coil springs are guaranteed for life against sagging or breakage
  • Heavy duty CNC machined 1” shock shafts
  • FK Rod End COM12 spherical bearings ensure maximum strength and durability
  • CAD plated shock body with hard anodized piston and top cap
  • Fully serviceable design allows for revalves, rebuilds, and an immeasurable service life
  • Bolt-in design makes for an easy install into OEM shock location
  • BILLET ALUMINUM UPPER CONTROL ARM KIT
  • CNC machined 6061 billet aluminum construction for light weight and exceptional strength
  • Built-in caster correction improves front end geometry
  • Patented Delta Joint (U.S. Patent No. 10,731,700) for maximum durability and noise-free operation
  • Adjustable coilovers yield 1-3” of front lift height
  • Camber and caster adjustability allows for precise wheel alignment
  • ICON double adjuster sleeves for easy on-vehicle adjustment
  • Vehicle specific taper pin provides OE-like fitment
  • PTFE Lined 7/8” FK Rod Ends increase rigidity and improve response
  • Built in o-ring sealed dust cover cap

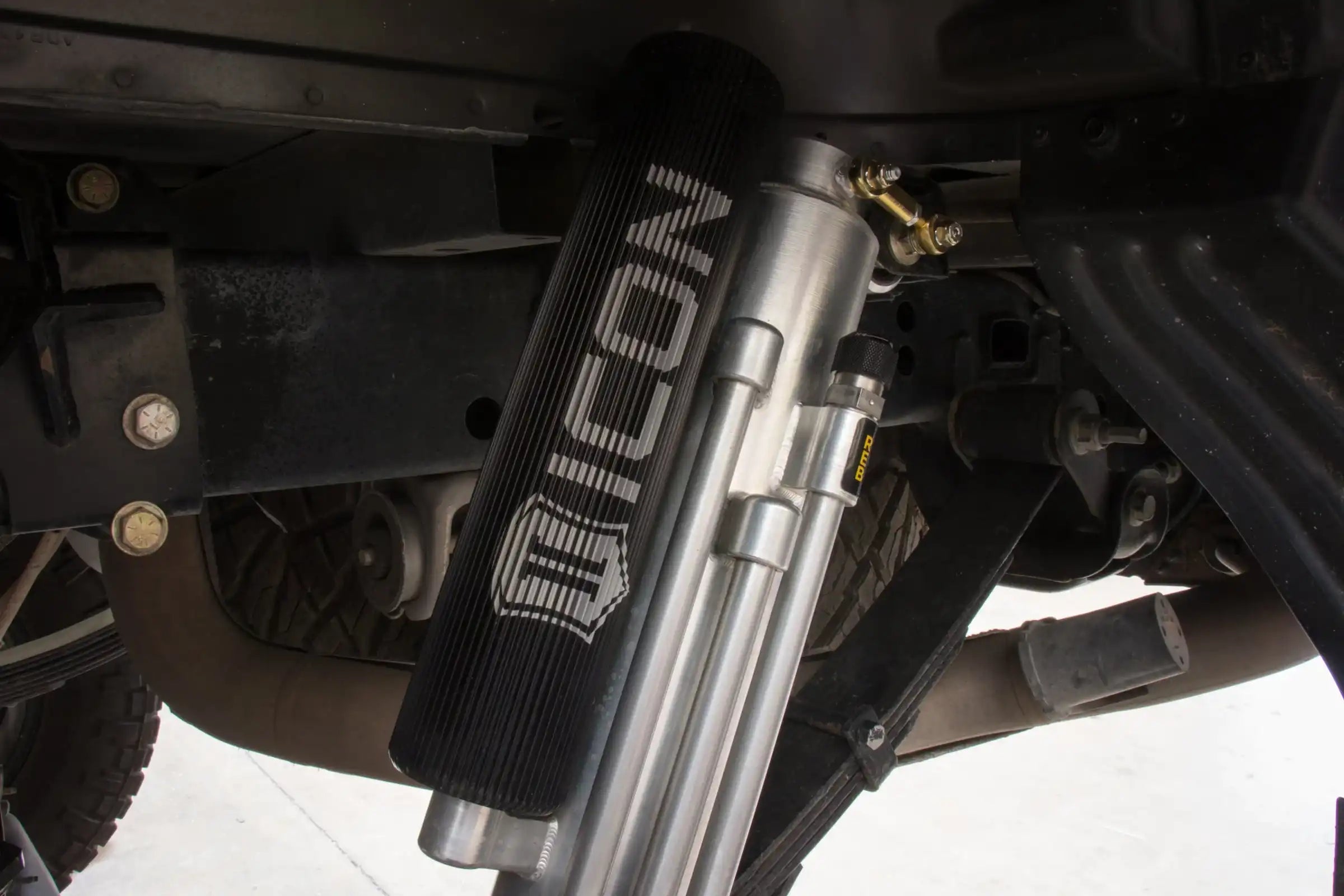

  • 3.0 SERIES 3-TUBE BYPASS SHOCK KIT
  • 3-tube bypass design and "Bump Zone" technology provides multiple unique zones of damping and rebound control
  • 50% increase in damping ability over OE shocks for excellent performance in extreme off-road conditions
  • 12" finned aluminum reservoirs provide generous oil volume and increased surface area for enhanced cooling properties and consistent damping
  • Offset upper eyelet with patented ICON Anti-Wobble link for optimized shock mounting and packaging
  • Increased wheel travel and vehicle specific valving provides unrivaled ride quality across a wide range of on and off-road use
  • Easy-to-adjust detented knobs offer quick adjustability without the use of tools
  • Specially engineered damped valve stops for quiet and precise operation without the loud “clicking” noise common with other brands
  • Urethane shin guards help to protect the shock shaft & rod end from premature wear
  • HYDRAULIC REAR BUMP STOP KIT
  • Bolt-on installation does not require any fabrication or removal of the bed
  • 2.5” travel hydraulic bump stop reduces rear end ‘kick’ and improves overall vehicle performance
  • Velocity sensitive technology exponentially increases bottom-out resistance
  • Vehicle specific bump stop tune provides smooth engagement and excellent ride quality
  • 6061 billet aluminum crossmember increases chassis rigidity to improve overall vehicle dynamics
  • Steel clamshell brackets strengthen the frame in critical areas to prevent damage from extreme off-road use
  • Adjustable tension rods allow the frame to be preloaded to withstand torsional force during hard impacts
  • Heavy duty 1.25” CNC machined nitro steel shafts
  • Multi-stage CAD plated body for maximum corrosion resistance
  • Replaceable noise-reducing striker pad
  • Fully serviceable
  • Superior low speed control reduces body roll and increases on-road stability
  • MULTI-RATE LEAF SPRING KIT
  • 3 user-adjustable spring rates for unique vehicle setups
  • Triple military wrap front eyelet and rear half wrap for increased durability
  • Rebound leaf reduces severe axle wrap
  • Leaf separators and tip inserts reduce noise and friction while increasing ride comfort
  • Direct bolt-in to OEM spring location makes for an easy install
  • “ICON 1K” tested under rigorous off-road conditions to validate tune, performance, strength, and durability
  • Easy-to-adjust CDC Valve (Compression Damping Control) has 10 compression damping settings to suit all types of driving styles across varying terrain and vehicle cargo setups
  • ICON’s multi-stage hydraulic “Bump Zone” exponentially increases bottom-out resistance in the last 40% of compression travel
  • 10" finned aluminum reservoirs provide generous oil volume and increased surface area for enhanced cooling properties and consistent damping
  • Barreled coil spring design maximizes travel and provides more efficient packaging

Attributes:

  • GTIN: 00840103420431
  • Brand Name: ICON Vehicle Dynamics
  • 2064: Steel
  • 2371: Yes
  • 30: Yes
  • 3096: Black
  • 3097: Yes
  • 3390: Performance
  • 5520: 3
  • 6111: 8
  • 7325: 2
  • Add-On Part: 191014 - .25" COLLAR SPANNER PIN WRENCH
  • OEM Wheels & Tires Fitment: Yes
  • Recommended Aftermarket Tires: 35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
  • Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5” Backspace / 6mm Offset

Extended Information:

  • Country of Origin: US
  • Emissions : 4
  • Life Cycle Status: Available To Order

Packing Information:

  • Quantity of Each: 1.0
  • Package UOM: EA
  • Dimension: 48.0000 x 48.0000 x 18.0000 inches
  • Weight: 417.0000 lb
