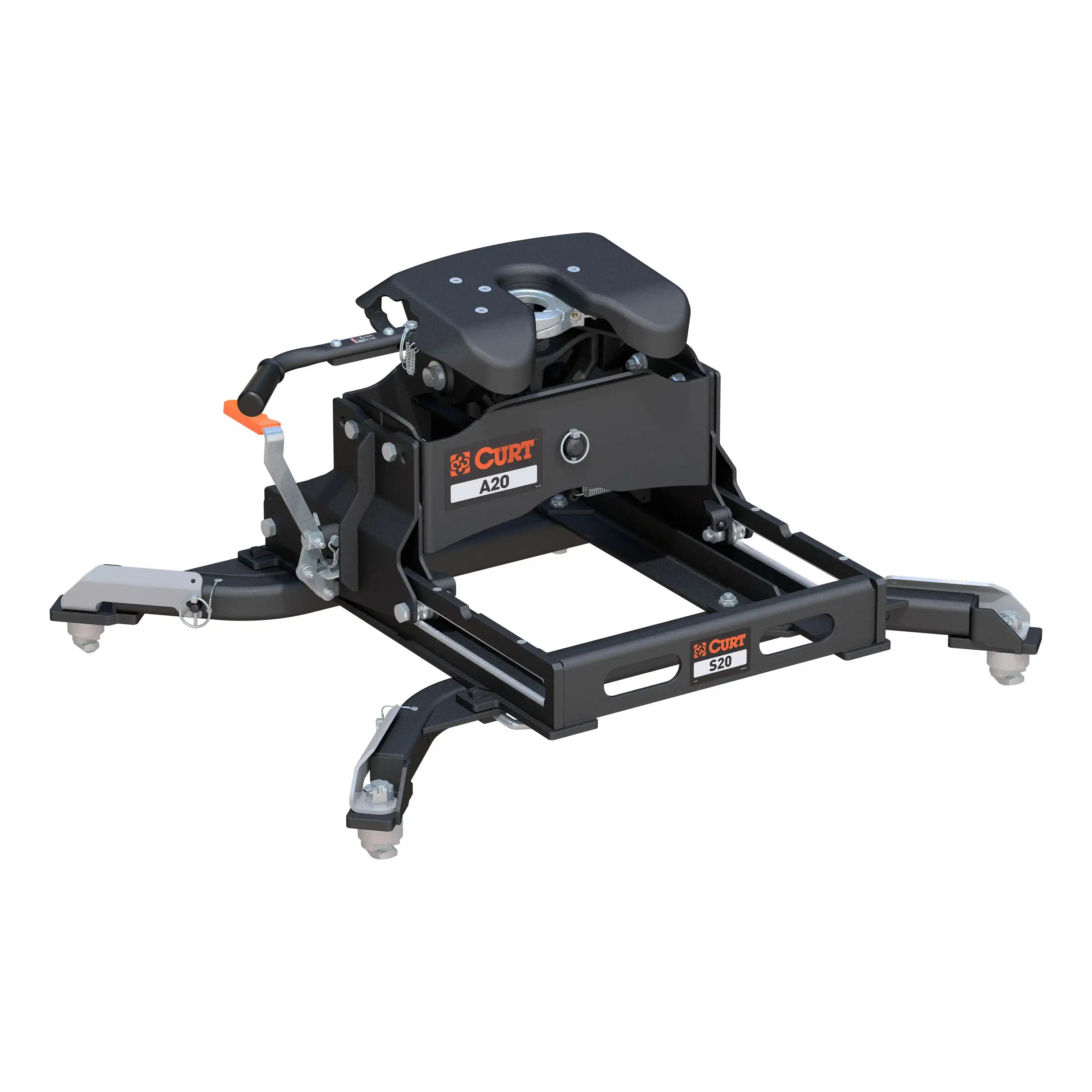

CURT 16695 A20 Sliding 5th Wheel Hitch, 20K, Select Ram 2500, 3500, 6.5' Bed Puck System

The CURT A20 5th wheel hitch uses a patented cast yoke to allow for unimpeded head movement, while providing exceptional stability for the trailer. The yoke has a set of poly-torsion inserts to suppress shock loads and reduce excessive noise, and the head features high-strength, interlocking jaws to give the trailer stability and the freedom to pivot and swivel as needed. The A20 is also fast and simple to operate. It has a lockable, single-throw handle that self-resets to the ready-to-couple position after uncoupling, and it is equipped with a coupling indicator that shows the coupling status. This 20K 5th wheel hitch comes with the CURT S20 slider and the CURT OEM puck system 5th wheel slider adapter. It is designed to be mounted on a Ram short-bed pickup with the truck bed puck system. Using a set of quarter-turn anchors, the adapter quickly and easily drop into the pucks, instantly mounting the A20 hitch and slider and equipping the truck for 5th wheel towing. Once installed, the S20 slider can safely move the coupling point 12" toward the rear, allowing your short-bed truck to make turns without obstruction. The slider is comfortable and easy to operate, featuring a lift-style lever that is easily accessible over the side of the truck wall. The lever moves in a more user-friendly, ergonomic motion compared to traditional, pull-out-style levers. Best of all, the slider automatically latches into place in both directions, meaning you only have to get out of the truck once to complete the operation. CURT sliders also provide up to 12" of displacement as well, unlike the more common 10", to give you a wide range of motion and plenty of space to get your RV or other 5th wheel trailer around any turn. This A20 hitch with puck system slider is only intended to fit the Ram puck system and cannot be installed without it.

Fifth Wheel Trailer Hitch; S Series; With Head/ Head Support/ Handle Kit/ Legs For Ram OEM Puck System/ Slider; 20000 Pound Weight Carrying Capacity/ 5000 Pound Vertical Load; Slider; Three Height Adjustment Positions; Carbide Powder Coated

Features & Benefits

• Quarter-Turn Anchoring System Provides Quick Installation And Removal
• Adjustable Anchors To Eliminate Chucking Between The Legs And Puck System
• Lockable Handle Self-Resets To The Ready-To-Couple Position After Uncoupling
• Cast Yoke With Poly-Torsion Inserts To Suppress Shock Loads And Reduce Noise
• Fully Articulating Torsion Head For Controlled Coupling And Stable Towing
• High-Strength, Interlocking Jaws Fully Wrap The Kingpin To Minimize Noise
• Extra-Wide Head Opening For Easier Coupling
• Fast, One-Pin Head Removal Makes Moving The Hitch Easy
• Three-Position Coupling Indicator Is Clearly Visible From The Truck Cab
• Limited Lifetime Warranty: One Year Finish And Parts Warranty

Attributes

• Gross Trailer Weight: 20000 Pound
• Gross Pin Weight: 5000 Pound
• Mount Type: Sliding
• Vertical Height Adjustment: 19 To 23 Inch
• Pivot Type: 2-Way
• Color/ Finish: Black Powder Coated
• Drilling Required: No
• Cutting Required: No
• Universality: Vehicle Specific
• With Mounting Hardware: Yes
• Material: Steel
• Lock Position: Handle
• Estimated Install Time (Hours): 2
