BDS Suspension BDS1305FSR - 2015-2020 Ford F150 4wd 6in. Lift Kit|

Vendor: BDS Suspension
SKU: BLDV_BDS1305FSR
Availability: Out of stock. Chat\Call to Order
Product Type: Suspension Lift Kit
$3,871.21
$3,689.50
$3,871.21
Why Pay More? We Price Match & Beat It.
Free Shipping within 2 to 6 Days*
Description
Description
x

BDS corrects steering geometry at the new taller ride height using a pair of high-strength CNC machined ductile cast iron steering knuckle design to work with replacement tie rod ends to maintain steering angles for proper function and ESC compatibility.

Prepare to get your 2015-2020 Ford F150 4WD truck dirty after installing a 6-inch lift kit with FOX 2.0 struts by BDS Suspension. Designed to improve stance the BDS 6 inch lift kit with FOX 2.0 front struts give more capability off-road. This kit includes everything necessary to set your F150 truck up right with clearance for up to 37" tires.

This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics. Up front the kit utilizes FOX 2.0 strut shocks, high-arched 1/4-inch thick steel crossmembers, multipiece differential relocation brackets and skidplate designed for offroad protection. Steering geometry is corrected at the new taller ride height with a pair of massive CNC-machined ductile iron steering knuckles. These combined with the provided sway bar relocation brackets, brake line brackets, alignment cam bolts, supplied hardware and more provide a comprehensive front suspension lift ready for use and abuse.

In the rear BDS utilizes high strength fabricated lift blocks and longer u-bolts to lift and level the stance along and NX2 Nitro or optional FOX 2.0 Performance Series shocks.

FOX 2.0 Struts

These FOX 2.0 Performance Series coil-over struts bring impressive damper performance for great ride on and offroad capability designed as a direct bolt-in replacement for the factory strut assemblies while retaining the OE coil spring and top plate. They feature a 2.0"" extruded and machined 6061 T6 aluminum body for better heat dispersion, along with an internal floating piston (IFP) to eliminate oil aeration, FOX's proprietary internals, 5/8"" hard chrome plated heat-treated alloy shaft.

High Clearance Crossmemebers

BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.

Heavy Duty Steering Knuckles

BDS corrects steering geometry at the new taller ride height using a pair of high-strength, CNC machined ductile cast iron steering knuckle design to work with replacement tie rod ends to maintain steering angles for proper function and ESC compatibility.

Features & Benefits

  • FOX 2.0 Performance IFP shocks eliminates oil aeration allowing maximum performance from the factory-tuned, precision valving
  • High clearance crossmembers improve strength and offroad capability
  • Heavy duty steering knuckles to correct steering geometry and maintain ESC system compatibility
  • Top mounted strut spacers to provide lift and install easily
  • Differential skid plate for improved offroad protection
  • Rear lift blocks and u-bolts to lift and level the stance

Recommended Tires & Wheels

(Trimming may be required)

  • 35 x 12.5 with 20 x 9 and 5 in. Backspace
  • 37 x 12.5 with 20 x 9 and 5 in. Backspace

Rear Lift Option

5 Inch Block Kit

  • Level to tail high appearance

4 Inch Block Kit

  • Tail low to level stance

Notes:

  1. 18" wheels with 5-5.5" total backspacing should be test fir prior to mounting tire to ensure proper clearance to BDS steering knuckle.
  2. 18" or larger diameter wheels required. Stock 17" and 18" wheels cannot be reinstalled. Stock 20" wheels can be used with up to a 305/60-20 tires.
  3. E-brake bracket required for factory powersteps (123018)
  4. Block kits replace factory 1-1/4" block.
  5. Models with a 2-piece rear driveshaft may require carrier bearing drop shim kit #122406
  6. Will not fit HD models (7 lug).


More info

  • Front Lift Method : Cross-Member
  • Rear Lift Method : Block
  • Shocks Included : Yes
  • Front Lift Height : 6"
  • Rear Lift Height : 4"

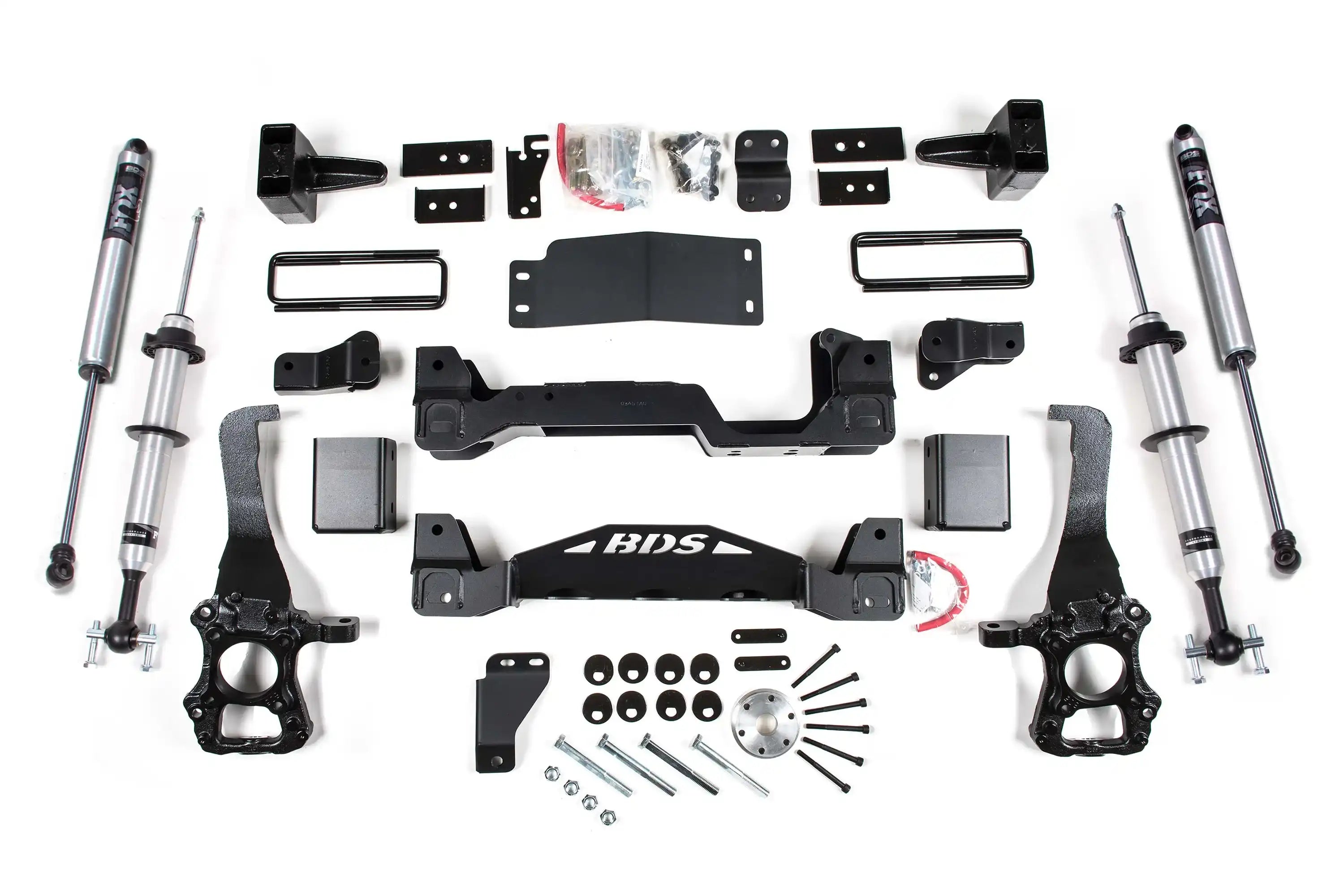

Kit Component List

BDS1305FSR 4 Inch Block Kit


1 BDS013439 2015-2020 Ford F150 4" Rear Block Kit
1 BDS023634 2015-2020 Ford F150 Knuckle Box Kit - DS
1 BDS023635 2015-2020 Ford F150 Knuckle Box Kit - PS
1 BDS023650 2015-2020 Ford F150 Front Box Kit (1of2)
1 BDS023651 2015-2020 Ford F150 Front Box Kit (2of2)
2 FOX98662001 Kit: BDS, 20114-2024 Ford F-150, Front Coilover, Snap Ring, PS, 2.0, IFP, 6.1", 4 & 6" Lift
2 FOX98224760 Fox 2.0 Shock 33.85 x 20.75 x 2- EB1/EB1

Installation Guide


Specifications:

Description_EXT 2015-2020 Ford F150 4wd 6in. Suspension Lift Kit| 3in. rear block - Fox 2.0 Performance Series Snap Ring front shocks| Fox 2.0 Performance Series rear shocks
Description_FAB FOX 2.0 Performance IFP shocks eliminates oil aeration allowing maximum performance from the factory-tuned precision valving
Description_FAB High clearance crossmembers improve strength and offroad capability
Description_FAB Heavy duty steering knuckles to correct steering geometry and maintain ESC system compatibility
Description_FAB Top mounted strut spacers to provide lift and install easily
Description_FAB Differential skid plate for improved offroad protection
Description_FAB Rear lift blocks and u-bolts to lift and level the stance
Description_MKT Prepare to get your 2015-2020 Ford F150 4WD truck dirty after installing a 6-inch lift kit with FOX 2.0 struts by BDS Suspension. Designed to improve stance the BDS 6 inch lift kit with FOX 2.0 front struts give more capability off-road. This kit includes everything necessary to set your F150 truck up right with clearance for up to 37" tires.
Description_MKT This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance strength and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics. Up front the kit utilizes FOX 2.0 strut shocks high-arched 1/4-inch thick steel crossmembers multipiece differential relocation brackets and skidplate designed for offroad protection. Steering geometry is corrected at the new taller ride height with a pair of massive CNC-machined ductile iron steering knuckles. These combined with the provided sway bar relocation brackets brake line brackets alignment cam bolts supplied hardware and more provide a comprehensive front suspension lift ready for use and abuse.
Description_MKT In the rear BDS utilizes high strength fabricated lift blocks and longer u-bolts to lift and level the stance along and NX2 Nitro or optional FOX 2.0 Performance Series shocks.
Description_MKT FOX 2.0 Struts
Description_MKT These FOX 2.0 Performance Series coil-over struts bring impressive damper performance for great ride on and offroad capability designed as a direct bolt-in replacement for the factory strut assemblies while retaining the OE coil spring and top plate. They feature a 2.0" extruded and machined 6061 T6 aluminum body for better heat dispersion along with an internal floating piston (IFP) to eliminate oil aeration FOX's proprietary internals 5/8" hard chrome plated heat-treated alloy shaft.
Description_MKT High Clearance Crossmemebers
Description_MKT BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.
Description_MKT Heavy Duty Steering Knuckles
Description_MKT BDS corrects steering geometry at the new taller ride height using a pair of high-strength CNC machined ductile cast iron steering knuckle design to work with replacement tie rod ends to maintain steering angles for proper function and ESC compatibility.
Description_SHO Suspension lift kit
Description_ASC 18" wheels with 5-5.5" total backspacing should be test fir prior to mounting tire to ensure proper clearance to BDS steering knuckle.
Description_ASC 18" or larger diameter wheels required. Stock 17" and 18" wheels cannot be reinstalled. Stock 20" wheels can be used with up to a 305/60-20 tires.
Description_ASC E-brake bracket required for factory powersteps (123018)
Description_ASC Block kits replace factory 1-1/4" block.
Description_ASC Models with a 2-piece rear driveshaft may require carrier bearing drop shim kit #122406
Description_ASC Will not fit HD models (7 lug).
Description_DES 2015-2020 Ford F150 4wd 6in. Suspension Lift Kit|
Description_DEF Suspension Lift Kit
