BDS Suspension BDS1533FSR - 2015-2020 Ford F150 4wd 4in. Lift Kit|
Vendor:
BDS Suspension
SKU:
BLDV_BDS1533FSR
Availability:
2
In Stock
Product Type:
Suspension Lift Kit
- Regular price
- $3,962.41 CAD
- Regular price
-
$3,689.50 - Sale price
- $3,962.41 CAD
- Unit price
- per
Take 10% off select products at checkout.
Savings auto-applies on selected products at checkout. Exclusions apply.
Couldn't load pickup availability
Description
xProduct Description
Take your truck to the next level with the BDS Suspension 4-Inch Lift Kit with FOX 2.0 Struts, engineered specifically for the Ford F-150 (2015–2020 4WD). This premium lift system enhances both off-road capability and on-road handling, giving your truck a more aggressive stance while maintaining ride quality.
Built around BDS’s high-clearance design, this kit improves ground clearance and durability while correcting suspension and steering geometry. The included FOX 2.0 Performance Series struts deliver exceptional damping performance with an internal floating piston (IFP) to eliminate oil aeration, ensuring consistent performance in any terrain.
With heavy-duty crossmembers, ductile iron steering knuckles, and a full set of supporting components, this kit provides a complete suspension upgrade ready for rugged off-road use and daily driving.
Features & Benefits
- FOX 2.0 IFP struts for superior damping and ride control
- High-clearance 1/4” steel crossmembers for strength and protection
- CNC-machined steering knuckles to correct geometry and maintain ESC compatibility
- Differential skid plate for added off-road protection
- Rear lift blocks and extended u-bolts for a leveled stance
- Maintains excellent on-road handling characteristics
- Designed for 35” tire clearance
- Complete kit with all required brackets and hardware
Attributes
- Brand: BDS Suspension
- Product Type: Suspension Lift Kit
- Lift Height:
-
Front: 4 Inch
-
Rear: 3 Inch
- Front Lift Method: Crossmember
- Rear Lift Method: Block Kit
- Shocks: FOX 2.0 Struts (Front) / NX2 Nitro or FOX optional (Rear)
- Material: Steel (Crossmembers), Aluminum (FOX Struts)
- Max Tire Size: 35 x 12.5
- Wheel Requirement: 18” or larger
- Installation Time: ~10 Hours
- Difficulty Level: Difficult
- Tools Required: Cut-off tool, reciprocating saw, strut compressor
Recommended Tire & Wheel Setup
- 35 x 12.50 with 18 x 9 (5.5” backspacing)
- 35 x 12.50 with 20 x 9 (5.5” backspacing)
Fitment Table
|
Year |
Make |
Model |
Submodel |
Drive Type |
Fuel Type |
Notes |
|---|---|---|---|---|---|---|
|
2015 |
Ford |
F-150 |
All |
4WD |
All |
— |
|
2016 |
Ford |
F-150 |
All |
4WD |
All |
— |
|
2017 |
Ford |
F-150 |
XL / XLT / Lariat / King Ranch / Platinum / Limited / SSV |
4WD |
All |
— |
|
2018 |
Ford |
F-150 |
XL / XLT / Lariat / King Ranch / Platinum / Limited / SSV |
4WD |
All |
— |
|
2018 |
Ford |
F-150 |
Police Responder |
All |
All |
— |
|
2019 |
Ford |
F-150 |
XL / XLT / Lariat / King Ranch / Platinum / Limited / SSV |
4WD |
All |
— |
|
2019 |
Ford |
F-150 |
Police Responder |
All |
All |
— |
|
2020 |
Ford |
F-150 |
XL / XLT / Lariat / King Ranch / Platinum / Limited / SSV |
4WD |
All |
— |
|
2020 |
Ford |
F-150 |
Police Responder |
All |
All |
— |

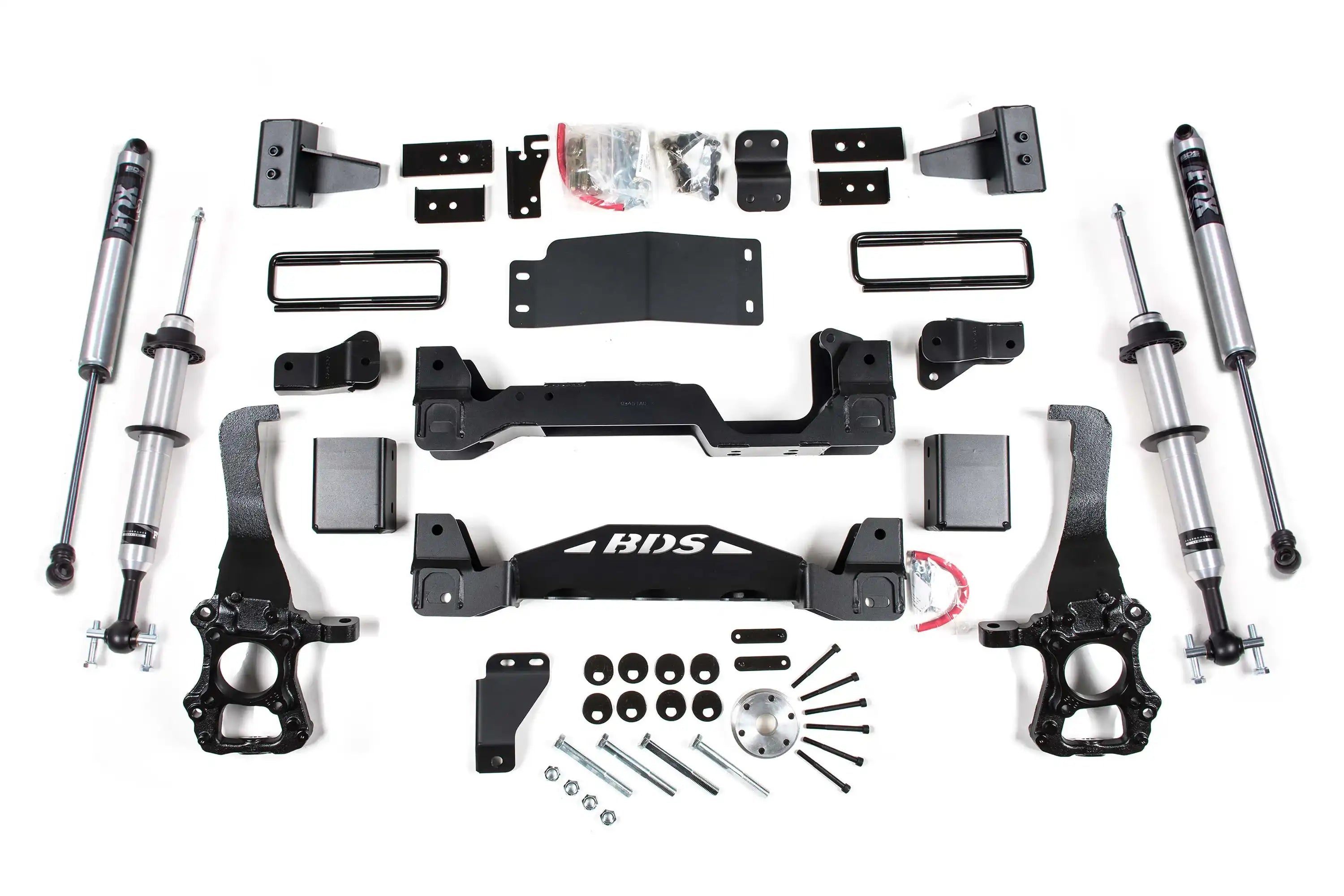

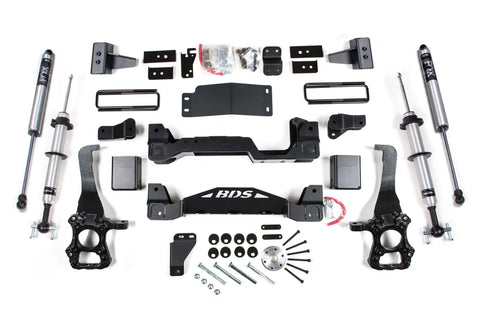

Kit Component List
| 0 | BDS1533FSR | 4 Inch Lift Kit | FOX 2.0 IFP Strut | Ford F150 (15-20) 4WD | |
|---|---|---|---|
| 2 | FOX98662001 | BDS, 2014-2024 Ford F-150, Front Coilover, Snap Ring, PS, 2.0, IFP, 6.1", 4 & 6" Lift | |
| 2 | FOX98224828 | Fox 2.0 Shock 31.02 x 18.95 x 2- EB1/EB1 |
Installation Guides :
Specifications:
| Description_MKT | BDS corrects steering geometry at the new taller ride height using a pair of high-strength CNC machined ductile cast iron steering knuckle design to work with replacement tie rod ends to maintain steering angles for proper function and ESC compatibility. |
| Description_SHO | Suspension lift kit |
| Description_ASC | 18" wheels with 5-5.5" total backspacing should be test fir prior to mounting tire to ensure proper clearance to BDS steering knuckle. |
| Description_ASC | 18" or larger diameter wheels required. Stock 17" and 18" wheels cannot be reinstalled. Stock 20" wheels can be used with up to a 305/60-20 tires. |
| Description_ASC | E-brake bracket required for factory powersteps (123018) |
| Description_ASC | Block kits replace factory 1-1/4" block. |
| Description_ASC | Models with a 2-piece rear driveshaft may require carrier bearing drop shim kit #122406 |
| Description_ASC | Will not fit HD models (7 lug). |
| Description_DES | 2015-2020 Ford F150 4wd 4in. Suspension Lift Kit| |
| Description_EXT | 2015-2020 Ford F150 4wd 4in. Suspension Lift Kit| 3in. rear block - Fox 2.0 Performance Series Snap Ring front shocks| Fox 2.0 Performance Series rear shocks |
| Description_FAB | FOX 2.0 Performance IFP shocks eliminates oil aeration allowing maximum performance from the factory-tuned precision valving |
| Description_FAB | High clearance crossmembers improve strength and offroad capability |
| Description_FAB | Heavy duty steering knuckles to correct steering geometry and maintain ESC system compatibility |
| Description_FAB | Top mounted strut spacers to provide lift and install easily |
| Description_FAB | Differential skid plate for improved offroad protection |
| Description_FAB | Rear lift blocks and u-bolts to lift and level the stance |
| Description_MKT | Prepare to get your 2015-2020 Ford F150 4WD truck dirty after installing a 4-inch lift kit with FOX 2.0 struts by BDS Suspension. Designed to improve stance the BDS 4 inch lift kit with FOX 2.0 front struts give more capability off-road. This kit includes everything necessary to set your F150 truck up right with clearance for up to 35" tires. |
| Description_MKT | This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance strength and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics. Up front the kit utilizes FOX 2.0 strut shocks high-arched 1/4-inch thick steel crossmembers multipiece differential relocation brackets and skidplate designed for offroad protection. Steering geometry is corrected at the new taller ride height with a pair of massive CNC-machined ductile iron steering knuckles. These combined with the provided sway bar relocation brackets brake line brackets alignment cam bolts supplied hardware and more provide a comprehensive front suspension lift ready for use and abuse. |
| Description_MKT | In the rear BDS utilizes high strength fabricated lift blocks and longer u-bolts to lift and level the stance along and NX2 Nitro or optional FOX 2.0 Performance Series shocks. |
| Description_MKT | FOX 2.0 Struts |
| Description_MKT | These FOX 2.0 Performance Series coil-over struts bring impressive damper performance for great ride on and offroad capability designed as a direct bolt-in replacement for the factory strut assemblies while retaining the OE coil spring and top plate. They feature a 2.0" extruded and machined 6061 T6 aluminum body for better heat dispersion along with an internal floating piston (IFP) to eliminate oil aeration FOX's proprietary internals 5/8" hard chrome plated heat-treated alloy shaft. |
| Description_MKT | High Clearance Crossmemebers |
| Description_MKT | BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection. |
| Description_MKT | Heavy Duty Steering Knuckles |
| Description_DEF | Suspension Lift Kit |
