BDS Suspension BDS1579FSR - 2021-2023 Ford F150 4wd 6in. Lift Kit|

Name: BDS Suspension BDS1579FSR - 2021-2023 Ford F150 4wd 6in. Lift Kit|
Brand: BDS Suspension
SKU: BLDV_BDS1579FSR
Price: 3890.19 CAD
Availability: OutOfStock

Vendor: BDS Suspension

SKU: BLDV_BDS1579FSR

Availability: Out of stock. Chat\Call to Order

Product Type: Suspension Lift Kit

Regular price: $3,890.19
Regular price: ~~$3,616.36~~
Sale price: $3,890.19
Unit price: per

Why Pay More? We Price Match & Beat It.

Quantity:

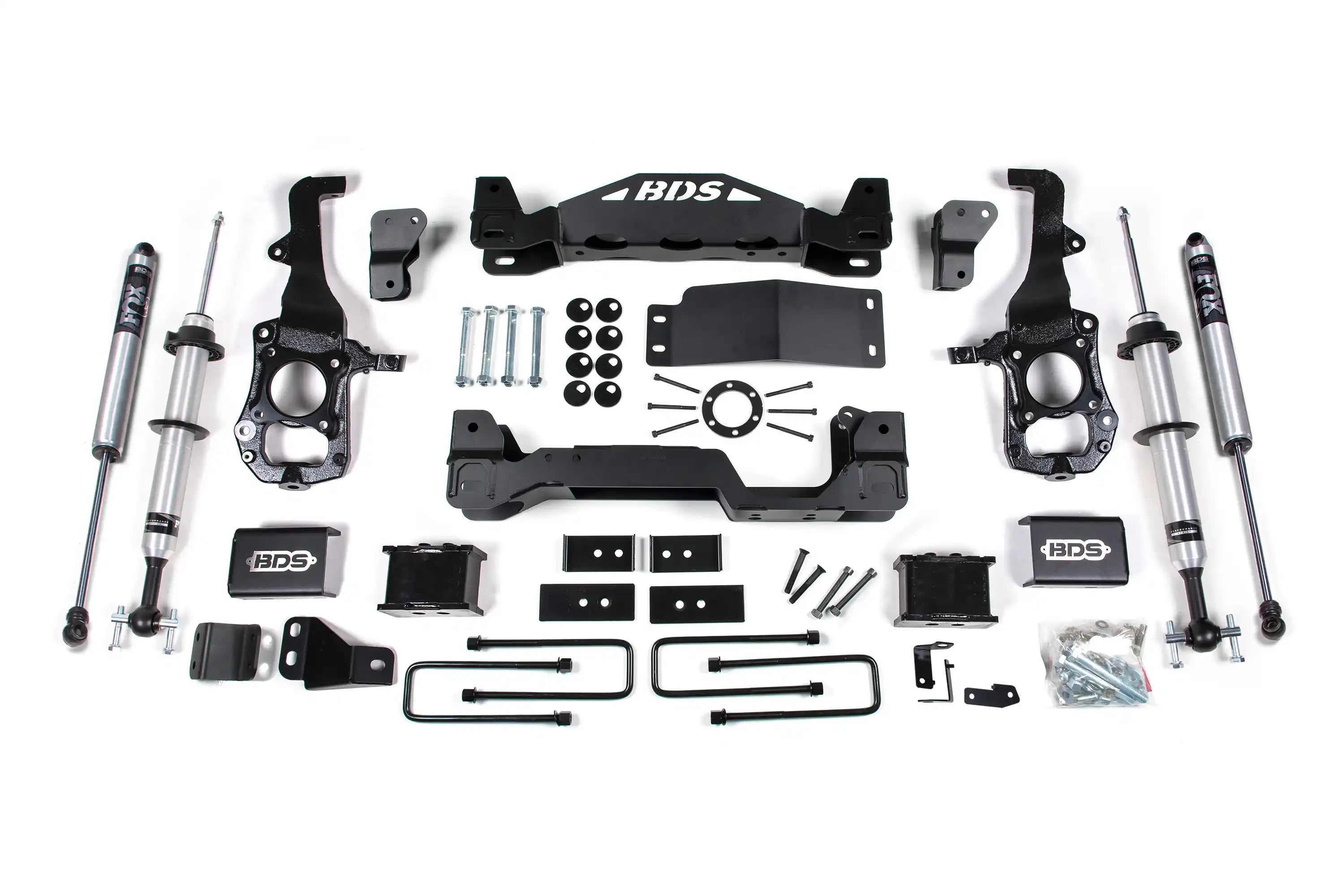

2021-2023 Ford F150 4wd 6in. Suspension Lift Kit| 4in. rear block - Fox 2.0 Performance Series Snap Ring front shocks| Fox 2.0 Performance Series rear shocks

Specifications:

Description_MKT	These FOX 2.0 Performance Series coil-over struts bring impressive damper performance for great ride on and offroad capability designed as a direct bolt-in replacement for the factory strut assemblies while retaining the OE coil spring and top plate. They feature a 2.0" extruded and machined 6061 T6 aluminum body for better heat dispersion along with an internal floating piston (IFP) to eliminate oil aeration FOX's proprietary internals 5/8" hard chrome plated heat-treated alloy shaft.
Description_MKT	High Clearance Crossmemebers
Description_MKT	BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.
Description_MKT	Heavy Duty Steering Knuckles
Description_MKT	BDS corrects steering geometry at the new taller ride height using a pair of high-strength CNC machined ductile cast iron steering knuckle design to work with replacement tie rod ends to maintain steering angles for proper function and ESC compatibility.
Description_SHO	Suspension lift kit
Description_DEF	Suspension Lift Kit
Description_ASC	18" or larger diameter wheels are required. Stock 17" and 18" wheels cannot be re-installed. Stock 20" wheels can be used with up to a 305/60R20 tire.
Description_ASC	Will not work with models with CCD (Continuous Controlled Damping)
Description_ASC	18" wheels with 5-5.5" backspacing should be test fit prior to mounting the tire to ensure proper clearance to the steering knuckle/tie rod. 5.5" backspacing is highly recommended for tire-to-frame crash bar clearance.
Description_ASC	Models with 2-piece rear driveshaft WILL require carrier bearing shim kit 122406 (not included w/ kit)
Description_ASC	Block kits replace factory 1-1/4" block. The stock block will not be reinstalled.
Description_ASC	Crash bars may require modification based on wheel and tire choice. It is the end user's responsibility to ensure modifications are non-detrimental to vehicle safety.
Description_ASC	Does NOT fit diesel models.
Description_ASC	Will not work with Tremor models.
Description_ASC	Some trucks with a 2 piece drive shaft may have a recall from Ford regarding the rear driveshaft. (Safety Recall 21S25) Due to the recall procedure BDS recommends having this performed prior to installing the lift.
Description_ASC	This system has not been tested on models equipped with Ford BlueCruise.
Description_DES	2021-2023 Ford F150 4wd 6in. Suspension Lift Kit\|
Description_EXT	2021-2023 Ford F150 4wd 6in. Suspension Lift Kit\| 4in. rear block - Fox 2.0 Performance Series Snap Ring front shocks\| Fox 2.0 Performance Series rear shocks
Description_FAB	FOX 2.0 Performance IFP shocks eliminates oil aeration allowing maximum performance from the factory-tuned precision valving
Description_FAB	High clearance crossmembers improve strength and offroad capability
Description_FAB	Heavy duty steering knuckles to correct steering geometry and maintain ESC system compatibility
Description_FAB	Top mounted strut spacers to provide lift and install easily
Description_FAB	Differential skid plate for improved offroad protection
Description_FAB	Rear lift blocks and u-bolts to lift and level the stance
Description_MKT	Increase the performance and capability of the 2021 Ford F150 trucks with 6-inch lift kit with FOX 2.0 struts by BDS Suspension. Designed to improve stance the BDS 6 inch lift kit with FOX 2.0 front struts give more capability off-road. This kit includes everything necessary to set your F150 truck up right with clearance for up to 37" tires.
Description_MKT	This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance strength and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics. Up front the kit utilizes FOX 2.0 strut shocks high-arched 1/4-inch thick steel crossmembers multipiece differential relocation brackets and skidplate designed for offroad protection. Steering geometry is corrected at the new taller ride height with a pair of massive CNC-machined ductile iron steering knuckles. These combined with the provided sway bar relocation brackets brake line brackets alignment cam bolts supplied hardware and more provide a comprehensive front suspension lift ready for use and abuse.
Description_MKT	In the rear BDS utilizes high strength fabricated lift blocks and longer u-bolts to lift and level the stance along and NX2 Nitro or optional FOX 2.0 Performance Series shocks.
Description_MKT	FOX 2.0 Struts
