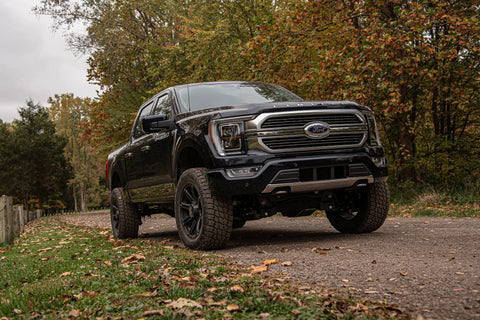

BDS Suspension BDS1583H - 2021-2023 Ford F150 4in. Lift System NX2 Shocks
BDS Suspension BDS1583H - 2021-2023 Ford F150 4in. Lift System NX2 Shocks
BDS Suspension BDS1583H - 2021-2023 Ford F150 4in. Lift System NX2 Shocks

BDS Suspension BDS1583H - 2021-2023 Ford F150 4in. Lift System NX2 Shocks

Vendor: BDS Suspension
SKU: BLDV_BDS1583H
Availability: 9 In Stock
Product Type: Suspension Lift Kit
$2,534.01 CAD
$2,686.31
$2,534.01 CAD
Found Better Price? Get Price Match!
Take 10% off select products at checkout.
Savings auto-applies on selected products at checkout. Exclusions apply.
  • TruckPoint
* Images may differ from actual product.
Description
Description
x

Product Description

Upgrade your truck’s stance, performance, and off-road capability with the BDS Suspension 4-Inch Suspension Lift Kit for 2021–2026 Ford F-150. Engineered for durability and precision, this complete lift system delivers increased ground clearance, improved handling, and the ability to run up to 35-inch tires for a more aggressive look and enhanced trail performance.

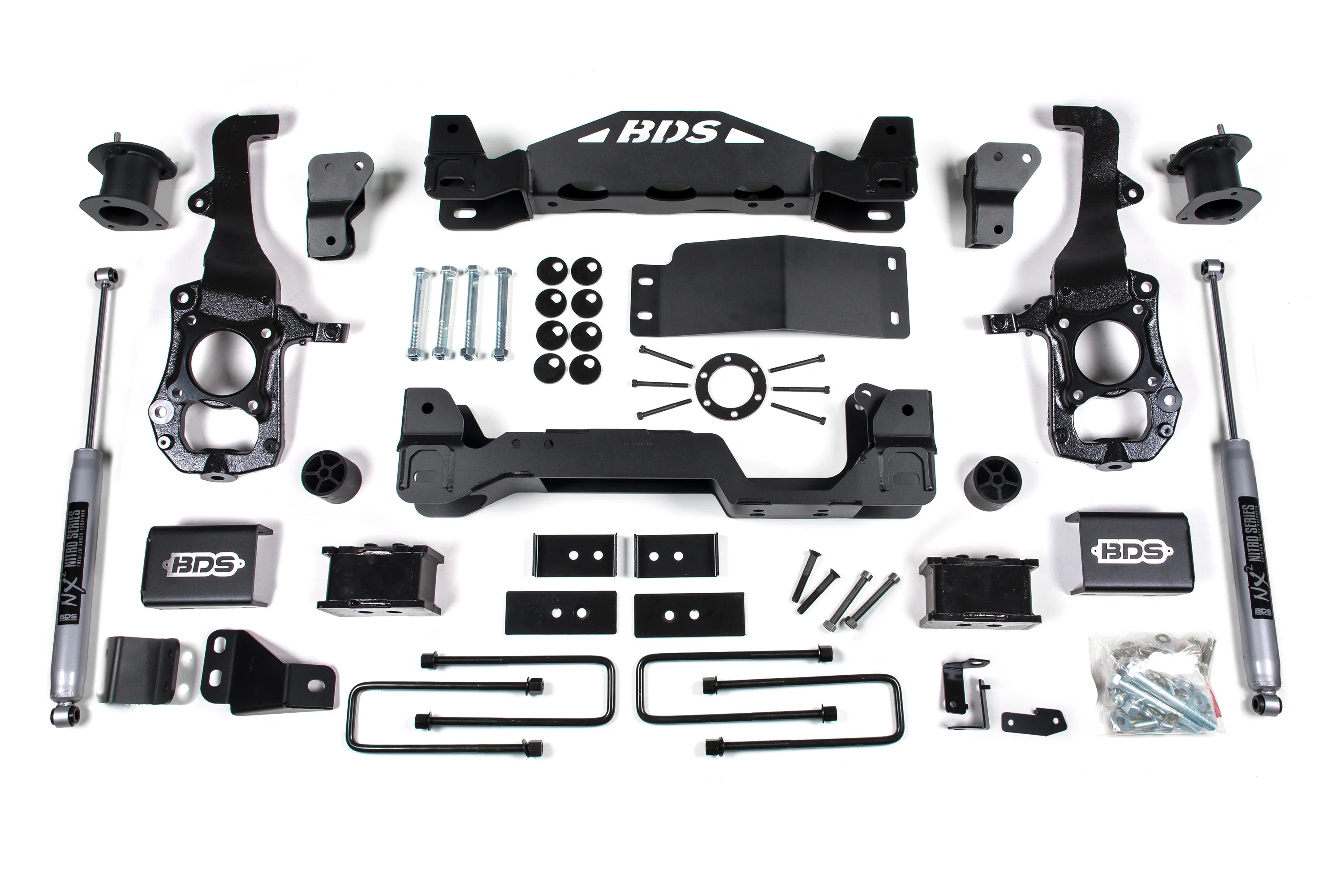

Built on BDS’s proven high-clearance design, this kit features heavy-duty 1/4-inch steel crossmembers, differential relocation brackets, and a protective skid plate to ensure maximum strength and off-road protection. The inclusion of CNC-machined ductile iron steering knuckles corrects suspension and steering geometry, maintaining proper handling and ESC compatibility even at increased ride height.

Out back, high-strength fabricated lift blocks and extended U-bolts level the truck’s stance, while NX2 Nitro shocks (included) provide balanced on-road comfort and off-road control. For those seeking premium performance, the kit also offers an upgrade option to FOX 2.0 Performance Series shocks for superior damping and heat dissipation.

Designed for both daily driving and rugged adventures, this lift kit ensures your F-150 performs as good as it looks—on any terrain.

Features & Benefits

  • 4-inch front lift for aggressive stance and improved ground clearance
  • Clears up to 35-inch tires (trimming may be required)
  • High-clearance 1/4” steel crossmembers for strength and durability
  • Heavy-duty CNC-machined steering knuckles for corrected geometry
  • Differential relocation brackets for proper driveline alignment
  • Integrated skid plate for enhanced off-road protection
  • Rear lift blocks and U-bolts to level vehicle stance
  • Includes NX2 Nitro shocks with vehicle-specific valving
  • Optional upgrade to FOX 2.0 Performance Series shocks
  • Maintains factory ride quality and ESC compatibility
  • Compatible with BlueCruise systems

Attributes

  • Brand: BDS Suspension
  • Product Type: Suspension Lift Kit
  • Lift Height (Front): 4 Inch
  • Lift Height (Rear): 2–3 Inch (depending on block option)
  • Lift Method (Front): Crossmember
  • Lift Method (Rear): Block
  • Shocks Included: Yes (NX2 Nitro Series)
  • Optional Shock Upgrade: FOX 2.0 Performance Series
  • Max Tire Size: 35 Inch
  • Installation Time: 8–10 Hours
  • Difficulty Level: Difficult
  • Drive Type: 4WD

Rear Lift Options

  • 3-Inch Block Kit: Level to slightly tail-high stance
  • 2-Inch Block Kit: Tail-low to level stance

Shock Options

NX2 Nitro Series (Included)

  • Nitrogen-charged twin-tube design
  • 10-stage velocity-sensitive valving
  • High-flow piston with durable construction

FOX 2.0 Performance Series (Optional Upgrade)

  • Aluminum monotube body with internal floating piston
  • Race-developed high-flow piston design
  • Superior heat dissipation and damping control

Recommended Tire & Wheel Setup

  • 35 x 12.50 tires
  • 20 x 8 wheels (5.5” backspace)
  • 20 x 9 wheels (5.75” backspace)
  • (Trimming may be required)

Key Benefits

  • Improved off-road capability and protection
  • Enhanced handling with corrected suspension geometry
  • Aggressive, leveled stance with larger tire clearance
  • Reliable performance for both daily driving and extreme terrain

Installation Guides :

  • Download Guide 1


Specifications:

Description_ASC Some trucks with a 2 piece drive shaft may have a recall from Ford regarding the rear driveshaft. (Safety Recall 21S25) Due to the recall procedure BDS recommends having this performed prior to installing the lift.
Description_ASC This system has not been tested on models equipped with Ford BlueCruise.
Description_DES 2021-2023 Ford F150 4in. BDS Lift System - NX2 Shocks
Description_EXT 2021-2023 Ford F150 4in. BDS Lift System - NX2 Shocks

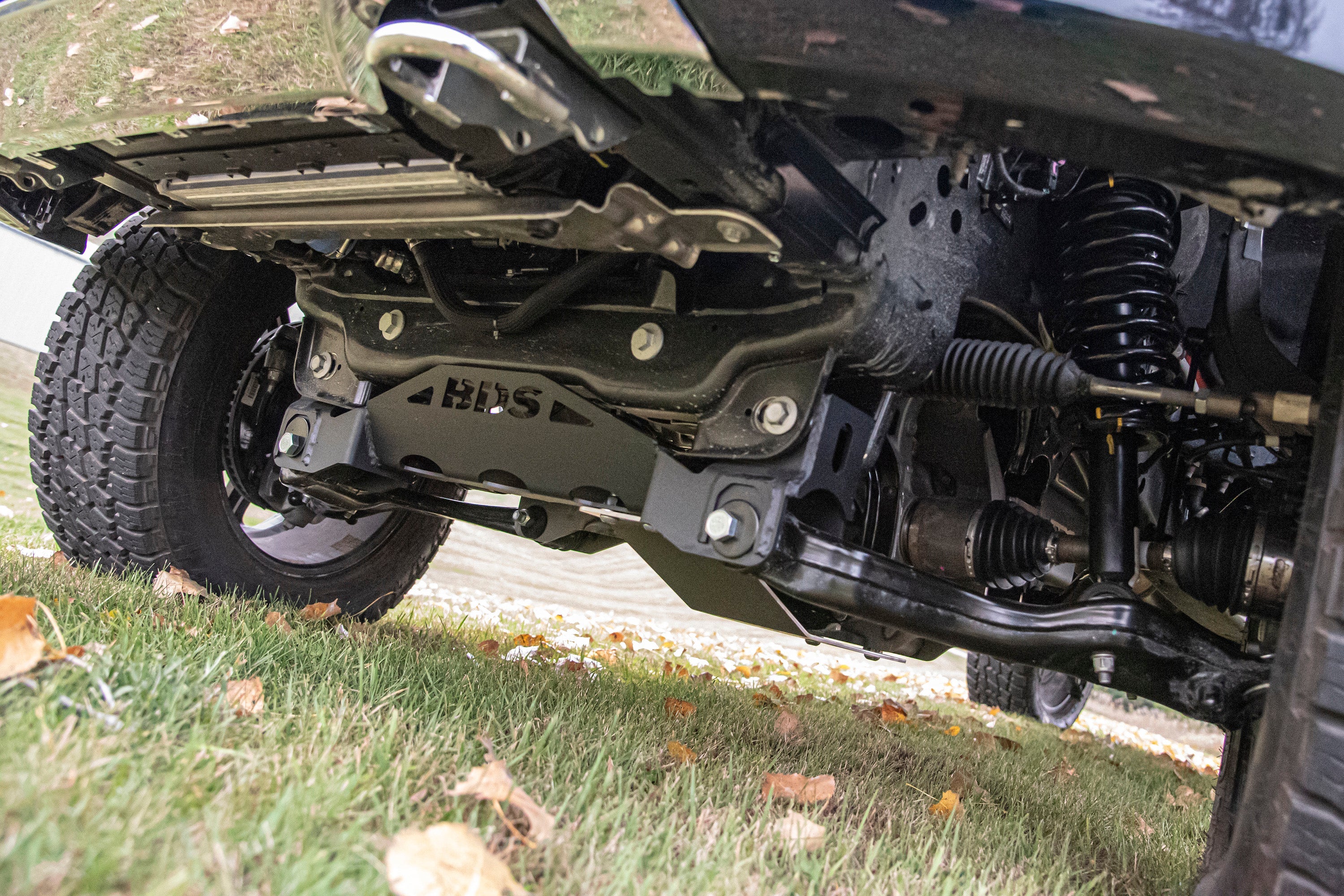

Description_FAB High clearance crossmembers improve strength and offroad capability
Description_FAB Heavy duty steering knuckles to correct steering geometry and maintain ESC system compatibility
Description_FAB Top mounted strut spacers to provide lift and install easily
Description_FAB Differential skid plate for improved offroad protection
Description_FAB Rear lift blocks and u-bolts to lift and level the stance
Description_FAB Standard NX2 Nitro shocks with vehicle-specific valving for better control
Description_FAB Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road
Description_MKT BDS steps up the performance and capability of the 2021 Ford F150 trucks with 4-inch suspension lift kits. Designed to improve stance performance and capability this kit includes everything necessary to set your truck up right with clearance for up to 35" tires.
Description_MKT This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance strength and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics. Up front the kit utilizes high-arched 1/4-inch thick steel crossmembers multipiece differential relocation brackets and skidplate designed for offroad protection. Steering geometry is corrected at the new taller ride height with a pair of massive CNC-machined ductile iron steering knuckles. These combined with the provided sway bar relocation brackets brake line brackets alignment cam bolts supplied hardware and more provide a comprehensive front suspension lift ready for use and abuse.
Description_MKT In the rear BDS utilizes high strength fabricated lift blocks and longer u-bolts to lift and level the stance along and NX2 Nitro or optional FOX 2.0 Performance Series shocks.
Description_MKT High Clearance Crossmemebers
Description_MKT BDS maximizes ground clearance with their heavy duty ¼-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.
Description_MKT Heavy Duty Steering Knuckles
Description_MKT BDS corrects steering geometry at the new taller ride height using a pair of high-strength CNC machined ductile cast iron steering knuckle design to work with replacement tie rod ends to maintain steering angles for proper function and ESC compatibility.
Description_SHO Suspension lift kit
Description_ASC 18" or larger diameter wheels are required. Stock 17" and 18" wheels cannot be re-installed. Stock 20" wheels can be used with up to a 305/60R20 tire.
Description_ASC Will not work with models with CCD (Continuous Controlled Damping)
Description_ASC 18" wheels with 5-5.5" backspacing should be test fit prior to mounting the tire to ensure proper clearance to the steering knuckle/tie rod. 5.5" backspacing is highly recommended for tire-to-frame crash bar clearance.
Description_ASC Models with 2-piece rear driveshaft WILL require carrier bearing shim kit 122406 (not included w/ kit)
Description_ASC Block kits replace factory 1-1/4" block. The stock block will not be reinstalled.
Description_ASC Crash bars may require modification based on wheel and tire choice. It is the end user's responsibility to ensure modifications are non-detrimental to vehicle safety.
Description_ASC Does NOT fit diesel models.
Description_ASC Will not work with Tremor models.
Description_DEF Suspension Lift Kit
