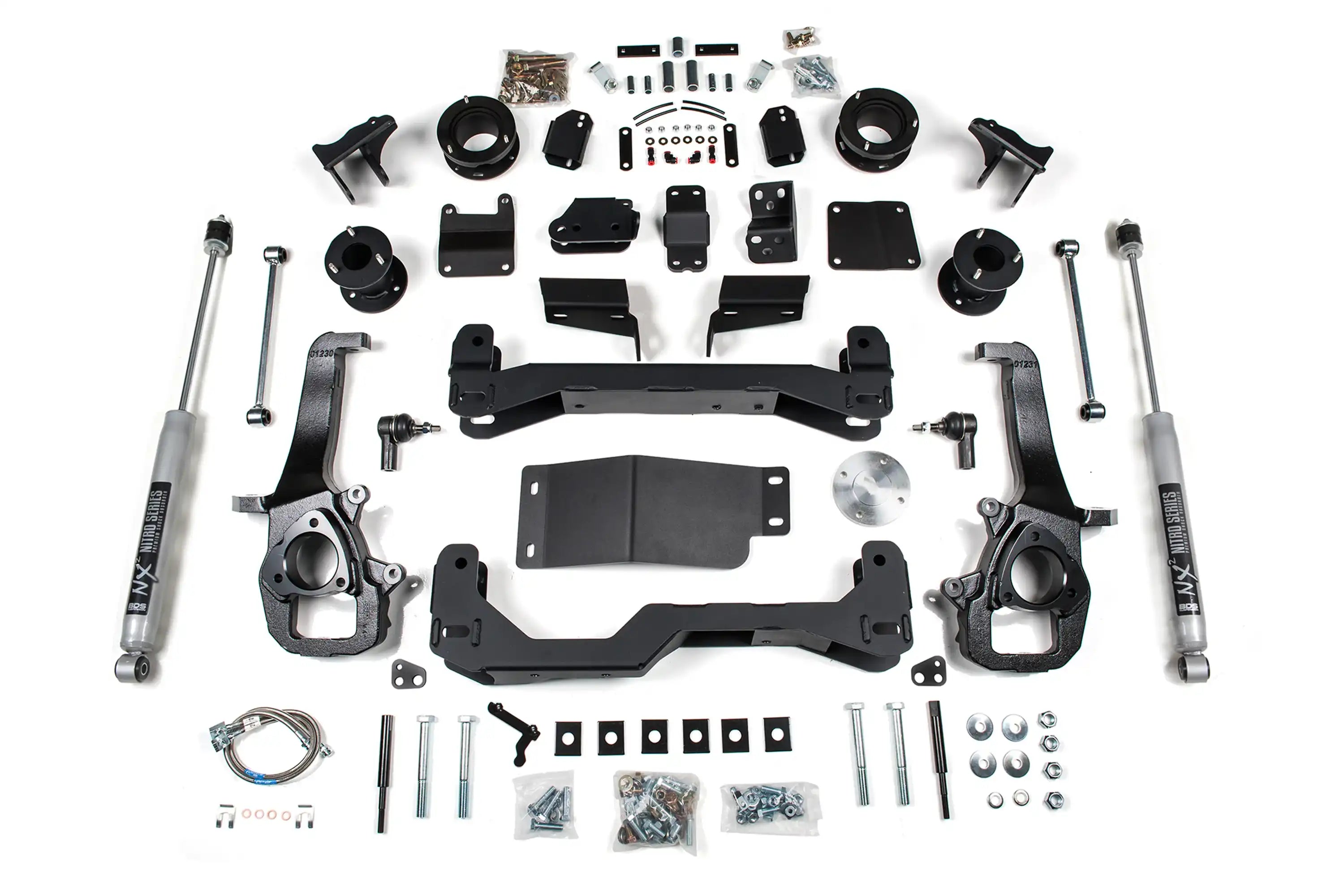

BDS Suspension BDS1697H - 2020-2022 Ram 1500 4in. Air Ride Lift System NX2 Shocks
Vendor:
BDS Suspension
SKU:
BLDV_BDS1697H
Availability:
3
In Stock
Product Type:
Suspension Lift Kit
- Regular price
- $3,245.57 CAD
- Regular price
-
$3,325.25 - Sale price
- $3,245.57 CAD
- Unit price
- per
Take 10% off select products at checkout.
Savings auto-applies on selected products at checkout. Exclusions apply.
Couldn't load pickup availability
Description
xBDS corrects steering geometry at the new taller ride height using a pair of high-strength CNC machined ductile cast iron steering knuckle design to work with replacement tie rod ends to maintain steering angles for proper function and ESC compatibility.
Specifications:
| Description_ASC | Extreme care/caution must be taken to follow the steps of these instructions to prevent any air leaks or damage to the bags during installation. |
| Description_ASC | The factory air ride is a closed-loop system. Opening the system more times than recommended in the lift instructions will require the system to be recharged (this can be done at any RAM dealer service department). A scan tool is needed to access the air control module to perform the service. |
| Description_ASC | Frame bracket modification is required. |
| Description_ASC | Fits 4WD models equipped with factory air ride only. |
| Description_ASC | Stock 18" wheels cannot be reinstalled due to steering interference. Stock 20"+ wheels can be reinstalled with factory-size tires. |
| Description_ASC | Trucks equipped with factory 22" wheels must use the large bore steering knuckles. |
| Description_ASC | Does NOT fit Diesel Models. |
| Description_ASC | Will NOT fit models equipped with the Thermal Axle option. Reference build code DSK-P or check the diff cover for cooling lines mounted. |
| Description_DES | 2020-2022 Ram 1500 4in. Air Ride Suspension Lift System - NX2 Shocks |
| Description_EXT | 2020-2022 Ram 1500 4in. Air Ride Suspension Lift System - NX2 Shocks |
| Description_FAB | High clearance crossmember design maximizes ground clearance |
| Description_FAB | Robust steering knuckles maintain ESC system compliance |
| Description_FAB | HD skid plate system improved offroad protection |
| Description_FAB | Multipoint differential relocation brackets to secure the front axle and improve CV angles |
| Description_FAB | BDS NX2 gas or FOX performance series IFP gas shocks to improved ride and offroad performance |
| Description_FAB | Factory Protection Plus drivetrain warranty included |
| Description_MKT | BDS steps up the performance and capability of the 2019-2022 RAM 1500 trucks equipped with factory rear air ride with a 4-inch suspension lift kit. Designed to improve stance performance and capability this kit includes everything necessary to set your truck up right with clearance for up to 35" tires |
| Description_MKT | This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance strength and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics. Up front the kit utilizes top mounted strut spacers high-arched 1/4-inch thick steel crossmembers along with a multipiece differential relocation brackets and heavy duty skid plates built for offroad protection. Steering geometry is corrected at the new taller ride height with CNC-machined ductile iron steering knuckles and replacement tie rod ends allowing for ESC system compatibility. These combined with the provided sway bar drops bump stop extensions stainless steel braided brake lines CV spacers supplied hardware and more provide a comprehensive front suspension lift ready for whatever you throw at it. |
| Description_MKT | In the rear this kit utilizes top mounted air bag spacers rear upper control arm relocation brackets to correct pinion angle track bar relocation bracket to correct axle positioning bump stop extensions and sway bar links. Also new air lines and fittings are supplied to along with ride height sensor brackets to maintain propoer positioning and functionality of the factory air ride system at the new height. The rear of these kits are rounded out with your choice of specially tuned NX2 nitro series gas shocks or FOX 2.0 IFP performance series gas shocks to offer improved damper performance. |
| Description_MKT | High Clearance Crossmembers |
| Description_MKT | BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection. |
| Description_MKT | Heavy Duty Steering Knuckles |
| Description_MKT | BDS corrects steering geometry at the new taller ride height using a pair of high-strength CNC machined ductile cast iron steering knuckle design to work with replacement tie rod ends to maintain steering angles for proper function and ESC compatibility. |
| Description_SHO | Suspension lift kit |
| Description_DEF | Suspension Lift Kit |
