BDS Suspension BDS1735H - 2019-2022 RAM 1500 Rebel-OffRoad 4wd 4in. front shocks| 5in. rear block NX2
BDS Suspension BDS1735H - 2019-2022 RAM 1500 Rebel-OffRoad 4wd 4in. front shocks| 5in. rear block NX2

BDS Suspension BDS1735H - 2019-2022 RAM 1500 Rebel-OffRoad 4wd 4in. front shocks| 5in. rear block NX2

Vendor: BDS Suspension
SKU: BLDV_BDS1735H
Availability: Out of stock. Chat\Call to Order
Product Type: Suspension Lift Kit
$2,849.26 CAD
$3,109.90
$2,849.26 CAD
Found Better Price? Get Price Match!
Take 10% off select products at checkout.
Savings auto-applies on selected products at checkout. Exclusions apply.
  • TruckPoint: Truck Accessories - Car Parts - Canadian Auto Parts
Description
Description
x

BDS corrects steering geometry at the new taller ride height using a pair of high-strength CNC machined ductile cast iron steering knuckle design to work with replacement tie rod ends to maintain steering angles for proper function and ESC compatibility.

Improve the ride and style of your 2019-2024 RAM 1500 Rebel truck with a 4-inch suspension lift kit by BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35" tires

This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics. Up front, the kit utilizes top mounted strut spacers, high-arched 1/4-inch thick steel crossmembers along with a multipiece differential relocation brackets and heavy duty skid plates built for offroad protection. Steering geometry is corrected at the new taller ride height with CNC-machined ductile iron steering knuckles and replacement tie rod ends allowing for ESC system compatibility. These combined with the provided sway bar drops, bump stop extensions, stainless steel braided brake lines, CV spacers, supplied hardware and more provide a comprehensive front suspension lift ready for whatever you throw at it.

In the rear this kit utilizes progressive rate Pro-Ride coil springs, rear upper control arm relocation brackets to correct pinion angle, track bar relocation bracket to correct axle positioning, bump stop extensions, and sway bar links. Also, new air lines and fittings are supplied to along with ride height sensor brackets to maintain propoer positioning and functionality of the factory air ride system at the new height. The rear of these kits are rounded out with your choice of specially tuned NX2 nitro series gas shocks or FOX 2.0 IFP performance series gas shocks to offer improved damper performance.

High Clearance Crossmembers

BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.

Heavy Duty Steering Knuckles

BDS corrects steering geometry at the new taller ride height using a pair of high-strength, CNC machined ductile cast iron steering knuckle design to work with replacement tie rod ends to maintain steering angles for proper function and ESC compatibility.

Features & Benefits

  • High clearance crossmember design maximizes ground clearance
  • Robust steering knuckles maintain ESC system compliance
  • HD skid plate system improved offroad protection
  • Multipoint differential relocation brackets to secure the front axle and improve CV angles
  • BDS NX2 gas or FOX performance series IFP gas shocks to improved ride and offroad performance
  • Factory Protection Plus drivetrain warranty included

Recommended Tires & Wheels

(Trimming may be required)

  • 35 x 12.5 with 17 x 9 and 4.5 in. Backspace
  • 35 x 12.5 with 18 x 9 and 5 in. Backspace
  • 35 x 12.5 with 20 x 9 and 5 in. Backspace

Shock Option

NX2 Nitro Series

  • Nitrogen-charged
  • Twin-tube design
  • 10-stage velocity-sensitive valving
  • Dual-welded ends for increased strength
  • 1-3/8-inch high-flow piston
  • Self-lubricating seals
  • Silver powder coat finish

FOX 2.0 Performance Series

  • 2-inch Impact extruded aluminum body
  • Internal floating piston (IFP) monotube design
  • CNC machined 6061-T6 aluminum mounting ends
  • Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
  • Race-developed high-flow piston design
  • Application-specific valving to maximize performance
  • Long-lasting clear anodized finish

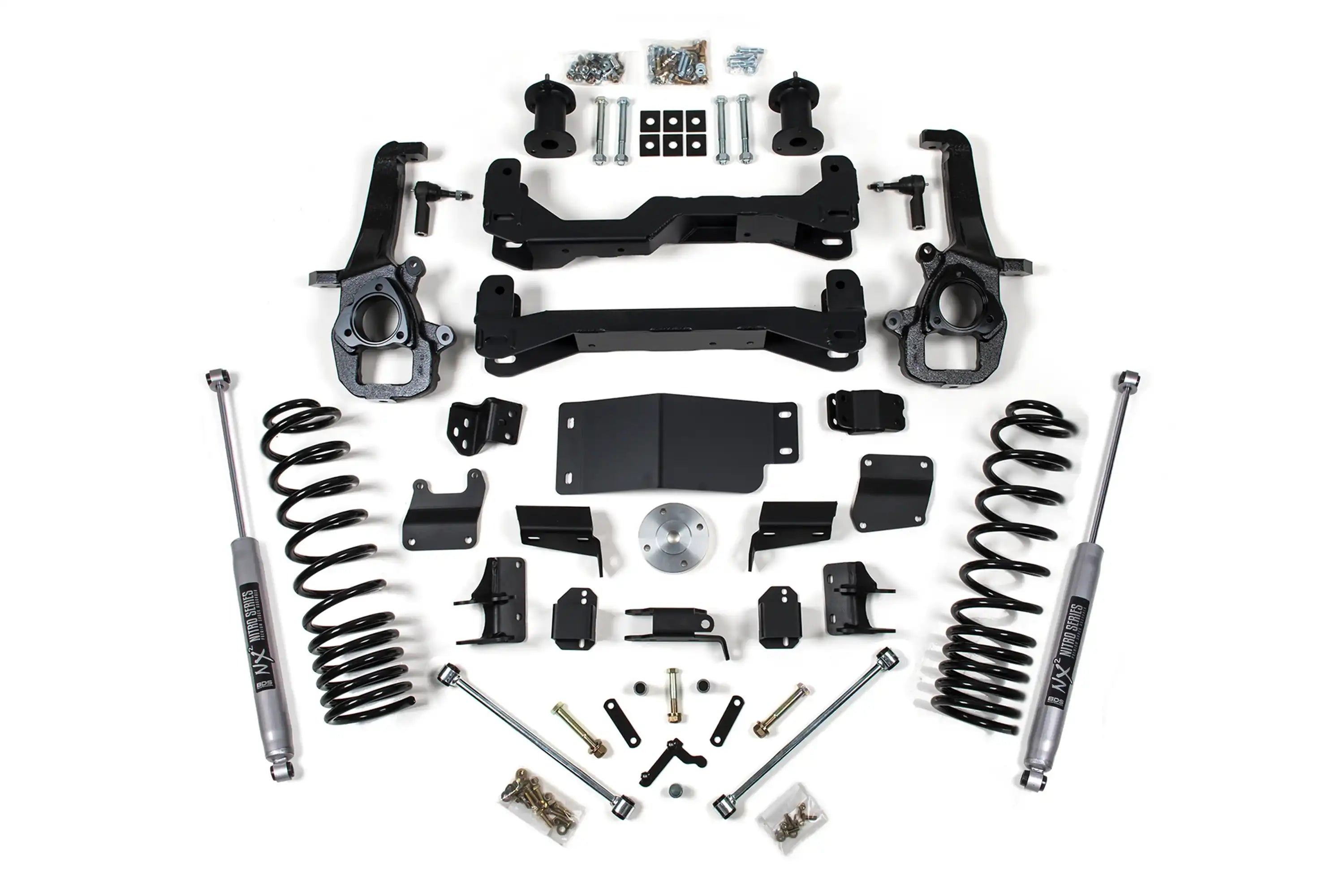

 Kit Component List

1 BDS022632 2019-2023 Ram 1500 Knuckle Box Kit - DRV
1 BDS022633 2019-2023 Ram 1500 Knuckle Box Kit - PASS
1 BDS022642 2019-2023 Ram Front Box Kit 1 of 2
1 BDS022643 2019-2023 Ram Front Box Kit 2 of 2
1 BDS022404 2019-2023 Ram 1500 4in Strut Spacer Box Kit
1 BDS022508 2019-2023 Ram 1500 Rear Box Kit
1 BDS032508 2019-2023 Ram 1500 5in Rear Coil Box Kit
2 BDS85751 Shock- 30.00 x 17.25 x 2-3/8 - S50/EB2



Important Notes:

  1. Fits 4WD models only
  2. RAMs with factory 22" wheels require the larger bore knuckles due to larger wheel bearing assembly. Reference build code WPM or WPZ.
  3. Will NOT fit adjustable "air ride" suspension equipped models.
  4. Stock 18" wheels cannot be reinstalled due to steering interference. Stock 20s can be reinstalled with factory tire size
  5. Will NOT work on diesel models
  6. Will NOT fit 2019-2022 RAM 1500/Rebel Classic models, Refer to the 2018 kit listings.
  7. Vehicles equipped with the Off-Road Group Package require the Ram 1500 Rebel 4in kit to achieve correct ride height. To find out if your truck is equipped with the Off-Road Group, call your local Ram dealer, provide your VIN and ask if they can pull your window sticker. In the 'Optional Equipment' section there will be a line item that reads 'Off-Road Group' if your truck is equipped.
  8. Will NOT fit models equipped with the Thermal Axle option. Reference build code DSK-P or check diff cover for cooling lines.
  9. IF USING 18IN WHEELS WITH MAXIMUM RECOMMENDED BACKSPACING, TEST FIT WHEELS ON VEHICLE BEFORE MOUNTING TIRES TO ENSURE CLEARANCE






Specifications:

Description_ASC Fits 4WD models only
Description_ASC RAMs with factory 22" wheels require the larger bore knuckles due to larger wheel bearing assembly. Reference build code WPM or WPZ.
Description_ASC Will NOT fit adjustable "air ride" suspension equipped models.
Description_ASC Stock 18" wheels cannot be reinstalled due to steering interference. Stock 20s can be reinstalled with factory tire size
Description_ASC Will NOT work on diesel models
Description_ASC Will NOT fit 2019-2022 RAM 1500/Rebel Classic models Refer to the 2018 kit listings.
Description_ASC Vehicles equipped with the Off-Road Group Package require the Ram 1500 Rebel 4in kit to achieve correct ride height. To find out if your truck is equipped with the Off-Road Group call your local Ram dealer provide your VIN and ask if they can pull your window sticker. In the 'Optional Equipment' section there will be a line item that reads 'Off-Road Group' if your truck is equipped.
Description_ASC Will NOT fit models equipped with the Thermal Axle option. Reference build code DSK-P or check diff cover for cooling lines.
Description_DES 2019-2022 RAM 1500 Rebel/OffRoad 4wd 4in. front shocks| - NX2
Description_EXT 2019-2022 RAM 1500 Rebel-OffRoad 4wd 4in. front shocks| 5in. rear block - NX2
Description_FAB High clearance crossmember design maximizes ground clearance
Description_FAB Robust steering knuckles maintain ESC system compliance
Description_FAB HD skid plate system improved offroad protection
Description_FAB Multipoint differential relocation brackets to secure the front axle and improve CV angles
Description_FAB BDS NX2 gas or FOX performance series IFP gas shocks to improved ride and offroad performance
Description_FAB Factory Protection Plus drivetrain warranty included
Description_MKT Improve the ride and style of your 2019-2023 RAM 1500 Rebel truck with a 4-inch suspension lift kit by BDS Suspension. Designed to improve stance performance and capability this kit includes everything necessary to set your truck up right with clearance for up to 35" tires
Description_MKT This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance strength and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics. Up front the kit utilizes top mounted strut spacers high-arched 1/4-inch thick steel crossmembers along with a multipiece differential relocation brackets and heavy duty skid plates built for offroad protection. Steering geometry is corrected at the new taller ride height with CNC-machined ductile iron steering knuckles and replacement tie rod ends allowing for ESC system compatibility. These combined with the provided sway bar drops bump stop extensions stainless steel braided brake lines CV spacers supplied hardware and more provide a comprehensive front suspension lift ready for whatever you throw at it.
Description_MKT In the rear this kit utilizes progressive rate Pro-Ride coil springs rear upper control arm relocation brackets to correct pinion angle track bar relocation bracket to correct axle positioning bump stop extensions and sway bar links. Also new air lines and fittings are supplied to along with ride height sensor brackets to maintain propoer positioning and functionality of the factory air ride system at the new height. The rear of these kits are rounded out with your choice of specially tuned NX2 nitro series gas shocks or FOX 2.0 IFP performance series gas shocks to offer improved damper performance.
Description_MKT High Clearance Crossmembers
Description_MKT BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.
Description_MKT Heavy Duty Steering Knuckles
Description_MKT BDS corrects steering geometry at the new taller ride height using a pair of high-strength CNC machined ductile cast iron steering knuckle design to work with replacement tie rod ends to maintain steering angles for proper function and ESC compatibility.
Description_SHO Suspension lift kit
Description_DEF Suspension Lift Kit
