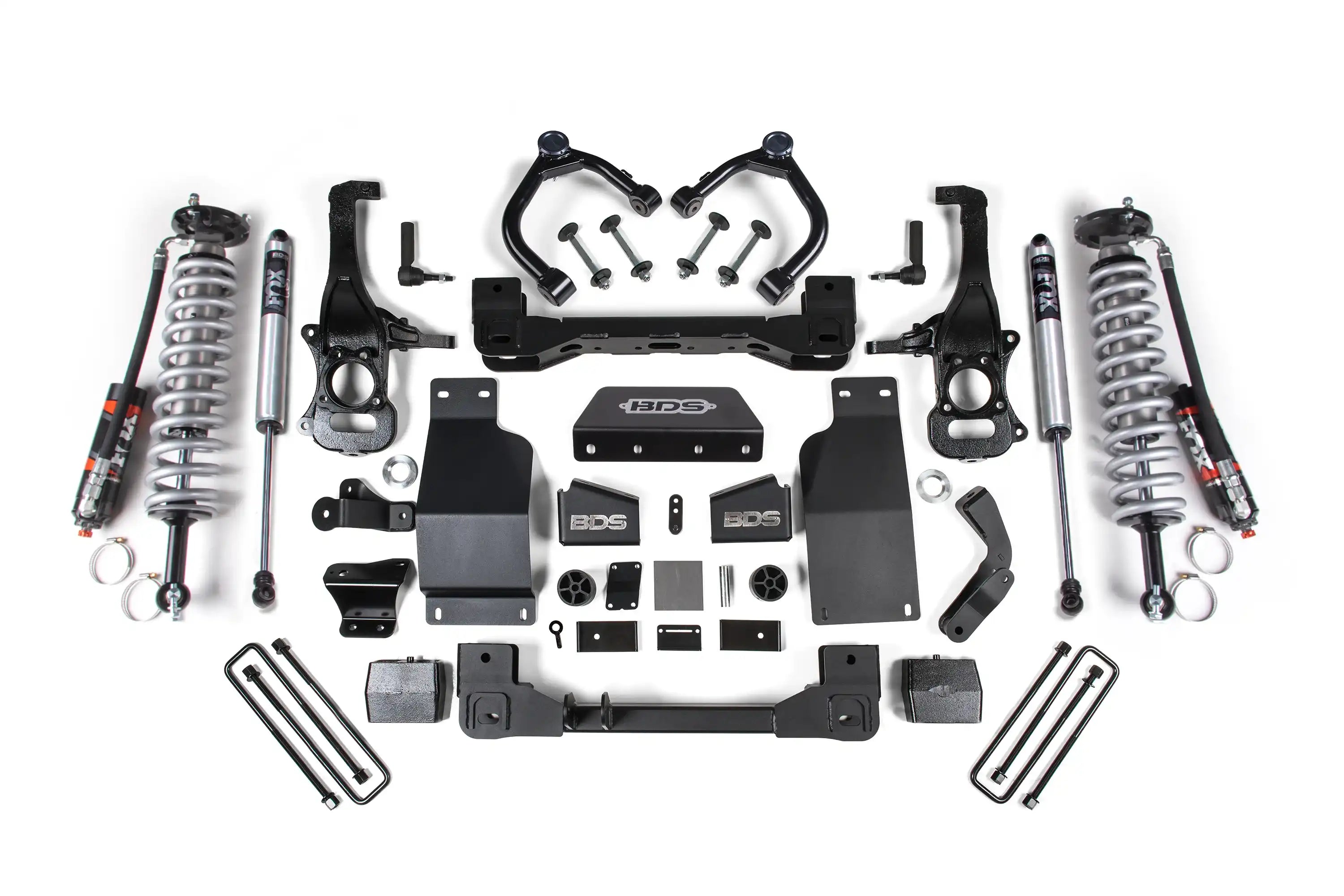

BDS Suspension BDS1807FPE - 2019-2023 Chevy TB/GMC AT4 1500 4in. Coilover System Diesel engine
Vendor:
BDS Suspension
SKU:
BLDV_BDS1807FPE
Availability:
Out of stock. Chat\Call to Order
Product Type:
Suspension Lift Kit
- Regular price
- $6,424.69 CAD
- Regular price
-
$6,202.73 - Sale price
- $6,424.69 CAD
- Unit price
- per
Take 10% off select products at checkout.
Savings auto-applies on selected products at checkout. Exclusions apply.
Couldn't load pickup availability
Description
xThis kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance strength and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics. Up front the kit utilizes top mounted strut spacers upper control arms high-arched 1/4-inch thick steel crossmembers along with a multipiece differential relocation brackets and heavy duty skid plates built for offroad protection. Steering geometry is corrected at the new taller ride height with CNC-machined ductile iron steering knuckles and replacement tie rod ends allowing for ESC system compatibility. These combined with the provided sway bar drops bump stop extensions brake line brackets CV spacers supplied hardware and more provide a comprehensive front suspension lift ready for whatever you throw at it.
Specifications:
| Description_MKT | In the rear BDS offers a heavy duty lift block to lift and level that stance. The lift block installs in place of the stock block and retains ride quality and load capacity. Also for the rear are new u-bolts brake line brackets and precision tuned NX2 Nitro or premium FOX 2.0 Performance Series shocks. |
| Description_MKT | FOX Performance Elite |
| Description_MKT | FOX 2.5 Performance Elite shocks offer next level performance for on-road comfort and off-road comfort capability. Tuned and ready to install right out of the box these bolt-on 2.5-inch diameter shocks are built for abuse and packed with race-proven technology. They include a remote reservoir for additional fluid capacity to keep your shocks running cool so you can push the limits in the rough terrain. The DSC adjuster adds remarkable versatility and precise tuning with a simple twist of either two adjuster knobs offering 10 separate low-speed and 12 high-speed compression levels with a black anodized aluminum reservoir to increase cooling efficiency. |
| Description_MKT | HD Upper Control Arms (UCAs) |
| Description_MKT | Built for strength performance and increased travel these upper control arms are ready to bolt-in with most leveled/lifted trucks. They use 1.5" OD x .120-wall tubular construction with an indexed ball joint cup to correct the ball joint positioning allowing additional down travel and camber adjustment. At the frame mounting ends are durometer-specific rubber bushings for maintenance-free operation while at the other end a quality greaseable ball joints for smooth quiet operation and superior durability. Arms are finished in a durable black powder coat with a billet aluminum dust cap ready for installation right out of the box. |
| Description_MKT | High Clearance Crossmembers |
| Description_MKT | BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection. |
| Description_SHO | Suspension lift kit |
| Description_DEF | Suspension Lift Kit |
| Description_ASC | Requires frame bracket modification |
| Description_ASC | Factory 17" and 18" wheels cannot be reinstalled due to tie rod end interference stock 20" wheels can be reinstalled. |
| Description_ASC | 17" wheels with 4.5" backspacing should be test fit prior to mounting the tire to ensure proper clearance to the steering knuckle / tie rod. |
| Description_ASC | Front skid plate will not work with 2.7L Turbo Engines. |
| Description_DES | 2019-2023 Chevy TB/GMC AT4 1500 4in. Coilover Suspension System - Diesel engine |
| Description_EXT | 2019-2023 Chevy TB-GMC AT4 1500 4wd 4in. Coilover Suspension System With 2.5 front shocks with DSC and 2.0 rear shocks - Diesel engine |
| Description_FAB | FOX 2.5 Performance Elite series coilovers with DSC Adjuster for improved ride quality performance and capability |
| Description_FAB | High clearance crossmember design maximizes ground clearance |
| Description_FAB | Robust steering knuckles maintain ESC system compliance |
| Description_FAB | High-strength replacement upper control arms provide durability and serviceability |
| Description_FAB | HD skid plate system improved offroad protection |
| Description_FAB | Multipoint differential relocation brackets to secure the front axle and improve CV angles |
| Description_FAB | Factory Protection Plus drivetrain warranty included |
| Description_MKT | Up the ante of your Chevy Trail Boss and GMC AT4 1500 truck with a 4-inch suspension lift kit featuring FOX Performance Elite coil-over shocks. Designed to improve stance performance and capability this kit includes everything necessary to set your truck up right with clearance for up to 35" tires. These kits feature proprietary FOX 2.5 coil-over shocks designed specifically to bolt-on performance for increase travel and the ability to soak up the roughest terrain along with smooth on-road comfort. |
| Description_MKT | This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance strength and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics. Up front the kit utilizes top mounted strut spacers upper control arms high-arched 1/4-inch thick steel crossmembers along with a multipiece differential relocation brackets and heavy duty skid plates built for offroad protection. Steering geometry is corrected at the new taller ride height with CNC-machined ductile iron steering knuckles and replacement tie rod ends allowing for ESC system compatibility. These combined with the provided sway bar drops bump stop extensions brake line brackets CV spacers supplied hardware and more provide a comprehensive front suspension lift ready for whatever you throw at it. |
