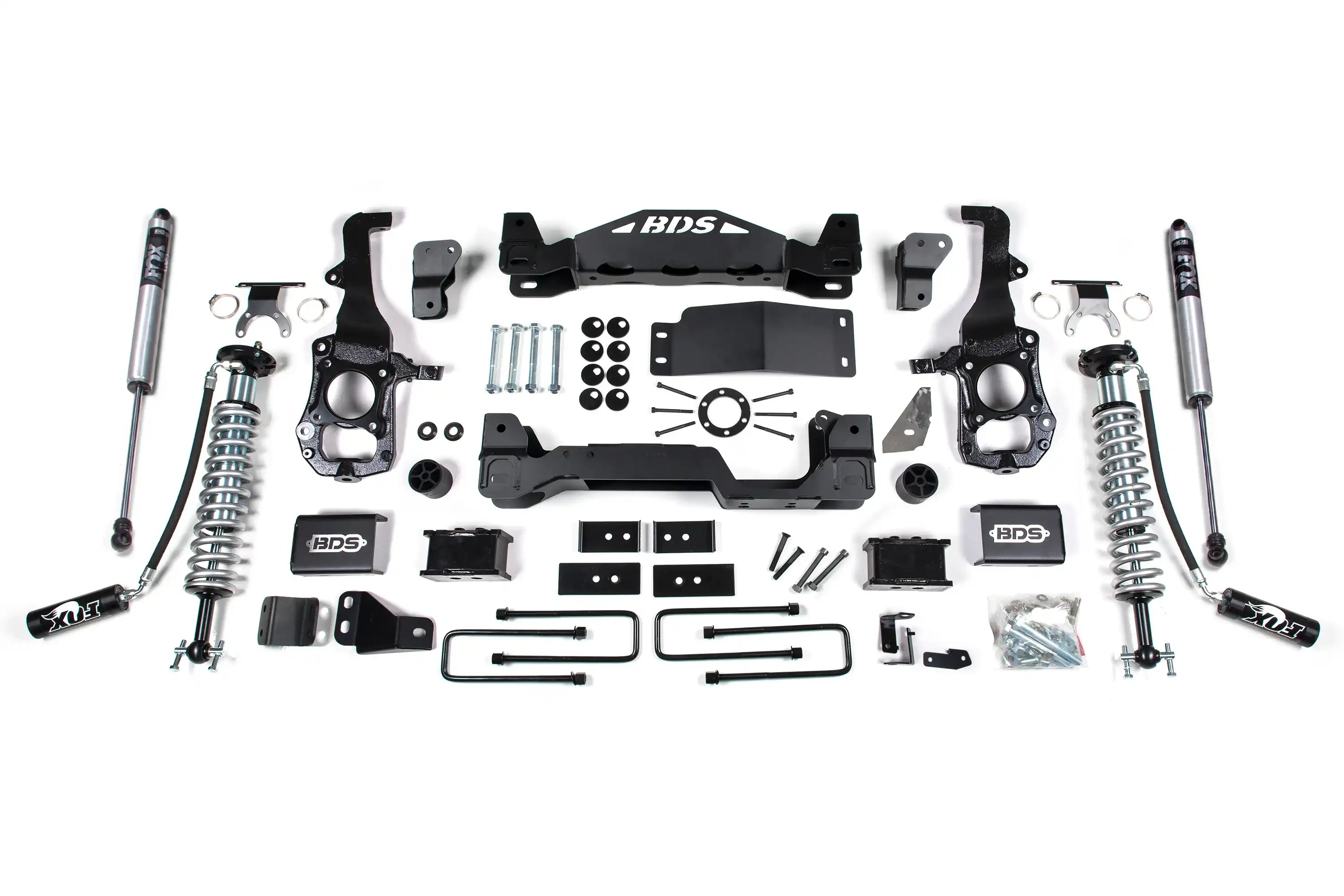

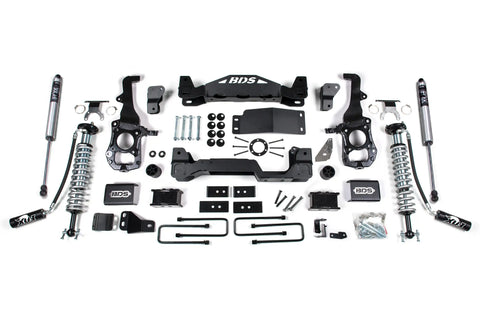

BDS Suspension BDS1900F - 2021-2023 Ford F150 6in. Lift kit with Fox Coilover

Vendor: BDS Suspension
SKU: BLDV_BDS1900F
Availability: Out of stock. Chat\Call to Order
Product Type: Suspension Lift Kit
$6,449.86 CAD
$5,196.54
$6,449.86 CAD
Found Better Price? Get Price Match!
Take 10% off select products at checkout.
Savings auto-applies on selected products at checkout. Exclusions apply.
  • TruckPoint: Truck Accessories - Car Parts - Canadian Auto Parts
Description
Description
x

BDS corrects steering geometry at the new taller ride height using a pair of high-strength CNC machined ductile cast iron steering knuckle design to work with replacement tie rod ends to maintain steering angles for proper function and ESC compatibility.

Optimize your Ford F150 with the BDS 6-inch Lift Kit featuring Fox Coilover Shocks. This system, compatible with 2021-2023 models, offers superior off-road performance and on-road comfort. Designed for vehicles without Continuous Controlled Damping (CCD), the kit provides clearance for up to 37” tires, with enhanced ground clearance through high-strength ¼” steel crossmembers and a skid plate for off-road protection. Key features include:

  • FOX 2.5 coil-over shocks for increased travel and terrain handling.
  • Heavy-duty steering knuckles to correct geometry and maintain ESC system compatibility.
  • Rear lift blocks and u-bolts for leveling and stability.
  • Optional DSC adjustment for custom tuning of high-speed and low-speed damping.

Ensure your truck is equipped with 18" or larger diameter wheels, as stock 17" and 18" wheels cannot be reinstalled. Compatibility notes include the need for a carrier bearing shim kit for trucks with a 2-piece rear driveshaft. Not suitable for diesel or Tremor models. This high-clearance system from BDS is the ultimate upgrade for off-road enthusiasts.


Specifications:

Description_ASC 18" or larger diameter wheels are required. Stock 17" and 18" wheels cannot be re-installed. Stock 20" wheels can be used with up to a 305/60R20 tire.
Description_ASC Will not work with models with CCD (Continuous Controlled Damping)
Description_ASC 18" wheels with 5-5.5" backspacing should be test fit prior to mounting the tire to ensure proper clearance to the steering knuckle/tie rod. 5.5" backspacing is highly recommended for tire-to-frame crash bar clearance.
Description_ASC Models with 2-piece rear driveshaft WILL require carrier bearing shim kit 122406 (not included w/ kit)
Description_ASC Block kits replace factory 1-1/4" block. The stock block will not be reinstalled.
Description_ASC Crash bars may require modification based on wheel and tire choice. It is the end user's responsibility to ensure modifications are non-detrimental to vehicle safety.
Description_ASC Does NOT fit diesel models.
Description_ASC Will not work with Tremor models.
Description_ASC Some trucks with a 2 piece drive shaft may have a recall from Ford regarding the rear driveshaft. (Safety Recall 21S25) Due to the recall procedure BDS recommends having this performed prior to installing the lift.
Description_ASC This system has not been tested on models equipped with Ford BlueCruise.
Description_DES 2021-2023 Ford F150 6in. BDS Lift kit with Fox Coilover
Description_EXT 2021-2023 Ford F150 6in. BDS Lift System with 4in. axlein. rear block| Fox Coilover- Fox 2.0 Adventure Series shocks
Description_FAB FOX 2.5 coil-over shocks designed specifically for increase travel and the ability to soak up the roughest terrain
Description_FAB High clearance crossmembers improve strength and offroad capability
Description_FAB Heavy duty steering knuckles to correct steering geometry and maintain ESC system compatibility
Description_FAB Top mounted strut spacers to provide lift and install easily
Description_FAB Differential skid plate for improved offroad protection
Description_FAB Rear lift blocks and u-bolts to lift and level the stance
Description_MKT BDS steps up the performance and capability of the 2021 Ford F150 trucks with 6-inch coil-over suspension lift kits. These kits feature proprietary FOX 2.5 coil-over shocks designed specifically to bolt-on performance for increase travel and the ability to soak up the roughest terrain along with smooth on-road comfort. This kit includes everything necessary to set your F150 truck up right with clearance for up to 37" tires.
Description_MKT This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance strength and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics. Up front the kit utilizes FOX 2.5 remote reservoir coil-over shocks high-arched 1/4-inch thick steel crossmembers multipiece differential relocation brackets and skidplate designed for offroad protection. Steering geometry is corrected at the new taller ride height with a pair of massive CNC-machined ductile iron steering knuckles. These combined with the provided sway bar relocation brackets brake line brackets alignment cam bolts supplied hardware and more provide a comprehensive front suspension lift ready for use and abuse.
Description_MKT In the rear BDS utilizes high strength fabricated lift blocks and longer u-bolts to lift and level the stance along with perfectly tuned FOX 2.0 Performance Series shocks.
Description_MKT DSC Adjustment
Description_MKT FOX 2.5 coil-overs are available with optional DSC (dual speed compression) adjustment to tune the high-speed and low-speed compression damping allowing for added control on-road with the ability to easily dial in more aggressive damping offroad. Tuning is a simple twist of the two clearly defined knobs with immediate feedback to dial it in for any terrain.
Description_MKT High Clearance Crossmemebers
Description_MKT BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.
Description_MKT Heavy Duty Steering Knuckles
Description_MKT BDS corrects steering geometry at the new taller ride height using a pair of high-strength CNC machined ductile cast iron steering knuckle design to work with replacement tie rod ends to maintain steering angles for proper function and ESC compatibility.
Description_SHO Suspension lift kit
Description_DEF Suspension Lift Kit
