BDS Suspension BDS1902FSR - 2021-2023 Ford F150 4wd 4in. Lift Kit|

Vendor: BDS Suspension
SKU: BLDV_BDS1902FSR
Availability: Out of stock. Chat\Call to Order
Product Type: Suspension Lift Kit
$3,703.18 CAD
$3,544.60
$3,703.18 CAD
Found Better Price? Get Price Match!
Take 10% off select products at checkout.
Savings auto-applies on selected products at checkout. Exclusions apply.
  • TruckPoint: Truck Accessories - Car Parts - Canadian Auto Parts
Description
Description
x

BDS corrects steering geometry at the new taller ride height using a pair of high-strength CNC machined ductile cast iron steering knuckle design to work with replacement tie rod ends to maintain steering angles for proper function and ESC compatibility.

Increase the performance and capability of the 2021-2024 Ford F150 trucks with 4-inch lift kit with FOX 2.0 struts by BDS Suspension. Designed to improve stance the BDS 4 inch lift kit with FOX 2.0 front struts give more capability off-road. This kit includes everything necessary to set your F150 truck up right with clearance for up to 35" tires.

This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics. Up front the kit utilizes FOX 2.0 strut shocks, high-arched 1/4-inch thick steel crossmembers, multipiece differential relocation brackets and skidplate designed for offroad protection. Steering geometry is corrected at the new taller ride height with a pair of massive CNC-machined ductile iron steering knuckles. These combined with the provided sway bar relocation brackets, brake line brackets, alignment cam bolts, supplied hardware and more provide a comprehensive front suspension lift ready for use and abuse.

In the rear BDS utilizes high strength fabricated lift blocks and longer u-bolts to lift and level the stance along and NX2 Nitro or optional FOX 2.0 Performance Series shocks.

FOX 2.0 Struts

These FOX 2.0 Performance Series coil-over struts bring impressive damper performance for great ride on and offroad capability designed as a direct bolt-in replacement for the factory strut assemblies while retaining the OE coil spring and top plate. They feature a 2.0" extruded and machined 6061 T6 aluminum body for better heat dispersion, along with an internal floating piston (IFP) to eliminate oil aeration, FOX's proprietary internals, 5/8" hard chrome plated heat-treated alloy shaft.

High Clearance Crossmemebers

BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.

Heavy Duty Steering Knuckles

BDS corrects steering geometry at the new taller ride height using a pair of high-strength, CNC machined ductile cast iron steering knuckle design to work with replacement tie rod ends to maintain steering angles for proper function and ESC compatibility.

Features & Benefits

  • FOX 2.0 Performance IFP shocks eliminates oil aeration allowing maximum performance from the factory-tuned, precision valving
  • High clearance crossmembers improve strength and offroad capability
  • Heavy duty steering knuckles to correct steering geometry and maintain ESC system compatibility
  • Top mounted strut spacers to provide lift and install easily
  • Differential skid plate for improved offroad protection
  • Rear lift blocks and u-bolts to lift and level the stance

Recommended Tires & Wheels

(Trimming may be required)

  • 33 x 12.5 with 20 x 9 and 5 in. Backspace
  • 35 x 12.5 with 20 x 9 and 5.5 in. Backspace

Rear Lift Option

2 Inch Block Kit

  • Level to tail high appearance

1 Inch Block Kit

  • Tail low to level stance

Important Notice

  1.  18" or larger diameter wheels required. Stock 17" and 18" wheels cannot be re-installed. Stock 20" wheels can be used with up to a 305/60R20 tire.
  2. 18" wheels with 5-5.5" backspacing should be test fit prior to mounting the tire to ensure proper clearance to the steering knuckle/tie rod. 5.5" backspacing is highly recommended for tire to frame crash bar clearance.
  3. Models with 2-piece rear driveshaft WILL require carrier bearing shim kit 122406 (not included w/ kit)
  4. Block kits replace factory 1-1/4" block. Stock block will not be reinstalled.
  5.  Crash bars may require modification based on wheel and tire choice. It is the end users responsibility to ensure modifications are non-detrimental to vehicle safety.
  6.  Does NOT fit diesel models.
  7.  Tremor models: only the 3-1/4" rear block is recommended. Larger blocks cause driveline vibration. Expected rake is 1" with new block installed. Factory block provides slight tail low stance if desired
  8.  Some trucks with a 2 piece drive shaft may have a recall from Ford regarding the rear driveshaft. (Safety Recall 21S25) Due to the recall procedure, BDS recommends to have this performed prior to installing the lift.
  9.  Will not work with models with CCD (Continuous Controlled Damping)
  10.  Requires frame bracket modification.

Installation

Installation Guides :


Download Guide 1

Est. Install Time :

8-10 hrs

Difficulty Level :

Difficult

Specialty Tools Needed :

204-592 Ball Joint Separator (Recommended), Tie Rod End Separator (Recommended), Cut-off Tool, Reciprocating Saw

  • Front Lift Method : Cross-Member
  • Rear Lift Method : Block
  • Shocks Included : Yes
  • Front Lift Height : 4"
  • Rear Lift Height : 1"

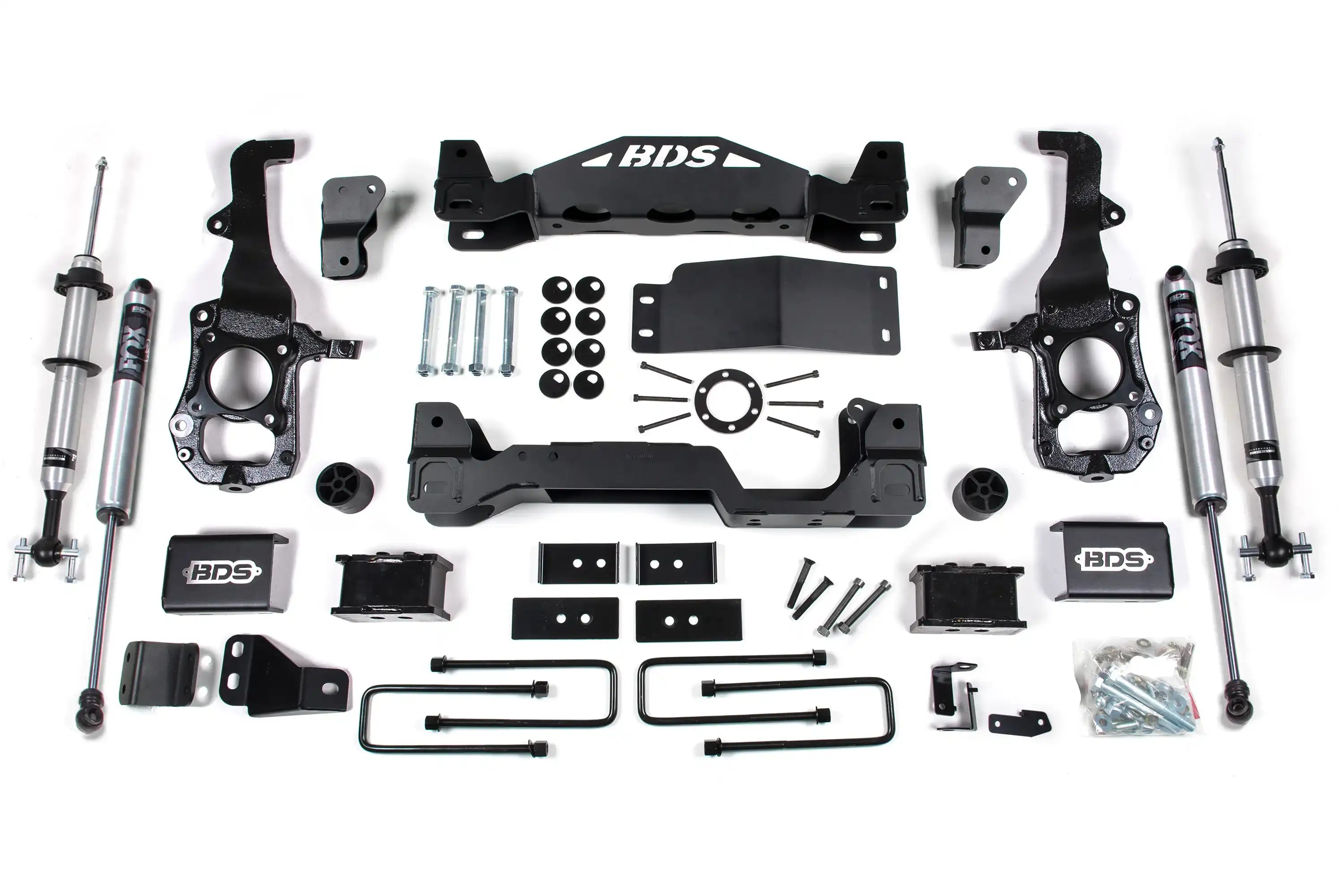

Kit Component List

1 BDS023670 2021-2024 Ford F150 Knuckle Box Kit - DS
1 BDS023671 2021-2024 Ford F150 Knuckle Box Kit - PS
1 BDS023652 2021-2024 Ford F150 Front Box Kit (1of2)
1 BDS023653 2021-2024 Ford F150 Front Box Kit (2of2)
1 BDS013208 2021-2024 Ford F150 2" Rear Box Kit
2 FOX98662001 BDS, 2014-2024 Ford F-150, Front Coilover, Snap Ring, PS, 2.0, IFP, 6.1", 4 & 6" Lift
2 FOX98224651 Fox 2.0 Shock 27.95 x 17.35 x 2- EB1/EB1


Specifications:

Description_ASC Models with 2-piece rear driveshaft WILL require carrier bearing shim kit 122406 (not included w/ kit)
Description_ASC Block kits replace factory 1-1/4" block. The stock block will not be reinstalled.
Description_ASC Crash bars may require modification based on wheel and tire choice. It is the end user's responsibility to ensure modifications are non-detrimental to vehicle safety.
Description_ASC Does NOT fit diesel models.
Description_ASC Will not work with Tremor models.
Description_ASC Some trucks with a 2 piece drive shaft may have a recall from Ford regarding the rear driveshaft. (Safety Recall 21S25) Due to the recall procedure BDS recommends having this performed prior to installing the lift.
Description_ASC This system has not been tested on models equipped with Ford BlueCruise.
Description_ASC Will not work with models with CCD (Continuous Controlled Damping)
Description_DES 2021-2023 Ford F150 4wd 4in. Suspension Lift Kit|
Description_EXT 2021-2023 Ford F150 4wd 4in. Suspension Lift Kit| 1in. rear block - Fox 2.0 Performance Series Snap Ring front shocks| Fox 2.0 Performance Series rear shocks
Description_FAB FOX 2.0 Performance IFP shocks eliminates oil aeration allowing maximum performance from the factory-tuned precision valving
Description_FAB High clearance crossmembers improve strength and offroad capability
Description_FAB Heavy duty steering knuckles to correct steering geometry and maintain ESC system compatibility
Description_FAB Top mounted strut spacers to provide lift and install easily
Description_FAB Differential skid plate for improved offroad protection
Description_FAB Rear lift blocks and u-bolts to lift and level the stance
Description_MKT Increase the performance and capability of the 2021 Ford F150 trucks with 4-inch lift kit with FOX 2.0 struts by BDS Suspension. Designed to improve stance the BDS 4 inch lift kit with FOX 2.0 front struts give more capability off-road. This kit includes everything necessary to set your F150 truck up right with clearance for up to 35" tires.
Description_MKT This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance strength and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics. Up front the kit utilizes FOX 2.0 strut shocks high-arched 1/4-inch thick steel crossmembers multipiece differential relocation brackets and skidplate designed for offroad protection. Steering geometry is corrected at the new taller ride height with a pair of massive CNC-machined ductile iron steering knuckles. These combined with the provided sway bar relocation brackets brake line brackets alignment cam bolts supplied hardware and more provide a comprehensive front suspension lift ready for use and abuse.
Description_MKT In the rear BDS utilizes high strength fabricated lift blocks and longer u-bolts to lift and level the stance along and NX2 Nitro or optional FOX 2.0 Performance Series shocks.
Description_MKT FOX 2.0 Struts
Description_MKT These FOX 2.0 Performance Series coil-over struts bring impressive damper performance for great ride on and offroad capability designed as a direct bolt-in replacement for the factory strut assemblies while retaining the OE coil spring and top plate. They feature a 2.0" extruded and machined 6061 T6 aluminum body for better heat dispersion along with an internal floating piston (IFP) to eliminate oil aeration FOX's proprietary internals 5/8" hard chrome plated heat-treated alloy shaft.
Description_MKT High Clearance Crossmemebers
Description_MKT BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.
Description_MKT Heavy Duty Steering Knuckles
Description_MKT BDS corrects steering geometry at the new taller ride height using a pair of high-strength CNC machined ductile cast iron steering knuckle design to work with replacement tie rod ends to maintain steering angles for proper function and ESC compatibility.
Description_SHO Suspension lift kit
Description_DEF Suspension Lift Kit
