BDS Suspension BDS194H - 88-98 K1500-2500 6-5 springs

Vendor: BDS Suspension
SKU: BLDV_BDS194H
Availability: Out of stock. Chat\Call to Order
Product Type: Suspension Lift Kit
$3,196.31 CAD
$3,490.71
$3,196.31 CAD
Found Better Price? Get Price Match!
Take 10% off select products at checkout.
Savings auto-applies on selected products at checkout. Exclusions apply.
  • TruckPoint: Truck Accessories - Car Parts - Canadian Auto Parts
Description
Description
x

BDS corrects steering geometry at the new taller ride height using a pair of high-strength CNC machined ductile cast iron steering knuckle design to work with factory tie rod ends to maintain steering angles for proper function and ESC compatibility.

Engineered to improve stance, performance, and capability, the BDS 6-inch lift kit for the 1988-1998 Chevy and GMC K1500 and K2500 6 Lug trucks is a must have upgrade. For maximum driveability, BDS designed this kit around heavy duty upper control arms and steering knuckles that offers zero track width change.This kit includes everything necessary to set your truck up right with clearance for up to 35" tires.

This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics. Up front, the kit utilizes torsion bar drop brackets, heavy duty upper control arms, high-arched 1/4-inch thick steel crossmembers along with a multipiece differential relocation brackets and heavy duty skid plates built for offroad protection. Steering geometry is corrected at the new taller ride height with CNC-machined ductile iron steering knuckles. These combined with the provided sway bar drops, bump stop extensions, brake line brackets, CV spacers, supplied hardware and more provide a comprehensive front suspension lift ready for whatever you throw at it.

In the rear BDS offers both replacement lift block / add-a-leaf combo and full Glide-Ride leaf spring options to lift and level that stance. The lift block installs in place of the stock block and retains ride quality and load capacity. Also for the rear are new u-bolts and precision tuned NX2 Nitro or FOX 2.0 Performance Series shocks.

High Clearance Crossmembers

BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.

Heavy Duty Steering Knuckles

BDS corrects steering geometry at the new taller ride height using a pair of high-strength, CNC machined ductile cast iron steering knuckle design to work with factory tie rod ends to maintain steering angles for proper function and ESC compatibility.

Features & Benefits

  • High clearance crossmember design maximizes ground clearance
  • Robust steering knuckles for long lasting durability
  • High-strength replacement upper control arms provide durability and serviceability
  • HD skid plate system improved offroad protection
  • Multipoint differential relocation brackets to secure the front axle and improve CV angles
  • Factory Protection Plus drivetrain warranty included

Recommended Tires & Wheels

(Trimming may be required)

  • 35 x 12.5 with 15 x 8 and 3.625 in. Backspace
  • 35 x 12.5 with 17 x 8 and 4.5 in. Backspace
  • 35 x 12.5 with 20 x 9 and 5.25 in. Backspace

Rear Lift Option

5 Inch Block Kit with Add-A-Leaf

  • Designed to give 4.5" of lift.
  • Help freshen up old worn-out factory leaf springs.
  • Includes new center pins.

Leaf Springs

  • Eliminates any need for a lift block.
  • Reduces axle wrap and creates a more controlled and stable feel.
  • Multi-leaf progressive design for a smooth ride.
  • Maintains factory payload weight ratings.

Shock Option

NX2 Nitro Series

  • Nitrogen-charged
  • Twin-tube design
  • 10-stage velocity-sensitive valving
  • Dual-welded ends for increased strength
  • 1-3/8-inch high-flow piston
  • Self-lubricating seals
  • Silver powder coat finish

FOX 2.0 Performance Series

  • 2-inch Impact extruded aluminum body
  • Internal floating piston (IFP) monotube design
  • CNC machined 6061-T6 aluminum mounting ends
  • Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
  • Race-developed high-flow piston design
  • Application-specific valving to maximize performance
  • Long-lasting clear anodized finish

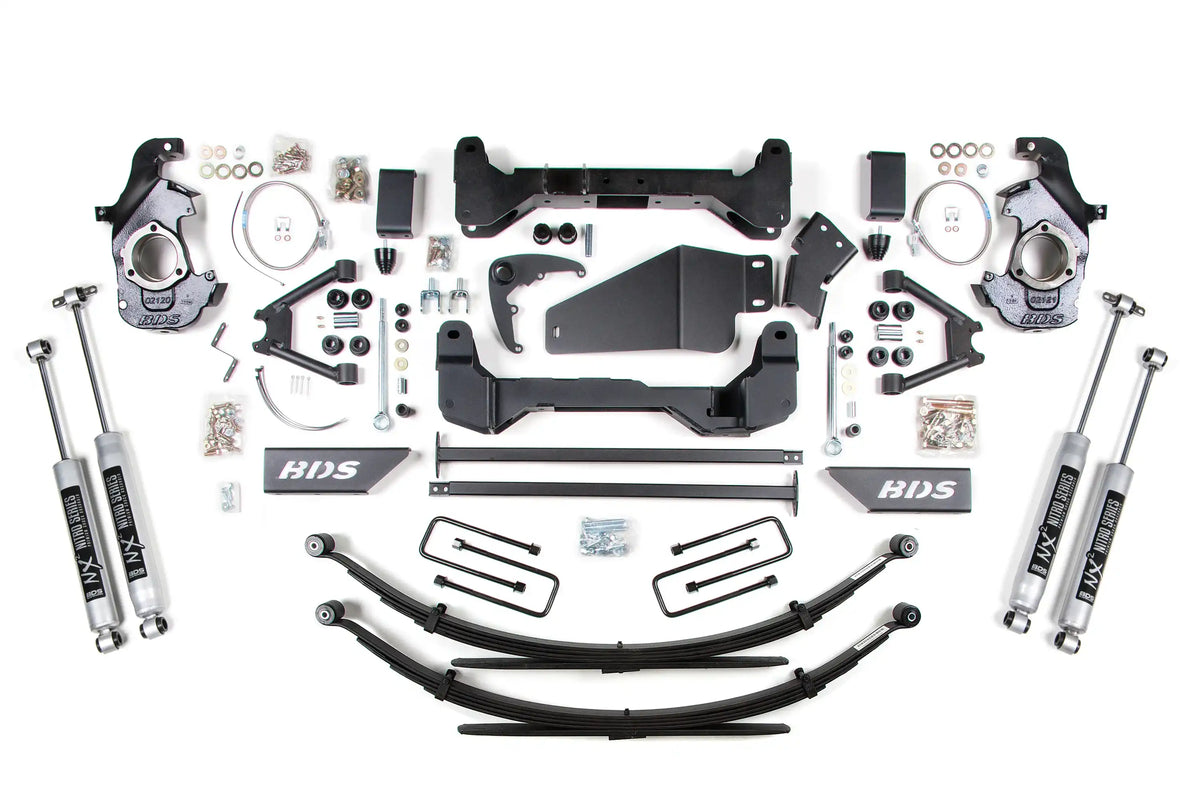

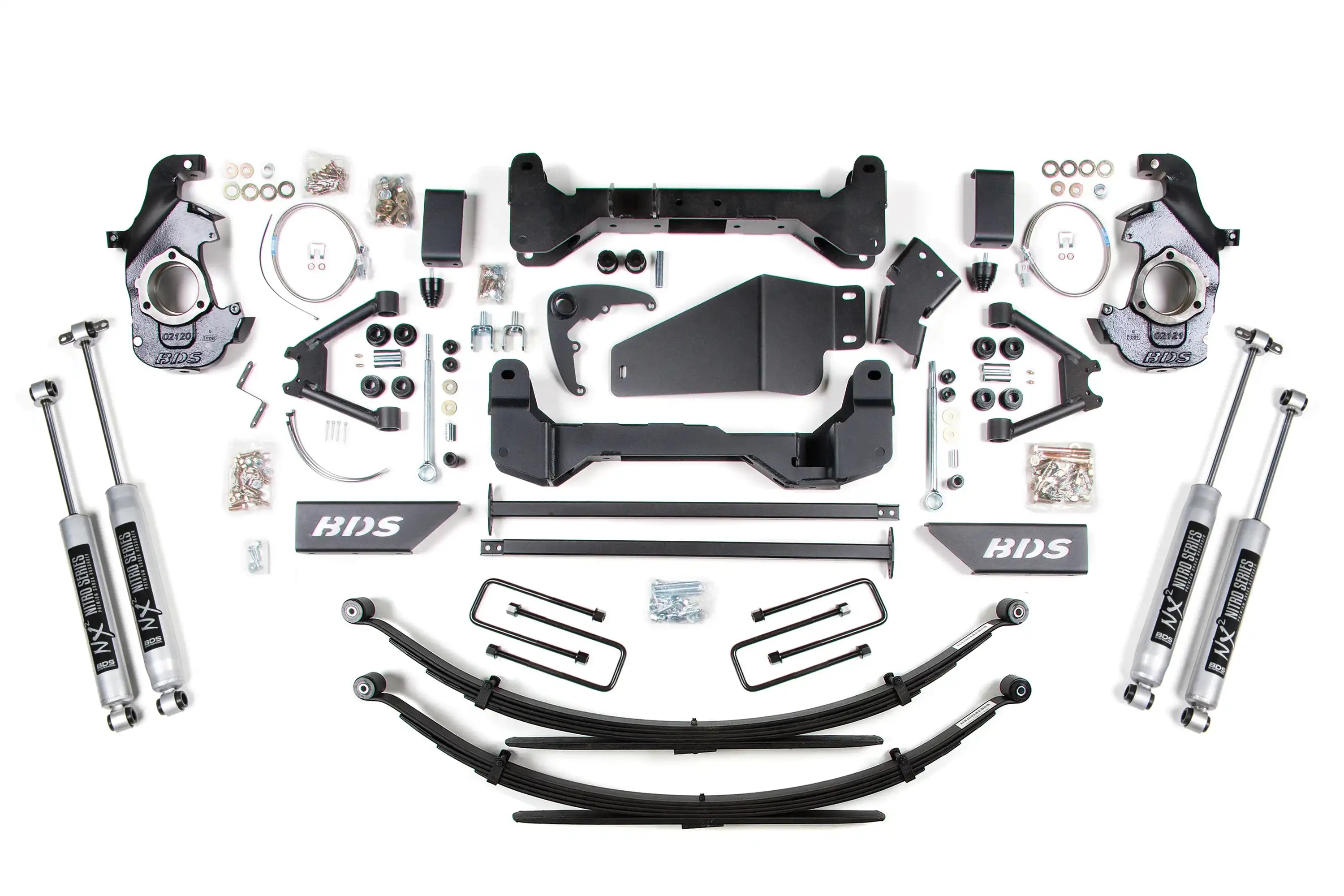

Kit Component List

2 BDS001559 GM 1/2 ton 5.5in Rear Spring
1 BDS011519 88-98 Rear Leaf Spring Box Kit
1 BDS021602 88-98 GM K1500 (6-Lug) 6in Front (1of3)
1 BDS021605 88-98 Front box kit (2of3)
1 BDS021606 88-98 Front box kit (3of3)
2 BDS85600 Shock- 24.80 x 14.80 x 2 - EB1/EB1
2 BDS85609 Shock- 30.95 x 18.15 x 2-3/8 - BP8/EB1


Specifications:

Description_ASC Requires exhaust modification.
Description_ASC Special tool (Kent Moore Tools Part #J-36202-A) is required to unload/load torsion bars. Not available through BDS.
Description_ASC Requires frame bracket modification and differential mount modification.
Description_ASC Not recommended for long box extended cab models due to crossmember interference.
Description_ASC All models equipped with auto-trac may require a new front driveshaft. The auto-trac New Process 246 transfer case can be identified by the silver dollar sized plaque on the rear of the transfer case that reads "NP246". The dash mounted display will display the Auto 4WD symbol. NP243 is not auto-trac.
Description_ASC Aftermarket wheels are required
Description_ASC System will not work on some '88-'95 vehicles equipped with spindle mounted front ABS sensor.
Description_ASC Traction bars will not work on regular cab short box models.
Description_DES 88-98 K1500/2500 6/5 springs
Description_EXT 88-98 K1500-2500 6-5 springs
Description_FAB High clearance crossmember design maximizes ground clearance
Description_FAB Robust steering knuckles for long lasting durability
Description_FAB High-strength replacement upper control arms provide durability and serviceability
Description_FAB HD skid plate system improved offroad protection
Description_FAB Multipoint differential relocation brackets to secure the front axle and improve CV angles
Description_FAB Factory Protection Plus drivetrain warranty included
Description_MKT Engineered to improve stance performance and capability the BDS 6-inch lift kit for the 1988-1998 Chevy and GMC K1500 and K2500 6 Lug trucks is a must have upgrade. For maximum driveability BDS designed this kit around heavy duty upper control arms and steering knuckles that offers zero track width change.This kit includes everything necessary to set your truck up right with clearance for up to 35" tires.
Description_MKT This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance strength and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics. Up front the kit utilizes torsion bar drop brackets heavy duty upper control arms high-arched 1/4-inch thick steel crossmembers along with a multipiece differential relocation brackets and heavy duty skid plates built for offroad protection. Steering geometry is corrected at the new taller ride height with CNC-machined ductile iron steering knuckles. These combined with the provided sway bar drops bump stop extensions brake line brackets CV spacers supplied hardware and more provide a comprehensive front suspension lift ready for whatever you throw at it.
Description_MKT In the rear BDS offers both replacement lift block / add-a-leaf combo and full Glide-Ride leaf spring options to lift and level that stance. The lift block installs in place of the stock block and retains ride quality and load capacity. Also for the rear are new u-bolts and precision tuned NX2 Nitro or FOX 2.0 Performance Series shocks.
Description_MKT High Clearance Crossmembers
Description_MKT BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.
Description_MKT Heavy Duty Steering Knuckles
Description_MKT BDS corrects steering geometry at the new taller ride height using a pair of high-strength CNC machined ductile cast iron steering knuckle design to work with factory tie rod ends to maintain steering angles for proper function and ESC compatibility.
Description_SHO Suspension lift kit
Description_DEF Suspension Lift Kit
