BDS Suspension BDS2100FS - 2014-2018 Ram 2500 4wd| 6in. Radius Arm Lift Kit

Vendor: BDS Suspension
SKU: BLDV_BDS2100FS
Availability: Out of stock. Chat\Call to Order
Product Type: Suspension Lift Kit
$4,115.80 CAD
$4,120.11
$4,115.80 CAD
Found Better Price? Get Price Match!
Take 10% off select products at checkout.
Savings auto-applies on selected products at checkout. Exclusions apply.
  • TruckPoint: Truck Accessories - Car Parts - Canadian Auto Parts
Description
Description
x

To optimize steering geometry once lifted a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.

Take your 2014-2018 RAM 2500 diesel powered truck to the next level with a 6-inch lift kit with radius arm by BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 37" tires.

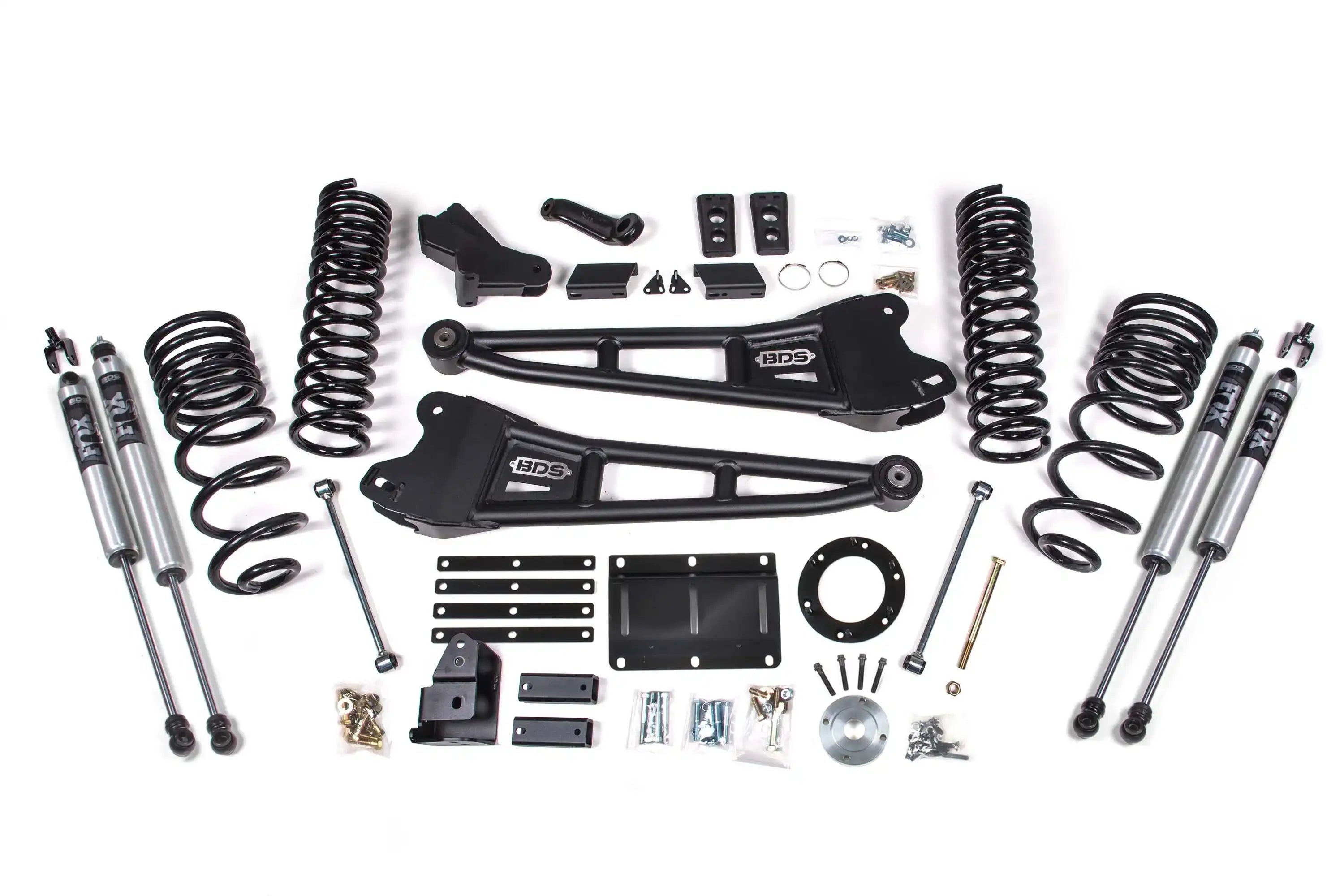

Up front the lift kit includes diesel-specific Pro-Ride coil springs, heavy-duty replacement radius arms, forged drop pitman arm and track bar bracket for steering correction, bump stops, brake line brackets and precision tuned NX2 or FOX 2.0 nitrogen charged shocks.

At this height, the transfer case needs to be indexed to allow use of the factory front driveshaft so an indexing ring and new transmission crossmember are supplied. In the rear this kit utilizes progressive rate Pro-Ride coil springs, track bar relocation bracket to correct axle positioning, bump stop extensions, sway bar links and a matching set of NX2 Nitro or FOX 2.0 Performance shocks.

HD Radius Arms

In place of the factory stamped steel radius arms BDS supplies a pair of high-strength tubular radius arms. These arms mount into the factory location and offer caster adjustment for a wide range of lift heights along with an OE-style rubber bushing at the frame mount for smooth, quiet, service-free operation.

Pro-Ride Coil Springs

A pair of full-length, diesel-specific, progressive rate Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains. Manufactured from high tensile steel, our direct OE replacement coil springs are engineered with properly sized wire diameter. This results in maximum reliability without premature coil bind.

Steering Correction

To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.

Features & Benefits

  • Heavy duty tubular radius arms improve strength, handling and caster control
  • High strength progressive rate coil springs for a great ride on any terrain
  • Track bar relocation brackets to re-position axle
  • Forged drop pitman arm to correct steering angles
  • Front sway bar correction to maintain handling performance
  • HD transmission crossmember and t-case indexing ring to correct front driveline angles and allow use of factory driveshafts
  • BDS NX2 gas or FOX performance series IFP gas shocks to improved ride and offroad performance

Recommended Tires & Wheels

(Trimming may be required)

  • 37 x 12.5 with 17 x 8 and 5.625 in. Backspace
  • 37 x 12.5 with 18 x 9 and 4.5 in. Backspace
  • 35 x 12.5 with 17 x 9 and 4.5 in. Backspace
  • Front Lift Method : Coil Spring
  • Rear Lift Method : Coil Spring
  • Shocks Included : Yes
  • Front Lift Height : 6"
  • Rear Lift Height : 4"

Est. Install Time :

3 hrs

Difficulty Level :

Moderate

Specialty Tools Needed :

Drill / Bit Set, Pitman Arm Puller, Welding Equipment
Kit Component
1    BDS012458    2014-2018 Ram 2500 4.5" Rear Coil Box Kit
1    BDS122321    2013-2024 Ram 2500 /2013-2024 Ram 3500 Radius Arm Box Kit
1    BDS012615    2013-2018 Ram 2500/3500 4wd 6" Radius Arm Front Box Kit
1    BDS032602    2013-2024 Ram 3500 / 2014-2024 Ram 2500 6" Coils - Diesel
1    BDS122623    2013-2018 3500/2014-2018 2500 Ram T-Case Index- 6 Bolt
2    FOX98224752    Fox 2.0 Shock 28.25 x 17.15 x 2- S50/EB1
2    FOX98224756    Fox 2.0 Shock - 27.95 x 17.35 x 2- Special/EB1


Specifications:

Description_DES 2014-2018 Ram 2500 4wd| 6in. Radius Arm Suspension Lift Kit
Description_EXT 2014-2018 Ram 2500 4wd| 6in. Radius Arm Suspension Lift Kit| 4in. rear spring lift - Diesel engine with Coil spring rear shocks - Fox 2.0 Performance Series Shocks
Description_FAB Heavy duty tubular radius arms improve strength handling and caster control
Description_FAB High strength progressive rate coil springs for a great ride on any terrain
Description_FAB Track bar relocation brackets to re-position axle
Description_FAB Forged drop pitman arm to correct steering angles
Description_FAB Front sway bar correction to maintain handling performance
Description_FAB HD transmission crossmember and t-case indexing ring to correct front driveline angles and allow use of factory driveshafts
Description_FAB BDS NX2 gas or FOX performance series IFP gas shocks to improved ride and offroad performance
Description_MKT Take your 2014-2018 RAM 2500 diesel powered truck to the next level with a 6-inch lift kit with radius arm by BDS Suspension. Designed to improve stance performance and capability this kit includes everything necessary to set your truck up right with clearance for up to 37" tires.
Description_MKT Up front the lift kit includes diesel-specific Pro-Ride coil springs heavy-duty replacement radius arms forged drop pitman arm and track bar bracket for steering correction bump stops brake line brackets and precision tuned NX2 or FOX 2.0 nitrogen charged shocks.
Description_MKT At this height the transfer case needs to be indexed to allow use of the factory front driveshaft so an indexing ring and new transmission crossmember are supplied. In the rear this kit utilizes progressive rate Pro-Ride coil springs track bar relocation bracket to correct axle positioning bump stop extensions sway bar links and a matching set of NX2 Nitro or FOX 2.0 Performance shocks.
Description_MKT HD Radius Arms
Description_MKT In place of the factory stamped steel radius arms BDS supplies a pair of high-strength tubular radius arms. These arms mount into the factory location and offer caster adjustment for a wide range of lift heights along with an OE-style rubber bushing at the frame mount for smooth quiet service-free operation.
Description_MKT Pro-Ride Coil Springs
Description_MKT A pair of full-length diesel-specific progressive rate Pro-Ride coil springs are supplied to provide the correct lift height and smooth predictable ride across various terrains. Manufactured from high tensile steel our direct OE replacement coil springs are engineered with properly sized wire diameter. This results in maximum reliability without premature coil bind.
Description_MKT Steering Correction
Description_MKT To optimize steering geometry once lifted a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.
Description_SHO Suspension lift kit
Description_DEF Suspension Lift Kit
