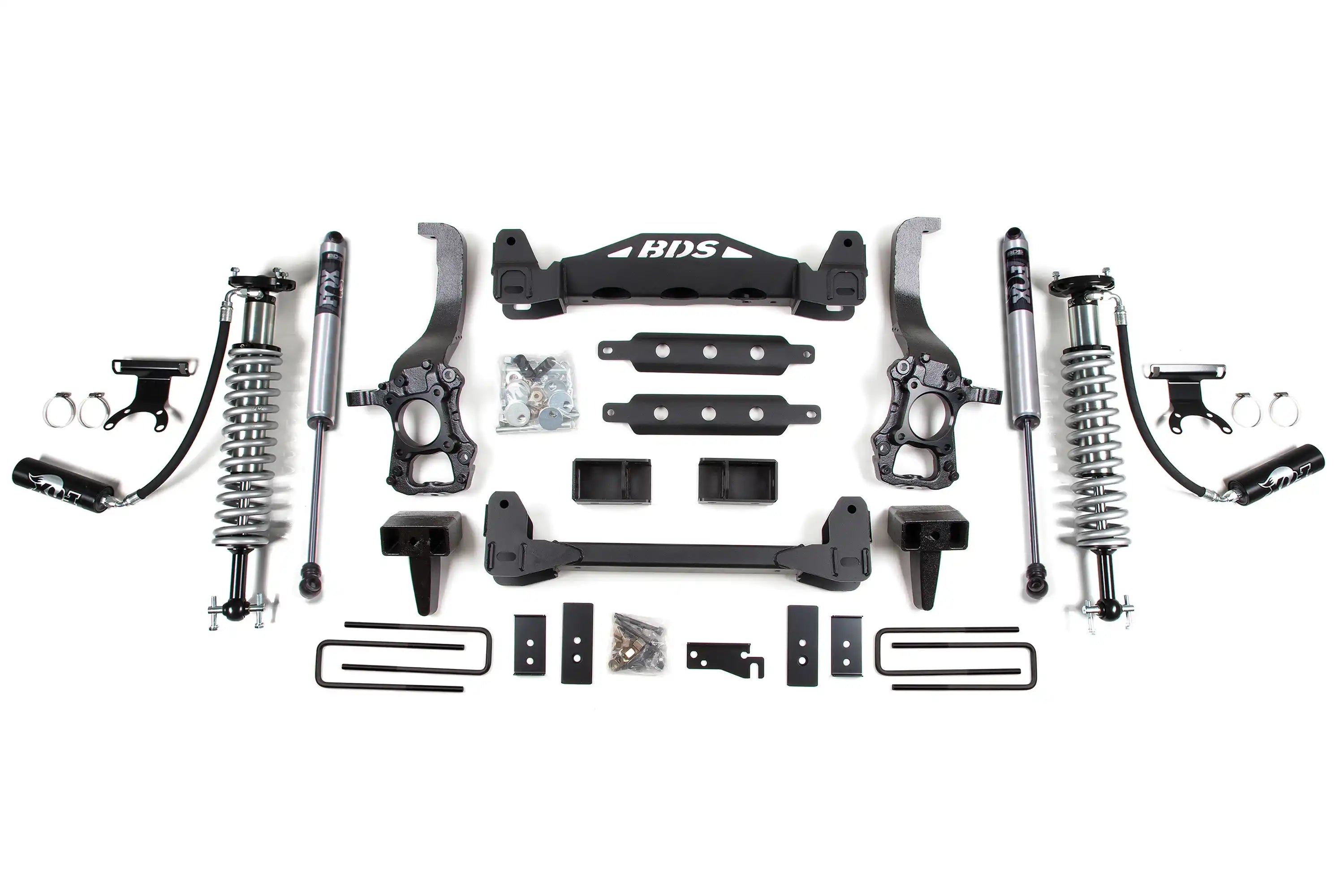

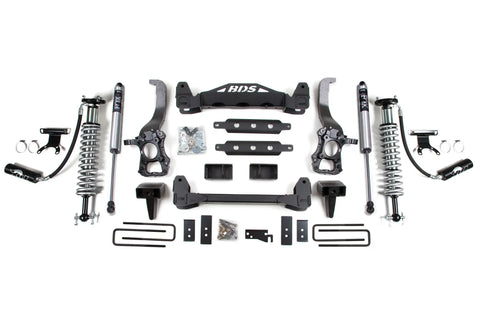

BDS Suspension BDS577F - 09-12 F150 2wd 6in with Fox Coilovers
Vendor:
BDS Suspension
SKU:
BLDV_BDS577F
Availability:
Out of stock. Chat\Call to Order
Product Type:
Suspension Lift Kit
- Regular price
- $16.00 CAD
- Regular price
-
$5,148.30 - Sale price
- $16.00 CAD
- Unit price
- per
Take 10% off select products at checkout.
Savings auto-applies on selected products at checkout. Exclusions apply.
Couldn't load pickup availability
Description
xBDS corrects steering geometry at the new taller ride height using a pair of high-strength CNC machined ductile cast iron steering knuckle design to work with replacement tie rod ends to maintain steering angles for proper function and ESC compatibility.
Specifications:
| Description_ASC | Certain models with a 2-piece rear driveshaft may require carrier bearing drop shim kit 122406 listed in the accessories. |
| Description_ASC | The 4" blocks will net a level/tail LOW stance. The 5" blocks will net a level/tail HIGH stance. |
| Description_DES | 09-12 F150 2wd 6in with Fox Coilovers |
| Description_EXT | 09-12 F150 2wd 6in with Fox Coilovers |
| Description_FAB | FOX 2.5 coil-over shocks designed specifically for increase travel and the ability to soak up the roughest terrain |
| Description_FAB | High clearance crossmembers improve strength and offroad capability |
| Description_FAB | Heavy duty steering knuckles to correct steering geometry and maintain ESC system compatibility |
| Description_FAB | Top mounted strut spacers to provide lift and install easily |
| Description_FAB | Differential skid plate for improved offroad protection |
| Description_FAB | Rear lift blocks and u-bolts to lift and level the stance |
| Description_MKT | Hit the dirt roads in your 2009-2013 Ford F150 2WD truck after installing a 6-inch coil-over suspension lift kit by BDS Suspension. These kits feature proprietary FOX 2.5 coil-over shocks designed specifically to bolt-on performance for increase travel and the ability to soak up the roughest terrain along with smooth on-road comfort. This kit includes everything necessary to set your F150 truck up right with clearance for up to 37" tires. |
| Description_MKT | This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance strength and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics. Up front the kit utilizes FOX 2.5 remote reservoir coil-over shocks high-arched 1/4-inch thick steel crossmembers and skidplate designed for offroad protection. Steering geometry is corrected at the new taller ride height with a pair of massive CNC-machined ductile iron steering knuckles. These combined with the provided sway bar relocation brackets brake line brackets alignment cam bolts supplied hardware and more provide a comprehensive front suspension lift ready for use and abuse. |
| Description_MKT | In the rear BDS utilizes high strength fabricated lift blocks and longer u-bolts to lift and level the stance along with perfectly tuned FOX 2.0 Performance Series shocks. |
| Description_MKT | DSC Adjustment |
| Description_MKT | FOX 2.5 coil-overs are available with optional DSC (dual speed compression) adjustment to tune the high-speed and low-speed compression damping allowing for added control on-road with the ability to easily dial in more aggressive damping offroad. Tuning is a simple twist of the two clearly defined knobs with immediate feedback to dial it in for any terrain. |
| Description_MKT | High Clearance Crossmemebers |
| Description_MKT | BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection. |
| Description_MKT | Heavy Duty Steering Knuckles |
| Description_MKT | BDS corrects steering geometry at the new taller ride height using a pair of high-strength CNC machined ductile cast iron steering knuckle design to work with replacement tie rod ends to maintain steering angles for proper function and ESC compatibility. |
| Description_SHO | Suspension lift kit |
| Description_DEF | Suspension Lift Kit |
| Description_ASC | Strut compressor required for installation. |
| Description_ASC | Will not fit HD models (7 lug). |
| Description_ASC | This kit is FMVSS No.126 Compliant |
| Description_ASC | Requires frame bracket modification. |
| Description_ASC | 17" wheels will not work with this system aftermarket 18" or larger must be used. |
| Description_ASC | If using 18x9 wheels with 5-5.5" of backspace dry fit the wheels to check for proper tie rod clearance. Some wheel manufacturing variances may affect this clearance. |
| Description_ASC | Stock 20's with up to 305/60R20 tires can be re-installed but stock 17" & 18" will not fit. |
| Description_ASC | Vehicles equipped with factory power steps will require part # 123018. This is an additional emergency brake drop bracket. This item is available in the customize your kit section. |
| Description_ASC | Will fit EcoBoost models. |
