BDS Suspension BDS622F - 09-11 Ram 1500 4wd 6-5 Coil kit with FOX

Vendor: BDS Suspension
SKU: BLDV_BDS622F
Availability: 1 In Stock
Product Type: Suspension Lift Kit
$7,021.60 CAD
$6,568.25
$7,021.60 CAD
Found Better Price? Get Price Match!
Take 10% off select products at checkout.
Savings auto-applies on selected products at checkout. Exclusions apply.
  • TruckPoint
* Images may differ from actual product.
Description
Description
x

BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.

BDS steps up the performance and capability of the 2009-2011 Dodge RAM 1500 4WD trucks with a 6-inch suspension lift kit. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 37" tires

This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics. Up front, the kit utilizes top mounted strut spacers, high-arched 1/4-inch thick steel crossmembers along with a multipiece differential relocation brackets and heavy duty skid plates built for offroad protection. Steering geometry is corrected at the new taller ride height with CNC-machined ductile iron steering knuckles and replacement tie rod ends allowing for ESC system compatibility. These combined with the provided sway bar drops, bump stop extensions, stainless steel braided brake lines, CV spacers, supplied hardware and more provide a comprehensive front suspension lift ready for whatever you throw at it.

In the rear this kit utilizes progressive rate Pro-Ride coil springs, rear upper control arm relocation brackets to correct pinion angle, track bar relocation bracket to correct axle positioning, bump stop extensions, and sway bar links. The rear of these kits are rounded out with your choice of specially tuned NX2 nitro series gas shocks or FOX 2.0 IFP performance series gas shocks to offer improved damper performance.

High Clearance Crossmembers

BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.

Heavy Duty Steering Knuckles

BDS corrects steering geometry at the new taller ride height using a pair of high-strength, CNC machined ductile cast iron steering knuckle design to work with replacement tie rod ends to maintain steering angles for proper function and ESC compatibility.

Features & Benefits

  • High clearance crossmember design maximizes ground clearance
  • Robust steering knuckles maintain ESC system compliance
  • HD skid plate system improved offroad protection
  • Multipoint differential relocation brackets to secure the front axle and improve CV angles
  • BDS NX2 gas or FOX performance series IFP gas shocks to improved ride and offroad performance
  • Factory Protection Plus drivetrain warranty included

Recommended Tires & Wheels

(Trimming may be required)

  • 37 x 13.5 with 17 x 9 and 4.5 in. Backspace
  • 37 x 13.5 with 18 x 9 and 5 in. Backspace
  • 37 x 13.5 with 20 x 9 and 5 in. Backspace

Rear Lift Option

These vehicles vary from 1" to 3" tail high from the factory. BDS offers both 3" and 5" rear kits. Be sure to measure your vehicle and order the appropriate rear lift height to level your truck.

  • 3 Inch Coil Springs - Use if your vehicle is 3" tail high from the factory.
  • 5 Inch Coil Springs - USe if your vehicle is level to 1" of tail high from the factory.

Rear Shock Option

NX2 Nitro Series

  • Nitrogen-charged
  • Twin-tube design
  • 10-stage velocity-sensitive valving
  • Dual-welded ends for increased strength
  • 1-3/8-inch high-flow piston
  • Self-lubricating seals
  • Silver powder coat finish

FOX 2.0 Performance Series

  • 2-inch Impact extruded aluminum body
  • Internal floating piston (IFP) monotube design
  • CNC machined 6061-T6 aluminum mounting ends
  • Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
  • Race-developed high-flow piston design
  • Application-specific valving to maximize performance
  • Long-lasting clear anodized finish

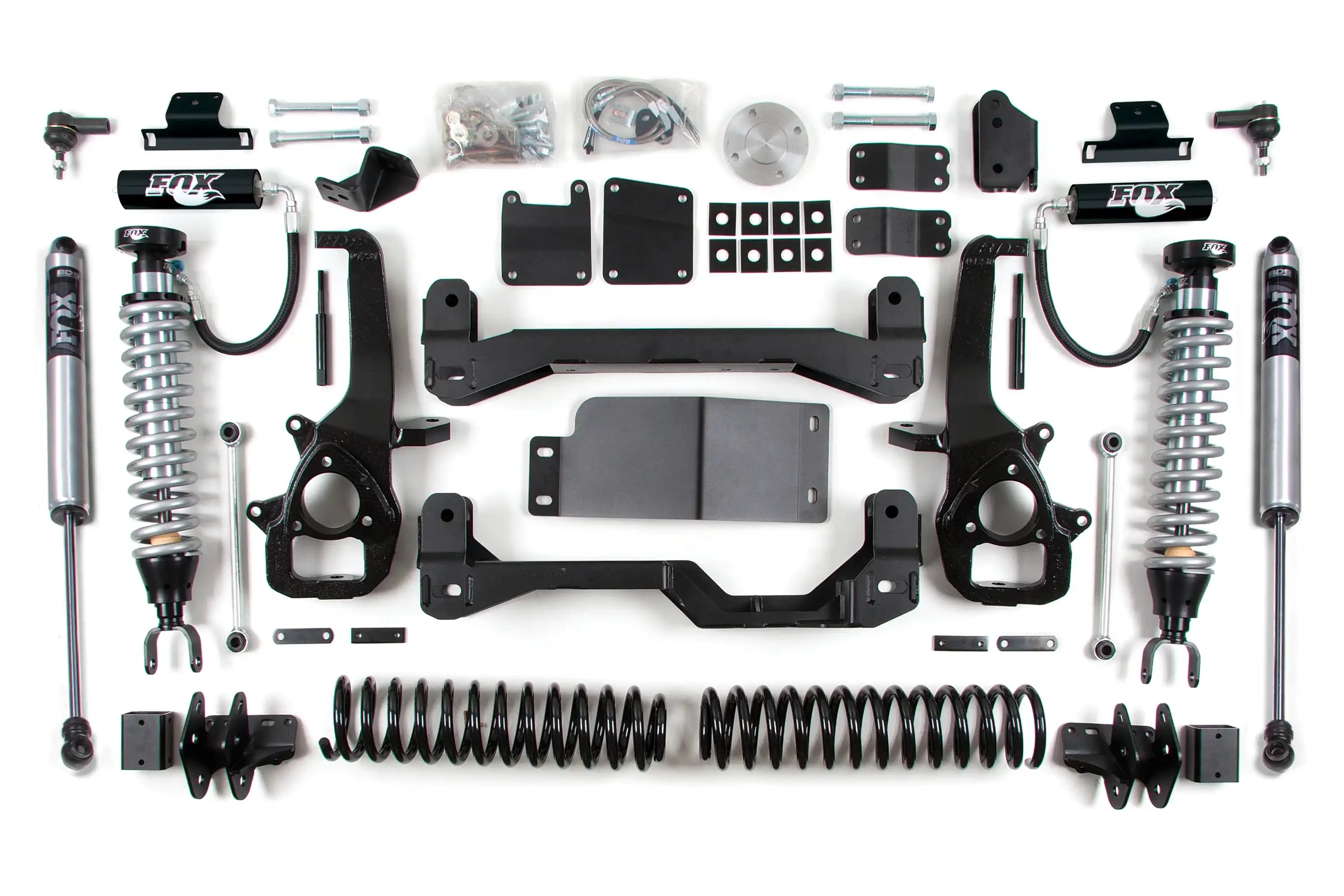

Kit Component List

1 BDS022509 09-10 Dodge 1500 5in Rear Box Kit
1 BDS022605 06 Dodge 1500 6in (4of4)
1 BDS022620 06-10 Dodge 1500 6in Front Box Kt (1of4)
1 BDS022621 06-10 Dodge 1500 6in Front Box Kt (2of4)
1 BDS022623 06-10 Dodge 1500 6in Front Box Kt (3of4)
2 FOX98224759 Fox 2.0 Shock 30.05 x 18.45 x 2- EB1/EB1


Specifications:

Description_ASC Will not fit Mega Cab models.
Description_ASC These trucks can vary from 1" to 3" tail high from the factory. Be sure to measure your vehicle before ordering. Part numbers 022209 022309 and 022509 can all be substituted to achieve the desired stance.
Description_ASC The Rack and Pinion steering system is extremely sensitive to an out-of-round or out-of-balance tire/wheel combination. As you increase the tire diameter and/or decrease the wheel backspacing the more sensitive the system becomes and can cause minor steering wheel shimmy.
Description_ASC Not recommended for AWD models.
Description_ASC Stock 17" wheels can not be re-installed. Stock 20" can be reinstalled with factory tire.
Description_ASC This kit is FMVSS No.126 Compliant
Description_DES 09-11 Ram 1500 4wd 6/5 Coil kit with FOX
Description_EXT 09-11 Ram 1500 4wd 6-5 Coil kit with FOX
Description_FAB FOX 2.5 Factory Race series coilovers for improved ride quality performance and capability
Description_FAB High clearance crossmember design maximizes ground clearance
Description_FAB Robust steering knuckles maintain ESC system compliance
Description_FAB HD skid plate system improved offroad protection
Description_FAB Multipoint differential relocation brackets to secure the front axle and improve CV angles
Description_FAB FOX performance series IFP gas rear shocks to improved ride and offroad performance
Description_FAB Factory Protection Plus drivetrain warranty included
Description_MKT Hit the trails in your 2009-2011 Dodge RAM 1500 4WD truck after installing a 6-inch coil-over suspension lift kit by BDS Suspension. These kits feature proprietary FOX 2.5 coil-over shocks designed specifically to bolt-on performance for increase travel and the ability to soak up the roughest terrain along with smooth on-road comfort. Designed to improve stance performance and capability this kit includes everything necessary to set your truck up right with clearance for up to 37" tires
Description_MKT This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance strength and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics. Up front the kit utilizes top mounted strut spacers high-arched 1/4-inch thick steel crossmembers along with a multipiece differential relocation brackets and heavy duty skid plates built for offroad protection. Steering geometry is corrected at the new taller ride height with CNC-machined ductile iron steering knuckles and replacement tie rod ends allowing for ESC system compatibility. These combined with the provided sway bar drops bump stop extensions stainless steel braided brake lines CV spacers supplied hardware and more provide a comprehensive front suspension lift ready for whatever you throw at it.
Description_MKT In the rear this kit utilizes progressive rate Pro-Ride coil springs rear upper control arm relocation brackets to correct pinion angle track bar relocation bracket to correct axle positioning bump stop extensions and sway bar links. The rear of these kits are rounded out with a set of FOX 2.0 IFP performance series gas shocks to offer improved damper performance.
Description_MKT FOX 2.5 Coil-Overs
Description_MKT FOX 2.5 coil-overs offer next level performance for on-road comfort and off-road comfort capability. Tuned and ready to install right out of the box these bolt-on 2.5-inch diameter coil-overs are built for abuse and packed with race-proven technology. They include a remote reservoir for additional fluid capacity to keep your shocks running cool so you can push the limits in the rough terrain.
Description_MKT DSC Adjustment
Description_MKT FOX 2.5 coil-overs are available with optional DSC (dual speed compression) adjustment to tune the high-speed and low-speed compression damping allowing for added control on-road with the ability to easily dial in more aggressive damping offroad. Tuning is a simple twist of the two clearly defined knobs with immediate feedback to dial it in for any terrain.
Description_MKT High Clearance Crossmembers
Description_MKT BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.
Description_SHO Suspension lift kit
Description_DEF Suspension Lift Kit
