Deals at MyTruckPoint

BDS Suspension BDS670H - 13-18 Ram 1500 4WD 4in.-2in.

Vendor: BDS Suspension
SKU: BLDV_BDS670H
Availability: 2 In Stock
Product Type: Suspension Lift Kit
$3,005.31 CAD
$3,075.54
$3,005.31 CAD
Found Better Price? Get Price Match!
Take 10% off select products at checkout.
Savings auto-applies on selected products at checkout. Exclusions apply.
  • TruckPoint: Truck Accessories - Car Parts - Canadian Auto Parts
Description
Description
x

BDS corrects steering geometry at the new taller ride height using a pair of high-strength CNC machined ductile cast iron steering knuckle design to work with replacement tie rod ends to maintain steering angles for proper function and ESC compatibility.

BDS steps up the performance and capability of the 2013-2018 RAM 1500 trucks with a 4-inch suspension lift kit. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35" tires

This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics. Up front, the kit utilizes top mounted strut spacers, high-arched 1/4-inch thick steel crossmembers along with a multipiece differential relocation brackets and heavy duty skid plates built for offroad protection. Steering geometry is corrected at the new taller ride height with CNC-machined ductile iron steering knuckles and replacement tie rod ends allowing for ESC system compatibility. These combined with the provided sway bar drops, bump stop extensions, stainless steel braided brake lines, CV spacers, supplied hardware and more provide a comprehensive front suspension lift ready for whatever you throw at it.

In the rear this kit utilizes a 2" coil spacer, rear upper control arm relocation brackets to correct pinion angle, track bar relocation bracket to correct axle positioning, bump stop extensions, and sway bar links. The rear of these kits are rounded out with your choice of specially tuned NX2 nitro series gas shocks or FOX 2.0 IFP performance series gas shocks to offer improved damper performance.

High Clearance Crossmembers

BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.

Heavy Duty Steering Knuckles

BDS corrects steering geometry at the new taller ride height using a pair of high-strength, CNC machined ductile cast iron steering knuckle design to work with replacement tie rod ends to maintain steering angles for proper function and ESC compatibility.

Features & Benefits

  • High clearance crossmember design maximizes ground clearance
  • Robust steering knuckles maintain ESC system compliance
  • HD skid plate system improved offroad protection
  • Multipoint differential relocation brackets to secure the front axle and improve CV angles
  • BDS NX2 gas or FOX performance series IFP gas shocks to improved ride and offroad performance
  • Factory Protection Plus drivetrain warranty included

Recommended Tires & Wheels

(Trimming may be required)

  • 35 x 12.5 with 17 x 9 and 4.5 in. Backspace
  • 35 x 12.5 with 18 x 9 and 4.5 in. Backspace
  • 35 x 12.5 with 20 x 9 and 4.5 in. Backspace

Rear Lift Option

These vehicles vary from 1" to 3" tail high from the factory. BDS offers 3" rear coil springs (standard) or 2" rear coil spring spacers. Measure your vehicle and order the appropriate rear lift height to get your desired stance.

Coil Spacers

  • Maintains factory ride quality
  • Made with heavy-duty steel construction
  • Powdercoat finish for long-lasting durability

Coil Springs

  • Full replacement rear coil springs
  • Coils are progressive rate and provide a great ride loaded or not
  • Built to handle heavy loads without sagging
  • A polyester-based powder coat is applied to ensure flexibility and durability
  • Shot peened to increase tensile strength and maximum wheel travel without sacrificing spring life

Shock Option

NX2 Nitro Series

  • Nitrogen-charged
  • Twin-tube design
  • 10-stage velocity-sensitive valving
  • Dual-welded ends for increased strength
  • 1-3/8-inch high-flow piston
  • Self-lubricating seals
  • Silver powder coat finish

FOX 2.0 Performance Series

  • 2-inch Impact extruded aluminum body
  • Internal floating piston (IFP) monotube design
  • CNC machined 6061-T6 aluminum mounting ends
  • Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
  • Race-developed high-flow piston design
  • Application-specific valving to maximize performance
  • Long-lasting clear anodized finish

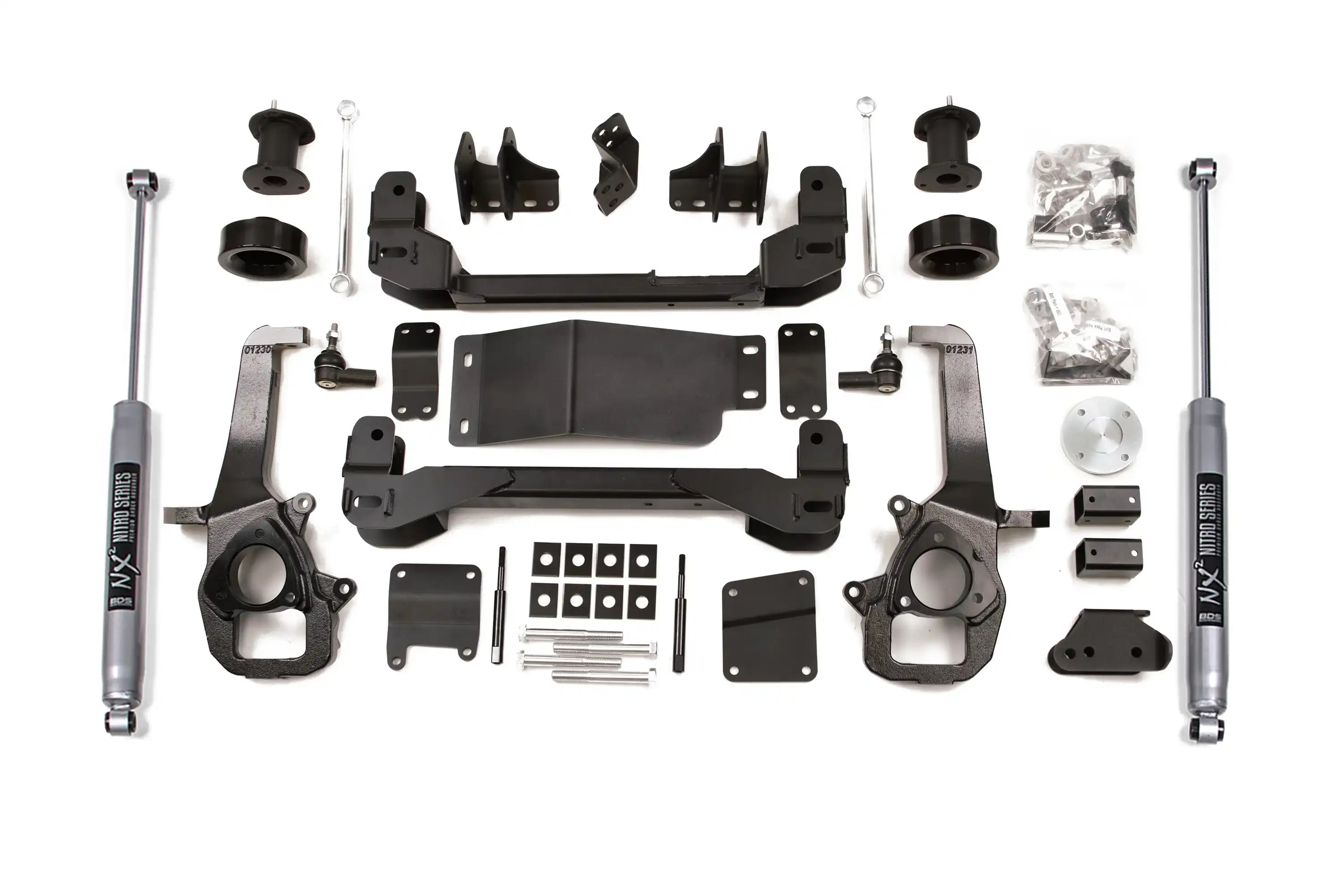

Kit Component List

1 BDS022209 09-12 Dodge 1500 2in Rear Spacer Kit
1 BDS022402 2012 Dodge 1500 4in Frnt Box Kit 3of4
1 BDS022625 2012 Dodge 1500 6 in Frnt Box Kit 4 of 4
1 BDS022630 2013 DODGE 1500 4WD FRONTBOXKIT (1 OF 4)
1 BDS022631 2013 DODGE 4WD FRONTBOXKIT (2 OF 4)
2 BDS85758 Shock- 27.90 x 16.55 x 2-3/8 - EB1/EB1


Specifications:

Description_ASC The Rack and Pinion steering system is extremely sensitive to an out-of-round or out-of-balance tire/wheel combination. As you increase the tire diameter and/or decrease the wheel backspacing the more sensitive the system becomes and can cause minor steering wheel shimmy.
Description_ASC Not recommended for AWD models.
Description_ASC Stock 17" and 18" wheels can not be re-installed. Stock 20" can be reinstalled with a factory tire.
Description_ASC Will not fit adjustable air suspension equipped models.
Description_ASC This kit will bolt on Eco-Diesel models but it will require an aftermarket front drive shaft.
Description_ASC This kit is FMVSS No.126 Compliant.
Description_DES 13-18 Ram 1500 4WD 4in./2in.
Description_EXT 13-18 Ram 1500 4WD 4in.-2in.
Description_FAB High clearance crossmember design maximizes ground clearance
Description_FAB Robust steering knuckles maintain ESC system compliance
Description_FAB HD skid plate system improved offroad protection
Description_FAB Multipoint differential relocation brackets to secure the front axle and improve CV angles
Description_FAB BDS NX2 gas or FOX performance series IFP gas shocks to improved ride and offroad performance
Description_FAB Factory Protection Plus drivetrain warranty included
Description_MKT BDS steps up the performance and capability of the 2013-2018 RAM 1500 trucks with a 4-inch suspension lift kit. Designed to improve stance performance and capability this kit includes everything necessary to set your truck up right with clearance for up to 35" tires
Description_MKT This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance strength and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics. Up front the kit utilizes top mounted strut spacers high-arched 1/4-inch thick steel crossmembers along with a multipiece differential relocation brackets and heavy duty skid plates built for offroad protection. Steering geometry is corrected at the new taller ride height with CNC-machined ductile iron steering knuckles and replacement tie rod ends allowing for ESC system compatibility. These combined with the provided sway bar drops bump stop extensions stainless steel braided brake lines CV spacers supplied hardware and more provide a comprehensive front suspension lift ready for whatever you throw at it.
Description_MKT In the rear this kit utilizes a 2" coil spacer rear upper control arm relocation brackets to correct pinion angle track bar relocation bracket to correct axle positioning bump stop extensions and sway bar links. The rear of these kits are rounded out with your choice of specially tuned NX2 nitro series gas shocks or FOX 2.0 IFP performance series gas shocks to offer improved damper performance.
Description_MKT High Clearance Crossmembers
Description_MKT BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.
Description_MKT Heavy Duty Steering Knuckles
Description_MKT BDS corrects steering geometry at the new taller ride height using a pair of high-strength CNC machined ductile cast iron steering knuckle design to work with replacement tie rod ends to maintain steering angles for proper function and ESC compatibility.
Description_SHO Suspension lift kit
Description_DEF Suspension Lift Kit
