BDS Suspension BDS719H - 11-19 Chevy HD 4.5in. 2in. rear block without Overload

Vendor: BDS Suspension
SKU: BLDV_BDS719H
Availability: 6 In Stock
Product Type: Suspension Lift Kit
$3,204.86 CAD
$3,381.62
$3,204.86 CAD
Found Better Price? Get Price Match!
Take 10% off select products at checkout.
Savings auto-applies on selected products at checkout. Exclusions apply.
  • TruckPoint
* Images may differ from actual product.
Description
Description
x

Product Description

Take your Duramax to the next level with the BDS 4.5-Inch Suspension Lift Kit, engineered to improve stance, capability, and ground clearance without the added height of a larger lift. Designed for 2011-2019 Chevy Silverado and GMC Sierra 2500HD 4WD models, this high-clearance IFS system delivers impressive off-road performance while maintaining excellent on-road handling characteristics.

Built around BDS’s innovative No Torsion Bar Drop design, the system maximizes ground clearance by eliminating the need to lower the torsion bar crossmember. Heavy-duty crossmembers, differential relocation brackets, skid plates, and ductile cast iron steering knuckles work together to maintain proper suspension geometry, steering performance, and CV axle angles.

The kit includes everything needed for a complete installation, including stainless steel brake lines, sway bar links, differential skid plates, rear lift blocks, and premium BDS shocks. With clearance for up to 35-inch tires, this suspension system provides the perfect balance of aggressive styling, functionality, and durability.

Features & Benefits

  • Provides 4.5 inches of front lift and 2 inches of rear lift
  • High-clearance IFS design maximizes ground clearance
  • No torsion bar drop design improves underbody clearance
  • One-piece heavy-duty crossmembers enhance strength and durability
  • Ductile cast iron steering knuckles maintain proper steering geometry
  • Multipoint differential relocation brackets improve CV axle angles
  • Front replacement steel splash guard adds protection
  • Differential skid plates provide additional off-road protection
  • Extended sway bar links maintain suspension performance
  • Stainless steel front brake lines included
  • Rear lift block system maintains ride quality and load capacity
  • Clears up to 35-inch tires for an aggressive stance
  • Choice of BDS NX2 or FOX 2.0 shocks available on select configurations
  • Includes Factory Protection Plus drivetrain warranty

Attributes

  • Product Type: Suspension Lift Kit
  • Lift Height: 4.5 Inches Front / 2 Inches Rear

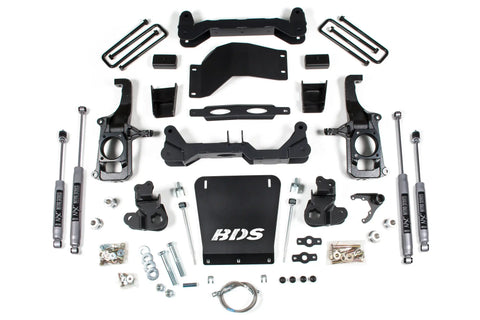

  • Front Components: Crossmembers, Steering Knuckles, Differential Relocation Brackets, Splash Guard, Sway Bar Links, Brake Lines, Skid Plates, Hardware
  • Rear Components: 2-Inch Lift Blocks, U-Bolts, Hardware
  • Steering Knuckle Material: CNC-Machined Ductile Cast Iron
  • Brake Line Material: Stainless Steel
  • Suspension Design: High-Clearance No Torsion Bar Drop IFS
  • Shock Options: BDS NX2 Nitro or FOX 2.0 Performance Series (Configuration Dependent)
  • Maximum Tire Size: 35 x 12.50 Inches
  • Installation Difficulty: 4/5
  • Warranty: Factory Protection Plus Drivetrain Warranty Included

Recommended Tire & Wheel Combinations

  • 35 x 12.50 Tire with 17 x 8 Wheel and 4.5” to 4.625” Backspacing
  • 35 x 12.50 Tire with 18 x 9 Wheel and 4.5” to 4.625” Backspacing
  • 35 x 12.50 Tire with 20 x 9 Wheel and 5” to 6” Backspacing

Notes

  • Torsion bar unloading tool required for installation
  • Factory 17” and 18” wheels cannot be reused
  • Factory 20” wheels cannot be reused on 2015-2019 models
  • Factory dually wheels cannot be reused
  • Models with a two-piece rear driveshaft may require part #12161
  • Overload spring-equipped models require a different kit configuration
  • Minor trimming may be required depending on wheel and tire combination

Vehicle Fitment

Fits:

  • 2011-2019 Chevrolet Silverado 2500HD 4WD
  • 2011-2019 GMC Sierra 2500HD 4WD (Without Rear Overload Springs)


Specifications:

Description_ASC Torsion Bar Tool required to load/unload the torsion bars.
Description_ASC Stock 17" & 18" wheels cannot be reinstalled.
Description_ASC Stock 20" wheels cannot be reinstalled on 2015-2019 models
Description_ASC Factory dually wheels cannot be reinstalled.
Description_ASC Models with two-piece rear driveshaft may require #121612.
Description_ASC Top mounted rear overload spring-equipped models require a different kit than non-overload equipped models. Be sure to select the correct option for your truck.
Description_ASC Depending on the specific wheel and tire combination trimming may be required for 35x12.50s
Description_DES 11-19 Chevy HD 4.5in. without Overload
Description_EXT 11-19 Chevy HD 4.5in. 2in. rear block without Overload
Description_FAB High Clearance design w/ no torsion bar drop maximizes ground clearance
Description_FAB Robust steering knuckles maintain ESC system compliance
Description_FAB HD skid plate system improved offroad protection
Description_FAB Multipoint differential relocation brackets to secure the front axle and improve CV angles
Description_FAB Factory Protection Plus drivetrain warranty included
Description_FAB Choice of NX2 or FOX 2.0 gas shocks for improved performance
Description_MKT Improve the stance performance and capability of your 2011-2019 Chevy Silverado and GMC Sierra 2500 HD 4WD with a BDS 4.5-inch lift kit. For maximum ground clearance BDS designed a No Torsion Bar Drop System where the torsion bars are mounted directly to the top of the lower a-arm eliminating the need to drop the torsion bar cross-member. This kit includes everything necessary to set your truck up right with clearance for up to 35" tires.
Description_MKT This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance strength and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics. Up front the kit utilizes torsion bar relocation brackets high-arched 1/4-inch thick steel crossmembers along with a multipiece differential relocation brackets and heavy duty skid plates built for offroad protection. Steering geometry is corrected at the new taller ride height with CNC-machined ductile iron steering knuckles. These combined with the provided sway bar links bump stop extensions stainless steel brake lines CV spacers supplied hardware and more provide a comprehensive front suspension lift ready for whatever you throw at it.
Description_MKT In the rear BDS offers replacement lift blocks to lift and level that stance. The lift block installs in place of the stock block and retains ride quality and load capacity. Also for the rear is a u-bolt flip kit for max clearance and precision tuned NX2 Nitro or FOX 2.0 Performance Series shocks.
Description_MKT High Clearance Crossmembers
Description_MKT BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.
Description_MKT Heavy Duty Steering Knuckles
Description_MKT BDS corrects steering geometry at the new taller ride height using a pair of high-strength CNC machined ductile cast iron steering knuckle design to work with factory tie rod ends to maintain steering angles for proper function.
Description_SHO Suspension lift kit
Description_DEF Suspension Lift Kit
