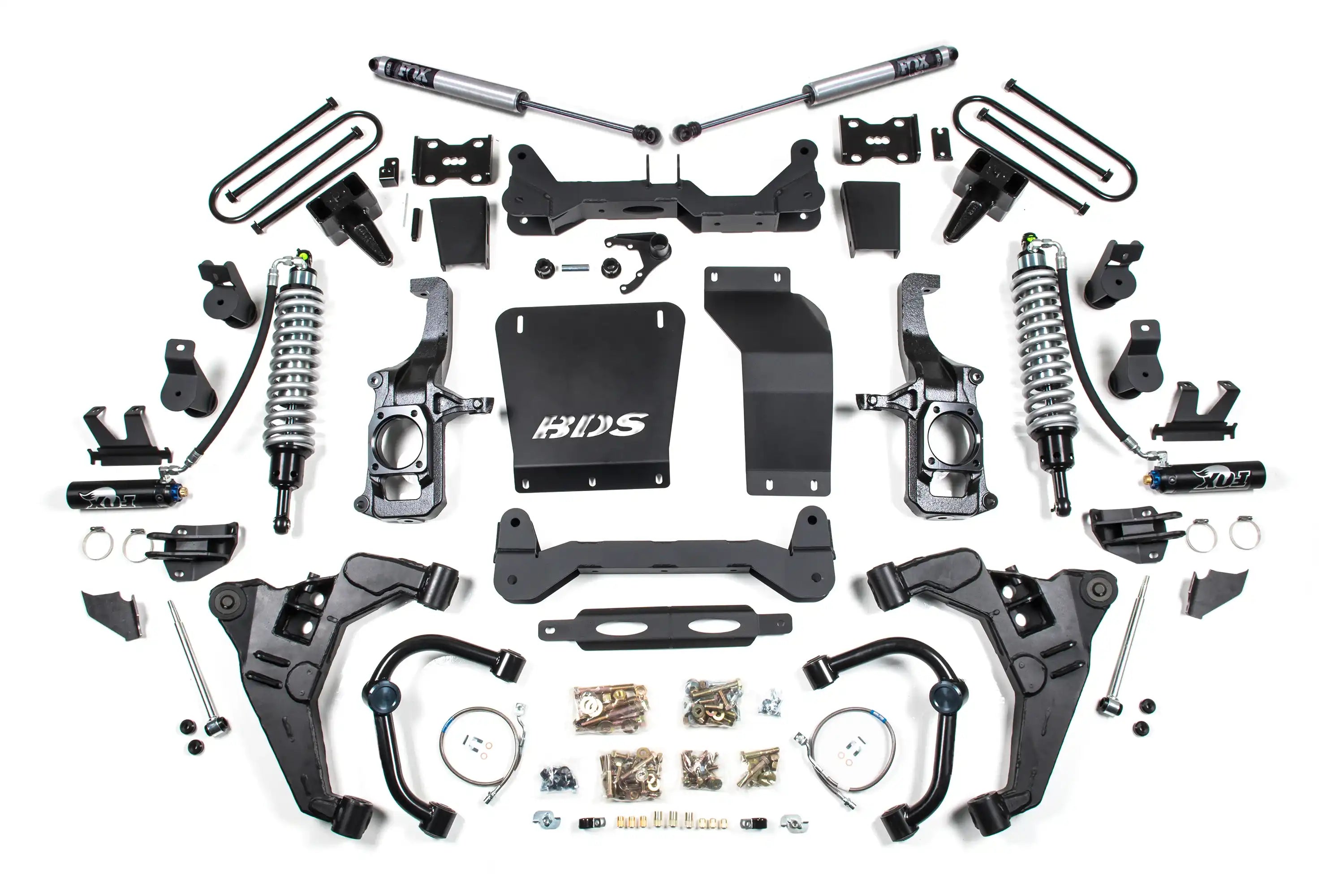

BDS Suspension BDS728FDSC - 11-19 Chevy HD 6.5/5 coilover Lift with ovld

Vendor: BDS Suspension
SKU: BLDV_BDS728FDSC
Availability: Out of stock. Chat\Call to Order
Product Type: Suspension Lift Kit
$8,309.84 CAD
$9,095.14
$8,309.84 CAD
Found Better Price? Get Price Match!
Take 10% off select products at checkout.
Savings auto-applies on selected products at checkout. Exclusions apply.
  • TruckPoint: Truck Accessories - Car Parts - Canadian Auto Parts
Description
Description
x
11-19 Chevy HD 6.5/5 coilover Lift with ovld


Specifications:

Description_ASC Models with two piece rear driveshaft may require carrier bearing drop kit (#121612).
Description_ASC Coilovers are preset for DIESEL engine models. The use of the coilovers on GAS engine models is not recommended due to providing too much lift. Available preload adjustment is typically not enough to achieve desired ride height.
Description_ASC Will NOT fit dually applications.
Description_DES 11-19 Chevy HD 6.5/5 coilover Lift with ovld
Description_EXT 11-19 Chevy HD 6.5-5 coilover Lift with ovld
Description_FAB FOX 2.5 coil-overs offer improved damper performance over stock
Description_FAB DSC Adjuster allows easy high-speed and low-speed compression tuning for optimal performance in any terrain
Description_FAB Performance UCAs increase strength and allow for more suspension travel
Description_FAB High Clearance design w/ no torsion bar drop maximizes ground clearance
Description_FAB Robust steering knuckles maintain ESC system compliance
Description_FAB HD skid plate system improved offroad protection
Description_FAB Multipoint differential relocation brackets to secure the front axle and improve CV angles
Description_FAB Factory Protection Plus drivetrain warranty included
Description_MKT BDS is a game changer in performance of your 2011-2019 Chevy Silverado and GMC Sierra 2500 HD truck with a 6.5-inch suspension lift kit with FOX 2.5 Coil-Over conversion. Designed to improve stance performance and capability this kit includes everything necessary to set your truck up right with clearance for up to 37" tires. These kits feature proprietary FOX 2.5 coil-over shocks designed specifically to bolt-on performance for increased travel and the ability to soak up the roughest terrain along with smooth on-road comfort.
Description_MKT Built for strength performance and increased travel these control arms are ready to bolt-in. The upper arms use 1.5" OD x .120-wall tubular construction with an indexed ball joint cup to correct the ball joint positioning allowing additional down travel and camber adjustment. The new lower control arms are built from high strength steel fully boxed with internally gusseted. At the frame mounting ends are durometer-specific rubber bushings for maintenance-free operation while at the other end a quality greaseable ball joints for smooth quiet operation and superior durability. Arms are finished in a durable black powder coat with a billet aluminum dust cap ready for installation right out of the box.
Description_MKT In addition to replacing the factory torsion bars the upper and lower control arms are upgraded to improve strength travel and accommodate the new coilovers. The new upper control arms are fabricated from large 1.5" OD x .120-wall tubing fully TIG welded for the highest quality strength and durability. To compliment the uppers the new lower control arms are built from high strength steel fully boxed with internally gusseted.
Description_MKT This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance strength and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics. Up front the kit utilizes FOX 2.5 coil-over shocks heavy duty tubular upper control arms fully boxed and gusseted lower control arms high-arched 1/4-inch thick steel crossmembers and a multipiece differential relocation brackets and heavy duty skid plates built for offroad protection. Steering geometry is corrected at the new taller ride height with CNC-machined ductile iron steering knuckles. These combined with the provided sway bar links bump stop extensions stainless steel brake lines CV spacers supplied hardware and more provide a comprehensive front suspension lift ready for whatever you throw at it.
Description_MKT In the rear BDS offers replacement lift blocks to lift and level that stance. The lift block installs in place of the stock block and retains ride quality and load capacity. Also for the rear is a u-bolt flip kit for max clearance and precision tuned FOX 2.0 Performance Series shocks for ultimate off road performance.
Description_MKT FOX 2.5 Coil-Overs
Description_MKT FOX 2.5 coil-overs offer next level performance for on-road comfort and off-road comfort capability. Tuned and ready to install right out of the box these bolt-on 2.5-inch diameter coil-overs are built for abuse and packed with race-proven technology. They include a remote reservoir for additional fluid capacity to keep your shocks running cool so you can push the limits in the rough terrain.
Description_MKT DSC Adjustment
Description_MKT FOX 2.5 coil-overs are available with optional DSC (dual speed compression) adjustment to tune the high-speed and low-speed compression damping allowing for added control on-road with the ability to easily dial in more aggressive damping offroad. Tuning is a simple twist of the two clearly defined knobs with immediate feedback to dial it in for any terrain
Description_MKT HD Control Arms
Description_SHO Suspension lift kit
Description_DEF Suspension Lift Kit
Description_ASC A torsion bar tool is required to unload the torsion bars.
Description_ASC Requires frame bracket and differential modification.
Description_ASC Minor welding is required for coil-over mount installation.
Description_ASC Stock 17" & 18" wheels cannot be reinstalled.
Description_ASC Stock 20" x 8.5" wheels with 6" backspacing or less will fit with a max tire size of 35 x 12.50.
