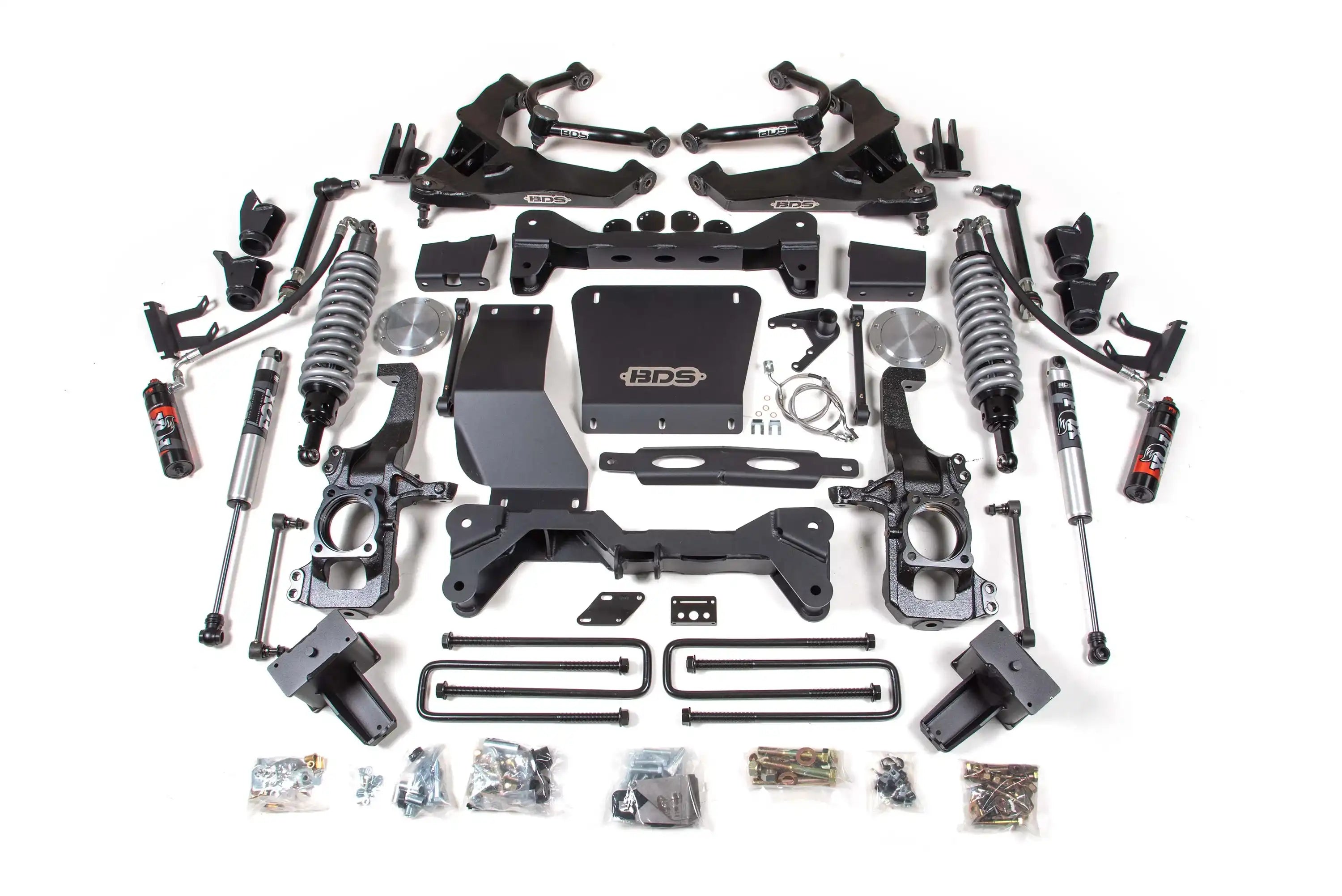

BDS Suspension BDS753FPE - 2020-2023 GM 2500HD/3500HD| 4wd| 6.5in. Coilover Lift System

Vendor: BDS Suspension
SKU: BLDV_BDS753FPE
Availability: Out of stock. Chat\Call to Order
Product Type: Suspension Lift Kit
$10,405.24 CAD
$10,414.56
$10,405.24 CAD
Found Better Price? Get Price Match!
Take 10% off select products at checkout.
Savings auto-applies on selected products at checkout. Exclusions apply.
  • TruckPoint: Truck Accessories - Car Parts - Canadian Auto Parts
Description
Description
x
Built for strength performance and increased travel these control arms are ready to bolt-in. The upper arms use 1.5" OD x .120-wall tubular construction with an indexed ball joint cup to correct the ball joint positioning allowing additional down travel and camber adjustment. The new lower control arms are built from high strength steel fully boxed with internally gusseted. At the frame mounting ends are durometer-specific rubber bushings for maintenance-free operation while at the other end a quality greaseable ball joints for smooth quiet operation and superior durability. Arms are finished in a durable black powder coat with a billet aluminum dust cap ready for installation right out of the box.


Specifications:

Description_ASC Disassembly/assembly of the factory torsion bar system requires the use of a special unloading tool. The GM specified tool # is CH48809.
Description_ASC Compatible with diesel models ONLY. Works with standard or AT4 diesel models.
Description_ASC Some minor trim will be required with certain wheel/tire combination. This is normal with most aftermarket tire/wheel fitment on Chevy/GM trucks. Trimming will normally include the bottom edge of the inner fender shrouds and/or lower corner of front bumper valance. As a rule of thumb deeper backspacing and shorter/narrower tires will reduce/eliminate trimming required. Further trimming tips are included at the end of this instruction sheet.
Description_ASC Factory 17-18" wheels cannot be reinstalled due to tie rod end interference stock 20" wheels can be reinstalled with up to a 37x12.50 tire.
Description_ASC In some cases vehicles used in 4WD on the highway regularly could potentially experience a minor front driveline vibration. If this occurs we recommend replacing the front driveshaft with a dual Cardan style driveshaft.
Description_ASC Coilover coil has a large amount of preload a coil spring compressor must be used to remove the coil from the coilover. Failure to use a coil spring compressor may result in death or injury.
Description_ASC Do not increase coilover preload.
Description_DES 2020-2023 GM 2500HD/3500HD| 4wd| 6.5in. Coilover Suspension Lift System
Description_EXT 2020-2023 GM 2500HD-3500HD| 4wd| 6.5in. Coilover conversionersion Suspension Lift System| 5.75in. rear block without Overload spring Diesel engine - Fox 2.5 Performance Elite front coil-over| Fox 2.0 Performance Series rear shocks
Description_FAB FOX 2.5 coil-overs offer improved damper performance over stock
Description_FAB DSC Adjuster allows easy high-speed and low-speed compression tuning for optimal performance in any terrain
Description_FAB Performance UCAs increase strength and allow for more suspension travel
Description_FAB High Clearance design w/ no torsion bar drop maximizes ground clearance
Description_FAB Robust steering knuckles maintain ESC system compliance
Description_FAB HD skid plate system improved offroad protection
Description_FAB Multipoint differential relocation brackets to secure the front axle and improve CV angles
Description_FAB Factory Protection Plus drivetrain warranty included
Description_MKT BDS is a game changer in performance of your 2020-2023 Chevy Silverado and GMC Sierra 2500 HD truck with a 6.5-inch suspension lift kit with FOX 2.5 Coil-Over conversion. Designed to improve stance performance and capability this kit includes everything necessary to set your truck up right with clearance for up to 38" tires. These kits feature proprietary FOX 2.5 coil-over shocks designed specifically to bolt-on performance for increased travel and the ability to soak up the roughest terrain along with smooth on-road comfort.
Description_MKT In addition to replacing the factory torsion bars the upper and lower control arms are upgraded to improve strength travel and accommodate the new coilovers. The new upper control arms are fabricated from large 1.5" OD x .120-wall tubing fully TIG welded for the highest quality strength and durability. To compliment the uppers the new lower control arms are built from high strength steel fully boxed with internally gusseted.
Description_MKT This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance strength and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics. Up front the kit utilizes FOX 2.5 coil-over shocks heavy duty tubular upper control arms fully boxed and gusseted lower control arms high-arched 1/4-inch thick steel crossmembers and a multipiece differential relocation brackets and heavy duty skid plates built for offroad protection. Steering geometry is corrected at the new taller ride height with CNC-machined ductile iron steering knuckles. These combined with the provided sway bar links bump stop extensions stainless steel brake lines CV spacers supplied hardware and more provide a comprehensive front suspension lift ready for whatever you throw at it.
Description_MKT In the rear BDS offers replacement lift blocks to lift and level that stance. The lift block installs in place of the stock block and retains ride quality and load capacity. Also for the rear is a u-bolt flip kit for max clearance and precision tuned FOX 2.0 Performance Series shocks for ultimate off road performance.
Description_MKT FOX Performance Elite
Description_MKT FOX 2.5 Performance Elite shocks offer next level performance for on-road comfort and off-road comfort capability. Tuned and ready to install right out of the box these bolt-on 2.5-inch diameter shocks are built for abuse and packed with race-proven technology. They include a remote reservoir for additional fluid capacity to keep your shocks running cool so you can push the limits in the rough terrain. The DSC adjuster adds remarkable versatility and precise tuning with a simple twist of either two adjuster knobs offering 10 separate low-speed and 12 high-speed compression levels with a black anodized aluminum reservoir to increase cooling efficiency.
Description_MKT HD Control Arms
Description_MKT Built for strength performance and increased travel these control arms are ready to bolt-in. The upper arms use 1.5" OD x .120-wall tubular construction with an indexed ball joint cup to correct the ball joint positioning allowing additional down travel and camber adjustment. The new lower control arms are built from high strength steel fully boxed with internally gusseted. At the frame mounting ends are durometer-specific rubber bushings for maintenance-free operation while at the other end a quality greaseable ball joints for smooth quiet operation and superior durability. Arms are finished in a durable black powder coat with a billet aluminum dust cap ready for installation right out of the box.
Description_SHO Suspension lift kit
Description_ASC Models with two-piece rear drive shafts will require a carrier bearing drop kit. (BDS121612)
Description_ASC For DRW models use the w/ overload rear lift option.
Description_ASC Requires frame bracket modification.
Description_DEF Suspension Lift Kit
