BDS Suspension BDS767FS - 2020-2023 GM 2500/3500 HD 5in. Lift System with Overloads
Vendor:
BDS Suspension
SKU:
BLDV_BDS767FS
Availability:
6
In Stock
Product Type:
Suspension Lift Kit
- Regular price
- $4,535.47 CAD
- Regular price
-
$4,235.84 - Sale price
- $4,535.47 CAD
- Unit price
- per
Take 10% off select products at checkout.
Savings auto-applies on selected products at checkout. Exclusions apply.
Couldn't load pickup availability
Description
xBDS corrects steering geometry at the new taller ride height using a pair of high-strength CNC machined ductile cast iron steering knuckle design to work with factory tie rod ends to maintain steering angles for proper function.
Specifications:
| Description_ASC | Requires frame bracket modification. |
| Description_ASC | Torsion Bar Tool required to load/unload torsion bars The GM specified tool is #CH48809. |
| Description_ASC | Models with two-piece rear driveshafts will require a carrier bearing drop kit. |
| Description_ASC | Factory 17-18" wheels cannot be reinstalled due to tie rod end interference stock 20" wheels can be reinstalled with up to a 35x12.50 tire. |
| Description_ASC | In some cases vehicles used in 4WD on the highway regularly could potentially experience a minor front driveline vibration. If this occurs we recommend replacing the front driveshaft with a dual Cardan style driveshaft. |
| Description_ASC | Some minor trim will be required with certain wheel/tire combination. This is normal with most aftermarket tire/wheel fitment on Chevy/GM trucks. Trimming will normally included the bottom edge of the inner fender shrouds and/or lower corner of front bumper valance. As a rule of thumb deeper backspacing and shorter/narrower tires will reduce/eliminate trimming required. Further trimming tips are included at the end of this instruction sheet. |
| Description_DES | 2020-2023 GM 2500/3500 HD 5in. Suspension Lift System with Overloads |
| Description_EXT | 2020-2023 Chevy-GMC 2500-3500 HD 5in. No torsion bar drop bracket Suspension Lift System with Overloads - Fox 2.0 Adventure Series shocks |
| Description_FAB | High Clearance design w/ no torsion bar drop maximizes ground clearance |
| Description_FAB | Robust steering knuckles maintain ESC system compliance |
| Description_FAB | HD skid plate system improved offroad protection |
| Description_FAB | Multipoint differential relocation brackets to secure the front axle and improve CV angles |
| Description_FAB | Factory Protection Plus drivetrain warranty included |
| Description_FAB | Choice of NX2 FOX 2.0 or FOX 2.5 gas shocks for improved performance |

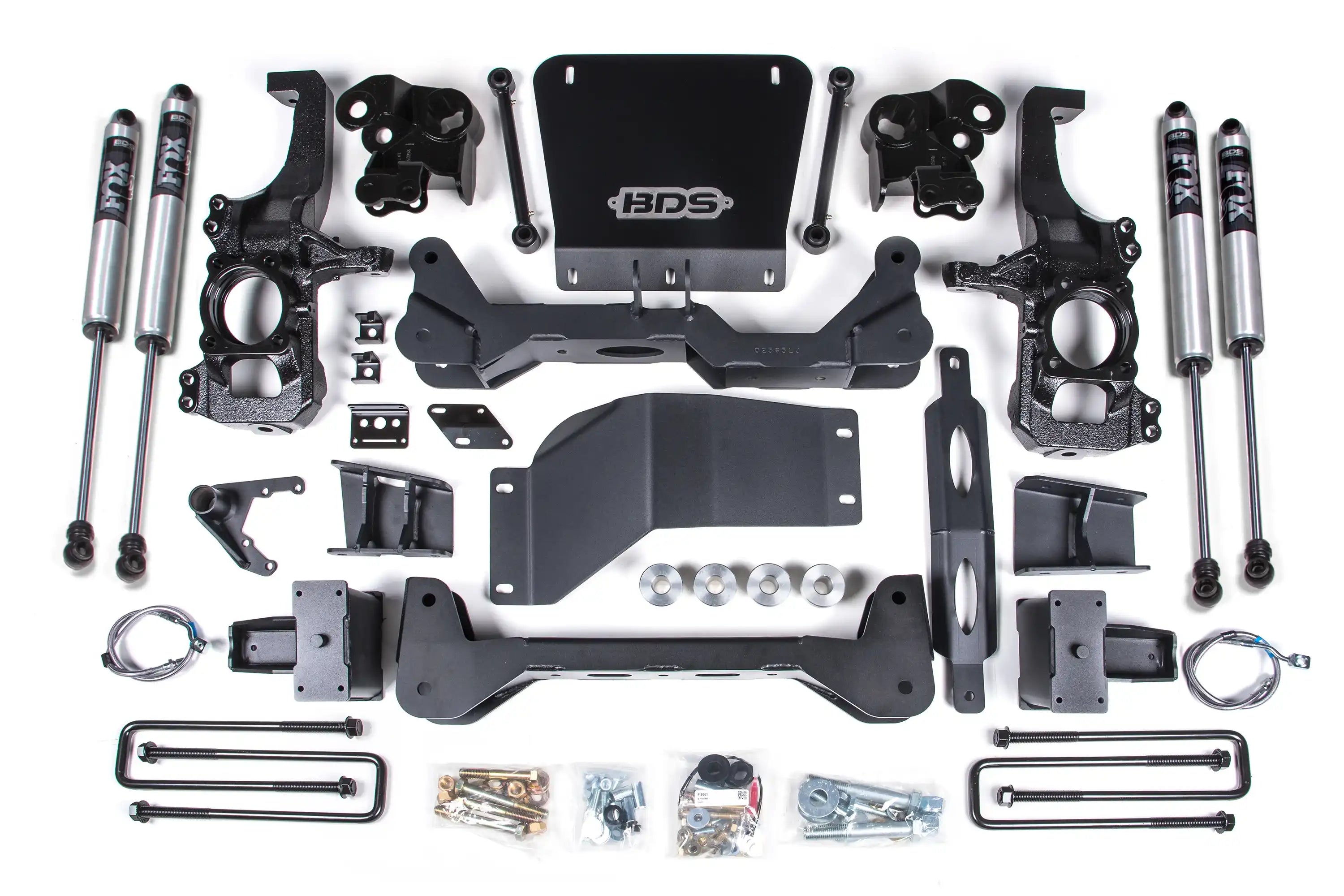

| Description_MKT | Take your 2020-2023 Chevy Silverado and GMC Sierra 2500 HD 4WD to the next level by installing this 5-inch lift kit by BDS Suspension. For maximum ground clearance BDS designed a No Torsion Bar Drop System where the torsion bars are mounted directly to the top of the lower a-arm eliminating the need to drop the torsion bar cross-member. Designed to improve the stance performance and capability this kit includes everything necessary to set your truck up right with clearance for up to 37" tires. |
| Description_MKT | This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance strength and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics. Up front the kit utilizes torsion bar relocation brackets high-arched 1/4-inch thick steel crossmembers along with a multipiece differential relocation brackets and heavy duty skid plates built for offroad protection. Steering geometry is corrected at the new taller ride height with CNC-machined ductile iron steering knuckles. These combined with the provided sway bar drops stainless steel brake lines supplied hardware and more provide a comprehensive front suspension lift ready for whatever you throw at it. |
| Description_MKT | In the rear BDS offers replacement lift blocks and u-bolts to lift and level that stance. The lift block installs in place of the stock block and retains ride quality and load capacity. Also included BDS supplies brake line and ABS line relocation brackets allow the use of factory brake lines. Lastly are a matching set of NX2 Nitro or FOX 2.0 Performance Series shocks. |
| Description_MKT | High Clearance Crossmembers |
| Description_MKT | BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection. |
| Description_MKT | Heavy Duty Steering Knuckles |
| Description_MKT | BDS corrects steering geometry at the new taller ride height using a pair of high-strength CNC machined ductile cast iron steering knuckle design to work with factory tie rod ends to maintain steering angles for proper function. |
| Description_SHO | Suspension lift kit |
| Description_DEF | Suspension Lift Kit |
