Pacbrake C50182-12 - PH5 Valve Assy 4

Pacbrake C50182-12 - PH5 Valve Assy 4

Vendor: Pacbrake
SKU: FQCM_C50182-12
Availability: 2 In Stock
$829.90 CAD
$829.90 CAD
Found Better Price? Get Price Match!
Take 10% off select products at checkout.
Savings auto-applies on selected products at checkout. Exclusions apply.
  • TruckPoint
Description
Description
x

Overview

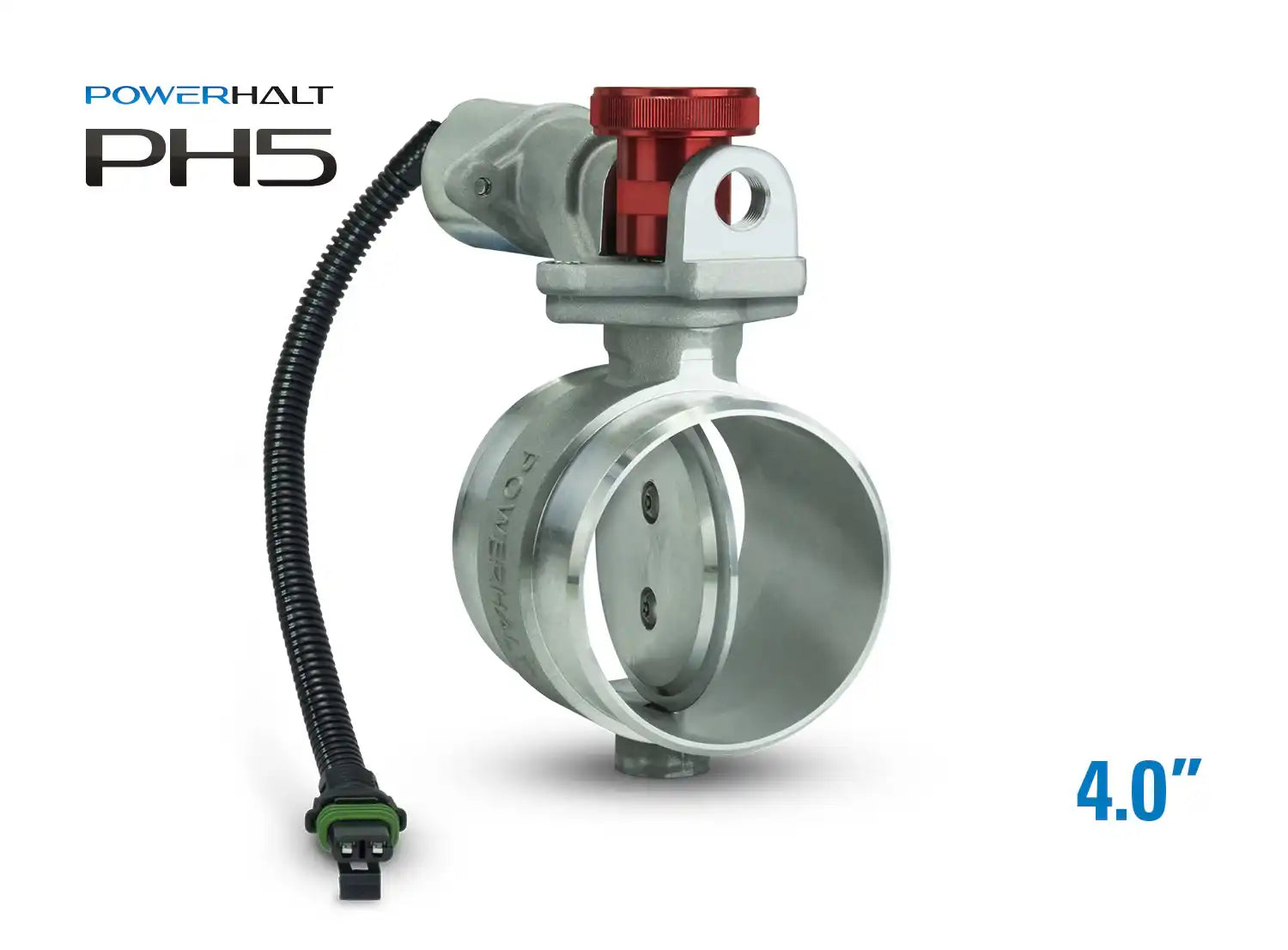

PowerHalt's PH5 Air Intake Emergency Shut-Off Valve is the newest member of the PowerHalt family. This newly improved valve is designed using the best aspects of PH2 and PH3 PowerHalt line of products.

PLEASE NOTE:
PH5 PowerHalt Shut-Off Valve Custom Kits must be ordered in conjunction with:
Valve + Control Option + Mounting Group





Product Description

Pacbrake's PH5 I PowerHalt Valves are an electronically controlled emergency engine shut down system which forces engine shut down by blocking an engine’s air intake path.

It is available in an automatic engine speed sensing model where shutdown occurs if engine speed exceeds a pre-set speed (or by manual override).

Alternatively, a manual activation-only configuration is available where an operator (or external input) will activate emergency engine shut-down.

PH5 Highlights
  • 12 & 24 VDC available
  • Reliable and safe emergency shutdown for diesel engines
  • Operator friendly automatic operation with manual reset and override
  • High temperature design for challenging thermal applications
  • In compliance with CSA B621-14 & B622-14
  • Corrosion tested to ASTM B117-96 hours Salt Fog
  • Designed for 18.6 vibration (7.7 for 5” bore)
  • Robust design – designed to pass 100k+ fatigue cycles, validated to pass 10k fatigue cycles
  • IP67 rated valve enclosure
  • Low power consumption with smart control

    Vehicle Application



    • Universal



    Application Notes

    • PH5 Valve Only
    • Custom kits must be ordered in conjunction with:
      Valve + Control Option + Mounting Group
    Features



    • 1.75" to 5.0" Valve Sizes Available
      • Multiple Activation Options
    • A Complete Installation — All in One Box
    • Aluminum flap and housing for durable seal
    • Operator friendly operation with manual reset and override
    • High temperature design for challenging thermal applications
    • Rigorous vibration, corrosion and endurance testing
    • In compliance with CSA B621-14 & B622-14
    • Easy installation and low part count



    MANUALS, GUIDES & DOWNLOADS


    Auto Activation with Auto Reset Kits
    Auto Activation with Manual Reset Kits



    A: 4.00" [102mm]
    B: 3.66" [93mm]
    C: 8.07" [205mm]

    Weight: 3.9lb [1.79kg]
    Voltage: 12VDC



    PH5 POWERHALT SHUT-OFF VALVES
    SPECIFICATIONS
    Mamimum Intake Boost Air Pressure*
    50 psi [3.45 bar]
    Continuous Intake Air Temperature
    -67°F to 347°F [-55°C to +175°C]
    Ambient Temperature Range
    -40°F to 248°F [-40°C to +120°C]
    Resting Position
    Valve Open
    Activated Position
    Valve Closed
    Standard Mounting Flanges
    Hose to Hose
    Pipe Size Supported
    Ø38 mm to Ø140 mm [Ø1.5 in to Ø5.5 in]
    PH5 Dimensions
