The Centerforce(R) I Clutch Series utilizes a full facing disc with premium friction material and is designed as a high-quality entry-level performance clutch for those in need of a superior stock replacement. Using the Centerforce centrifugal weights (where applicable), the Centerforce Stage 1 clutch system is perfect for applications with stock engines or mild power increases from minor bolt-on modifications. Pressure plate and disc sold separately on some applications. The Torque Figures for Centerforce I Pressure Plates are based and calculated in conjunction with a Centerforce I & II Clutch Disc.

Features & Benefits

• The Centerforce I Is Designed As A High Quality Entry Level Performance Clutch For Those In Need Of A Superior Stock Replacement
• Use The Centerforce Centrifugal Weights And Premium Friction Materials
• The Centerforce Stage 1 Clutch System Is Perfect For Applications With Stock Engines Or Mild Power Increases From Minor Bolt-On Modifications
• Limited 90 Day Warranty
• 12" Diameter;
• High Quality Friction Material
• Light Pedal Effort
• Smooth Engagement

Attributes

• Input Shaft Size: 1-1/8 Inch X 10 Spline

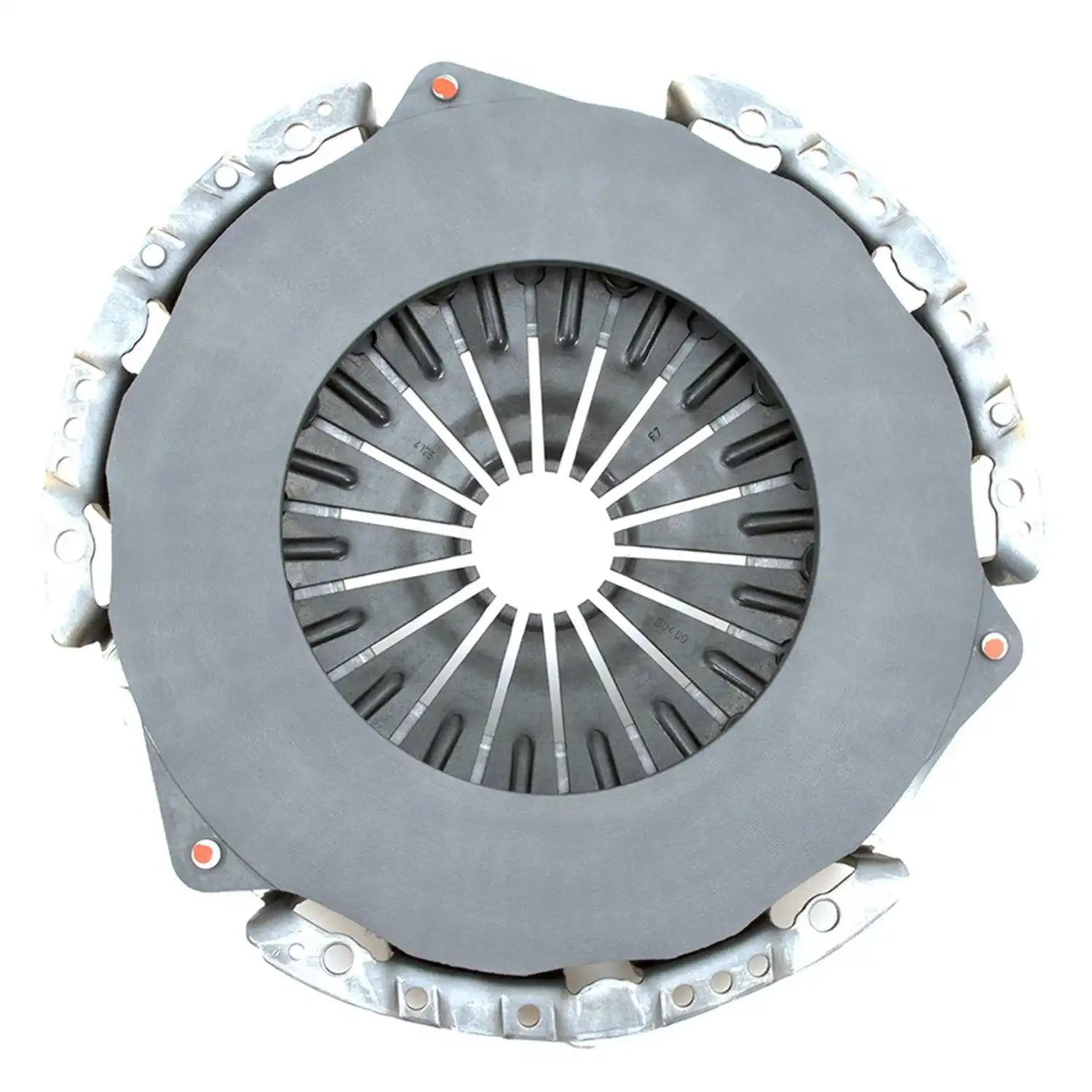

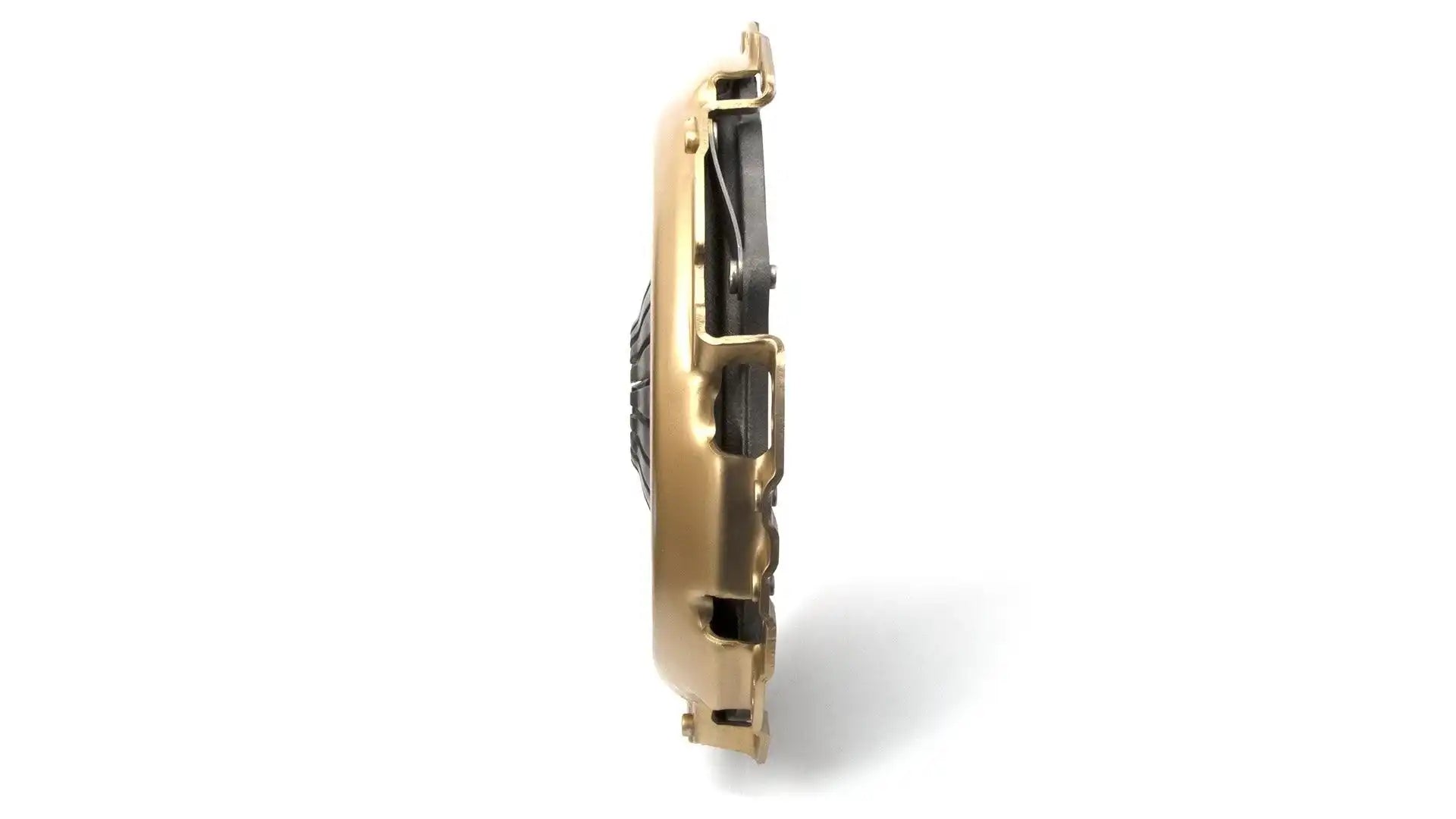

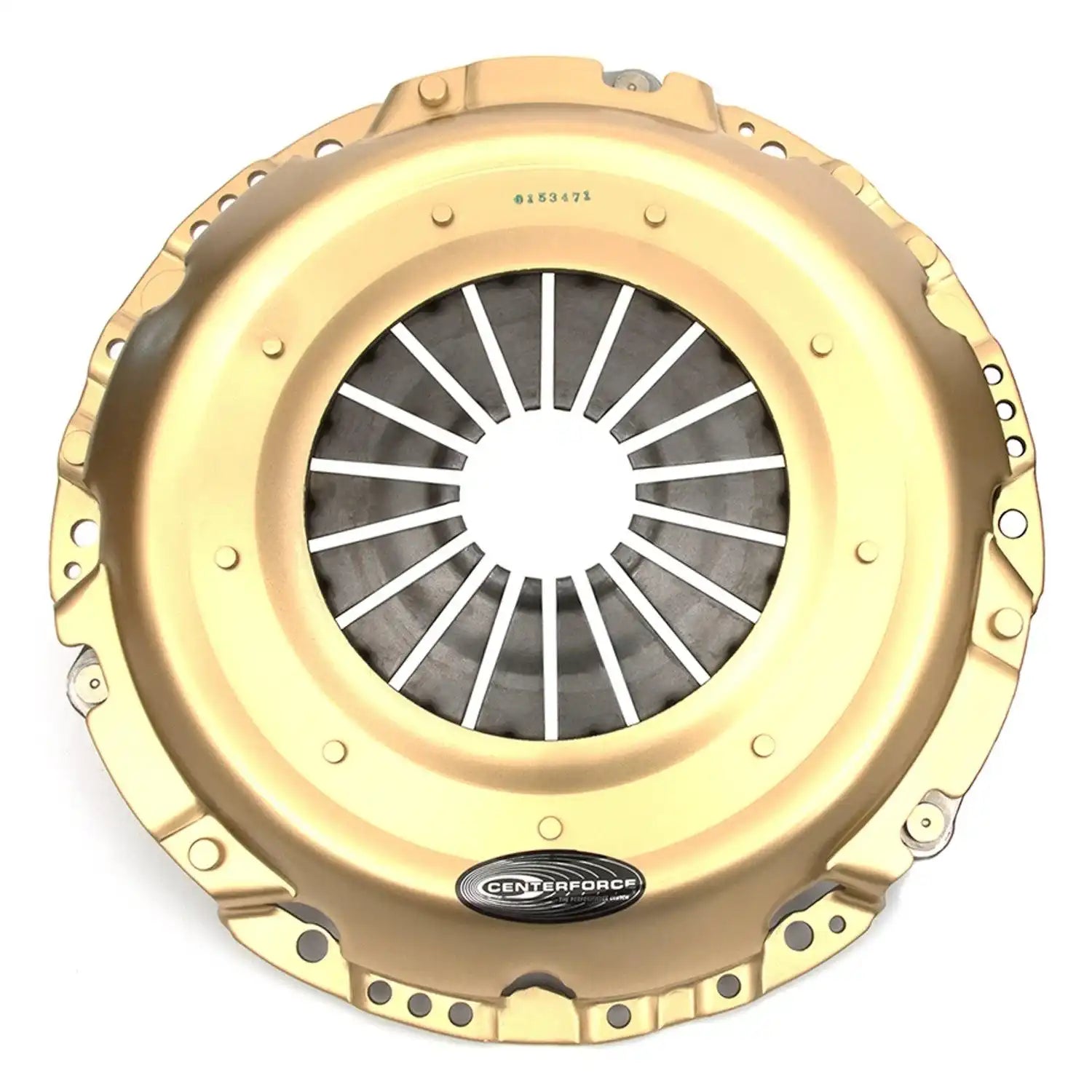

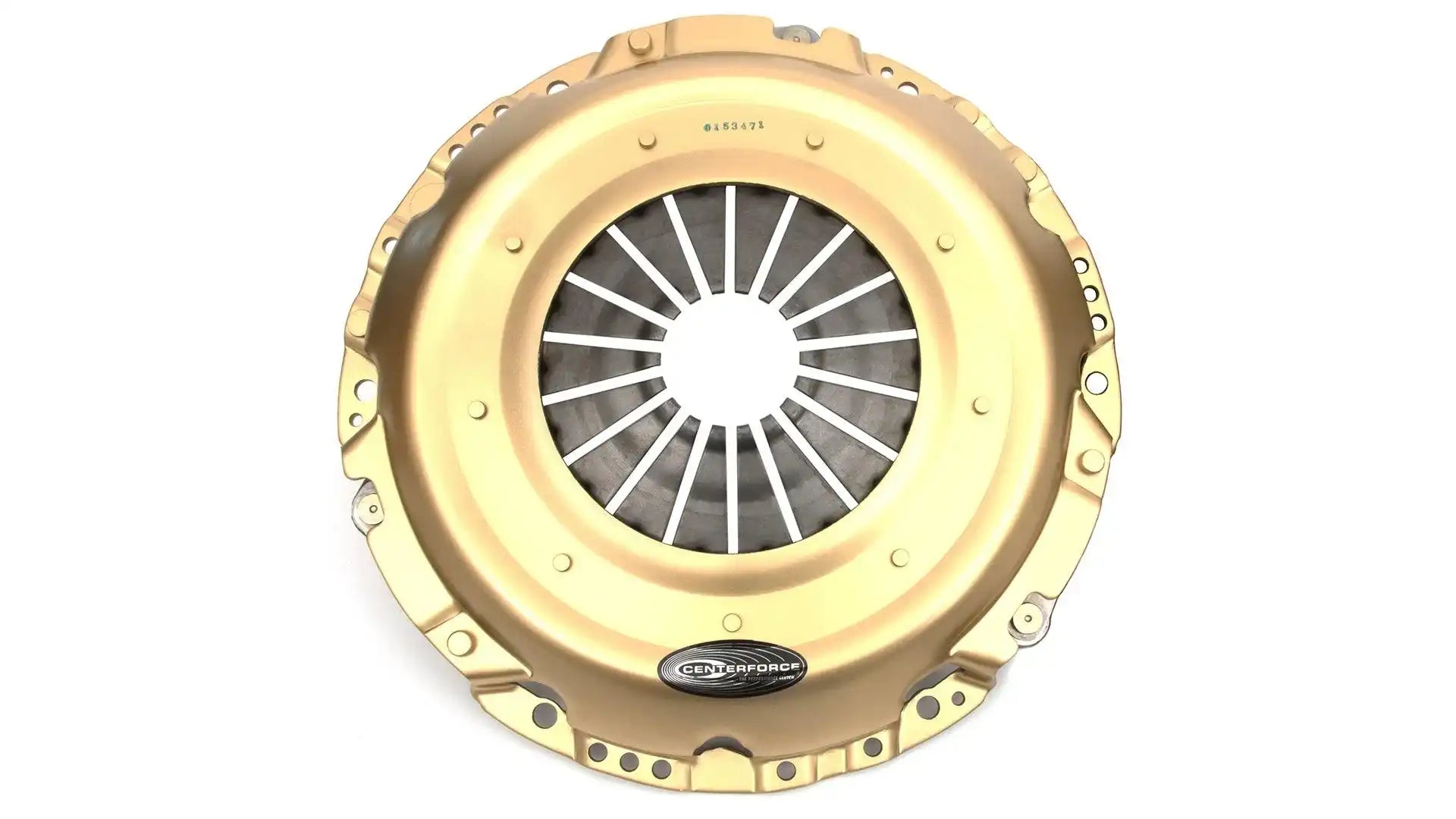

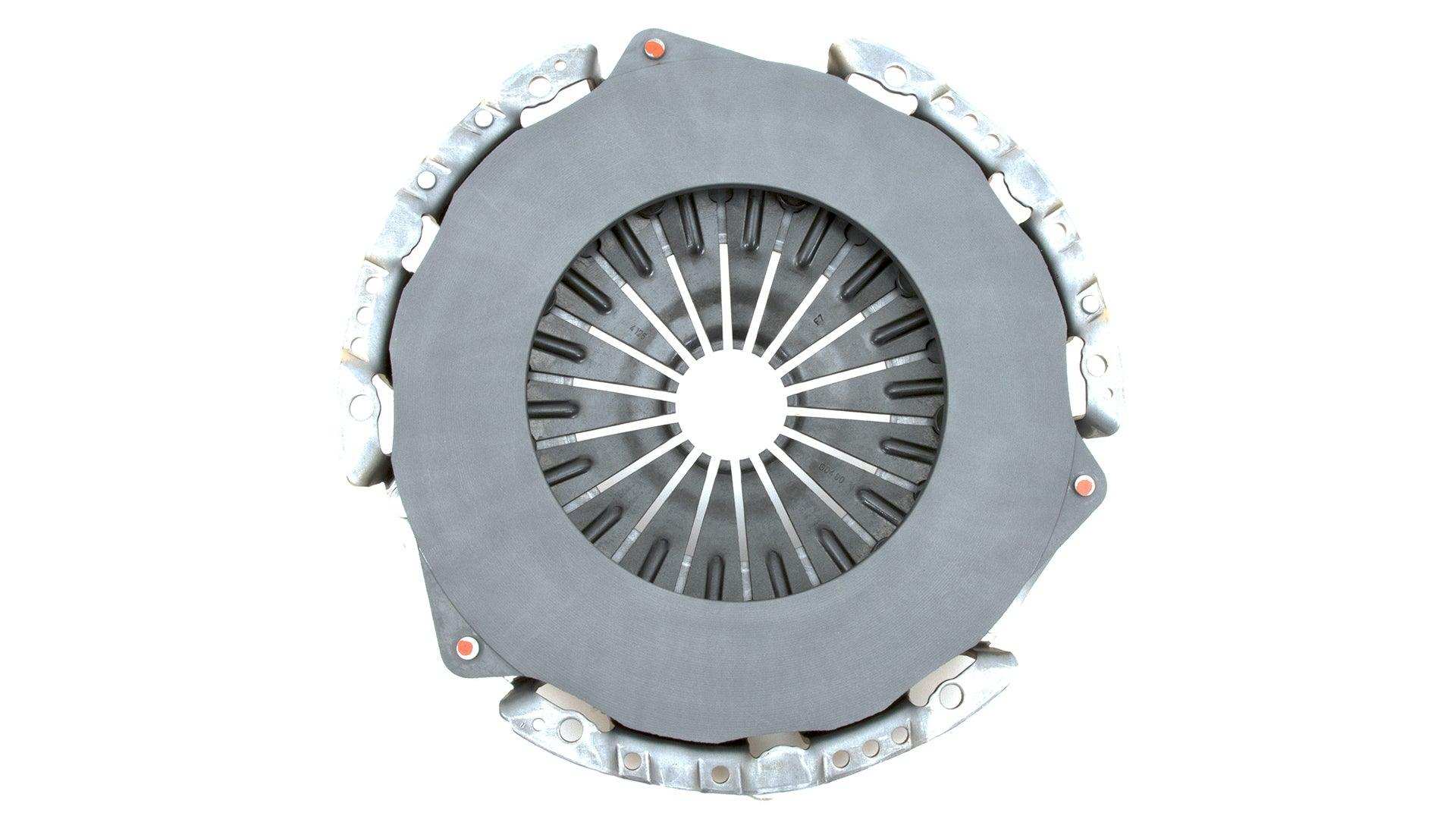

• Pressure Plate Design: Diaphragm
• Disc Diameter: 12 Inch
• Number Of Friction Discs: 1 Disc
• Flywheel Weight: No Flywheel
• Flywheel Tooth Count: No Flywheel

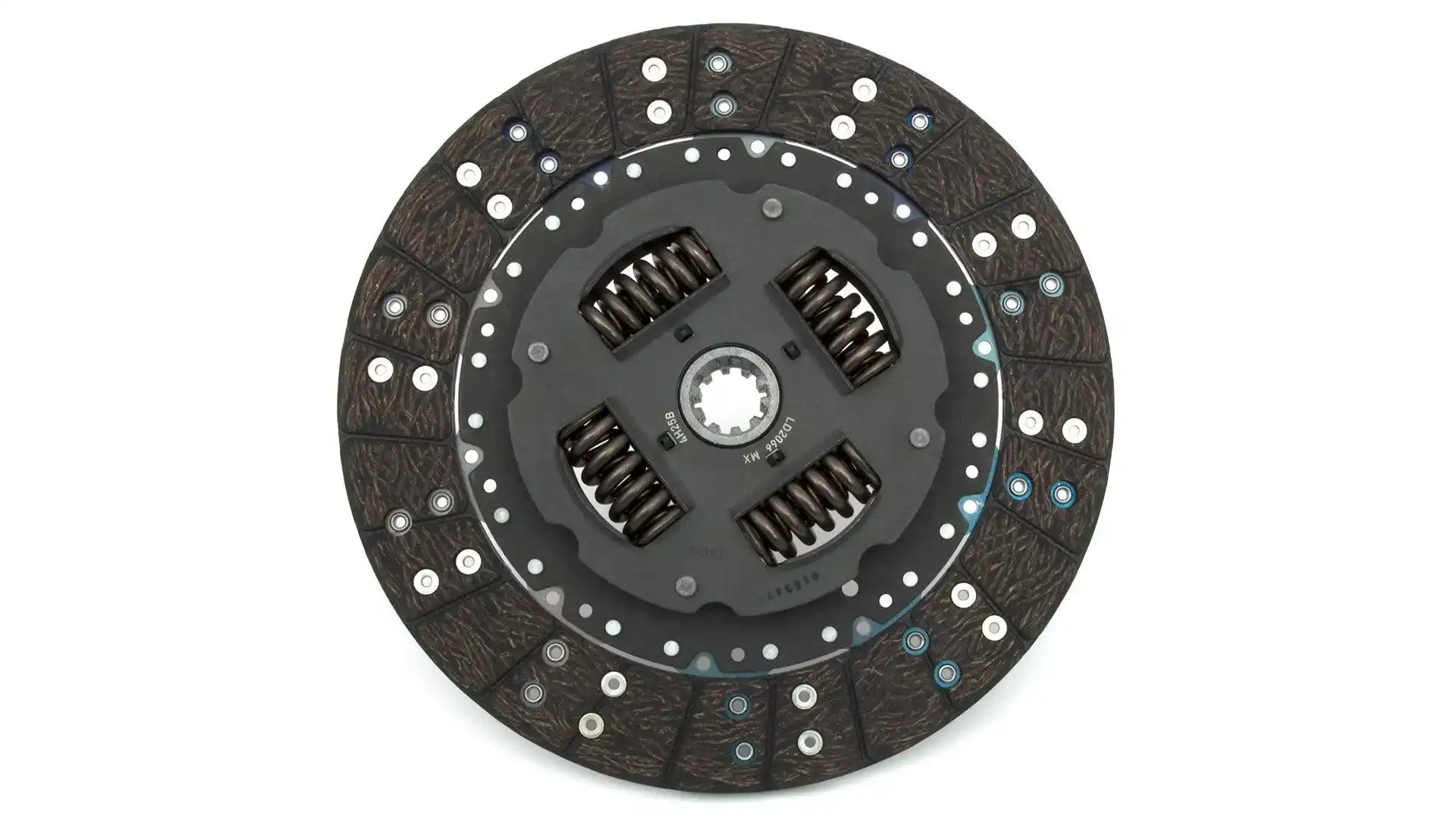

• Disc Friction Material: Organic

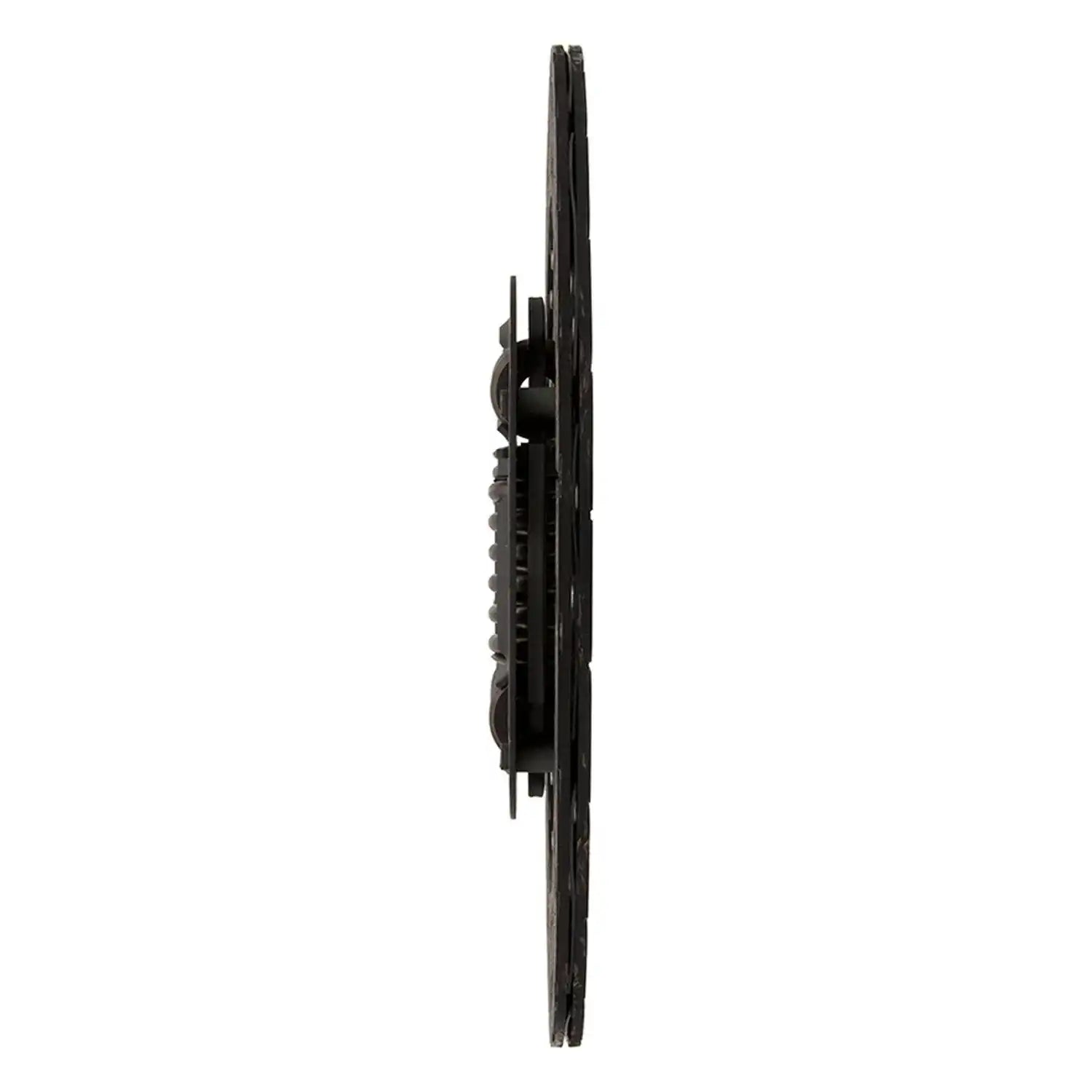

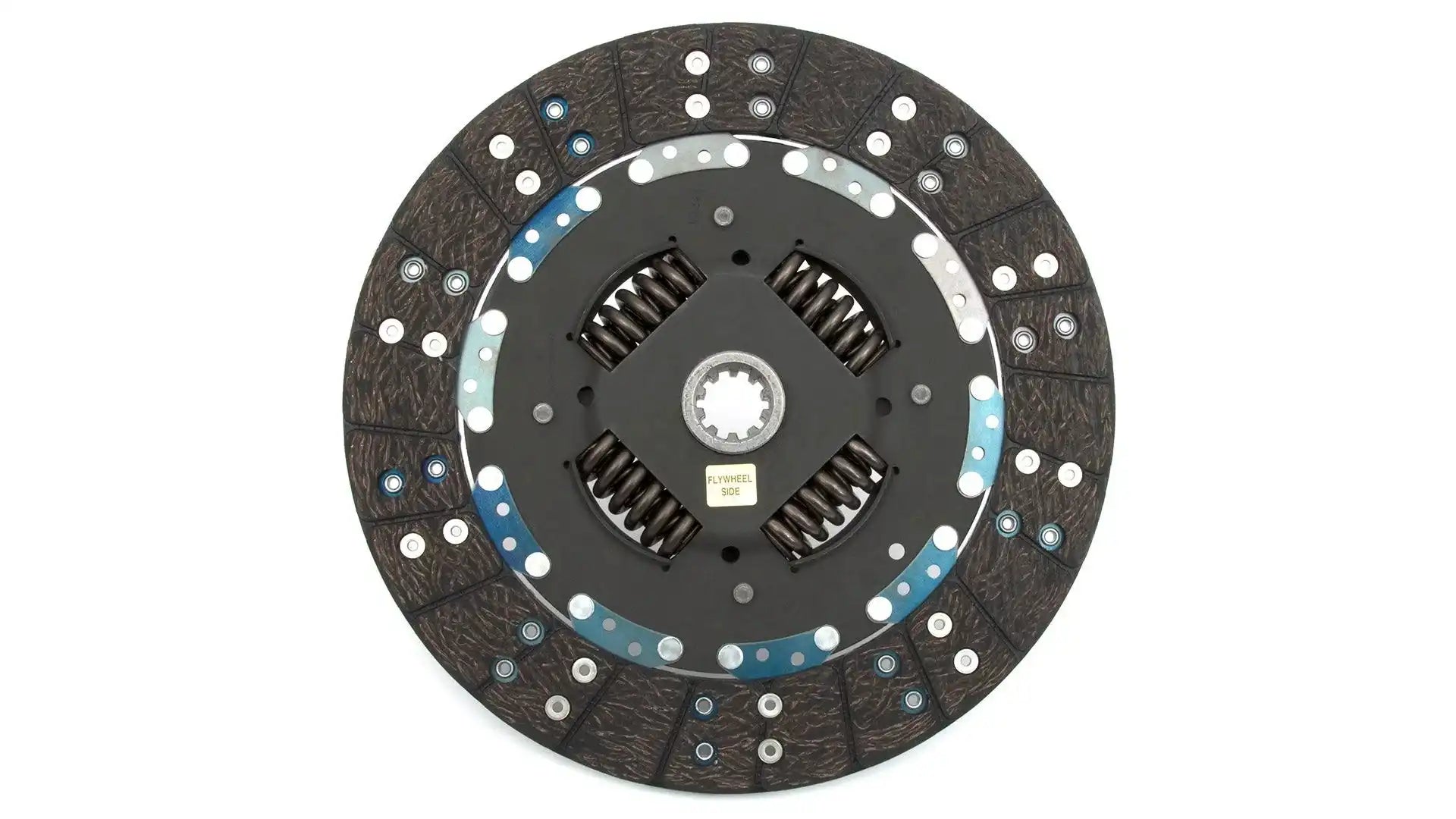

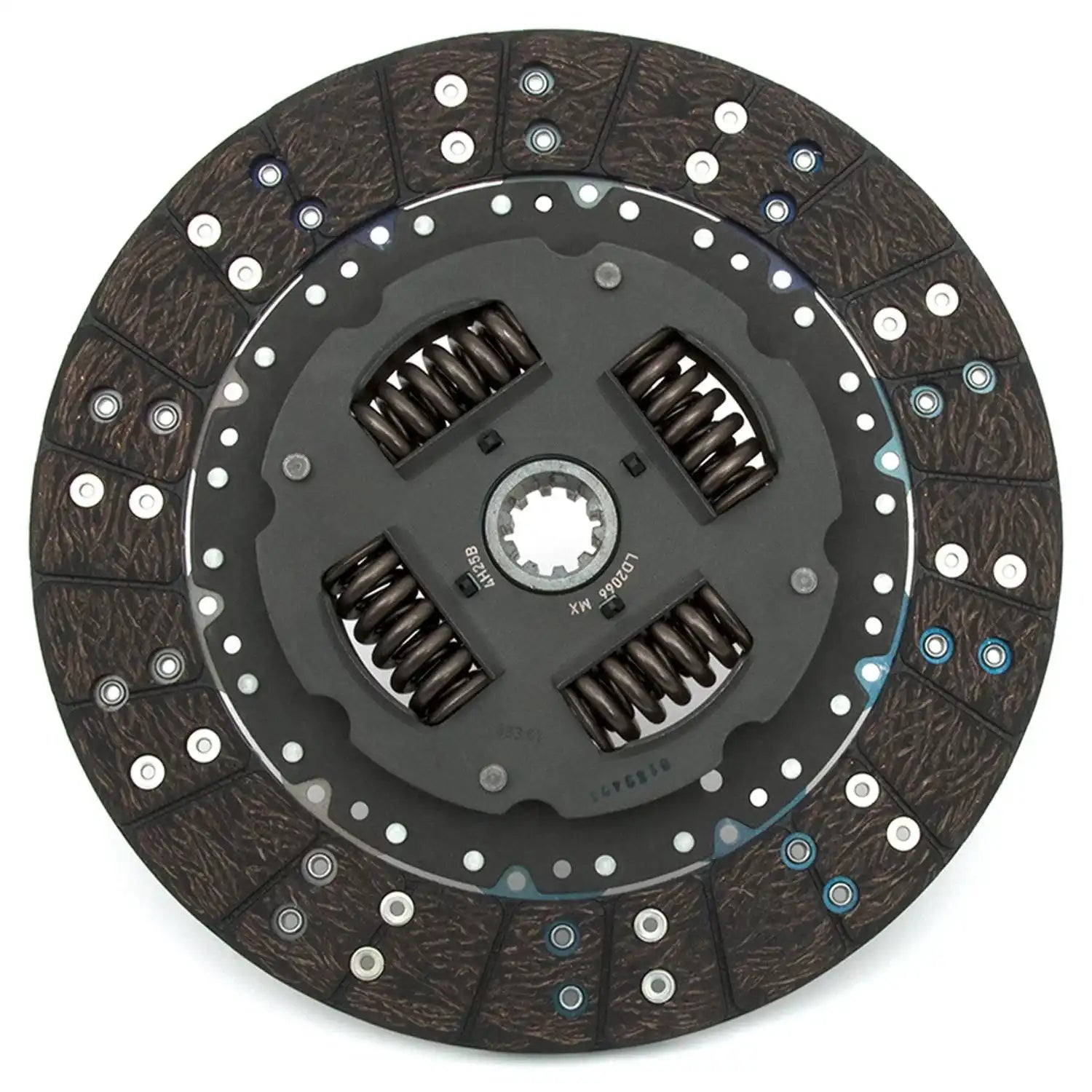

• Disc Hub Design: Sprung
• Flywheel Material: No Flywheel
• Includes Throwout Bearing: No
• Includes Pilot Bearing: No

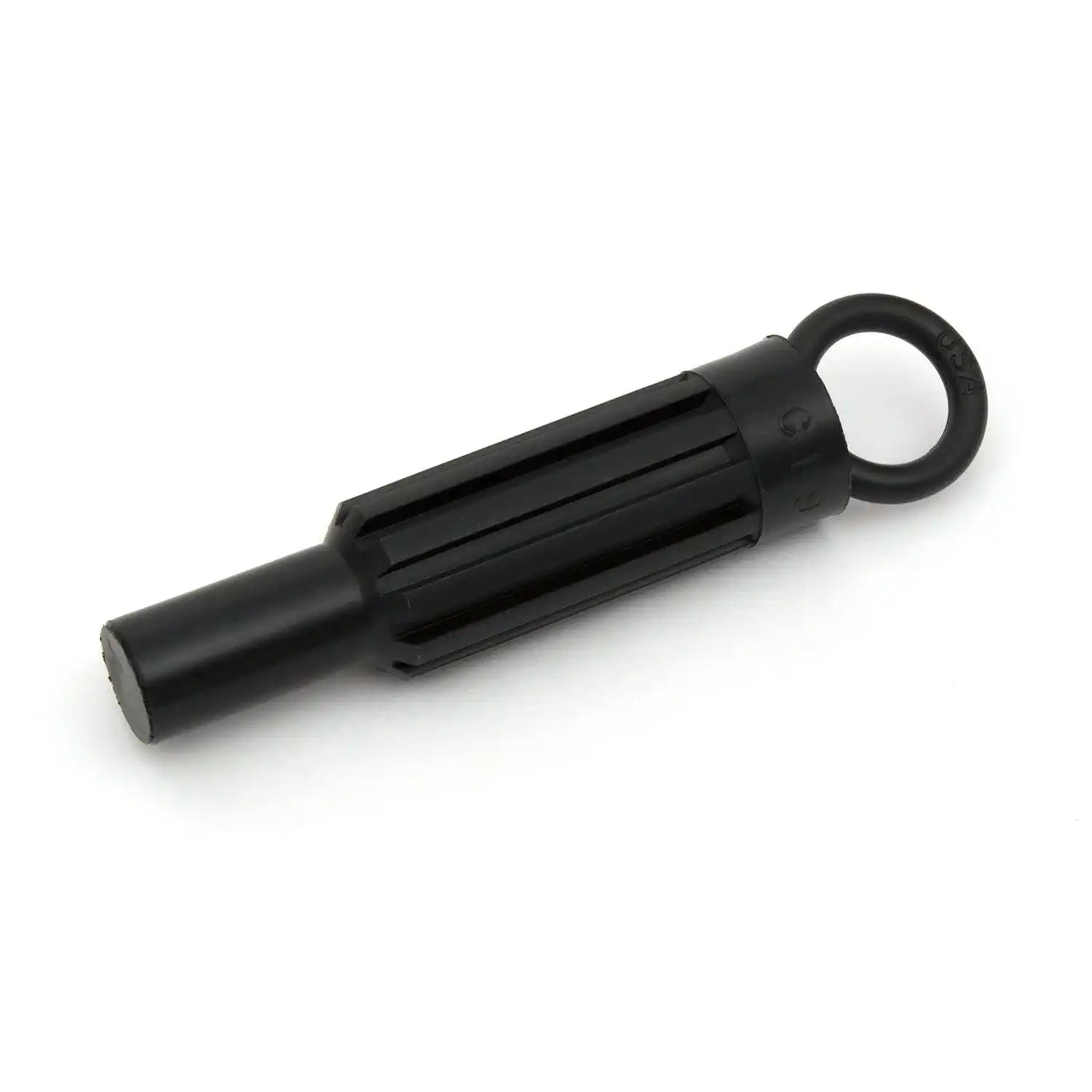

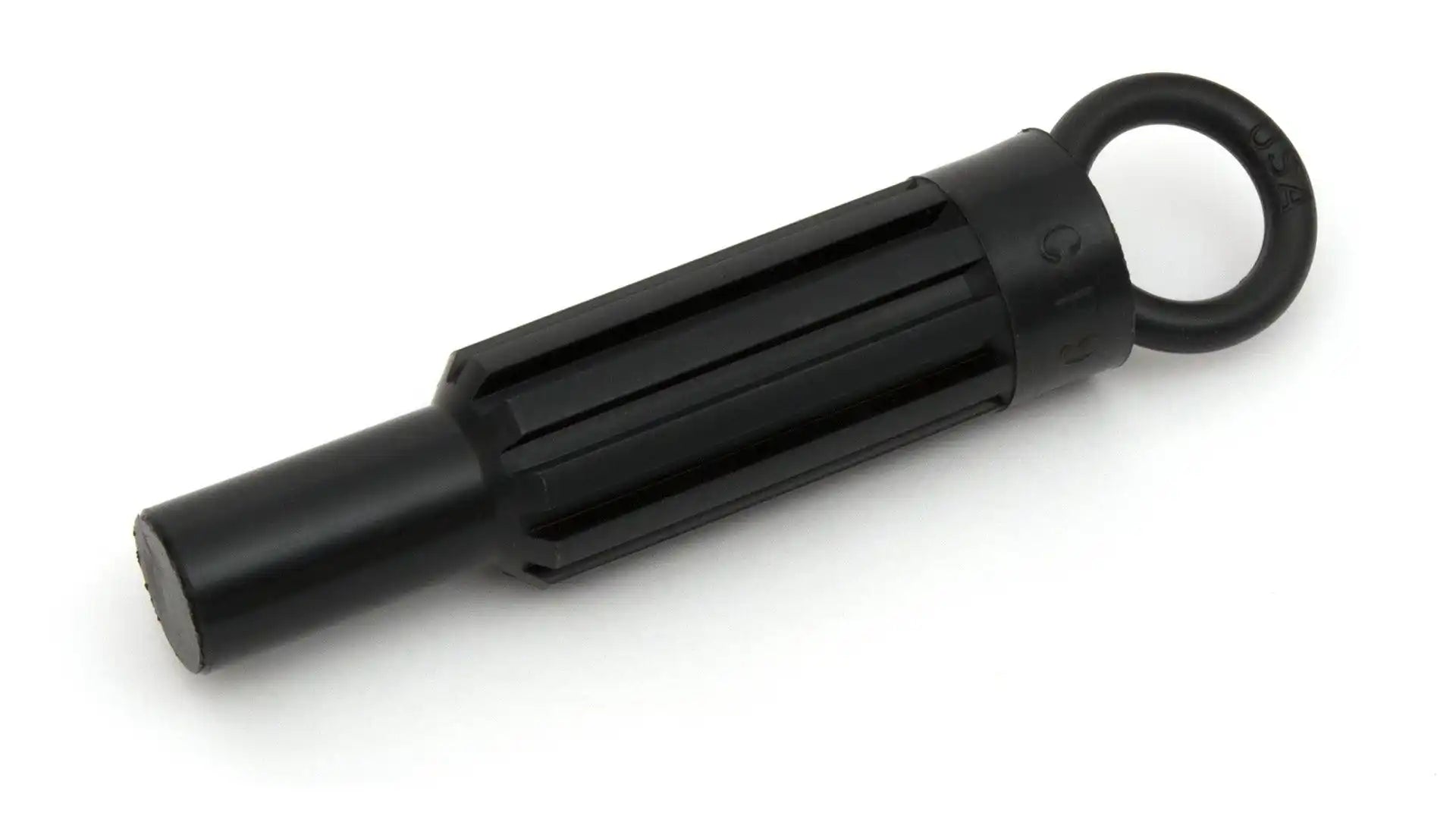

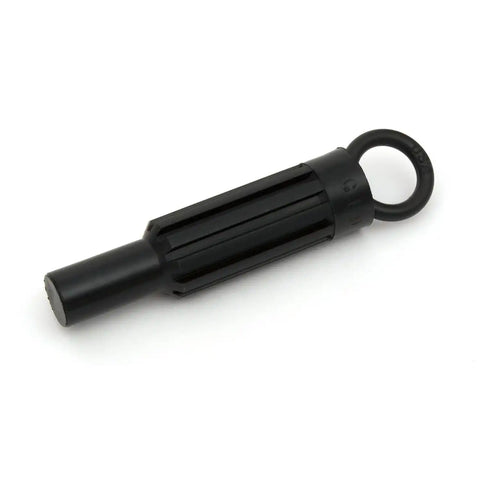

• Includes Alignment Tool: Yes

GTIN: 00788442026986

Weight: 25.95 lb

Height: 4 in

Length: 14 in

Width: 14 in

EO: Legal US

Life Cycle: Available to Order

Centrifugal Weights: Without Centrifugal Weights

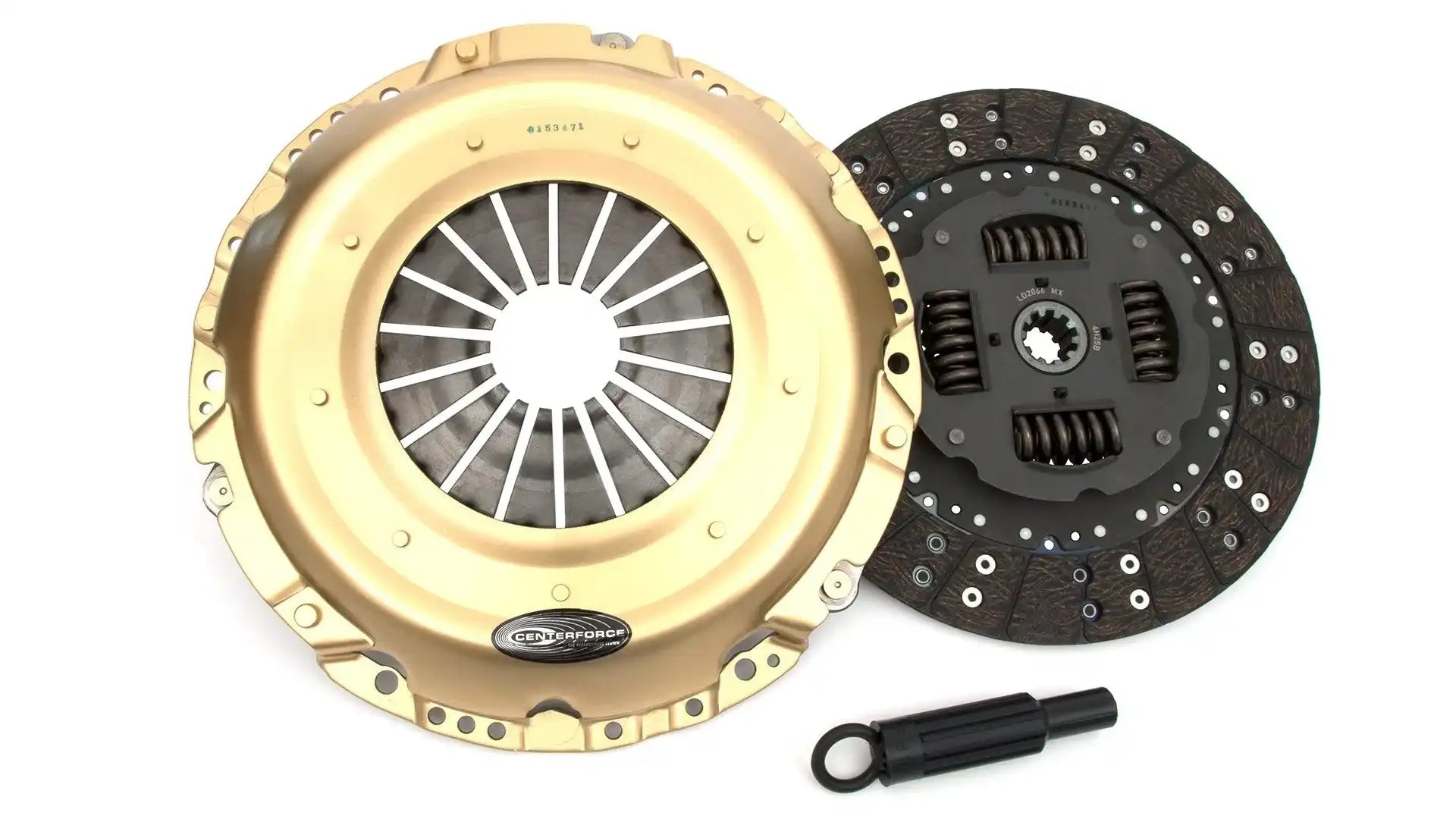

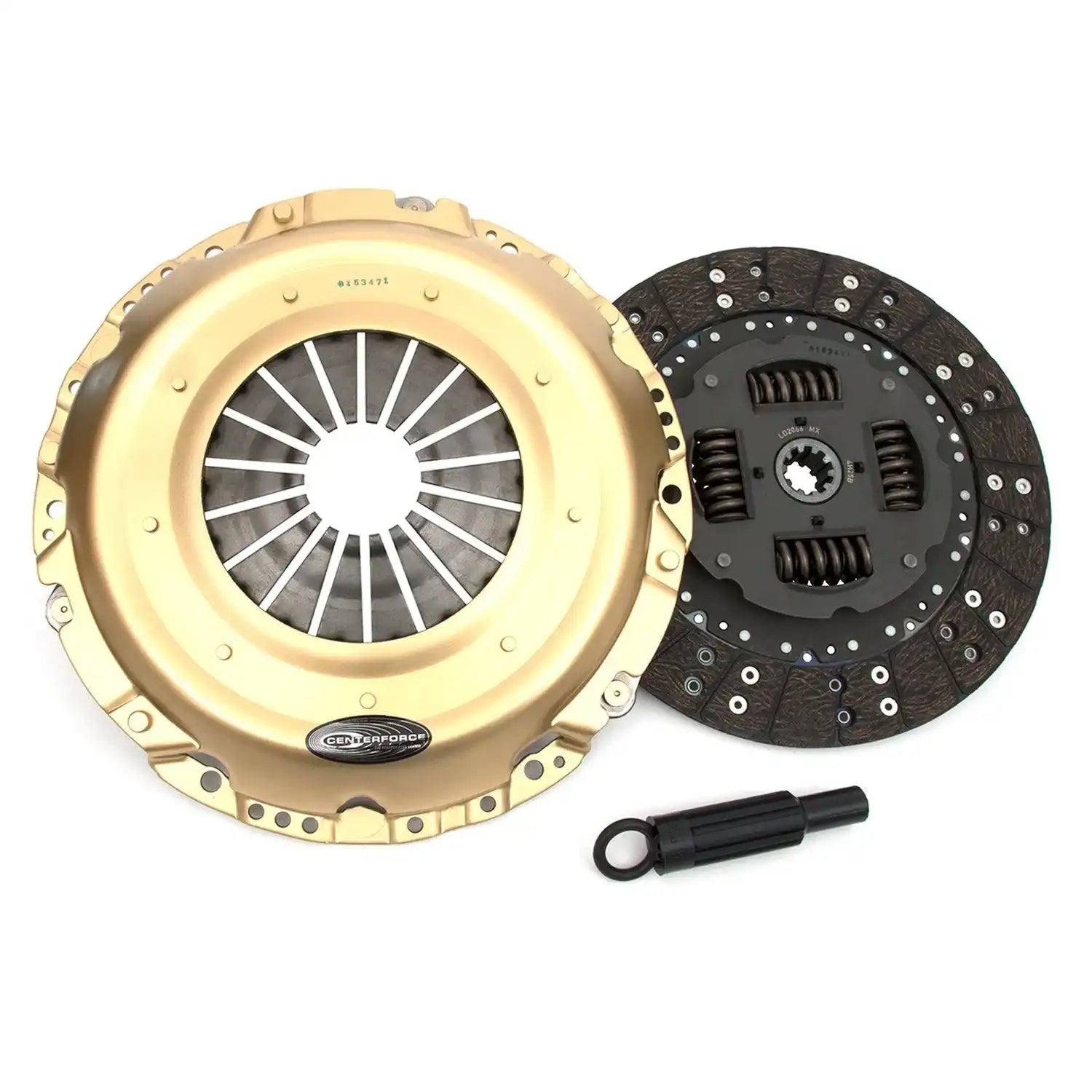

Includes: Pressure Plate, Disc, Alignment tool.

Spline Diameter and Tooth Count: 1-1/8"-10

AAM Standard Pack: 1

Input Shaft Diameter: 1-1/8, 1.125

Input Spline Quantity: 10

Material: Cast Iron Pressure Plate / Organic Friction, Cast Iron Pressure Plate / Organic Friction

Outside Diameter of Friction Surface (Standard): 12

Replaceable Friction Surface: N

Attribute Data: 2

California Proposition 65: WARNING: Cancer - www.P65Warnings.ca.gov

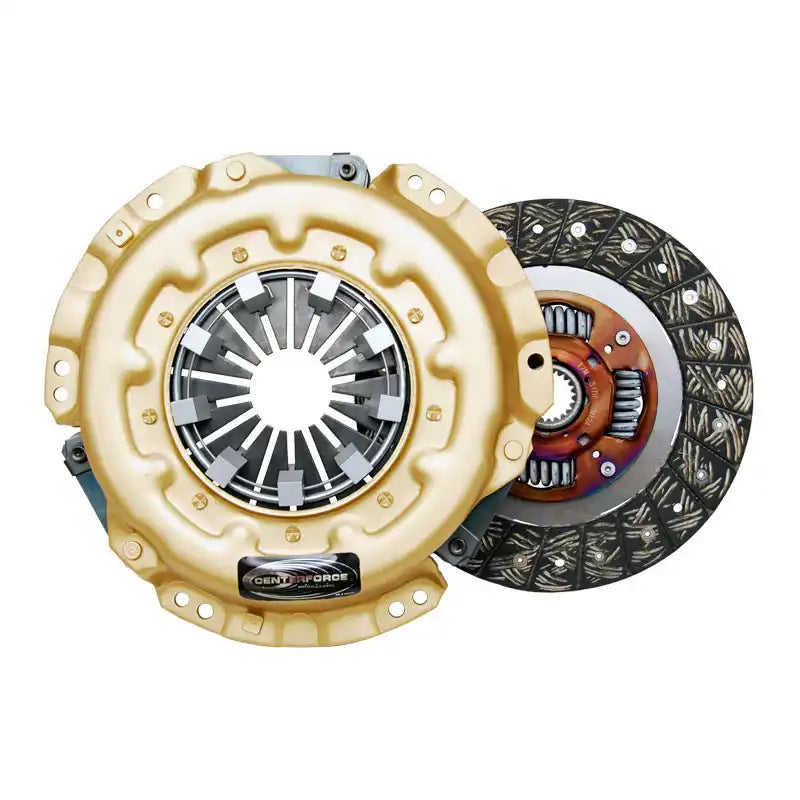

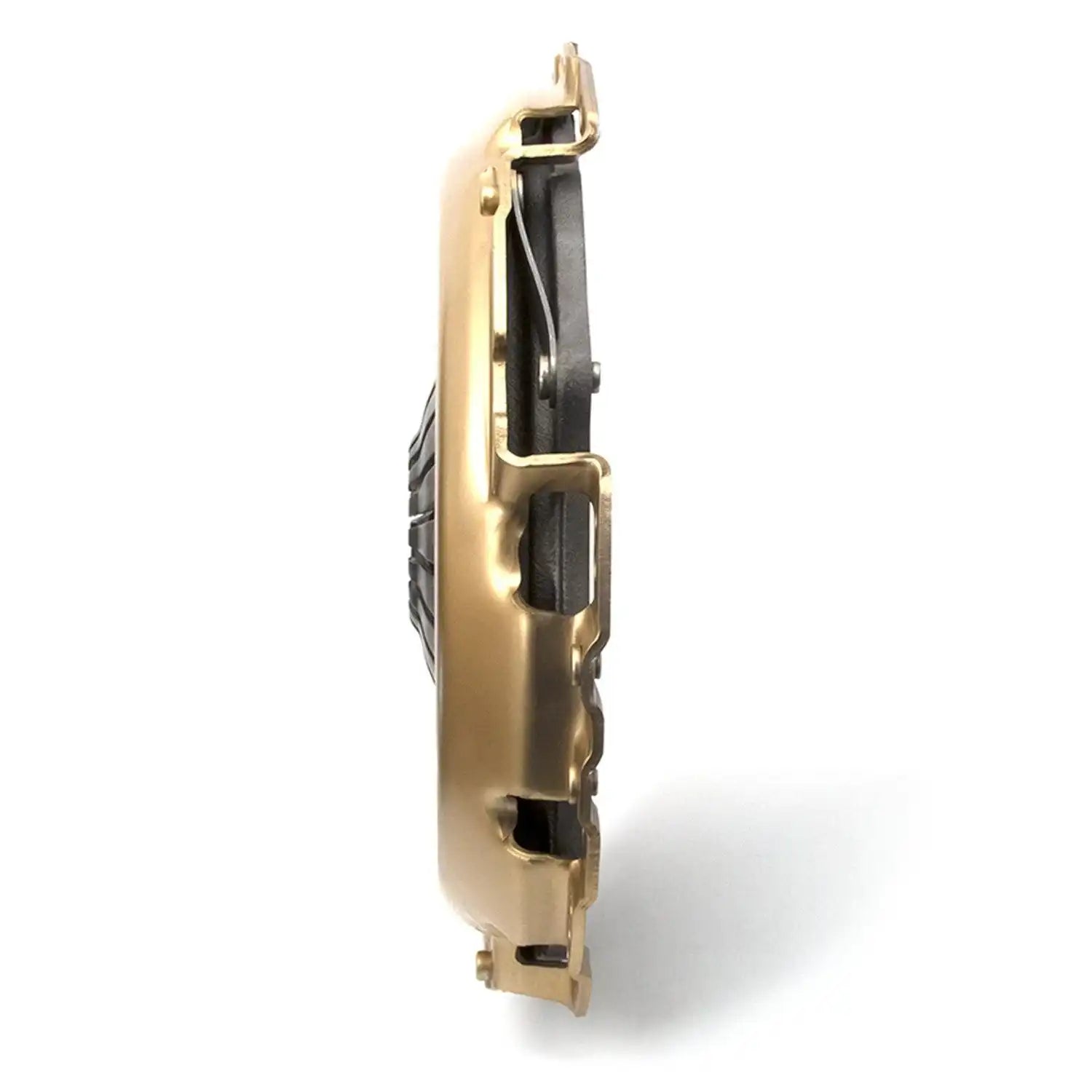

Title: PN: CF178066 - Centerforce I, Clutch Pressure Plate and Disc Set

Clutch Bolt Pattern: 3, 3

Counterweight Assist: No, No

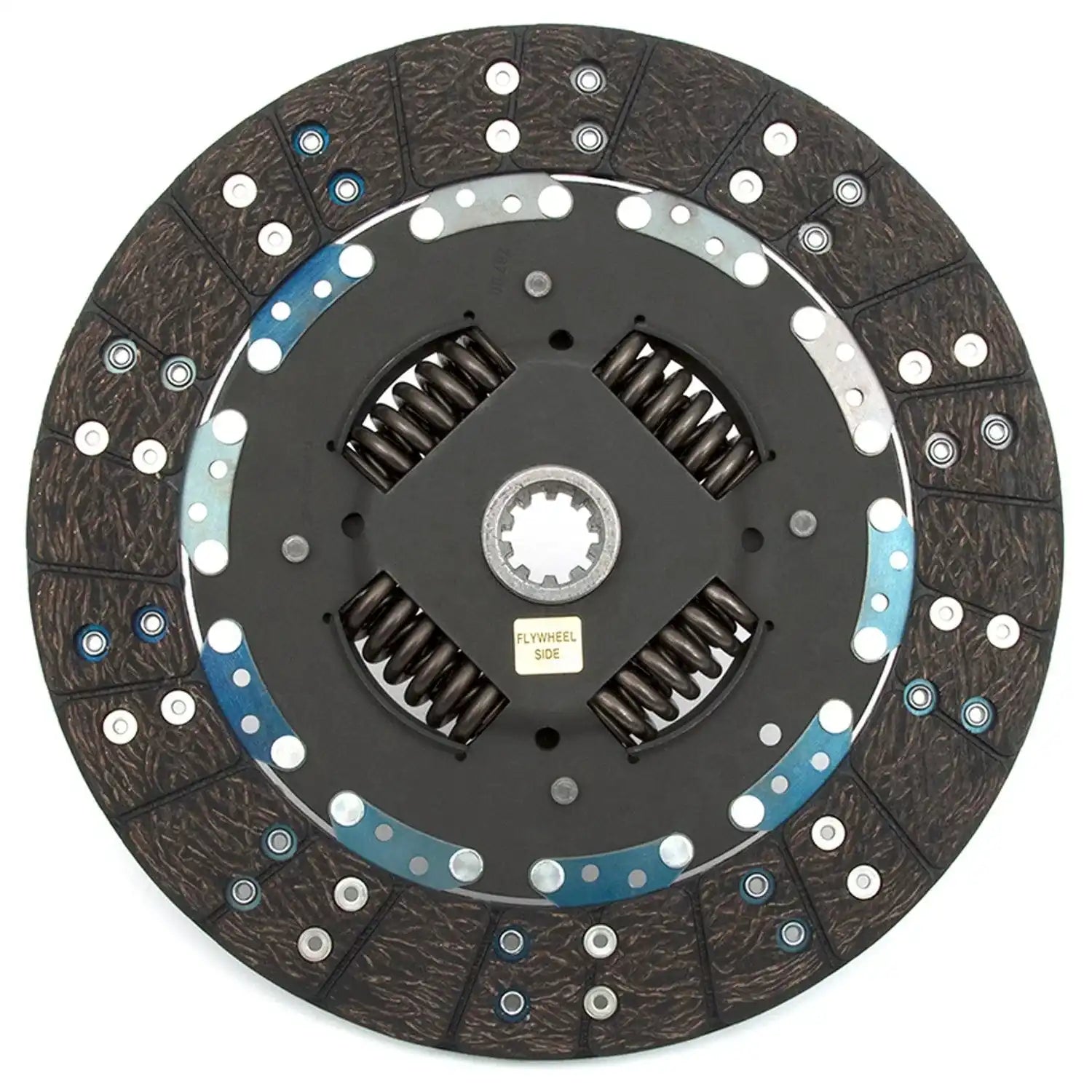

Disc Material: Organic

Disc Type: Full face

Disc Type Sprung Solid: Sprung, Sprung

Flywheel Step Type: Flat, Flat

SFI 1.1 Approved: N

Torque Capacity: 562, 562

Clutch Disc Diameter: 12, 304.8

Alignment Tool Included: Yes

Made In The USA: Assembled
