CURT 45840 Class 3 Ball Mount, Imported (2" Shank, 7,500 lbs., 2" Drop, 10-1/4" Long)
- Regular price
- $41.23
- Regular price
-
$38.44 - Sale price
- $41.23
- Unit price
- per
Discount applied at checkout on eligible items*
Free Shipping within 2 to 6 Days*
Couldn't load pickup availability
Description

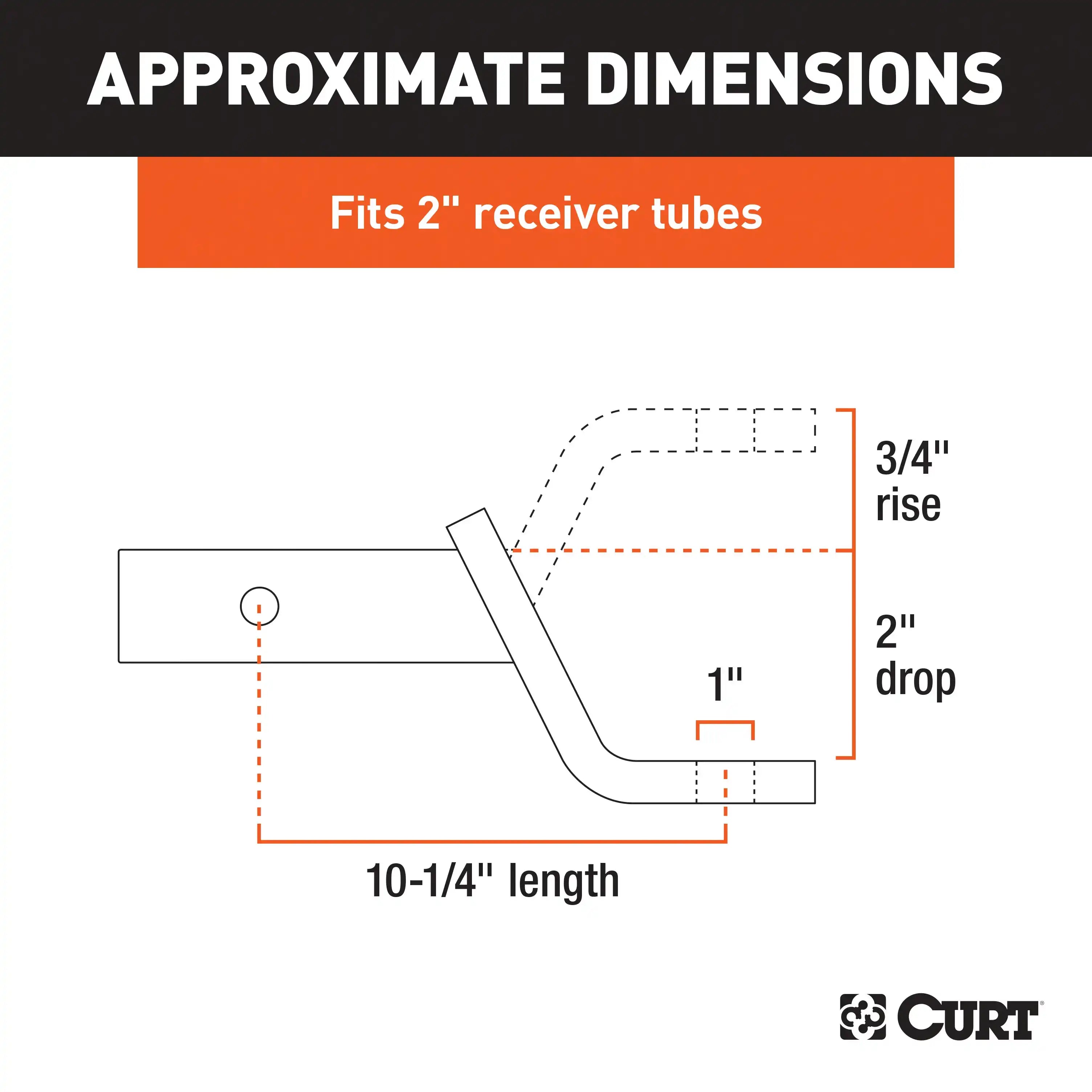

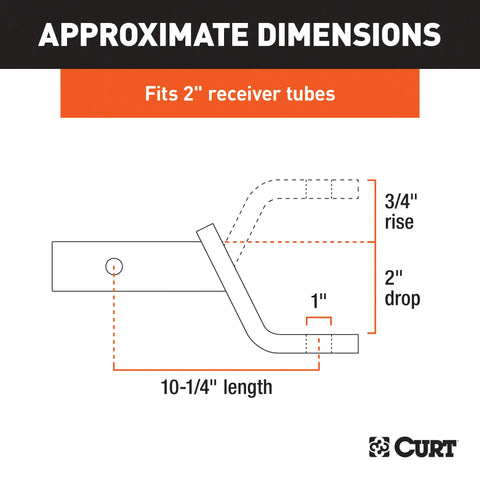

xCURT class 3, or standard-duty, ball mounts are a step up from classes 1 and 2. They feature a 2" x 2" shank and have a higher weight capacity for towing heavy-duty trailers, including utility trailers, boat trailers, campers, single-horse livestock trailers and most recreational vehicle trailers. With class 3 trailer hitches being the most common type of trailer hitch for pickup trucks and SUVs, the class 3 ball mount, by association, is an excellent complement to this trailer hitch and these larger vehicles (NOTE: Never exceed the lowest weight capacity of any towing component; i.e. the vehicle, hitch, trailer, etc).This particular class 3 ball mount has a gross trailer weight capacity of 7,500 lbs. and a tongue weight capacity of 750 lbs. It features a length of 10-1/4", a drop of 2" and a possible rise of 3/4". Class 3 ball mounts are CNC-formed and robotically welded to ensure unwavering precision and dependable strength in each and every unit. We mechanically descale each one to provide a smooth surface for a long-lasting finish. This class 3 ball mount comes with a durable gloss black powder coat finish to protect against corrosion, scratches, UV damage and more to give it the thick skin it needs to face the road ahead.
Specifications:
| 40 | No |
| 10282 | No |
| Box Height in Inches - XA | 3 |
| Box Length in Inches - XA | 15 |
| Box Width in Inches - XA | 5 |
| Color | Black |
| Container Cases Qty - XA | 2100 |
| Container Load Type - XA | PALLETS |
| Container Pallet Qty - XA | 20 |
| Container Type - XA | 20GP |
| Container Unit Qty - XA | 4200 |
| Container Volume Cubic Feet - XA | 0.00000 |
| Container Volume Cubic Meter - XA | 0.00000 |
| Container Weight KG - XA | 13607 |
| Container Weight Lbs - XA | 31250 |
| Drop | 2 IN |
| Finish - XA | Blank |
| Gross Trailer Weight (GTW) | 7,500 LB |
| Item Class - XA | OBS |
| Item Height - XA | 0.000 |
| Item Length - XA | 0.000 |
| Item Width - XA | 0.000 |
| Master Case Height Inches - XA | 3.937 |
| Master Case Inner Pack Qty - XA | 0 |
| Master Case ITF14 | 20612314458404 |
| Master Case ITF14 - XA | 20612314458404 |
| Master Case Length Inches - XA | 14.961 |
| Master Case Qty - XA | 2 |
| Master Case Volume Cubic Feet - XA | 0.00000 |
| Master Case Weight Lbs - XA | 14.500 |
| Master Case Width Inches - XA | 5.512 |
| Material - XA | Carbon Steel |
| Mount Type Description - XA | Blank |
| Pallet Case Per - XA | 105 |
| Pallet Case Per Layer - XA | 21 |
| Pallet Cases Per - XA | 105 |
| Pallet Cases Per Layer - XA | 21 |
| Pallet Layer of Cases - XA | 5 |
| Pallet Qty - XA | 0.000 |
| Pallet Total Height Inches - XA | 26.000 |
| Pallet Total Weight Per - XA | 1562.500 |
| Parcel Allowed - XA | Yes |
| Product Weight - XA | 6.750 |
| Prop 65 Label Text - XA | Blanks |
| Prop 65 Material - XA | Unknown |
| Prop 65 Reason - XA | Unknown |
| Prop 65 Warning Label Type - XA | Unknown |
| Prop 65 Warning Y/N - XA | Unknown |
| Rate Class - XA | 60.0 |
| Receiver Tube Size | 2 IN |
| Retail Height - XA | 14.500 |
| Retail Length - XA | 5.000 |
| Retail Width - XA | 4.000 |
| Rise | 3/4 IN |
| Sales Family Code - XA | ACCES |
| Sales Family Description - XA | ACCESSORIES |
| Sales Group Description - XA | BALL MOUNT |
| Shank Diameter | 2 IN |
| Shipping Weight - XA | 7.000 |
| Side Application Type Description - XA | Blank |
| Tariff 301 - XA | Yes |
| Tongue Weight (TW) | 750 LB |
| Truckload Cases Qty - XA | 1680 |
| Truckload Dom Pickup Location - XA | Eau Claire, Wi |
| Truckload Pallets Qty - XA | 16 |
| Truckload Units Qty - XA | 3360 |
| Truckload Volume Cubic Feet - XA | 88.00000 |
| Truckload Weight - XA | 25000 |
| Warranty | Limited Lifetime Warranty (One-Year Finish, One-Year Parts) |
| Description_ABR | MOUNT |
| Description_SHO | Class 3 Ball Mount |
| Description_INV | Class 3 Ball Mount, Imported |

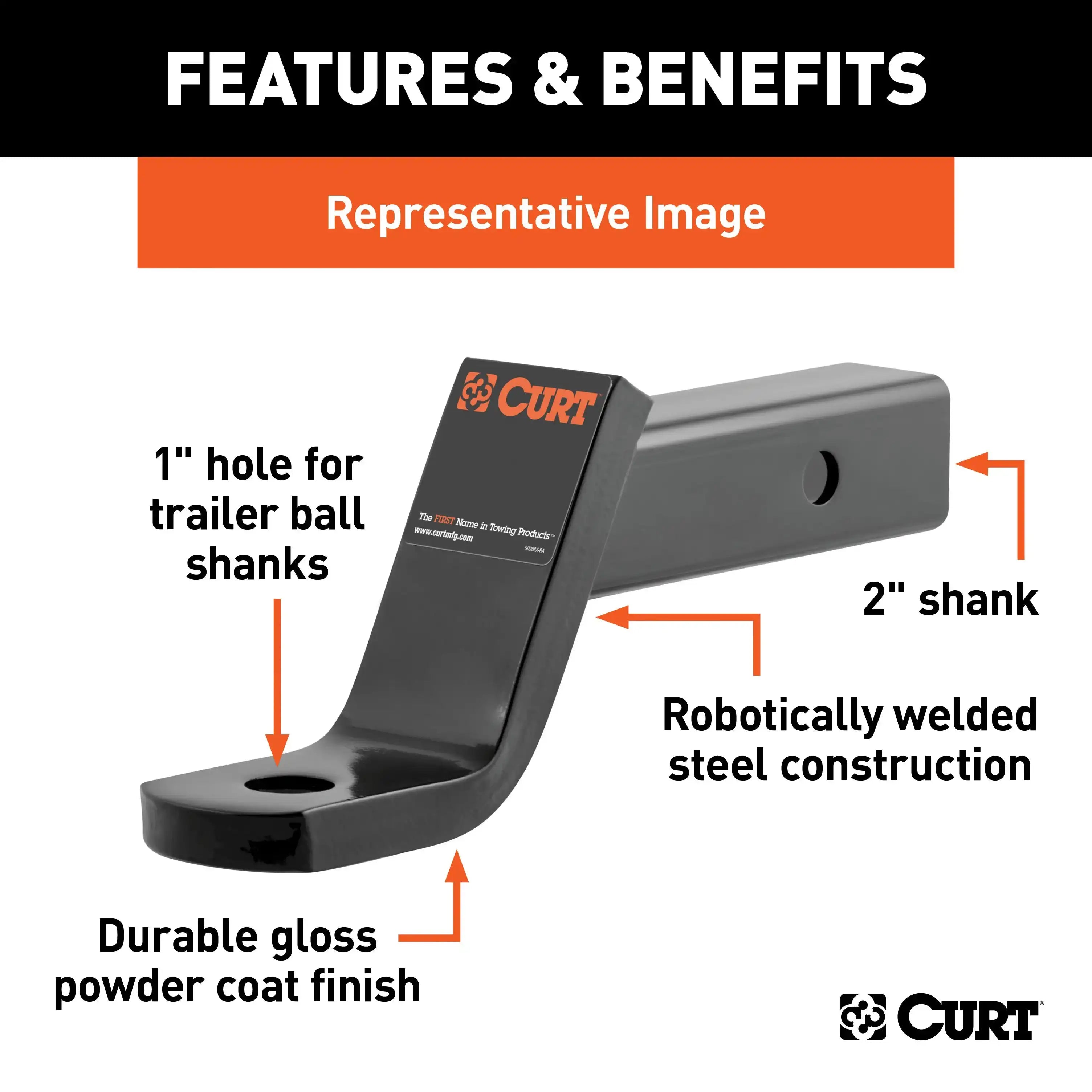

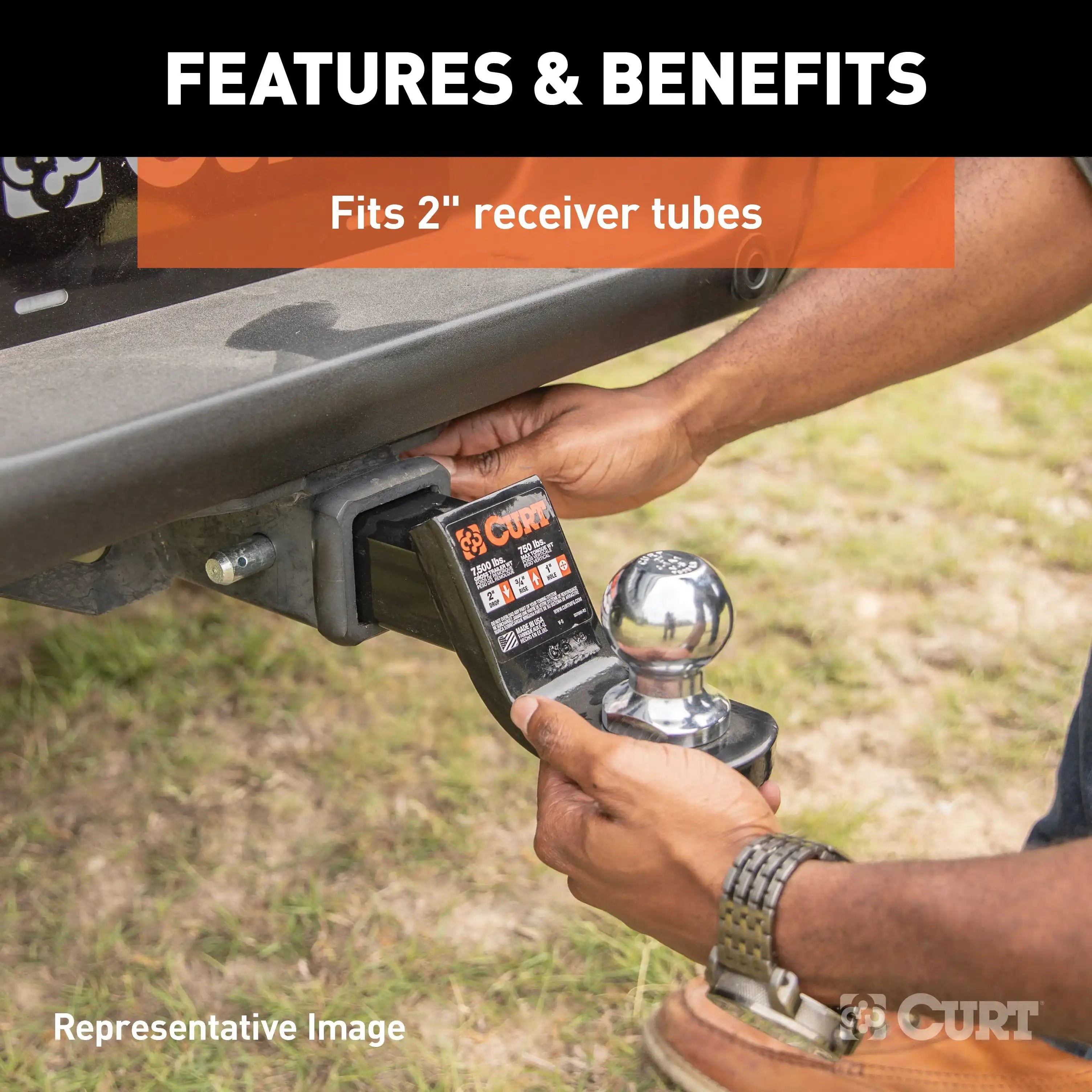

| Description_ASC | Fits trailer hitches with a 2" x 2" receiver tube opening |

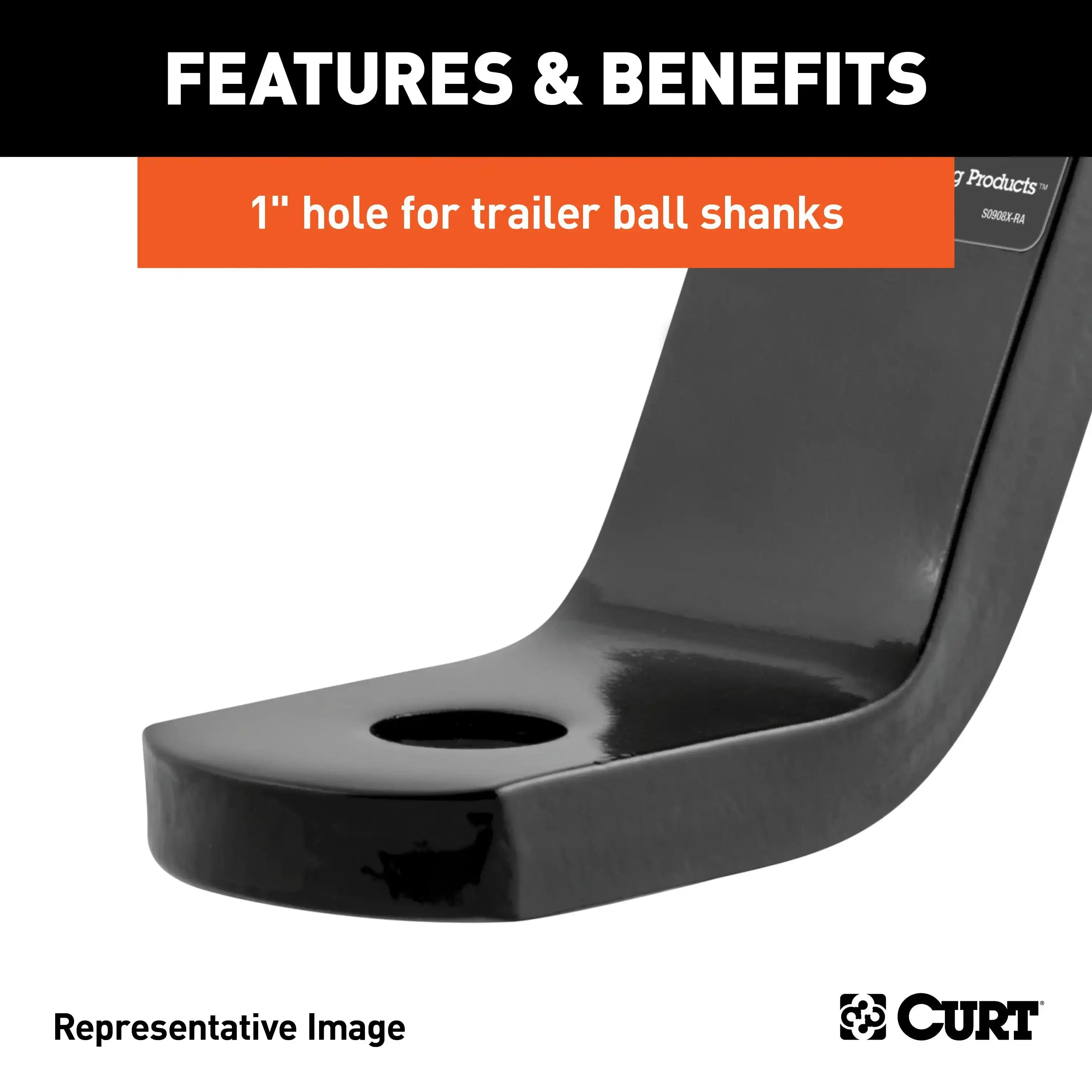

| Description_ASC | Equipped with a 1" hole to accept a trailer ball shank |
| Description_ASC | 3/4" rise or 2" drop for precise trailer leveling |
| Description_ASC | Hollow shank weighs less and can be used with an anti-rattle kit |
| Description_ASC | CNC-formed, robotically welded and mechanically descaled for a perfect fit |
| Description_ASC | Protected by a durable powder coat finish |
| Description_ASC | Limited lifetime warranty (one-year finish, one-year part) |
| Description_DES | Class 3 Ball Mount, Imported (2" Shank, 7,500 lbs., 2" Drop, 10-1/4" Long) |
| Description_EXT | CURT 45840 Class 3 Trailer Hitch Ball Mount, Imported, Fits 2-Inch Receiver, 7,500 lbs, 1-Inch Hole, 2-In Drop, 3/4-Inch Rise |
| Description_MKT | CURT class 3, or standard-duty, ball mounts are a step up from classes 1 and 2. They feature a 2" x 2" shank and have a higher weight capacity for towing heavy-duty trailers, including utility trailers, boat trailers, campers, single-horse livestock trailers and most recreational vehicle trailers. With class 3 trailer hitches being the most common type of trailer hitch for pickup trucks and SUVs, the class 3 ball mount, by association, is an excellent complement to this trailer hitch and these larger vehicles (NOTE: Never exceed the lowest weight capacity of any towing component; i.e. the vehicle, hitch, trailer, etc).This particular class 3 ball mount has a gross trailer weight capacity of 7,500 lbs. and a tongue weight capacity of 750 lbs. It features a length of 10-1/4", a drop of 2" and a possible rise of 3/4". Class 3 ball mounts are CNC-formed and robotically welded to ensure unwavering precision and dependable strength in each and every unit. We mechanically descale each one to provide a smooth surface for a long-lasting finish. This class 3 ball mount comes with a durable gloss black powder coat finish to protect against corrosion, scratches, UV damage and more to give it the thick skin it needs to face the road ahead. |
| Description_FAB | Fits trailer hitches with a 2" x 2" receiver tube opening |
| Description_FAB | Equipped with a 1" hole to accept a trailer ball shank |
| Description_FAB | 3/4" rise or 2" drop for precise trailer leveling |
| Description_FAB | Hollow shank weighs less and can be used with an anti-rattle kit |
| Description_FAB | CNC-formed, robotically welded and mechanically descaled for a perfect fit |
| Description_FAB | Protected by a durable powder coat finish |
| Description_FAB | Limited lifetime warranty (one-year finish, one-year part) |
| Description_TLE | CURT 45840 Class 3 Trailer Hitch Ball Mount, Imported, Fits 2-Inch Receiver, 7,500 lbs, 1-Inch Hole, 2-In Drop, 3/4-Inch Rise |
| Description_DEF | Trailer Hitch Ball Mount |
