CURT 48349 Adjustable Pintle Mount - 20,000 lbs Capacity

The CURT 48349 Adjustable Pintle Mount is a rugged, heavy-duty towing solution engineered specifically for full-size pickups equipped with 2-1/2 inch class 5 trailer hitches. Designed for strength and versatility, this mount allows you to connect an adjustable pintle hook or ball and pintle combination, ensuring you can tow effectively with the right trailer height.

Product Description

When towing heavy loads, relying on reducer sleeves can compromise your setup. The CURT 48349 is built for purpose, fitting directly into 2-1/2 inch receiver tubes. Constructed from solid steel and protected by a durable carbide powder coat finish, this pintle mount provides the structural integrity required for demanding jobs. With a gross trailer weight capacity of 20,000 lbs and six height adjustment positions, it is designed to keep your trailer level and secure during transport.

Features & Benefits

• Six-Position Height Adjustment: Provides precise trailer leveling, ensuring your trailer remains parallel to the road for safer towing.
• Solid Steel Shank Construction: Delivers optimum strength and durability for heavy-duty applications.
• Carbide Powder Coat Finish: Resists rust, scratches, and damage from the elements, ensuring a long-lasting aesthetic and functional life.
• Designed for 2-1/2 Inch Receivers: Eliminates the need for cumbersome reducer sleeves or adapters, providing a direct, stable fit for class 5 hitches.

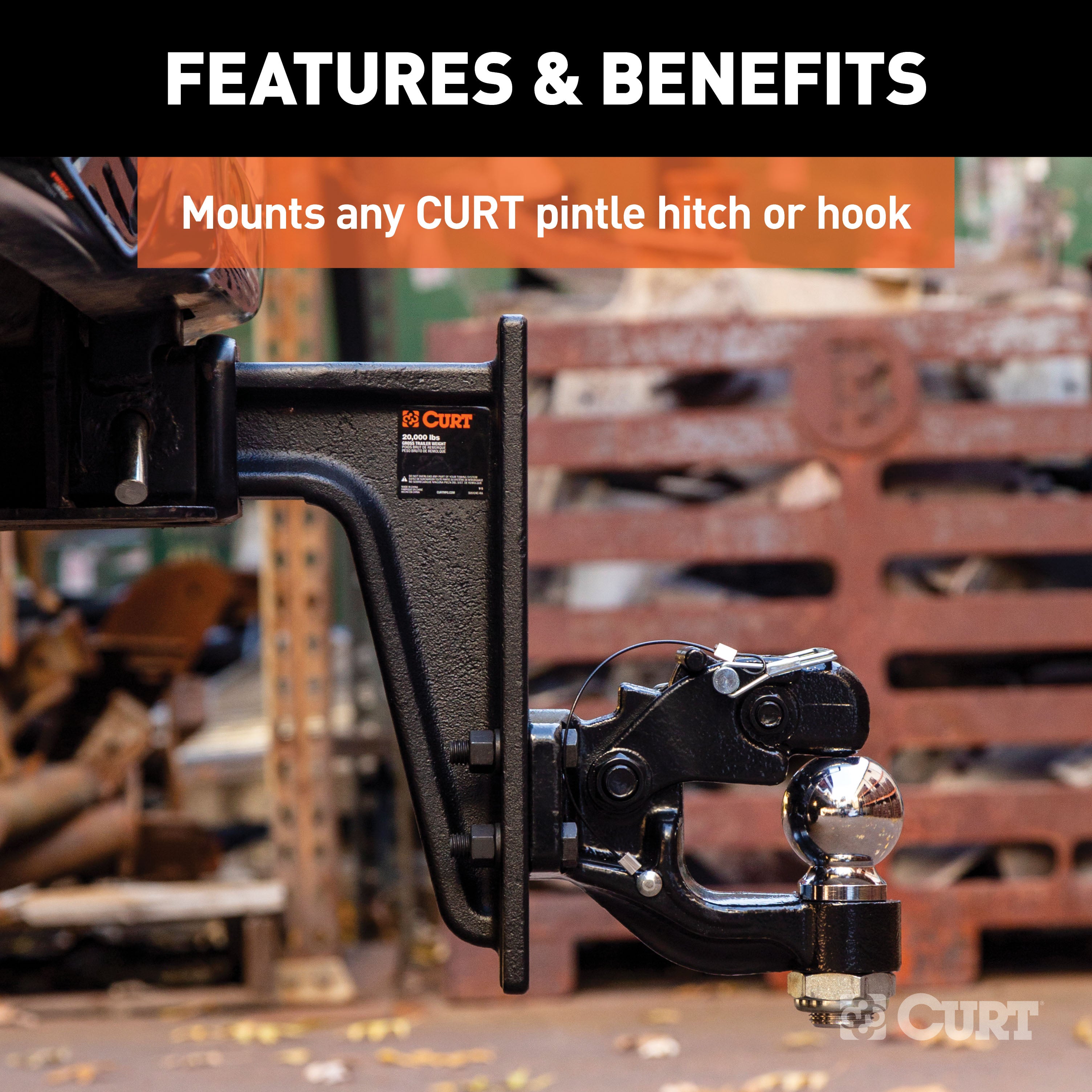

• Versatile Compatibility: Compatible with any adjustable pintle hook or ball and pintle combination.

Key Points & Helpful Resources

• Compatibility: Designed specifically for 2-1/2" x 2-1/2" receiver tubes.
• Towing Safety: Never exceed the lowest-rated component of your towing system (vehicle, hitch, or mount).
• Maintenance: Periodically inspect hardware and the powder coat finish for signs of wear or damage.

Product Specifications

Compatibility & Applications

This pintle mount is compatible with vehicles equipped with a 2-1/2 inch x 2-1/2 inch receiver tube opening. It is ideal for commercial, agricultural, and industrial towing applications involving trailers with pintle eyes. Please verify your receiver size and towing requirements before purchase. If you are unsure of compatibility with your specific truck, contact MyTruckPoint for assistance.

Why Choose This Product?

The CURT 48349 stands out because it is engineered for the specific requirements of 2-1/2" receivers. By utilizing a solid steel shank instead of relying on adapters, it offers a more stable and direct connection to your vehicle's frame. The 6-position adjustment capability offers superior versatility for various trailer configurations compared to fixed-height alternatives.

Ideal For

• Full-size pickup truck owners with class 5 hitches.
• Operators of heavy-duty trailers, such as construction equipment, utility trailers, and landscape trailers.
• Users who require frequent trailer height adjustments for multiple towed loads.

Installation, Use & Care

Installation should be straightforward for those familiar with hitch components. Simply slide the mount into your 2-1/2 inch receiver tube and secure it with a hitch pin or lock. Ensure that all hardware is tight and the pintle hook is correctly bolted to the mounting plate before use. If you are not confident in the installation, please consult a professional mechanic or authorized dealer.

What's Included

• 1 x CURT 48349 Adjustable Pintle Mount

Frequently Asked Questions

Does this mount work with a 2-inch receiver?

No, this product is designed specifically for 2-1/2" x 2-1/2" receiver tube openings.

What is the weight capacity of this mount?

This mount is rated for a 20,000 lbs gross trailer weight.

What warranty does this product come with?

It includes a limited lifetime warranty on the structure, with a 1-year warranty on the finish and parts.
