CURT 56434 Custom Wiring Harness 4-Way Flat Output

The CURT 56434 custom wiring harness provides a reliable, plug-and-play solution for integrating your Toyota RAV4's electrical system with a trailer. Designed for efficiency and durability, this kit supplies a standard 4-way flat output to power your trailer’s essential lighting signals.

Product Description

CURT custom wiring harnesses are engineered to simplify the connection between your vehicle and trailer. By using OEM-compatible connectors, the 56434 harness "T"s directly into your RAV4's existing taillight assembly. This eliminates the need for cutting or splicing, preserving your vehicle's factory wiring integrity. The system features a powered taillight converter housed in a potted enclosure, which uses epoxy resin to protect sensitive circuitry from moisture, road debris, and heavy vibrations. Utilizing advanced Surface Mount Technology (SMT), this converter ensures maximum light intensity with minimal heat generation for consistent, long-term performance.

Features & Benefits

• Plug-and-Play Design: Plugs directly into your vehicle's factory taillight assembly, significantly reducing installation time and preventing the need for wire cutting.
• SMT Circuitry: Uses Surface Mount Technology for improved durability and performance under the intense vibrations common during towing.
• Potted Enclosure: The converter is sealed in an epoxy resin, making the internal electronics impervious to extreme weather, moisture, and vibration.

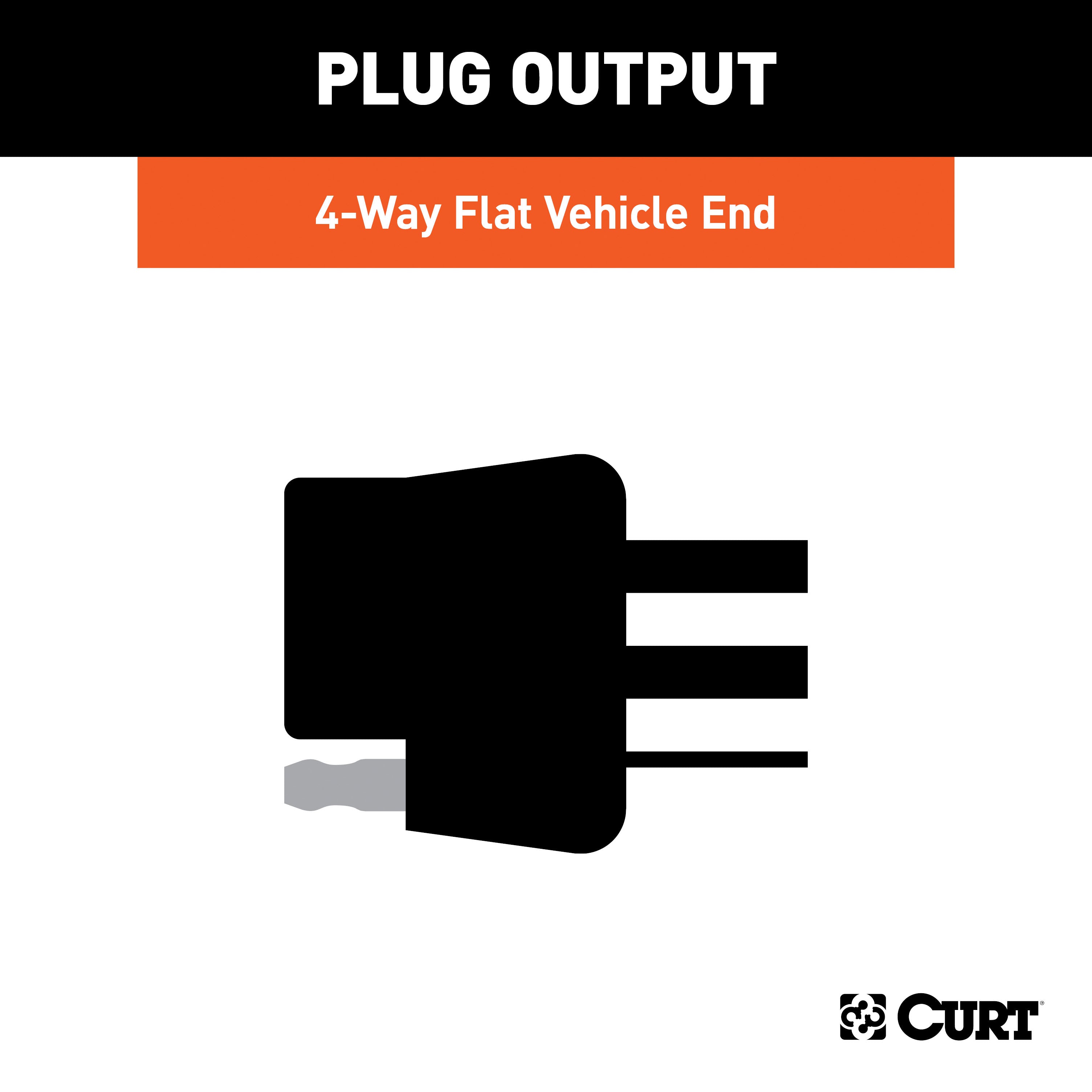

• 4-Way Flat Output: Provides a standardized connection to power your trailer’s taillights, brake lights, and turn signals.
• Versatile Mounting: The robust converter design allows for exterior vehicle mounting where convenient.

Key Points & Helpful Resources

• Installation: This kit is designed for a direct fit but should be installed carefully to ensure all connections are fully seated.
• Compatibility: Specifically designed for select Toyota RAV4 models. Always verify your specific vehicle year and trim before ordering.
• Maintenance: The potted converter is maintenance-free, but ensure the 4-way connector remains clean and debris-free to maintain a strong electrical connection.
• Support: If you have questions regarding fitment, please contact MyTruckPoint for confirmation.

Product Specifications

Compatibility & Applications

The CURT 56434 is designed for specific Toyota RAV4 applications. As vehicle configurations can change, please verify that your vehicle's tail light assembly matches the requirements for this part number before installation. If you are uncertain about compatibility, contact MyTruckPoint for assistance.

Why Choose This Product?

This harness is a superior choice for RAV4 owners because it prioritizes vehicle electrical integrity. By utilizing OEM-style "T" connectors and a weather-sealed, vibration-resistant potted converter, it offers a professional-grade installation that outperforms generic splicing kits in both reliability and longevity.

Ideal For

• Toyota RAV4 owners looking to tow utility trailers, small boat trailers, or cargo trailers.
• Drivers who prefer a DIY-friendly installation without specialized electrical tools.
• Those requiring a durable, weather-proof wiring solution for frequent or occasional towing needs.

Installation, Use & Care

Follow the provided manufacturer instructions carefully to ensure the wiring is routed away from hot exhaust pipes or moving suspension parts. For the best results, use the official installation documentation provided below:

CURT 56434 Custom Wiring Harness Guide 1

What's Included

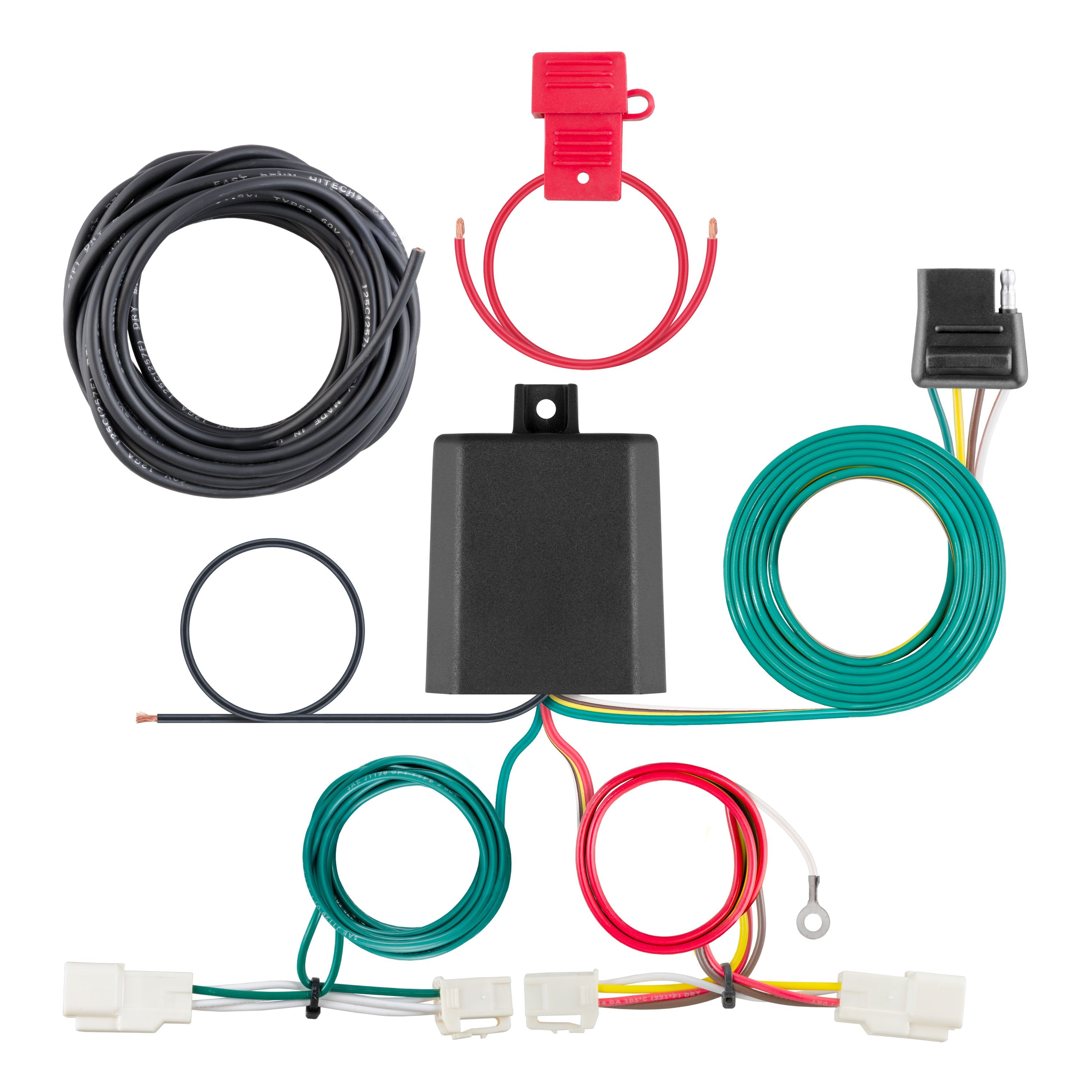

• CURT 56434 Custom Wiring Harness with integrated converter and 4-way flat connector.

Frequently Asked Questions

Does this kit require cutting my vehicle's wires?

No, the CURT 56434 uses OEM-compatible connectors to plug directly into your factory taillight assembly, eliminating the need to cut or splice wires.

Is the converter waterproof?

Yes, the converter features a potted enclosure filled with epoxy resin, making it completely sealed against moisture and extreme weather conditions.

How long does it take to install?

Based on the manufacturer specifications, the estimated installation time is approximately 1 hour.

What does the 4-way flat connector control?

It powers the essential lights on your trailer, including taillights, brake lights, and turn signals.
