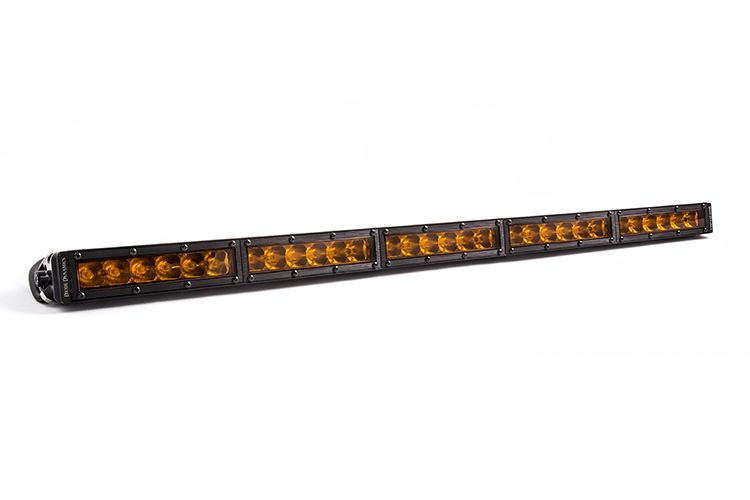

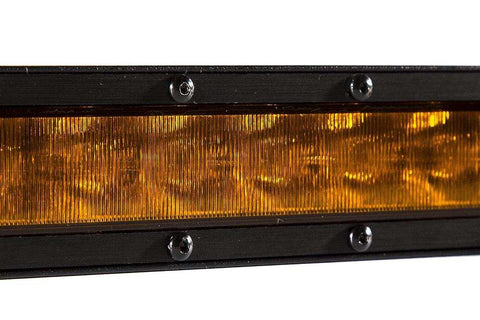

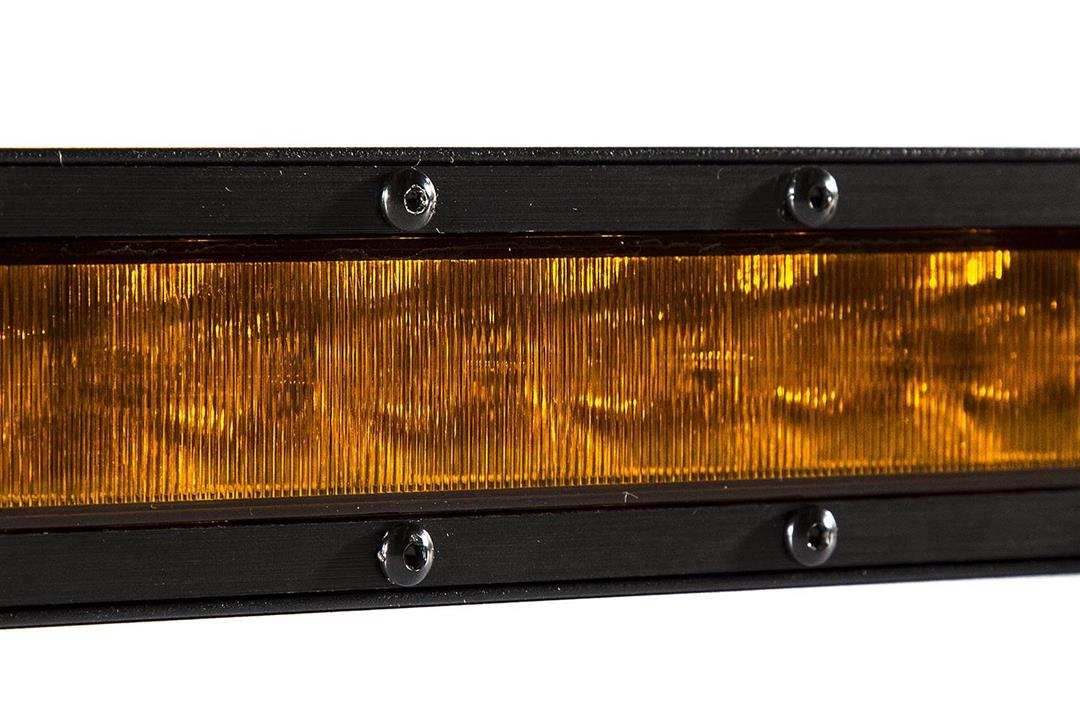

DIODE DYNAMC DD5040 SS30 AMBER DRIVING LIGHT BAR
Vendor:
DIODE DYNAMC
SKU:
GBFG_DD5040
Availability:
Out of stock. Chat\Call to Order
Product Type:
LED LIGHTS
- Regular price
- $609.72 CAD
- Regular price
-
$715.49 - Sale price
- $609.72 CAD
- Unit price
- per
Take 10% off select products at checkout.
Savings auto-applies on selected products at checkout. Exclusions apply.
Couldn't load pickup availability
Description
xAttributes
- Bulb Type: LED
- Style: Straight
- Length: 30 Inch

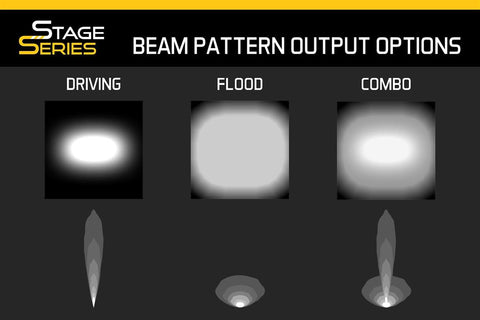

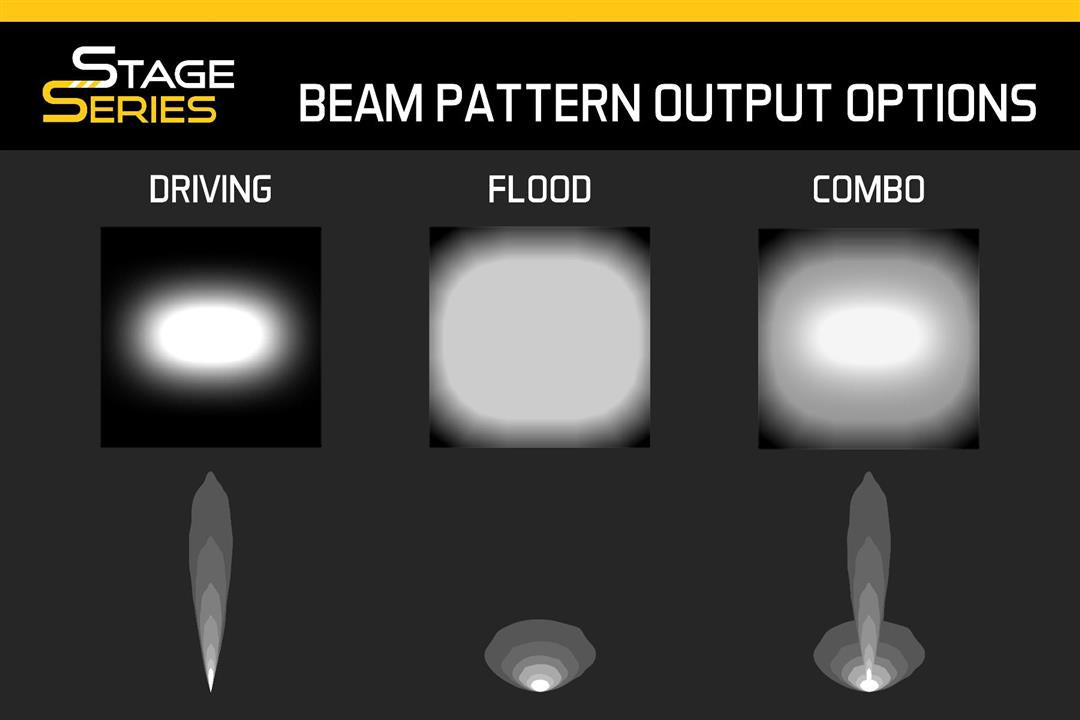

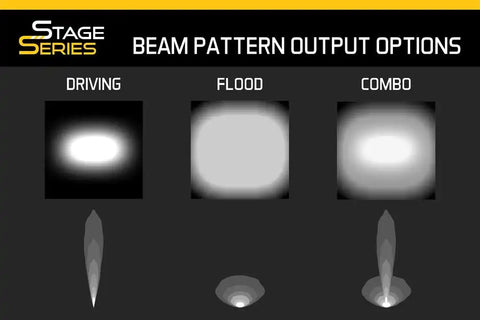

- Beam Type: Driving Beam
- Number Of Rows: Single
- Light Color: Amber
- Housing Color: Black
- Smart Technology Compatible: Not Compatible With Smart Technology
- Beam Angle (Deg): 20 x 8 Degree
- Lumens: 5700 Raw Lumens
- Wattage: 137.2 Watt

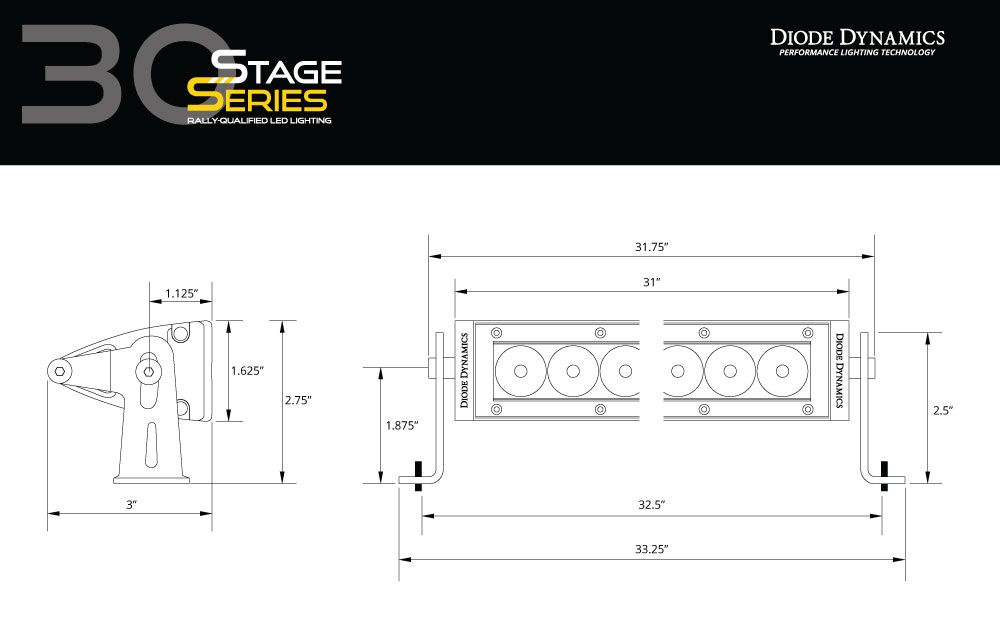

- Width: 3 Inch
- Height: 1-5/8 Inch
- Voltage Rating: 14 Volt
- Ampere Rating At 12 Volts: 9.8 Amp
- Bulb Specifications: Luxeon Z ES LED Bulb
- Lens Material: Polycarbonate
- Housing Material: Aluminum
- Mounting Length: 33-1/4 Inch
- Mounting Style: Bolt-On Mount
- Connection Type: Plug And Play Wiring Harness
- Includes: With Universal Mounting Brackets/ Wire Pigtail/ Mounting Hardware
- Estimated Install Time (Hours): 1.5
Product Description

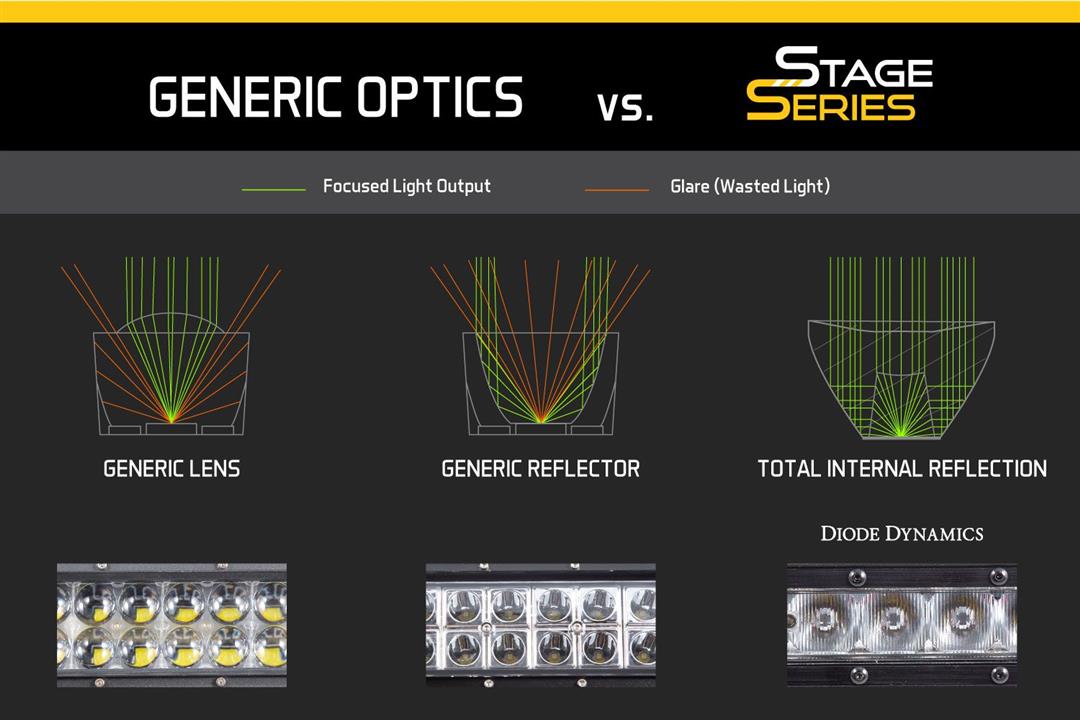

Introducing STAGE SERIES LED lighting. Inspired by the needs of a professional rally driver, these light bars have been designed for maximum functionality, with compact size, custom-engineered TIR optics And a useful beam pattern, all in a highly durable package. Compact. The lightbar is based on a narrow-profile extruded housing, to allow fitment in small and tight areas. At less than 42 Millimeter tall, they'll fit in many places a traditional dual-row light bar won't, while cutting total weight as well. The heatsink design also drastically reduces wind noise And does not whistle in the wind like many generic housings. Focused. The compact size doesn't mean they're short on power. Thanks to the high-intensity Lumileds LED chips, coupled with our U.S. PATENT PENDING total internal reflection (TIR) optic, the total intensity of the Stage Series is far higher than a standard, generic light bar using basic optics or reflectors. Standard optics lose light internally And to glare, spreading a little bit of light in every direction. Instead, the TIR optic in the Stage Series collects all of the light from the LED And directs it only where you need it, drastically reducing glare and improving total efficiency.

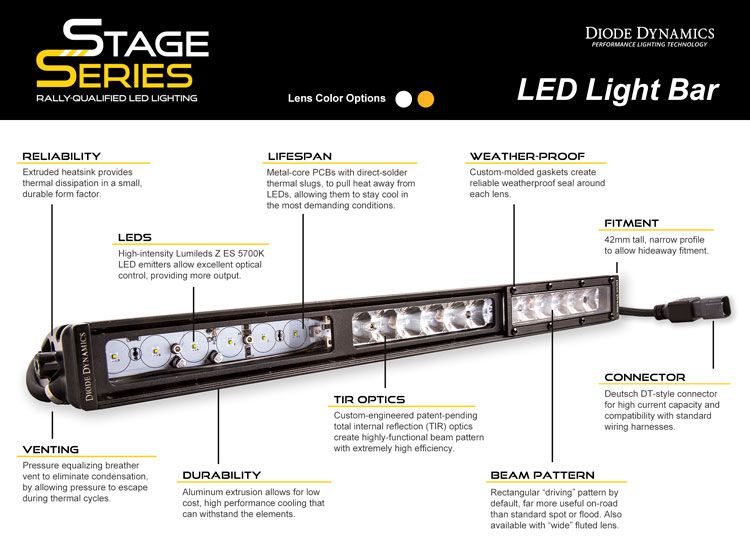

Features & Benefits
- Advanced TIR Optics Provide High Efficiency And Focus
- High-Intensity Automotive-Type LEDs With Pure White Color
- Slim 42 Millimeter Housing For Low-Profile Fitment
- Durable Matte Powder coated Extrusion
- Limited 8 Year Warranty
