Hedman Hedders 69440 - 88-95 CHEVY 2WD/4WD PICKUP WITH SB- UNCOATED

Name: Hedman Hedders 69440 - 88-95 CHEVY 2WD/4WD PICKUP WITH SB- UNCOATED
Brand: Hedman Hedders
SKU: FBLG_69440
Price: 524.36 CAD
Availability: InStock

Vendor: Hedman Hedders

SKU: FBLG_69440

Availability: 13 In Stock

Product Type: Exhaust Header

Regular price: $524.36
Regular price: ~~$562.15~~
Sale price: $524.36
Unit price: per

Why Pay More? We Price Match & Beat It.

Quantity:

Product Description

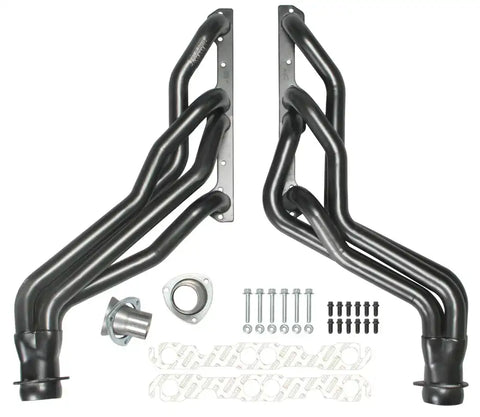

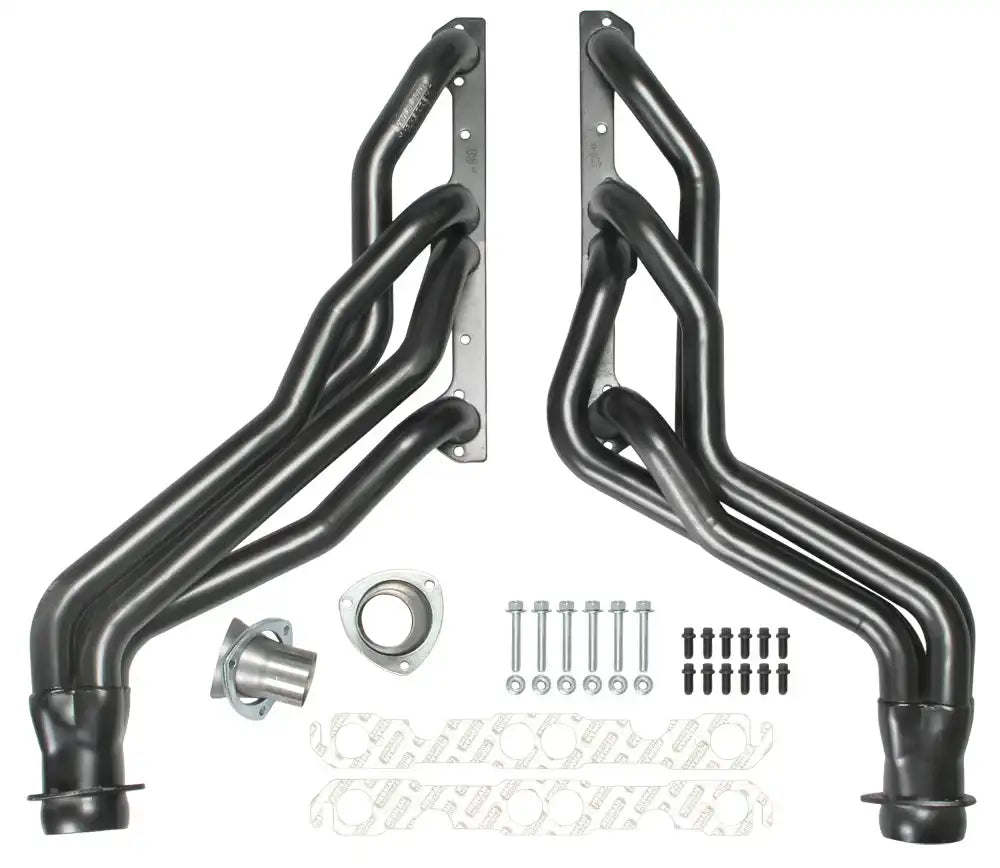

Hedman Hedders has been manufacturing quality headers in the USA since 1954, and they've been manufacturing long and mid-length tube headers for Chevy trucks for nearly as long. Each set uses mild steel, smooth flowing, CNC mandrel bent tubes, that are hand-welded to ensure each pair is identical to the next. Hedman's unique, gasketless ball and socket collector design allows your 5.0L / 5.7L SB Chevy exhaust system to bolt up, even if it is not perfectly aligned with the header collectors.

Hedman's standard-duty, uncoated headers are manufactured using 18 Gauge, mandrel bent primary tubes and flanges. The factory black paint applied to uncoated headers is not hi-temperature and is for pre-installation protection only. For the ultimate in protection against the elements, we suggest Hedman's Original HTC coating.

These uncoated, LONG-TUBE headers fit 1988-95 2WD and 4WD 1/2, 3/4 & 1 ton Chevy Trucks with a factory 5.0L or 5.7L Chevy powerplant (check the application listings for exact fitment). The smooth 1-5/8 in. tube design provides ample exhaust flow to let your OBS Chevy truck's factory Small Block engine breathe easy, and produce maximum horsepower and torque.

These headers are uncoated, and ship from the factory with a temporary black paint that will burn off when submitted to normal operating temperatures. For protection against the element and lower underhood temperatures, these headers are also available with a silver or black ceramic-metallic finish.

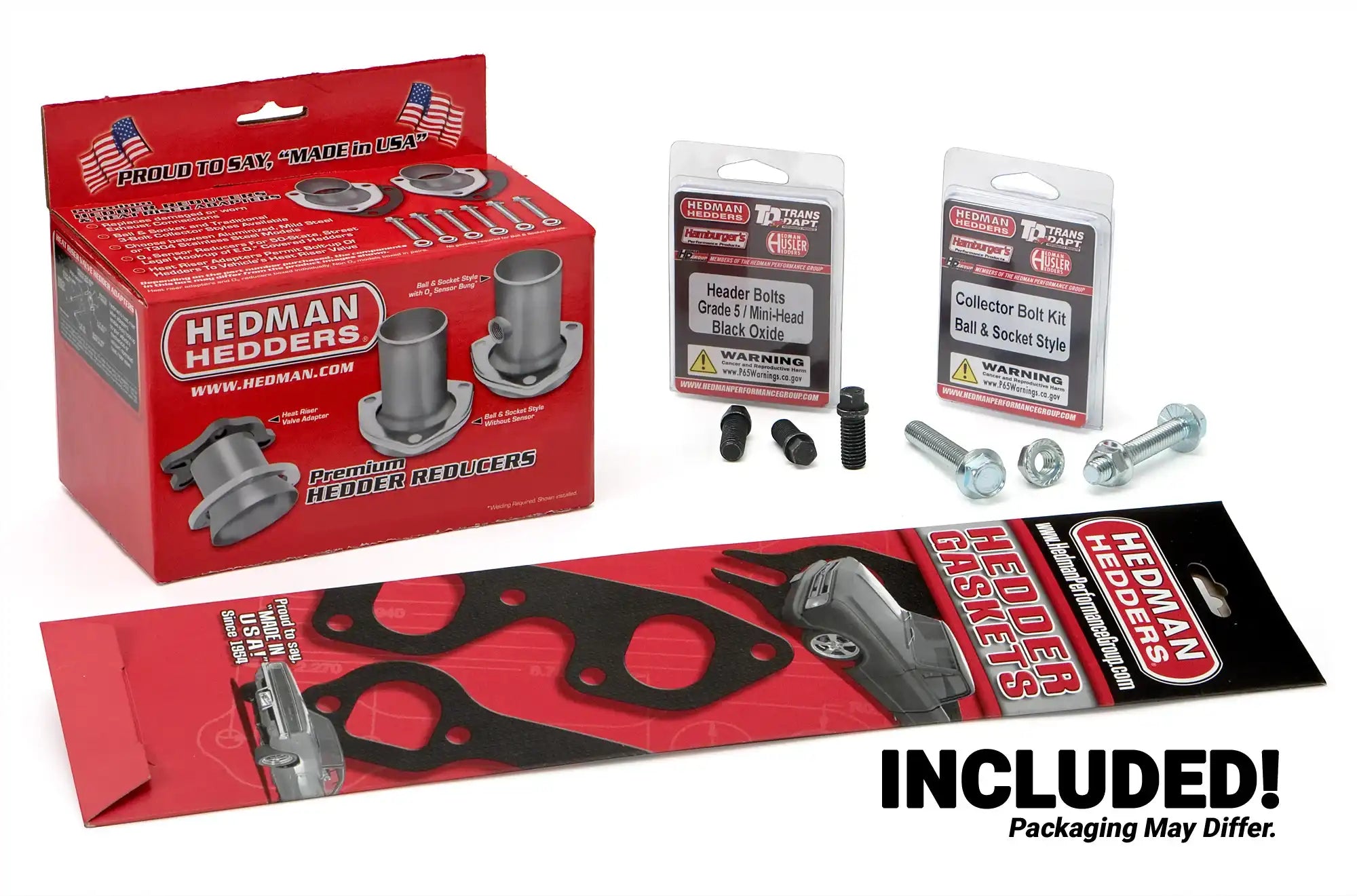

Each set includes a pair of gaskets, header flange bolts and collector bolts. No collector gasket is needed.

Hedman Hedders is so confident in the quality of its headers that these headers are factory backed by a Limited Lifetime Warranty.

Exhaust Header; Chassis Exit; 1-5/8 Inch Diameter Primary Tubes; 3 Inch Diameter Collectors; For Off-Road Use Only; Natural Steel

Features & Benefits

Natural Steel Construction
Standard Duty, Uncoated
Designed For Performance And Durability
Made In The USA
Easy Installation
Limited Lifetime Warranty

Attributes

Style: Long Tube
Collector Diameter (IN): 3 Inch
State Legal: Off-Road Only
Exit Location: Chassis Exit
Primary Tube Diameter (IN): 1-5/8 Inch
Flange Type: Standard
Flange Thickness: 5/16 Inch
Color/ Finish: Natural
Material: Steel
Includes Bolts/Studs: Yes
Includes Gaskets: Yes
Includes Reducers: Yes
Welding Required: No

Installation Instructions

69440series-instructionsheet.pdf

Technical Bulletins

Specifications:

Description_DES	88-95 CHEVY 2WD/4WD PICKUP WITH SB- UNCOATED
Description_EXT	HEADERS FOR '88-95 CHEVY 2WD/4WD PICKUP WITH SB; 1-5/8 in. TUBE; 3 in. COLLECTOR- UNCOATED
Description_ASM	1988-1995 Chevrolet C1500 5.0 Liter GAS, 1988-1995 Chevrolet C1500 5.7 Liter GAS, 1988-1995 Chevrolet C2500 5.0 Liter GAS, 1988-1995 Chevrolet C2500 5.7 Liter GAS, 1988-1995 Chevrolet C3500 5.7 Liter GAS, 1988-1995 Chevrolet K1500 5.0 Liter GAS, 1988-1995 Chevrolet K1500 5.7 Liter GAS, 1988-1995 Chevrolet K2500 5.0 Liter GAS, 1988-1995 Chevrolet K2500 5.7 Liter GAS, 1988-1995 Chevrolet K3500 5.7 Liter GAS, 1988 Chevrolet R20 5.0 Liter GAS, 1988 Chevrolet R20 5.7 Liter GAS, 1989 Chevrolet R2500 5.7 Liter GAS, 1988 Chevrolet R30 5.7 Liter GAS, 1989-1991 Chevrolet R3500 5.7 Liter GAS, 1988 Chevrolet V30 5.7 Liter GAS, 1989-1991 Chevrolet V3500 5.7 Liter GAS, 1988-1995 GMC C1500 5.0 Liter GAS, 1988-1995 GMC C1500 5.7 Liter GAS, 1988-1995 GMC C2500 5.0 Liter GAS, 1988-1995 GMC C2500 5.7 Liter GAS, 1988-1995 GMC C3500 5.7 Liter GAS, 1988-1989 GMC K1500 5.0 Liter GAS, 1991-1995 GMC K1500 5.0 Liter GAS, 1988-1989 GMC K1500 5.7 Liter GAS, 1991-1995 GMC K1500 5.7 Liter GAS, 1988-1995 GMC K2500 5.0 Liter GAS, 1988-1995 GMC K2500 5.7 Liter GAS, 1988-1995 GMC K3500 5.7 Liter GAS, 1988-1989 GMC R2500 5.7 Liter GAS, 1988-1991 GMC R3500 5.7 Liter GAS, 1988-1991 GMC V3500 5.7 Liter GAS
Description_SHO	HEADERS, UNCOATED
Description_INV	HEDMAN GM TRUCK HEADER-UNCOATED
Description_MKT	Hedman Hedders has been manufacturing quality headers in the USA since 1954, and they've been manufacturing long and mid-length tube headers for Chevy trucks for nearly as long. Each set uses mild steel, smooth flowing, CNC mandrel bent tubes, that are hand-welded to ensure each pair is identical to the next. Hedman's unique, gasketless ball and socket collector design allows your 5.0L / 5.7L SB Chevy exhaust system to bolt up, even if it is not perfectly aligned with the header collectors. These uncoated, LONG-TUBE headers fit 1988-95 2WD and 4WD 1/2, 3/4 & 1 ton Chevy Trucks with a factory 5.0L or 5.7L Chevy powerplant (check the application listings for exact fitment). The smooth 1-5/8 in. tube design provides ample exhaust flow to let your OBS Chevy truck's factory Small Block engine breathe easy, and produce maximum horsepower and torque. These headers are uncoated, and ship from the factory with a temporary black paint that will burn off when submitted to normal operating temperatures. For protection against the element and lower underhood temperatures, these headers are also available with a silver or black ceramic-metallic finish. Each set includes a pair of gaskets, header flange bolts and collector bolts. No collector gasket is needed. Hedman Hedders is so confident in the quality of its headers that these headers are factory backed by a Limited Lifetime Warranty.
Description_FAB	Handcrafted, Mild Steel Construction.
Description_FAB	Long Tube Header Design Provides Excellent Top-End Horsepower and Torque.
Description_FAB	Ball & Socket Collector Design requires No Gasket, and Allows For More Exhaust System Misalignment than Old School, Gasket-Style Header Collectors
Description_FAB	Includes All The Necessary Mounting Hardware, Gaskets and Reducers (exhaust adapters)
Description_FAB	Limted Lifetime Warranty On Construction, Five Year Warranty on Factory-Applied Header Coating!
Description_FAB	Proud To Say, Made In The USA, Since 1954!
Description_DEF	Exhaust Header
