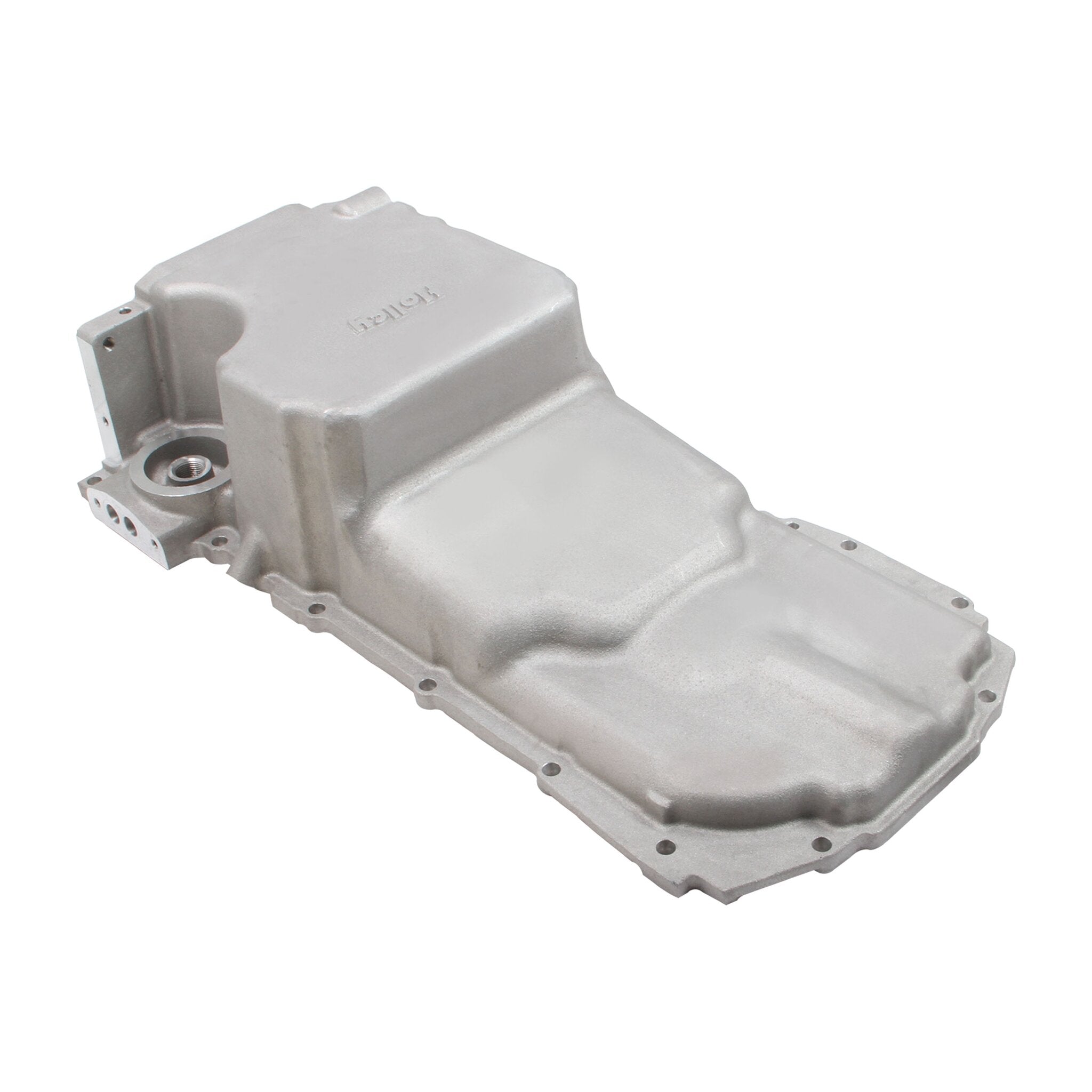

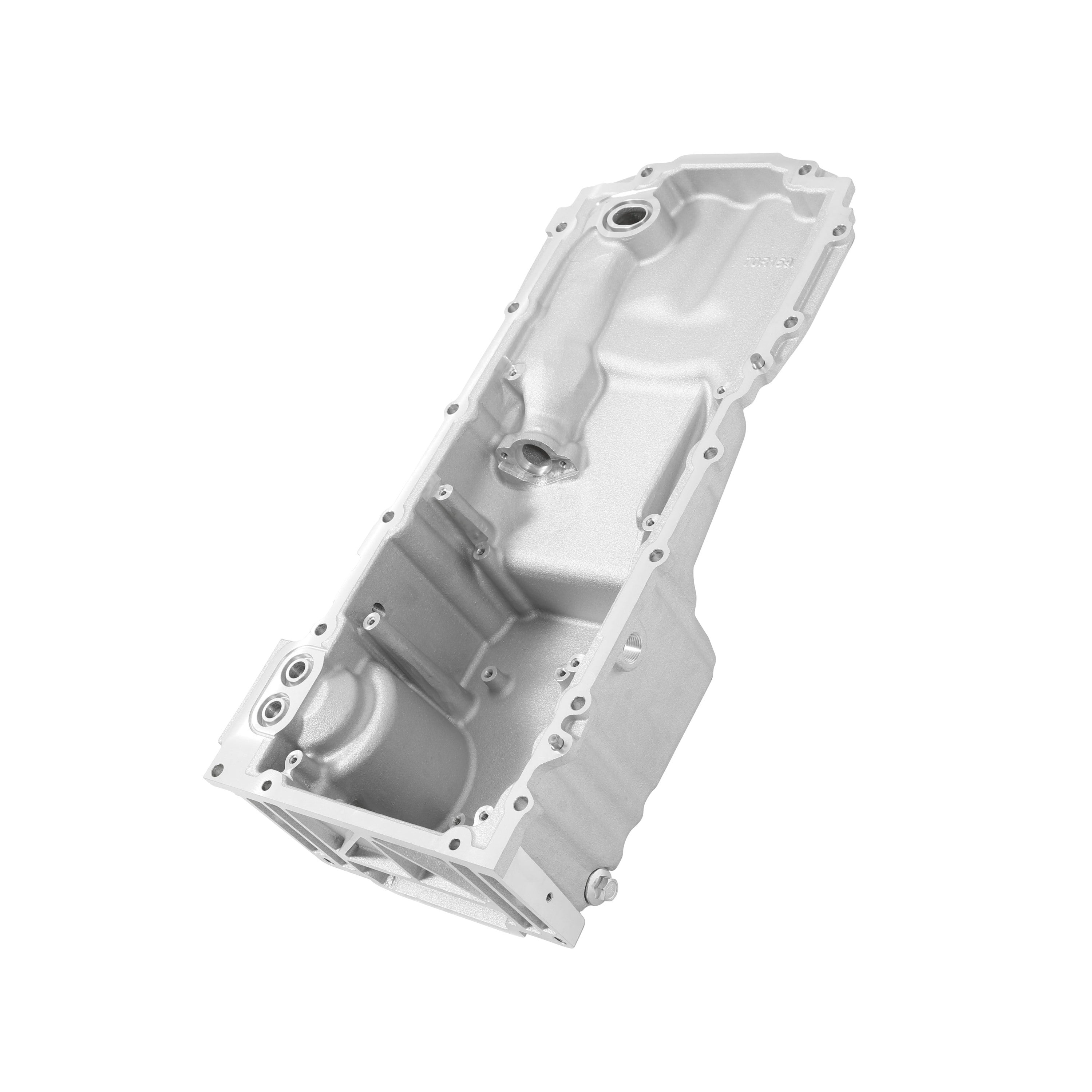

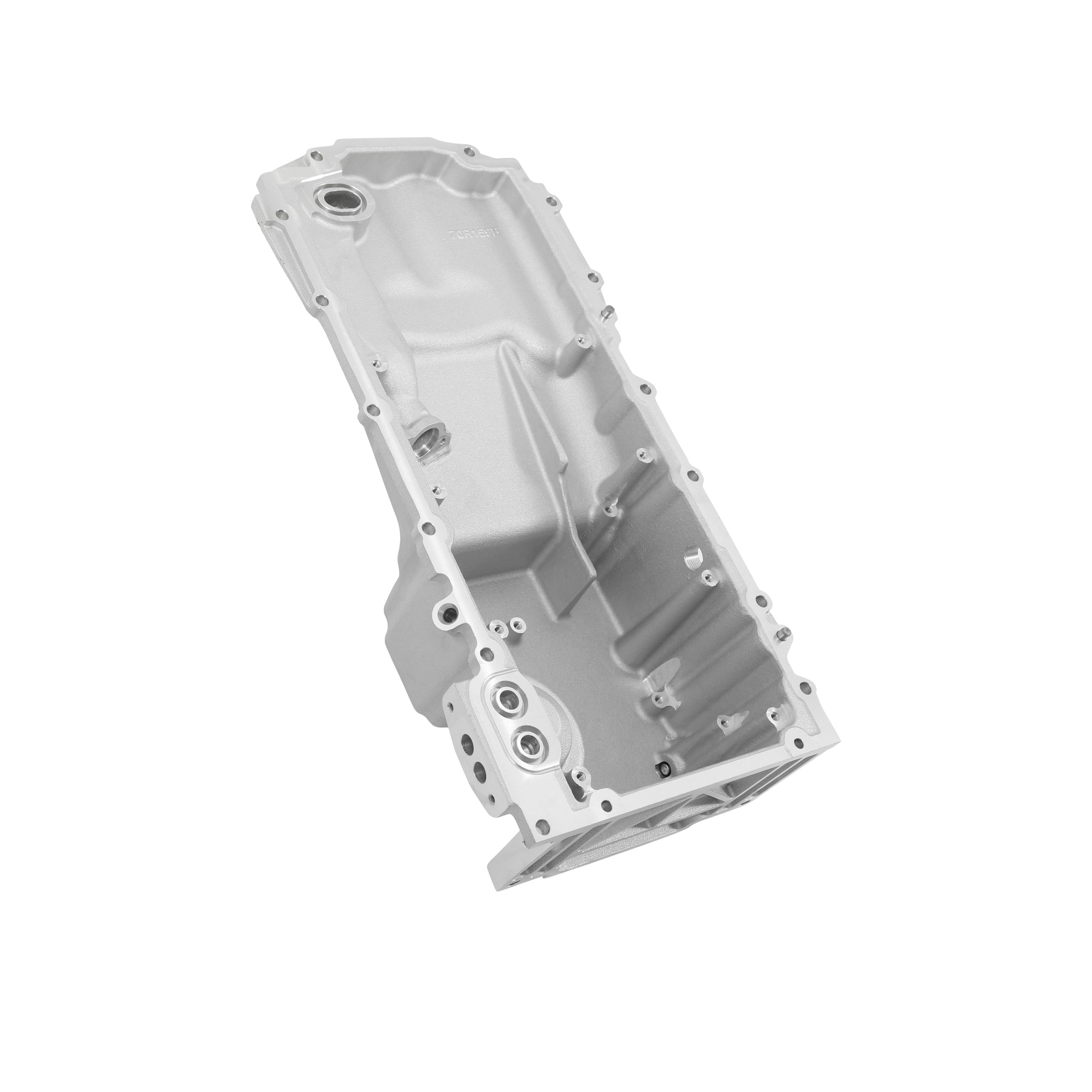

Holley 302-20 GM Gen V LT Swap Oil Pan - as Cast - with Turbo Oil or PVC Return Port
Vendor:
Holley
SKU:
BBVL_302-20
Availability:
Out of stock. Chat\Call to Order
Product Type:
Engine Oil Pan
- Regular price
- $999.86 CAD
- Regular price
-
$618.95 - Sale price
- $999.86 CAD
- Unit price
- per
Take 10% off select products at checkout.
Couldn't load pickup availability
Description
xThese oil pans are perfect for: 1967-1992 Camaro/Firebird, 1968-1974 Nova/Apollo/Ventura/Omega, 1978-1987 G-body, 1964-1972 A-body, and 1973-1987 Chevy/GMC Full Size Trucks.
Specifications:
| Application | GM Gen V LT |
| 1944 | No |
| Brand | Holley |
| 1315 | 6.1 |
| Category | Engine |
| 17 | Silver |
| 1945 | No |
| 1947 | No |
| 1948 | Yes |
| Emission Code | 5 |
| Engine | GM Gen V (LT) |
| Finish | Natural Cast |
| 3390 | Performance |
| 10 | Aluminum |
| Maximum Stroke | 4.00" |
| Oil Pan Capacity | 6.1 Quarts |
| Oil Pan Type | Cast |
| Oil Return Size | 1/2" NPT |
| part type | Engine Oil Pan |
| 1953 | Yes |
| Product Type | Oil Pan Kit |
| Sub Category | Cylinder Block Components |
| 1954 | Rear |
| 1955 | Wet |
| Turbo Oil Drainback | Yes |
| Warning | California Proposition 65 |
| Warranty | Manufacturer's Limited 90 Day Warranty |
| 1956 | Yes |
| Application | GM Gen V LT |
| 1944 | No |
| Brand | Holley |
| 1315 | 6.1 |
| Category | Engine |
| 17 | Silver |
| 1945 | No |
| 1947 | No |
| 1948 | Yes |
| Emission Code | 5 |
| Engine | GM Gen V (LT) |
| Finish | Natural Cast |
| 3390 | Performance |
| 10 | Aluminum |
| Maximum Stroke | 4.00" |
| Oil Pan Capacity | 6.1 Quarts |
| Oil Pan Type | Cast |
| Oil Return Size | 1/2" NPT |
| part type | Engine Oil Pan |
| 1953 | Yes |
| Product Type | Oil Pan Kit |
| Sub Category | Cylinder Block Components |
| 1954 | Rear |
| 1955 | Wet |
| Turbo Oil Drainback | Yes |
| Warning | California Proposition 65 |
| Warranty | Manufacturer's Limited 90 Day Warranty |
| 1956 | Yes |
| Description_INV | OIL PAN, LT RETROFIT - AS CAST |
| Description_ASC | Maximum Recommended Crankshaft Stroke 4.00". This oil pan is not for use on engines that originally used a dry sump oiling system. Recommended LT Dipstick & Dipstick Tube - GM part #s 12661062 (dipstick) and 12678823 (dipstick tube) Some factory LT1 applications include an oil temperature sensor. Currently this pan does not have a boss to install that temperature sensor. If the sensor is desired, it will have to be relocated and machining would be required. |
| Description_DES | Holley GM Gen V LT Swap Oil Pan - as Cast with Turbo Oil Return |
| Description_EXT | GM Gen V LT Swap Oil Pan - as Cast - with Turbo Oil or PVC Return Port |
| Description_MKT | GM's new Gen V LT direct injected engines are starting to find their way into a large variety of vehicles. They make great power, plus they're very durable and reliable. Unfortunately, the factory oil pans don't always fit or they hang too low for today's hot rods. Holley's new LT Swap Engine Oil Pan is designed to help! It provides maximum clearance to the chassis and ground, plus provides an OE (Original Equipment) style fitment for durability and proper sealing. |
| Description_MKT | These oil pans are perfect for: 1967-1992 Camaro/Firebird, 1968-1974 Nova/Apollo/Ventura/Omega, 1978-1987 G-body, 1964-1972 A-body, and 1973-1987 Chevy/GMC Full Size Trucks. |
| Description_FAB | Designed for LT Engine Swap Installations in Classic Car and Truck Chassis Requiring More Oil Pan to Chassis Clearance Around the Front Half of the Oil Pan |
| Description_FAB | Allows for up to 4.00” Crankshaft Stroke |
| Description_FAB | Can Be Used Anywhere a GM F-Body Oil Pan Can Be Used |
| Description_FAB | Provides OE Style fitment - OE oil filter mounting, OE oil cooler port provision, OE engine NVH suppression, OE flange gasket and sealing, proper structural rigidity and OE bell-housing attachments |
| Description_FAB | Traditional High-Quality Cast Aluminum Appearance With Clean Exterior Styling |
| Description_FAB | Provides Maximum Clearance for Vehicles Where the Steering Linkage is Behind the Engine cross-member |
| Description_FAB | Traditional high-quality cast aluminum appearance with clean exterior styling. |
| Description_FAB | Provides maximum clearance for vehicles where the steering linkage is behind the engine crossmember. |
| Description_FAB | Cast and machined aluminum |

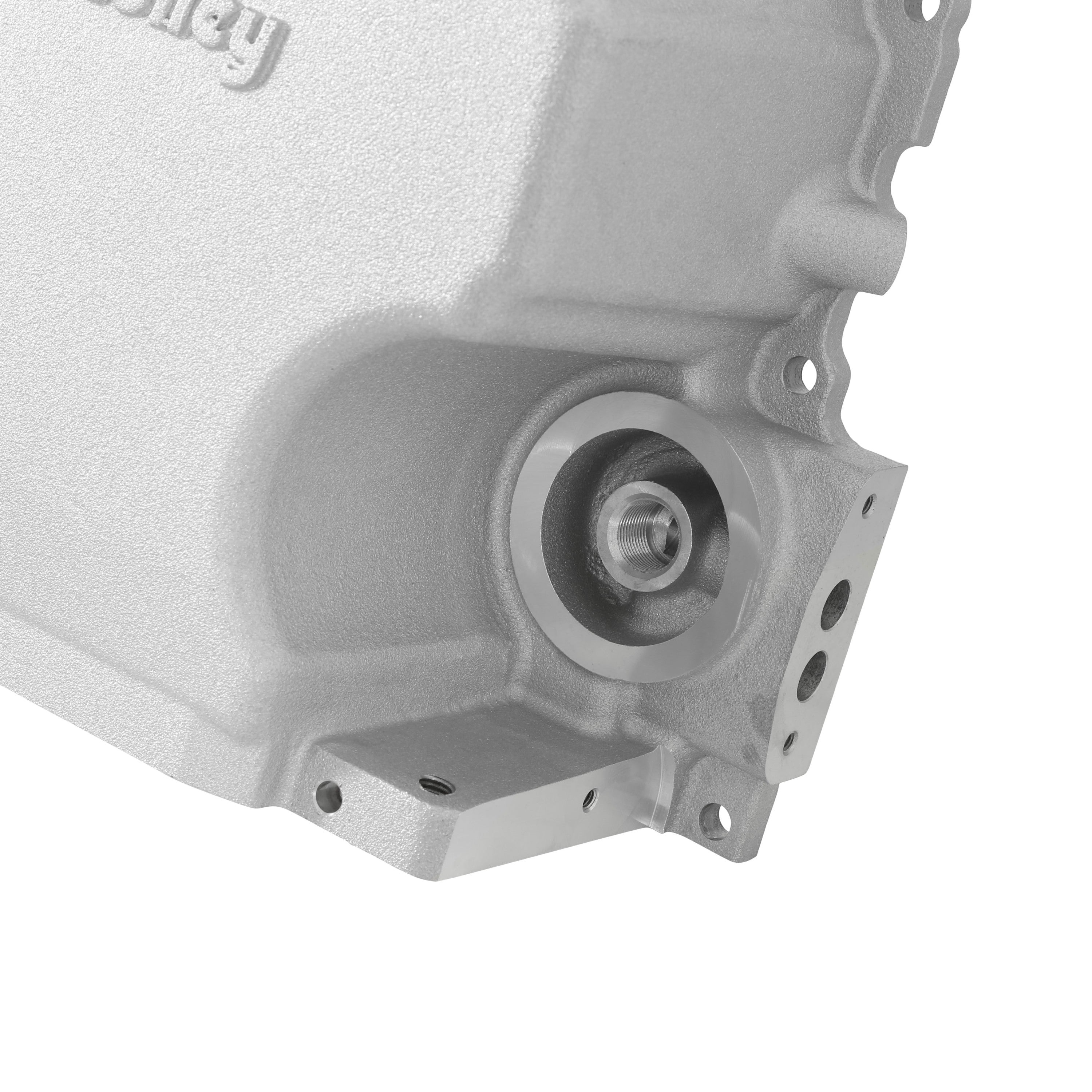

| Description_FAB | 1/2” NPT port – Ideal for Turbo Oil Return or PCV Oil Return |
| Description_FAB | Optional Hinge Door Baffle - Available Separately |

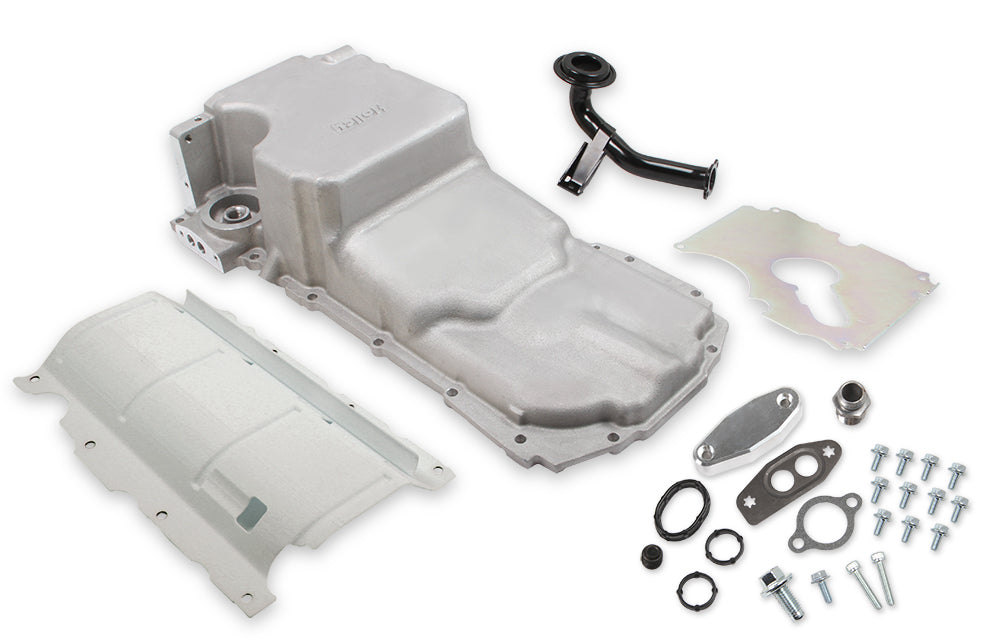

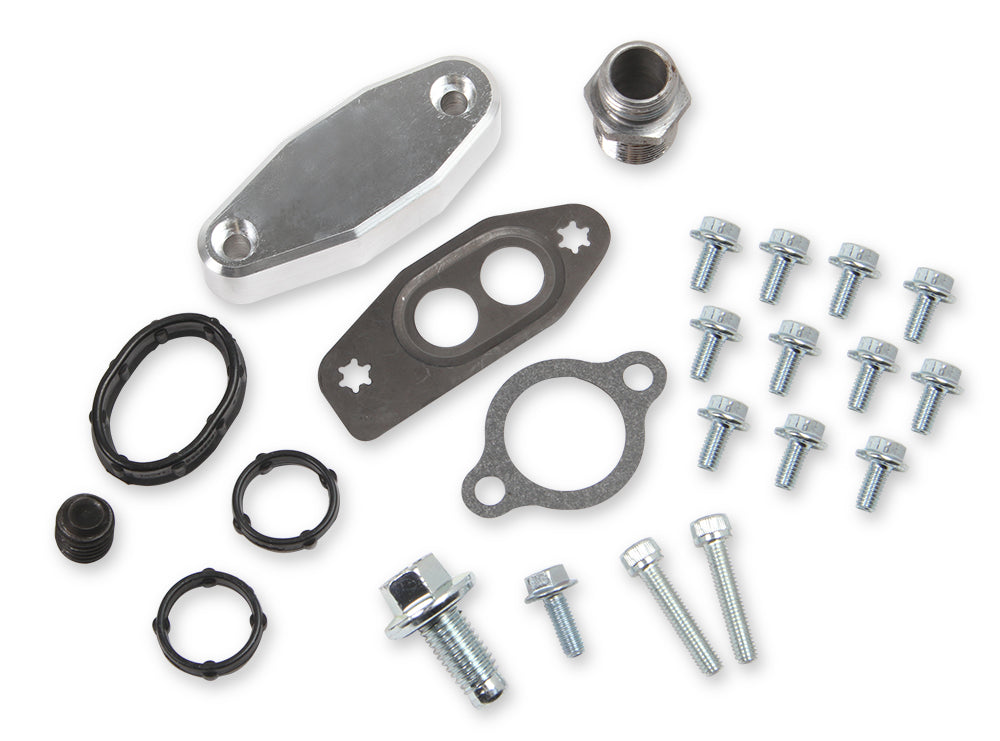

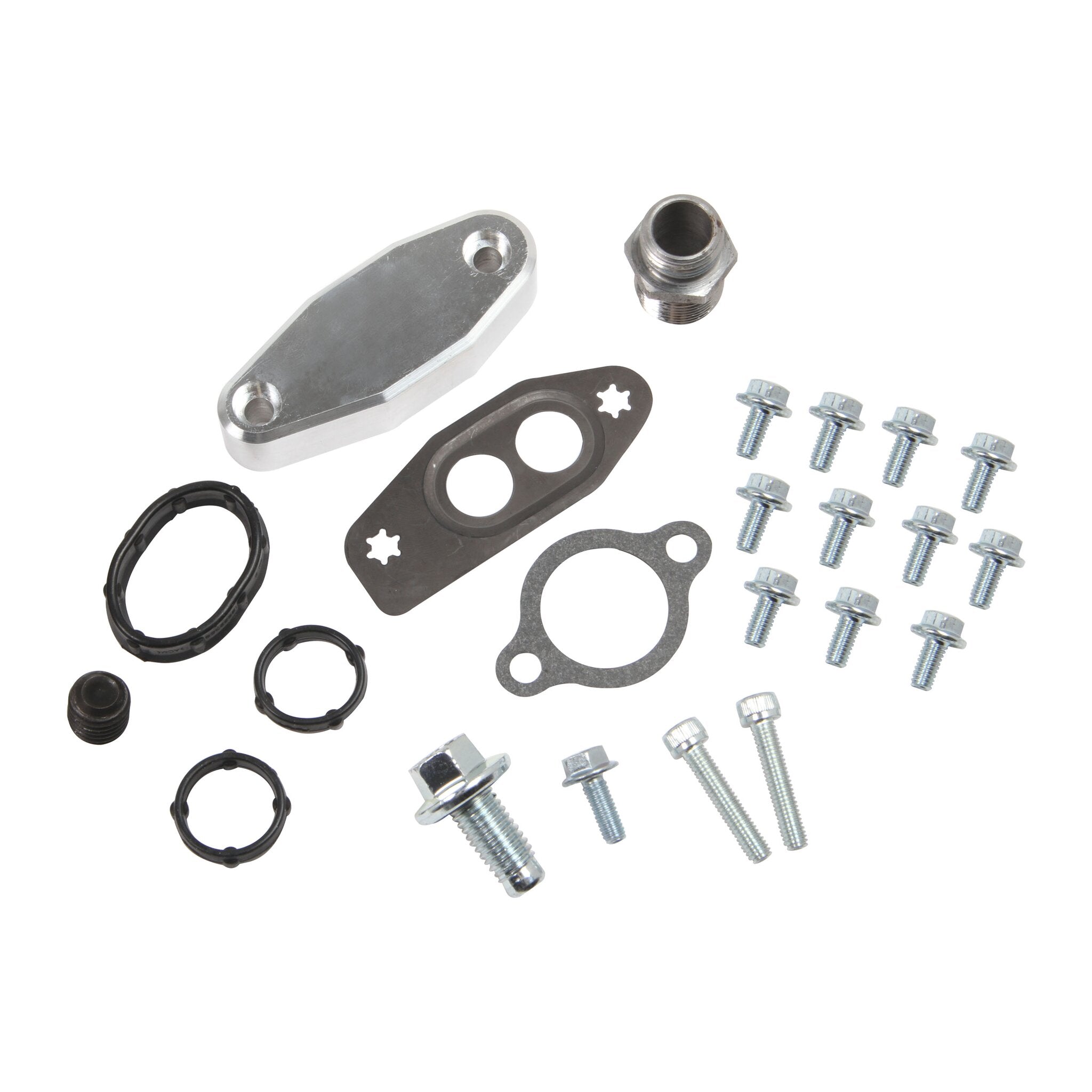

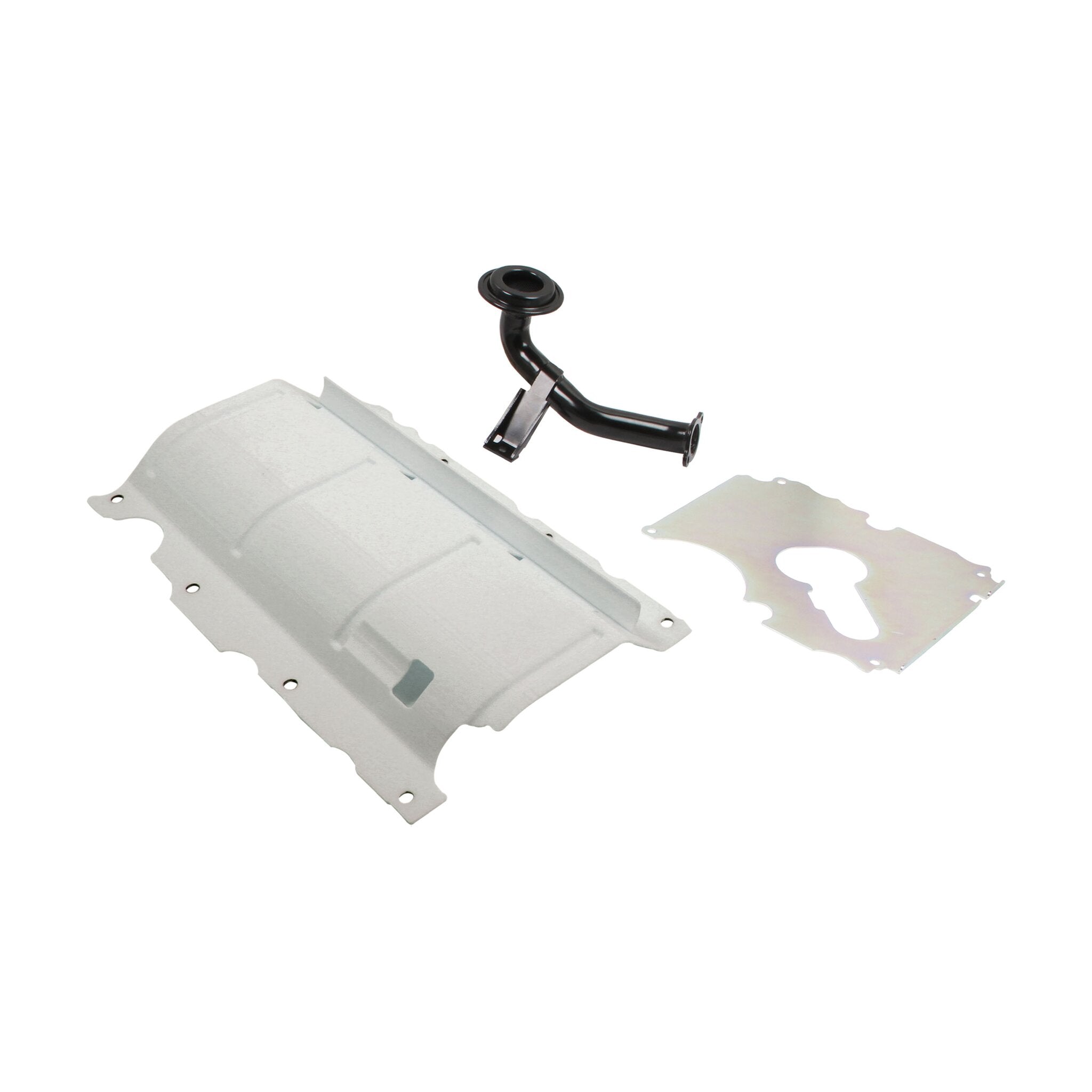

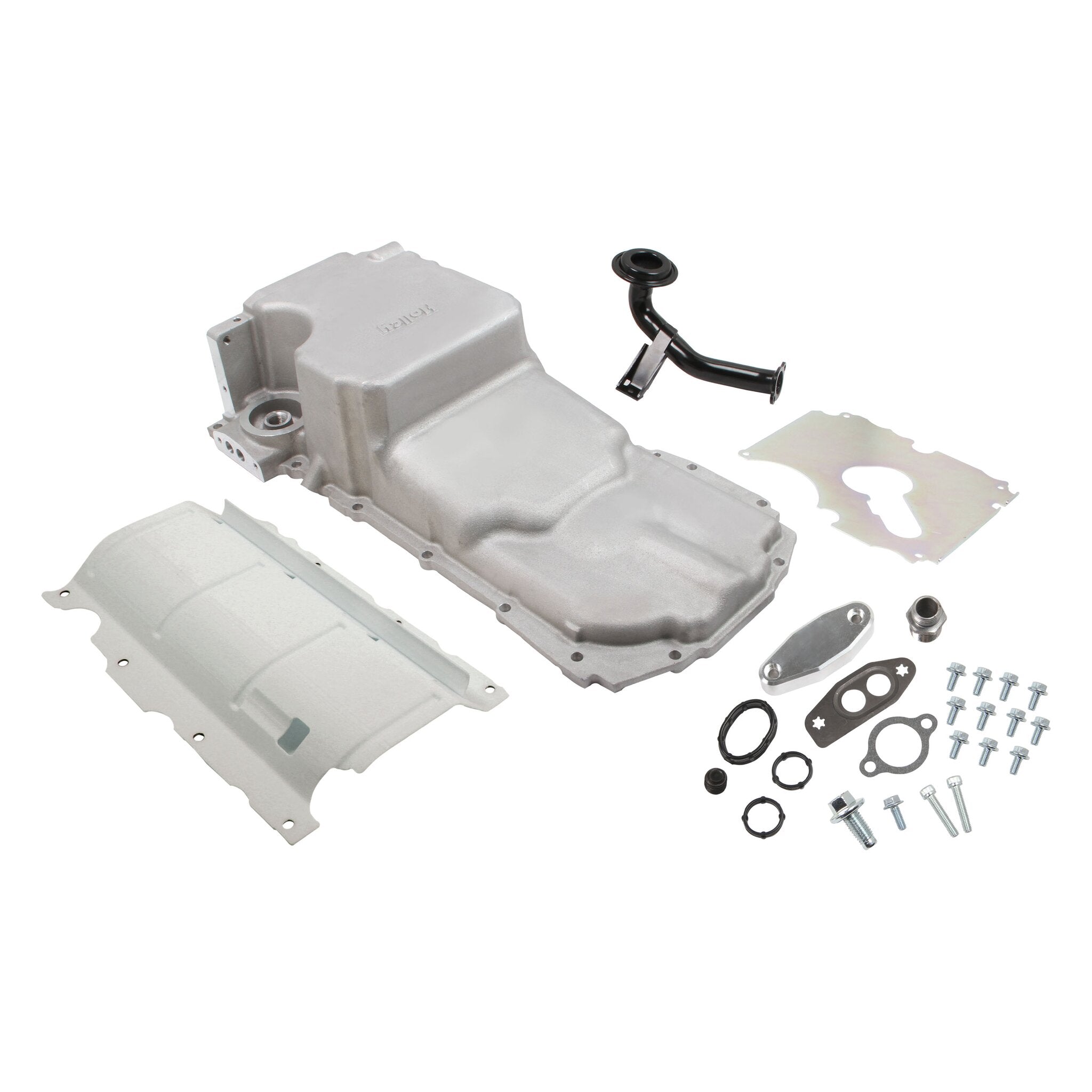

| Description_FAB | Complete Kit Includes: Windage Tray, Sump Baffle, OE Style Pick-Up Tube, Sump Port Plug, Oil Filter Stud, Billet Oil Passage Cover, etc. |
| Description_INV | OIL PAN, LT RETROFIT - AS CAST |
| Description_ASC | Maximum Recommended Crankshaft Stroke 4.00". This oil pan is not for use on engines that originally used a dry sump oiling system. Recommended LT Dipstick & Dipstick Tube - GM part #s 12661062 (dipstick) and 12678823 (dipstick tube) Some factory LT1 applications include an oil temperature sensor. Currently this pan does not have a boss to install that temperature sensor. If the sensor is desired, it will have to be relocated and machining would be required. |
| Description_DES | Holley GM Gen V LT Swap Oil Pan - as Cast with Turbo Oil Return |
| Description_EXT | GM Gen V LT Swap Oil Pan - as Cast - with Turbo Oil or PVC Return Port |
| Description_MKT | GM's new Gen V LT direct injected engines are starting to find their way into a large variety of vehicles. They make great power, plus they're very durable and reliable. Unfortunately, the factory oil pans don't always fit or they hang too low for today's hot rods. Holley's new LT Swap Engine Oil Pan is designed to help! It provides maximum clearance to the chassis and ground, plus provides an OE (Original Equipment) style fitment for durability and proper sealing. |
| Description_MKT | These oil pans are perfect for: 1967-1992 Camaro/Firebird, 1968-1974 Nova/Apollo/Ventura/Omega, 1978-1987 G-body, 1964-1972 A-body, and 1973-1987 Chevy/GMC Full Size Trucks. |
| Description_FAB | Designed for LT Engine Swap Installations in Classic Car and Truck Chassis Requiring More Oil Pan to Chassis Clearance Around the Front Half of the Oil Pan |
| Description_FAB | Allows for up to 4.00” Crankshaft Stroke |
| Description_FAB | Can Be Used Anywhere a GM F-Body Oil Pan Can Be Used |
| Description_FAB | Provides OE Style fitment - OE oil filter mounting, OE oil cooler port provision, OE engine NVH suppression, OE flange gasket and sealing, proper structural rigidity and OE bell-housing attachments |
| Description_FAB | Traditional High-Quality Cast Aluminum Appearance With Clean Exterior Styling |
| Description_FAB | Provides Maximum Clearance for Vehicles Where the Steering Linkage is Behind the Engine cross-member |
| Description_FAB | Traditional high-quality cast aluminum appearance with clean exterior styling. |
| Description_FAB | Provides maximum clearance for vehicles where the steering linkage is behind the engine crossmember. |
| Description_FAB | Cast and machined aluminum |
| Description_FAB | 1/2” NPT port – Ideal for Turbo Oil Return or PCV Oil Return |
| Description_FAB | Optional Hinge Door Baffle - Available Separately |
| Description_FAB | Complete Kit Includes: Windage Tray, Sump Baffle, OE Style Pick-Up Tube, Sump Port Plug, Oil Filter Stud, Billet Oil Passage Cover, etc. |
