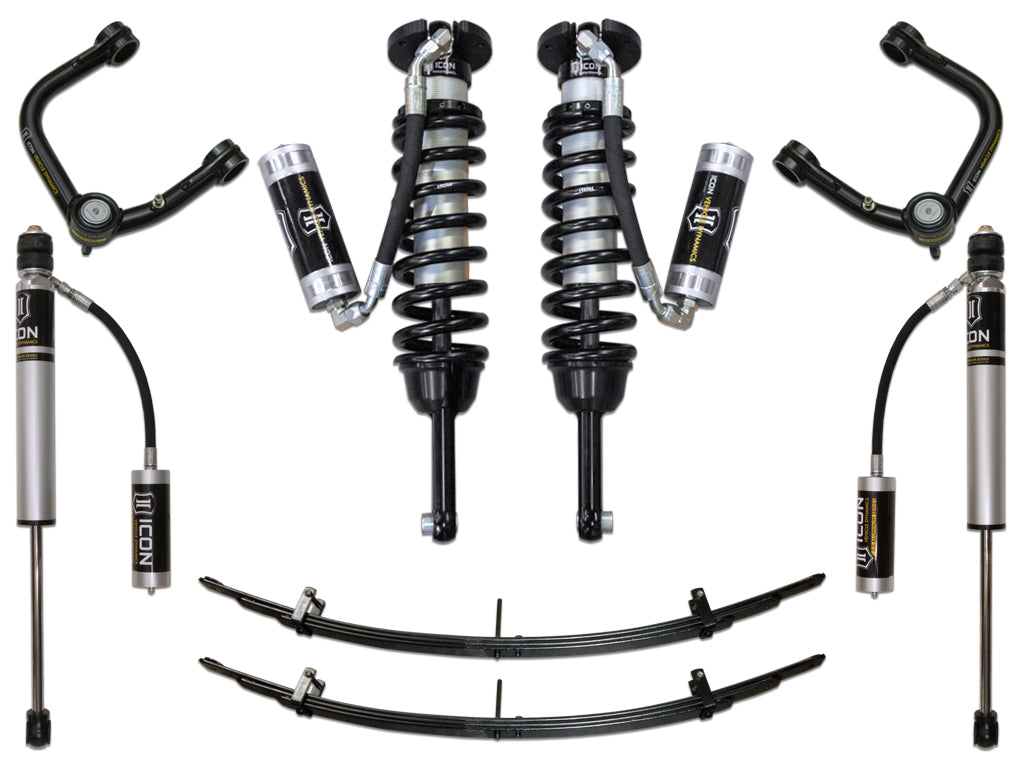

ICON Vehicle Dynamics K53004T ICON 2005-2015 Toyota Tacoma 0-3.5" Lift/2016-2023 Tacoma 0-2.75" Lift Stage 4 Suspension System Tubular UCA
ICON Vehicle Dynamics K53004T ICON 2005-2015 Toyota Tacoma 0-3.5" Lift/2016-2023 Tacoma 0-2.75" Lift Stage 4 Suspension System Tubular UCA

ICON Vehicle Dynamics K53004T ICON 2005-2015 Toyota Tacoma 0-3.5" Lift/2016-2023 Tacoma 0-2.75" Lift Stage 4 Suspension System Tubular UCA

Vendor: ICON Vehicle Dynamics
SKU: FRDK_K53004T
Availability: 22 In Stock
Product Type: Suspension Lift Kit
$4,887.02 CAD
$5,611.24
$4,887.02 CAD
Found Better Price? Get Price Match!
Take 10% off select products at checkout.
Savings auto-applies on selected products at checkout. Exclusions apply.
  • TruckPoint
* Images may differ from actual product.
Description
Description
x

Product Description

ICON Vehicle Dynamics 2005-UP Toyota Tacoma suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. The Stage 4 system includes vehicle-specific tuned 2-1/2 Inch Extended Travel coilover shocks featuring a remote reservoir for exceptional cooling properties and ICON-engineered Eibach coil springs for superior vehicle “feel” through the range of travel. These coilovers are also height adjustable from 0 to 3-1/2 Inch of lift on 2005-2015 or 0 to 2.75 Inch on 2016-UP models allowing the use of larger, more aggressive wheel and tire combinations. When used with an ICON upper control arm, ICON extended travel coilovers add increased droop travel to the front suspension. ICON 2.0 Aluminum Series Remote Reservoir rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics 2005-UP Toyota Tacoma 4WD/PreRunner Stage 4 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt. This system features upper control arms with ICON's patented Delta Joint. The Delta Joint is a heavy-duty high angle ball joint that combines the durability of a ball joint with the performance characteristics of a traditional uniball. While the industry standard uniball does a great job of allowing the control arms of a vehicle to articulate with little bind, they do have an inherent weakness that leaves more to be desired when used in a daily driven application - exposure to the elements. The Delta Joint features a zinc plated housing providing the first layer of corrosion resistance, while a tough grease seal keeps potentially harmful elements out of the inner workings of the joint.
Lift Kit Suspension; Stage 4; 0 To 3-1/2 Inch Front Lift; 1-1/2 Inch Rear Lift; With Front Remote Reservoir Coil Over Shock Absorbers And Rear Remote Reservoir Shock Absorbers In Kit; Black Components/ Gray Shock Absorbers; With Front Coil Over Mounts/ Rear Add-A-Leaf/ Front Tubular Upper Control Arms/ Installation Hardware

Features & Benefits

  • 6061 Aircraft Grade Aluminum CNC Machined Components
  • Increased Wheel Travel And Ride Quality Over Stock With No Change In Towing Capacity
  • Vehicle Specific Tuned Front And Rear Shocks For Superior Shock Damping And Control
  • Adjustable Coilovers With CDCV Provide Up To 3-1/2 Inch Of Front Lift Height On 2005 To 2015 Models And Up To 2.75 Inch On 2016-Up Models
  • Extended Travel Coilovers Matched With ICON UCA Provides Increased Front Droop Travel
  • Corrosion Resistant CAD Plated Coilover Shock Body With 7/8 Inch Shaft
  • FK Rod End Bearings For Extended Longevity And Minimal Deflection
  • 2.0 Aluminum Series Remote Reservoir Rear Shock With 5/8 Inch Shaft
  • Bolt-On System Means No Cutting Or Welding Necessary For Install
  • Limited 1 Year Warranty

Attributes

  • Front Lift Amount (IN): 0 To 3-1/2 Inch
  • Rear Lift Amount (IN): 1-1/2 Inch
  • Maximum Tire Size: 33 x 11.50
  • Front Lift Type: Coil Over Shock Absorber
  • Rear Lift Type: Add-A-Leaf
  • Shock Type: Hydraulic
  • Wheel Backspacing (IN): 4.75
  • Wheel Offset (MM): 0
  • Shocks: With Shocks In Kit
  • Color: Black Components/ Gray Shock Absorbers

Attributes:

  • GTIN: 00840103416427
  • Brand Name: ICON Vehicle Dynamics
  • 2064: Steel
  • 2371: Yes
  • 30: Yes
  • 3096: Black
  • 3097: Yes
  • 3390: Performance
  • 5520: 3.5
  • 6111: 3
  • 7325: 2
  • Add-On Part: 191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25)
  • Adjustable Damping: No
  • Coil Quantity Front: 2
  • Front Spring Rate 1: 650
  • Front Spring Rate Type: Linear
  • Maximum Lift Front: 3.5
  • Maximum Lift Rear: 1.5
  • Minimum Lift Front: 0
  • OEM Wheels & Tires Fitment: Yes
  • Rear Spring Rate Type: Linear
  • Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
  • Recommended Aftermarket Wheels: ICON Alloys - 17x8.5 with 4.75” Backspace / 0mm Offset

Extended Information:

  • Country of Origin: US
  • Emissions : 4
  • Life Cycle Status: Available To Order

Packing Information:

  • Quantity of Each: 1.0
  • Package UOM: EA
  • Dimension: 27.0000 x 12.0000 x 8.0000 inches
  • Weight: 134.0000 lb
