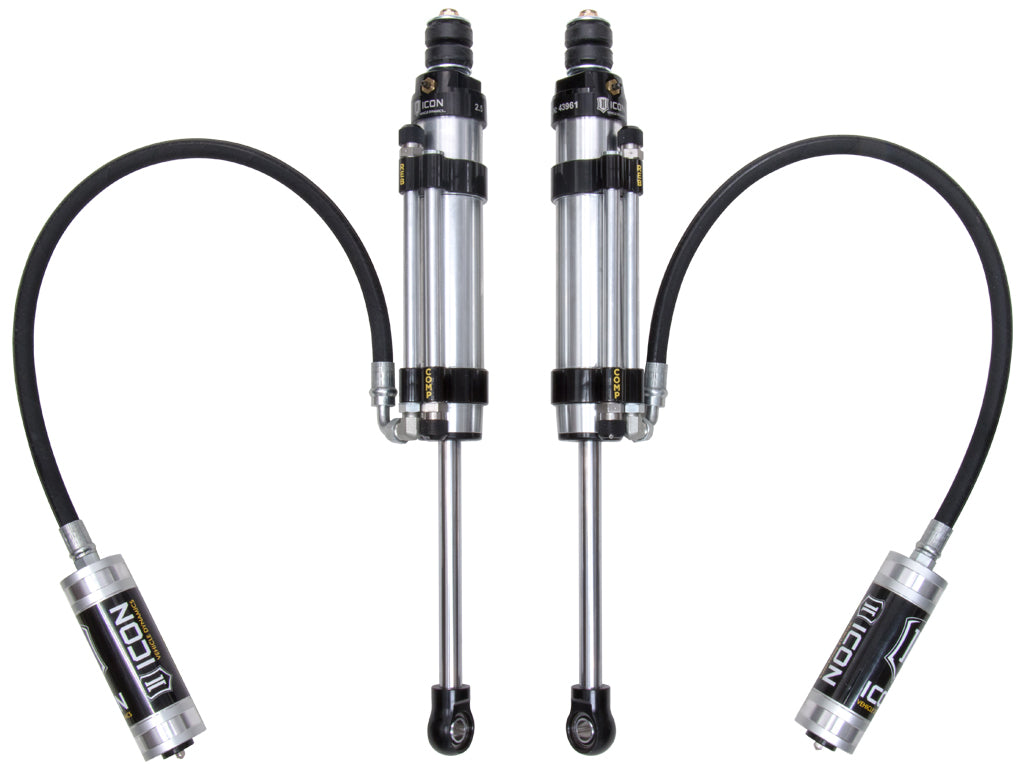

ICON Vehicle Dynamics FRDK_59910P ICON 2007-2014 Toyota FJ Cruiser/2003-2023 Toyota 4Runner/2003-2023 Lexus GX 1-3” Lift Rear 2.5 VS Omega Bypass Remote Reservoir Shocks Pair
ICON Vehicle Dynamics FRDK_59910P ICON 2007-2014 Toyota FJ Cruiser/2003-2023 Toyota 4Runner/2003-2023 Lexus GX 1-3” Lift Rear 2.5 VS Omega Bypass Remote Reservoir Shocks Pair

ICON Vehicle Dynamics FRDK_59910P ICON 2007-2014 Toyota FJ Cruiser/2003-2023 Toyota 4Runner/2003-2023 Lexus GX 1-3” Lift Rear 2.5 VS Omega Bypass Remote Reservoir Shocks Pair

Vendor: ICON Vehicle Dynamics
SKU: FRDK_59910P
Availability: Out of stock. Chat\Call to Order
Product Type: Suspension Shock Absorber Set
$3,486.92 CAD
$3,114.69
$3,486.92 CAD
Found Better Price? Get Price Match!
Take 10% off select products at checkout.
Savings auto-applies on selected products at checkout. Exclusions apply.
  • TruckPoint
Description
Description
x
ICON Omega Series Bypass shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in length but allow the user to customize the ride characteristics to their liking through adjustment of the bypass valves. Like all ICON shock absorbers, Omega Series shocks are 100% rebuildable and 100% revalveable. ICON’s use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal “Bump Zone” that when used, creates a significant increase in damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. The ICON Bypass Valve is an externally adjustable valve that restricts oil flow through the bypass tube and provides 28 settings of compression and rebound adjustment with no tools required.
  • ICON's Bypass Valve technology allows adjustment of compression and rebound damping with high resolution across the entire adjustment range
  • 6061 aircraft grade aluminum CNC machined components
  • One-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
  • 100% Rebuildable
  • 100% Revalveable
  • Hand adjustable bypass valves with 28 detented settings at quarter turn increments for precise suspension tuning
  • Bypass tubes are replaceable in the event of damage
  • Internal “Bump Zone” increases damping force to provide more control as the shock approaches full compression
  • Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
  • Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
  • One piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
  • 7/8” diameter induction hardened, chrome plated shock shaft
  • PTFE lined spherical bearings and application specific mounting hardware

Attributes:

  • GTIN: 00840103404783
  • Brand Name: ICON Vehicle Dynamics
  • 30: Yes
  • 3390: Performance
  • 359: 2.5
  • 408: Center of Eylet
  • 409: Shoulder of Stem
  • 48: EYELET
  • 49: Stem
  • 50: NO
  • 51: Yes
  • 905: 2.25
  • Add-On Part: 252008 - 2.5 X 13 SHOCK BOOT BLACK (PAIR)
  • Adjustable Damping: Yes
  • Cylinder Color: Grey
  • Cylinder Diameter: 2.5
  • Cylinder Material: Aluminum
  • Damping Adjustment Type: Manual
  • Damping Type: Oil
  • External Reservoir: Yes
  • Service Parts: 191016 - 7.5" FINNED RESI UPGRADE KIT
  • Shaft Diameter: 0.875
  • Shaft Material: Chrome

Extended Information:

  • Country of Origin: US
  • Emissions : Emissions Compliance Exempt
  • Life Cycle Status: Available To Order

Packing Information:

  • Quantity of Each: 1.0
  • Package UOM: EA
  • Dimension: 39.0000 x 15.0000 x 9.0000 inches
  • Weight: 33.0000 lb
