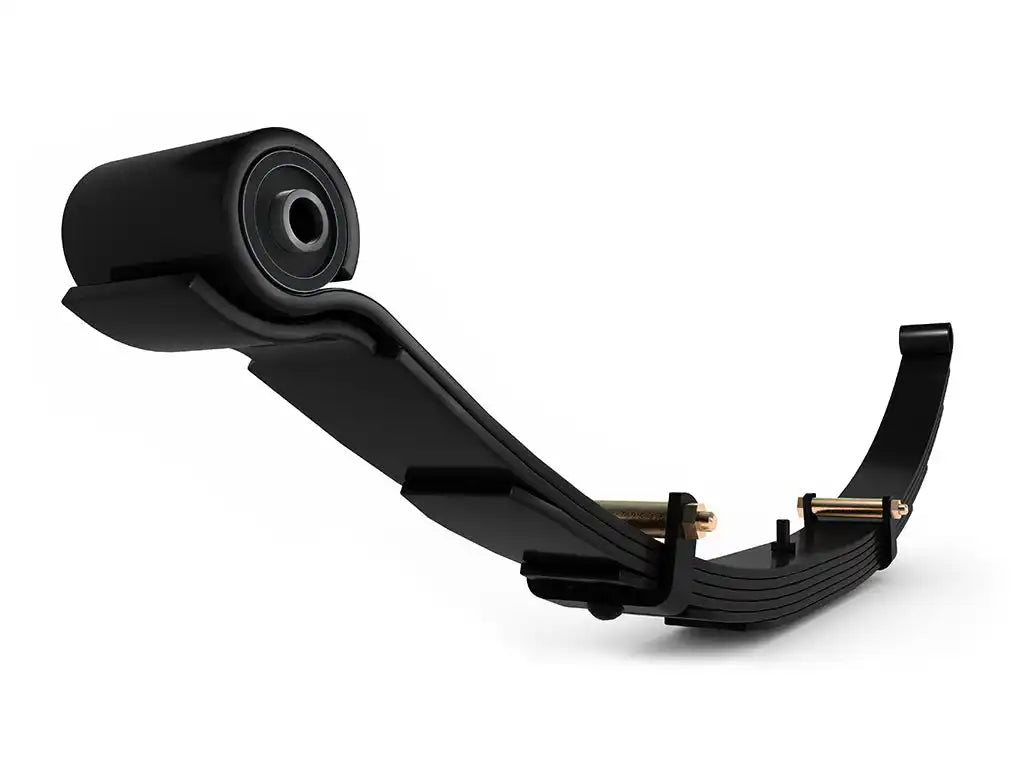

ICON Vehicle Dynamics 198520A ICON 2019-2023 Ford Ranger Multi Rate Leaf Pack Spring W/Add In Leaf
Vendor:
ICON Vehicle Dynamics
SKU:
FRDK_198520A
Availability:
17
In Stock
Product Type:
Leaf Spring Kit
- Regular price
- $632.69 CAD
- Regular price
-
$564.56 - Sale price
- $632.69 CAD
- Unit price
- per
Take 10% off select products at checkout.
Savings auto-applies on selected products at checkout. Exclusions apply.
Couldn't load pickup availability
Description
xProduct Description
The ICON multi-rate leaf spring is a modular, user-adjustable product that offers a major performance gain for almost every accessory & gear setup imaginable. To improve the front-to-rear balance and increase the compliance of the truck, the spring rate has been lowered significantly compared to the OE spring. While many Ranger owners will embrace this, there are those who have outfitted their trucks with a significant amount of weight in the form of a bed rack, roof top tent, spare tires, parts, or other additions. Taking this into consideration, the leaf pack was designed with an additional leaf (included with kit) that can be exchanged or added to the pack yielding additional spring rate that will handle more "outfitted" vehicles. Aditionally, features like greaseable tip inserts and leaf separators reduce friction and increase ride comfort, while heavy duty eyelet bushings provide excellent durability and noise free operation.

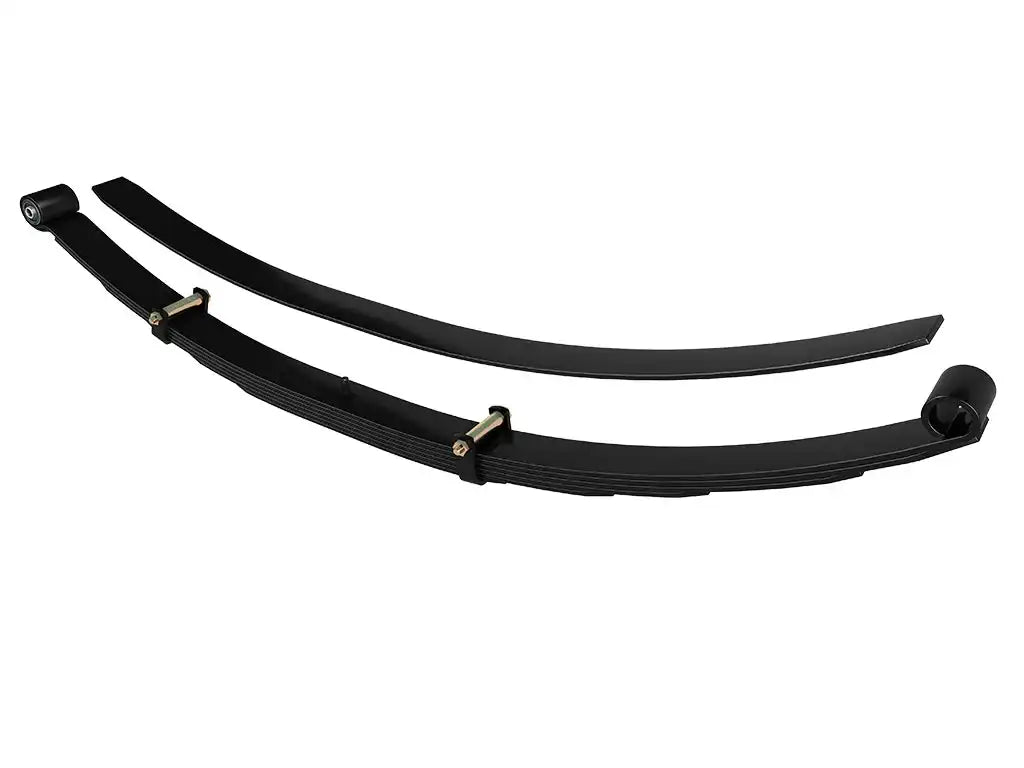

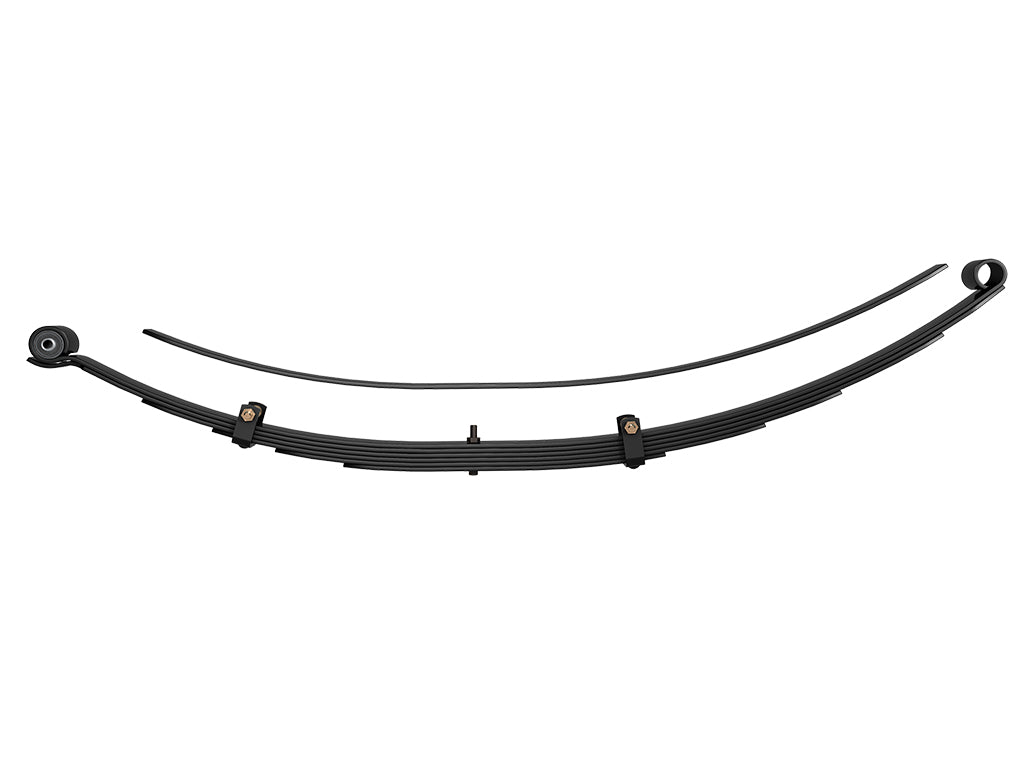

Leaf Spring; 1 To 3 Inch Lift; Single Spring With Add-A-Leaf Option
Product Restrictions
OVERSIZED ITEM - Additional Freight Charges May Apply for 3rd Party Shipping.
Features & Benefits
- 3 user-adjustable spring rates for unique vehicle configurations
- Significantly lighter spring rate (up to 35%) allows for smooth motion throughout the entire range of travel
- Improved front-to-rear vehicle balance and compliance
- Optimized wheel position for maximum tire clearance
- Galvanized leaf separators reduce friction and aid in corrosion resistance
- Greaseable leaf tip inserts reduce noise and increase ride comfort
- Direct bolt-in to OEM spring location makes for an easy install
- “ICON 1K” tested under rigorous off-road conditions to validate tune, performance, strength, and durability
Attributes
- Quantity: Single
- Includes Bushings: Yes
- Estimated Install Time (Hours): 2
Installation Instructions
Warranties
Additional Attributes:
- GTIN: 00840103411019
- Brand Name: ICON Vehicle Dynamics
- 3390: Performance
- Add-On Part: 91200H - 19-23 RANGER MULTI RATE LEAF SPRING HARDWARE KIT
- Bushings Included: Yes
- Leaf Quantity: 7
- Maximum Lift: 2
- Minimum Lift: .375
- Mounting Hardware Included: No
- Spring Color: Black
- Spring Material: Steel
- Suspension Grade Type: Performance
- U Bolts Included: No
Extended Information:
- Country of Origin: US
- Emissions : Emissions Compliance Exempt
- Life Cycle Status: Available To Order
Packing Information:
- Quantity of Each: 1.0
- Package UOM: EA
- Dimension: 48.0000 x 48.0000 x 10.0000 inches
- Weight: 75.0000 lb
