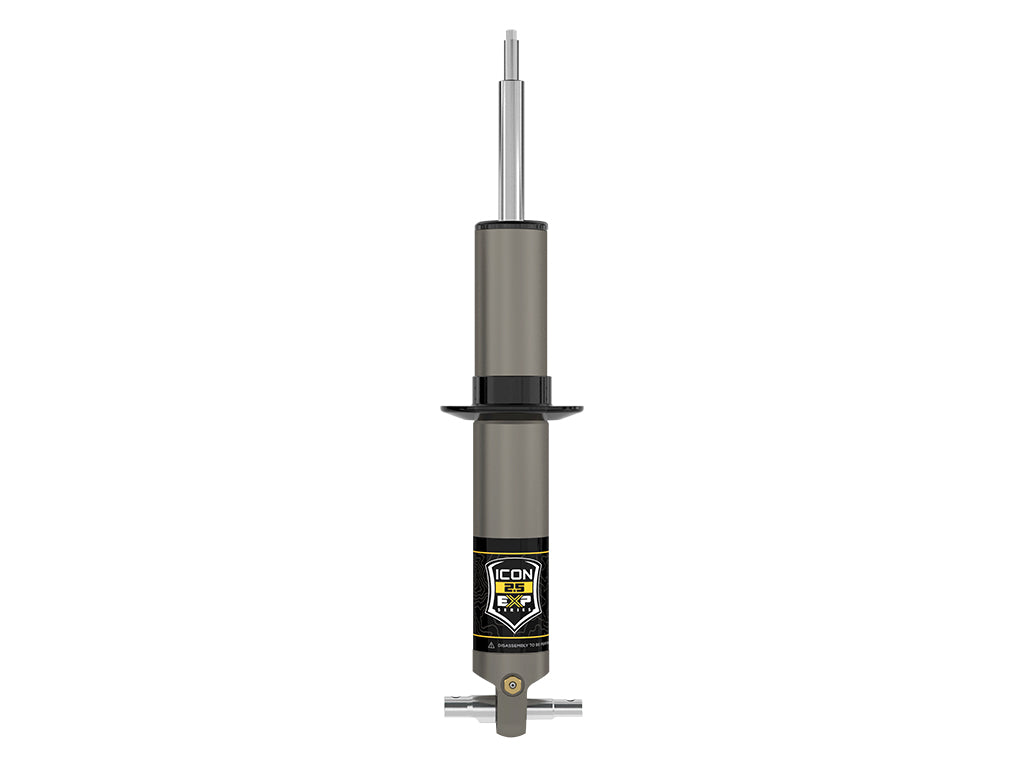

ICON Vehicle Dynamics FRDK_71607 ICON 2019-2023 GM 1500 Front 2.38-3.75" Lift 2.5 EXP Coilover
Vendor:
ICON Vehicle Dynamics
SKU:
FRDK_71607
Availability:
9
In Stock
Product Type:
Coilover Spring and Shock Assembly
- Regular price
- $681.96 CAD
- Regular price
-
$759.12 - Sale price
- $681.96 CAD
- Unit price
- per
Take 10% off select products at checkout.
Savings auto-applies on selected products at checkout. Exclusions apply.
Couldn't load pickup availability
* Images may differ from actual product.
Description
xEXP Series shocks utilize a one-piece digressive piston design and are custom tuned for the 2019-2023 GM 1500 in conjunction with their stock front coil springs to maximize damping performance and provide unsurpassed ride quality, on and off-road. The increased piston size and shock oil volume provided by the 2.5-inch diameter aluminum body also provide superior heat dissipation compared to the smaller, steel bodied OE shocks, resulting in longer-lasting shock performance over prolonged use at higher speeds and through rougher terrain. For those who would like to further tune their suspension, EXP shocks are fully re-valvable (and rebuildable) by any qualified shock technician, with parts available from ICON.
- Vehicle specific design for the 2019-2023 GM 1500 trucks
- Fully rebuildable and re-tunable
- Adjustable ride heights from 2.375-3.75” of front lift over stock with the use of snap ring
- Utilizes factory coils
- 2.5 Aluminum Series Shock with Internal Reservoir
- CNC machined 6061 aluminum components with a black anodize finish
- PTFE lined bearings for extended longevity and minimal deflection
- Inverted shaft up design featuring 7/8” diameter, induction hardened, chrome plated shaft
- One-piece impact extruded aluminum hard anodized cylinders offer excellent corrosion resistance and consistent finish
- 100% Bolt-on - no cutting or welding necessary for installation
Attributes:
- GTIN: 00840103421551
- Brand Name: ICON Vehicle Dynamics
- 2917: Yes
- 3390: Performance
- 408: Shoulder of Stem
- 409: Flat on Bar Pin
- 48: BAR PIN
- 49: Mounting Plate
- 50: No
- 51: Yes
- 52: 2.5
- Adjustable Damping: NO
- Coil Over Springs Included: No
- Damping Type: Oil
- Material: Aluminum
- Maximum Lift: 3.75
- Minimum Lift: 2.375
- Remote Reservoir: NO
- Service Parts: 252010 - 2.5 IFP REBUILD KIT
- Shaft Diameter: 0.875
Extended Information:
- Country of Origin: US
- Emissions : Emissions Compliance Exempt
- Life Cycle Status: Available To Order
Packing Information:
- Quantity of Each: 1.0
- Package UOM: EA
- Dimension: 32.0000 x 6.0000 x 5.0000 inches
- Weight: 13.0000 lb
