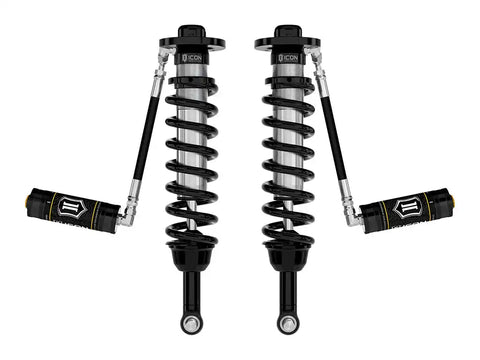

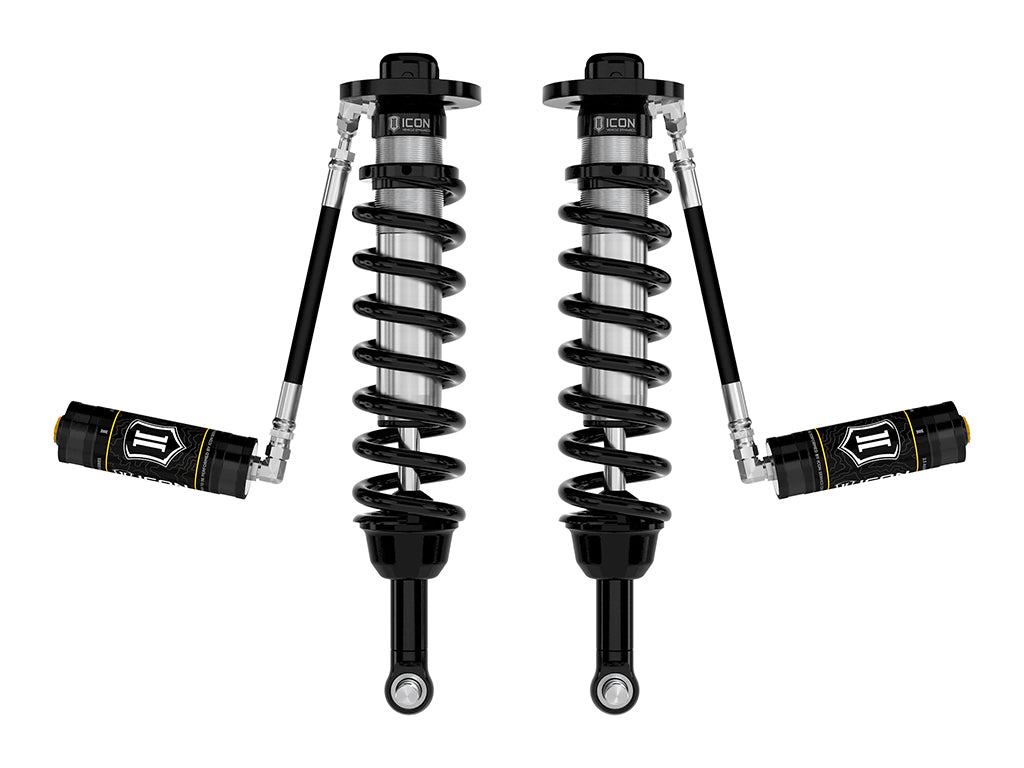

ICON Vehicle Dynamics 91824 ICON 2021-2023 Ford F-150 4WD/Tremor 3.5-4.5"/2.5-3" Lift Front 2.5 VS Remote Reservoir Coilovers Pair
ICON Vehicle Dynamics 91824 ICON 2021-2023 Ford F-150 4WD/Tremor 3.5-4.5"/2.5-3" Lift Front 2.5 VS Remote Reservoir Coilovers Pair
ICON Vehicle Dynamics 91824 ICON 2021-2023 Ford F-150 4WD/Tremor 3.5-4.5"/2.5-3" Lift Front 2.5 VS Remote Reservoir Coilovers Pair
ICON Vehicle Dynamics 91824 ICON 2021-2023 Ford F-150 4WD/Tremor 3.5-4.5"/2.5-3" Lift Front 2.5 VS Remote Reservoir Coilovers Pair
ICON Vehicle Dynamics 91824 ICON 2021-2023 Ford F-150 4WD/Tremor 3.5-4.5"/2.5-3" Lift Front 2.5 VS Remote Reservoir Coilovers Pair
ICON Vehicle Dynamics 91824 ICON 2021-2023 Ford F-150 4WD/Tremor 3.5-4.5"/2.5-3" Lift Front 2.5 VS Remote Reservoir Coilovers Pair

ICON Vehicle Dynamics 91824 ICON 2021-2023 Ford F-150 4WD/Tremor 3.5-4.5"/2.5-3" Lift Front 2.5 VS Remote Reservoir Coilovers Pair

Vendor: ICON Vehicle Dynamics
SKU: FRDK_91824
Availability: 7 In Stock
Product Type: Coilover Spring and Shock Assembly
$2,458.56 CAD
$2,772.74
$2,458.56 CAD
Found Better Price? Get Price Match!
Take 10% off select products at checkout.
Savings auto-applies on selected products at checkout. Exclusions apply.
  • TruckPoint
Description
Description
x

Product Description

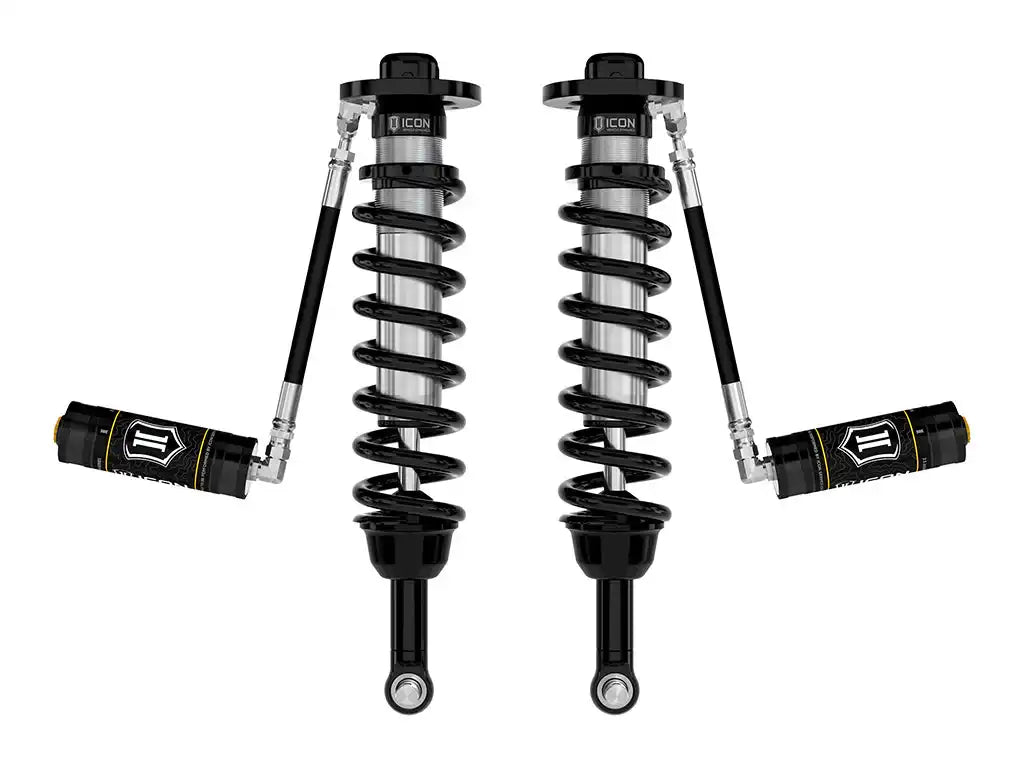

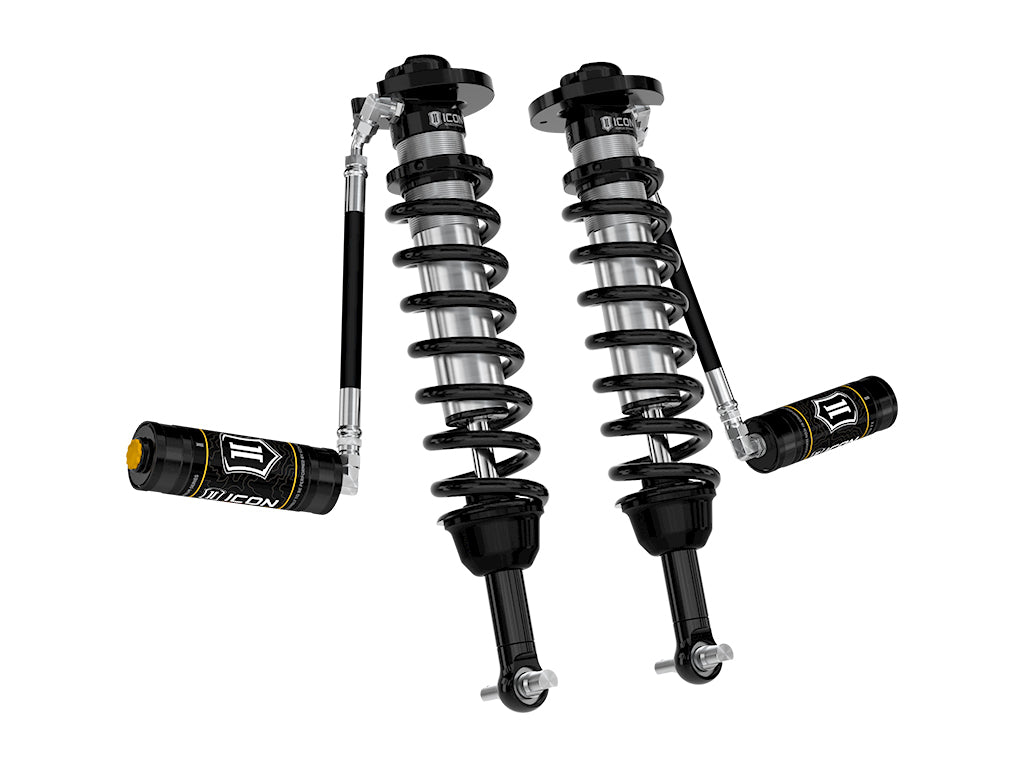

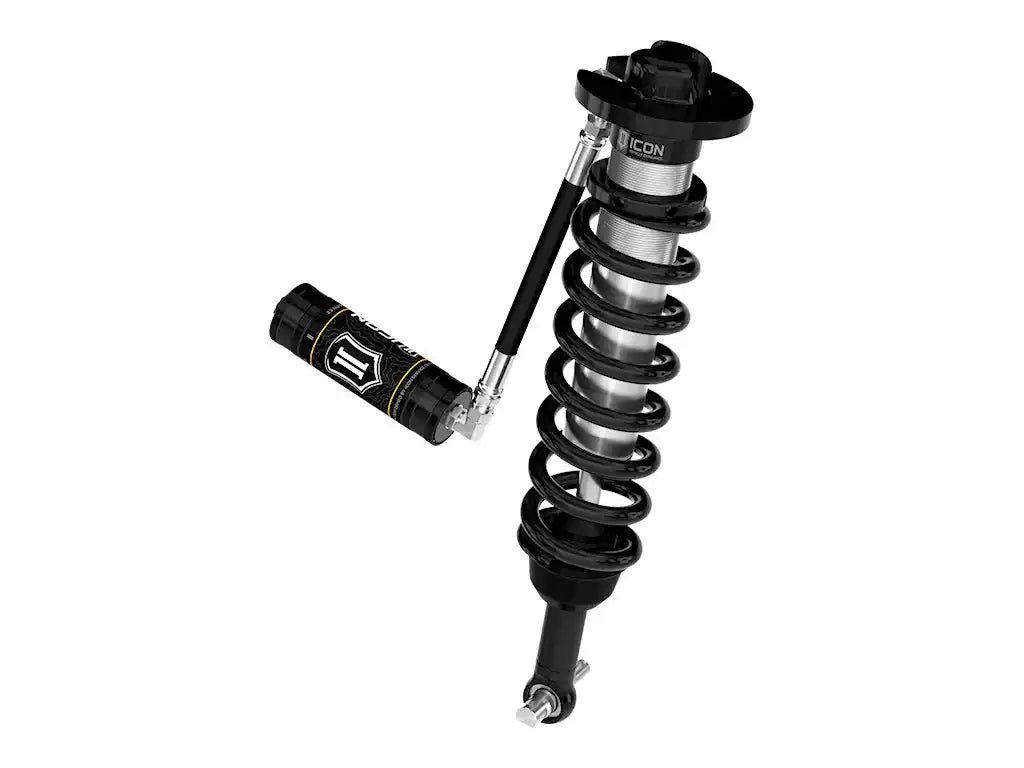

ICON Vehicle Dynamics V.S. Series 2.5” coilover shocks are an incredible upgrade for the front end of 2021-2023 Ford F-150 Tremor and F-150 4WD trucks equipped with ICON's Front Knuckle Kit. These coilovers feature an application specific length for F-150 Tremor or other F-150 sub-models equipped with ICON’s Front Knuckle Kit, allowing the most wheel travel possible as well as a taller lift height range than other ICON coilover options. ICON’s Vehicle-specific valving provides a sport tuned feel on and off-road while 2.5-3” of lift height adjustability on F-150 Tremor or 3.5-4.5” of lift height adjustability on other F-150 sub-models allow the use of larger, more aggressive wheel and tire combinations. The larger 2.5” shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. When paired with ICON rear 2.0 Aluminum Series or 2.5 Aluminum Series shocks, vehicle control will be balanced front to rear, resulting in the best overall driving experience for your F-150.

Coil Over Shock Absorber; 2.5 Series; Non Adjustable Valving; 2-1/2 To 3 Inch Lift; Pigtail Spring; Black/ Gray; With Remote Reservoir; Set Of 2

Features & Benefits

  • Application specific length for F-150 Tremor or other F-150 sub-models with ICON Front Knuckle Kit
  • High strength alloy CNC machined lower bar pin
  • 100% Bolt-on - no drilling, cutting, or welding necessary for installation
  • Increased wheel travel and ride quality over stock
  • Vehicle specific tuned for superior shock damping and control
  • Adjustable for 2.5-3" of lift height over stock on F-150 Tremor or 3.5-4.5" over stock on other F-150 sub-models with ICON Front Knuckle Kit
  • Remote reservoirs maintain cooler operating temperatures during extended off-road use
  • ICON engineered coil Springs
  • 6061 Aircraft grade aluminum CNC machined components
  • Corrosion resistant CAD plated shock body with 7/8" shaft
  • FK rod end bearings for extended longevity and minimal deflection

Attributes

  • Adjustable: No
  • Upper Mounting Type: Strut
  • Lower Mounting type: Cross Pin
  • Front/Rear Drop (IN): 2-1/2 To 3 Inch Lift
  • Extended Height (IN): OEM
  • Compressed Height (IN): OEM
  • Quantity: Set Of 2
  • Valving Type: Non Adjustable Valving
  • Shock Type: Gas Charged
  • Shock Body Color: Black/ Gray
  • Shock Body Material: Aluminum
  • Spring Style: Pigtail
  • Spring Color: Black
  • Spring Material: Steel
  • Includes Mounting Hardware: Yes

Additional Attributes:

  • GTIN: 00840103425665
  • Brand Name: ICON Vehicle Dynamics
  • 2917: yes
  • 3390: Performance
  • 408: Flat on Bar Pin
  • 409: Top of Upper Mount Plate
  • 48: BAR PIN
  • 49: Mounting Plate
  • 50: No
  • 51: yes
  • 52: 2.5
  • Add-On Part: 191009 - ICON LONG 2.5 COIL WRAP W/LOGO (14.5-15.5)
  • Adjustable Damping: NO
  • Coil Over Springs Included: Yes
  • Damping Type: Oil
  • Dust Shield: No
  • Material: Aluminum
  • Maximum Lift: 4.5
  • Minimum Lift: 3.5
  • OEM Wheels & Tires Fitment: Not compatible with all available OE wheel/tire combinations. Aftermarket wheels with lower offset/less backspace recommended.
  • Recommended Aftermarket Tires: 34" x 12.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
  • Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.00” Backspace / 6mm Offset
  • Remote Reservoir: Yes
  • Service Parts: 252001 - 2.5 FIXED SPANNER WRENCH
  • Shaft Diameter: 0.875
  • Spring Color: Black
  • Spring Material: Steel
  • Spring Rate Type: Linear

Extended Information:

  • Country of Origin: US
  • Emissions : Emissions Compliance Exempt
  • Life Cycle Status: Available To Order

Packing Information:

  • Quantity of Each: 1.0
  • Package UOM: EA
  • Dimension: 31.0000 x 13.0000 x 7.0000 inches
  • Weight: 62.0000 lb
