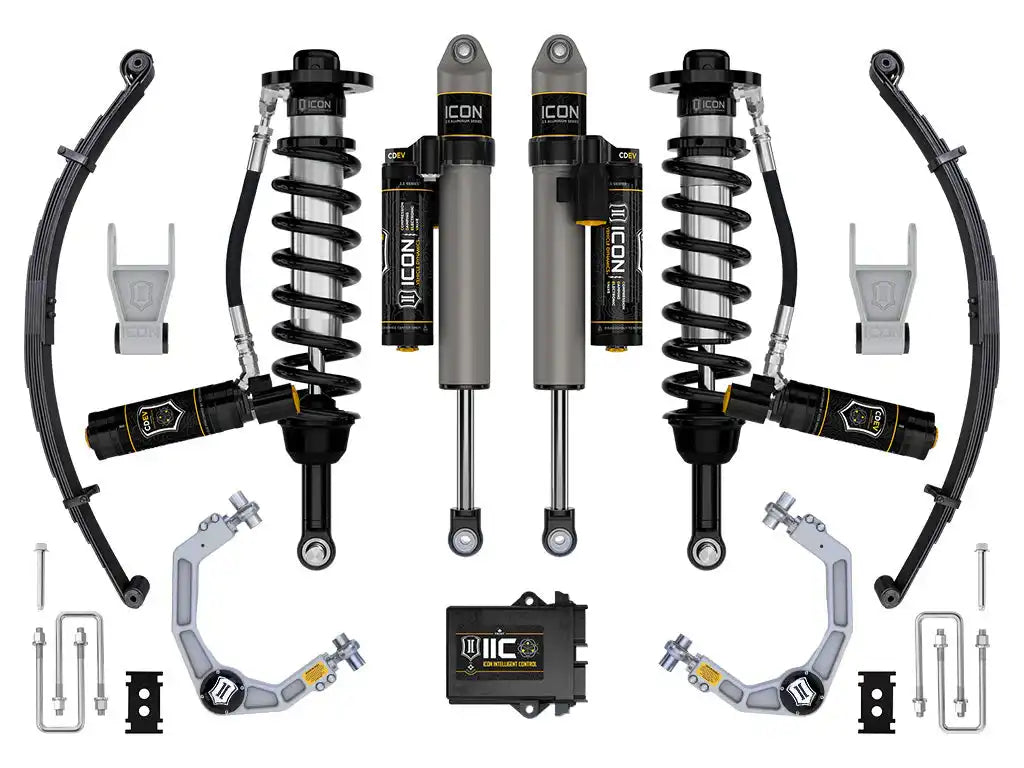

ICON Vehicle Dynamics FRDK_K93165L ICON 2021-2023 Ford F-150 Tremor 2.5-3" Lift Stage 5 Suspension System Billet UCA W/ Leaf Packs
Vendor:
ICON Vehicle Dynamics
SKU:
FRDK_K93165L
Availability:
Out of stock. Chat\Call to Order
Product Type:
Suspension Lift Kit
- Regular price
- $10,901.51 CAD
- Regular price
-
$11,562.56 - Sale price
- $10,901.51 CAD
- Unit price
- per
Take 10% off select products at checkout.
Savings auto-applies on selected products at checkout. Exclusions apply.
Couldn't load pickup availability
Description
x'+.50" rear lift height over stock w/ 400lb constant load
- Adjustable coilovers in F-150 Tremor specific length offer 2.5-3" of front lift height over stock
- High strength alloy CNC machined lower bar pin
- 2.5 Aluminum Series piggyback reservoir rear shocks with 7/8" hardened chromed steel shafts
- 6061 Aircraft grade aluminum CNC machined components
- 3 user-adjustable rear spring rates for unique vehicle setups
- Reduced rear axle wrap and improved ride quality compared to stock leaf springs
- Billet aluminum lowering shackles feature maintenance and noise free OE Ford bushings
- 100% Bolt-on system - no cutting or welding necessary for install
- 2.5 Series front coilovers with remote reservoirs for improved shock cooling
- Billet Upper Control Arms with Delta Joint Pro ball joints for added strength, durability, and alignment spec range with on-vehicle adjustability
- 20% increase in wheel travel and improved ride quality over stock with no change in towing capacity
- Vehicle specific tuned front and rear shocks for superior damping and vehicle control

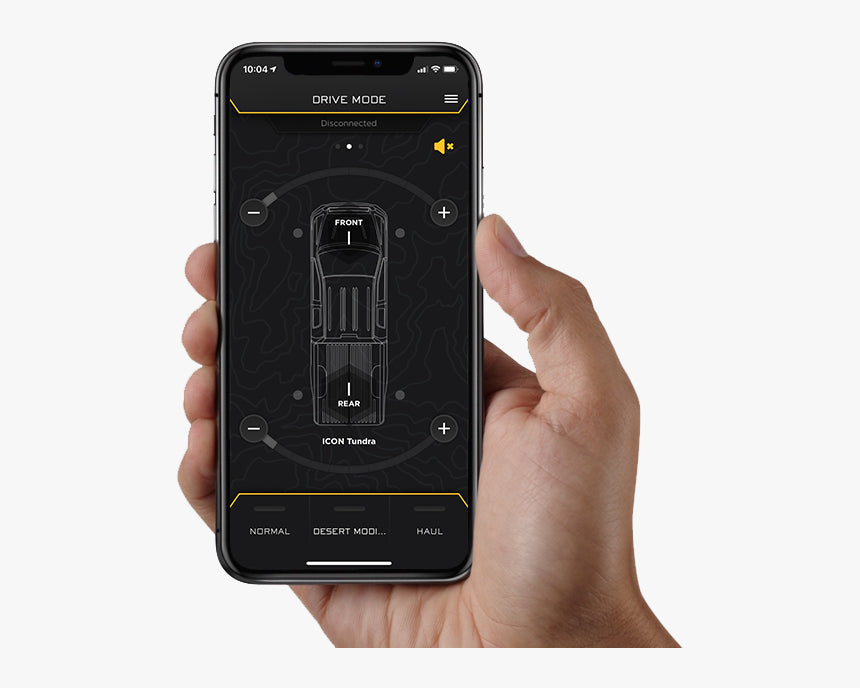

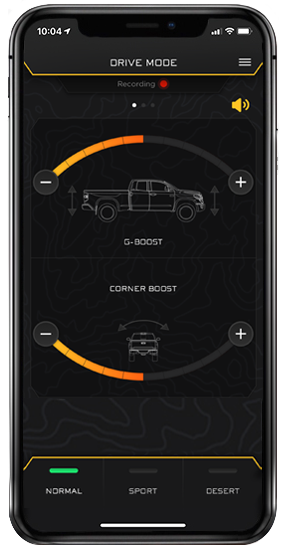

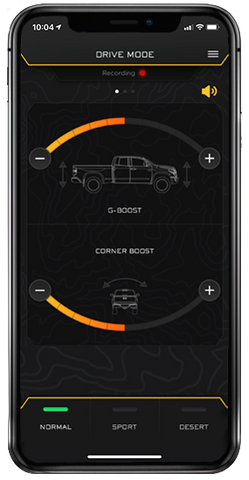

- ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)

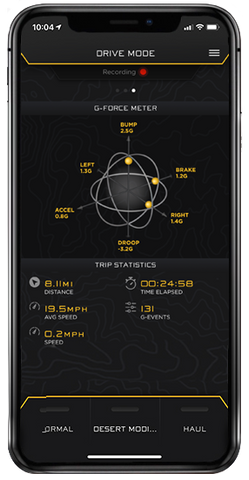

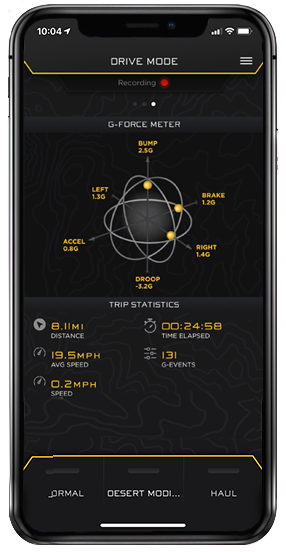

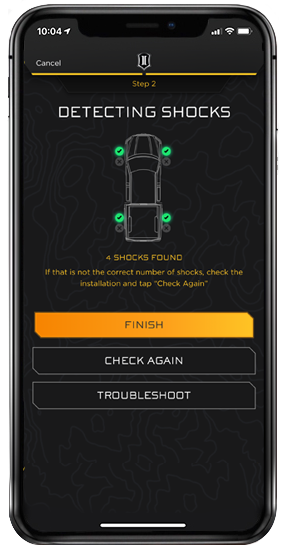

- ICON Intelligent Control (IIC) uses onboard sensors to monitor G-forces and movement of vehicle chassis along with user defined settings to actively make near instantaneous compression damping changes
- Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
- FK rod end bearings for extended longevity and minimal deflection
Attributes:
- GTIN: 00840103427492
- Brand Name: ICON Vehicle Dynamics
- 2064: Steel
- 2371: Yes
- 30: Yes
- 3096: Black
- 3097: Yes
- 3390: Performance
- 6111: 8
- 7325: 2
- Add-On Part: 191009 - ICON LONG 2.5 COIL WRAP W/LOGO (14.5-15.5)
- Adjustable Damping: Yes
- Damping Adjustment Type: Electronic
- Front Spring Rate Type: Linear
- Maximum Lift Front: 3
- Maximum Lift Rear: 2.5
- Minimum Lift Front: 2.5
- Minimum Lift Rear: .5
- OEM Wheels & Tires Fitment: Not compatible with all available OE wheel/tire combinations. Aftermarket wheels with lower offset/less backspace recommended.
- Rear Spring Rate Type: Variable
- Recommended Aftermarket Tires: 34" x 12.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
- Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5” Backspace / 6mm Offset
Extended Information:
- Country of Origin: US
- Emissions : Emissions Compliance Exempt
- Life Cycle Status: Available To Order
Packing Information:
- Quantity of Each: 1.0
- Package UOM: EA
- Dimension: 48.0000 x 48.0000 x 10.0000 inches
- Weight: 122.0000 lb
