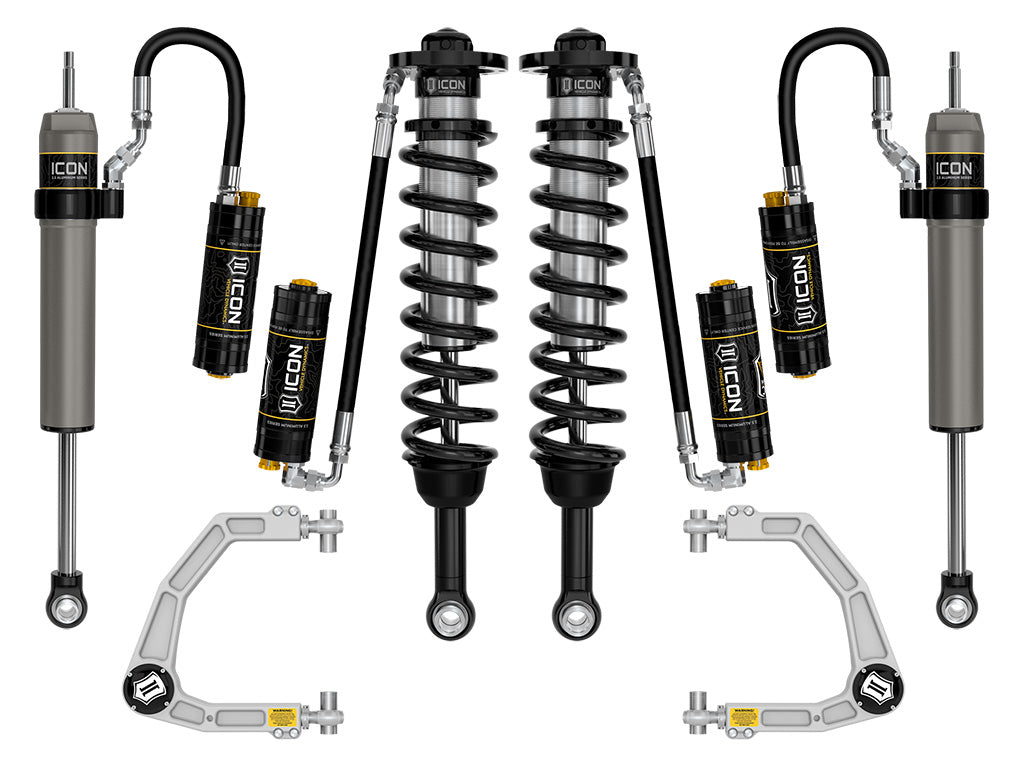

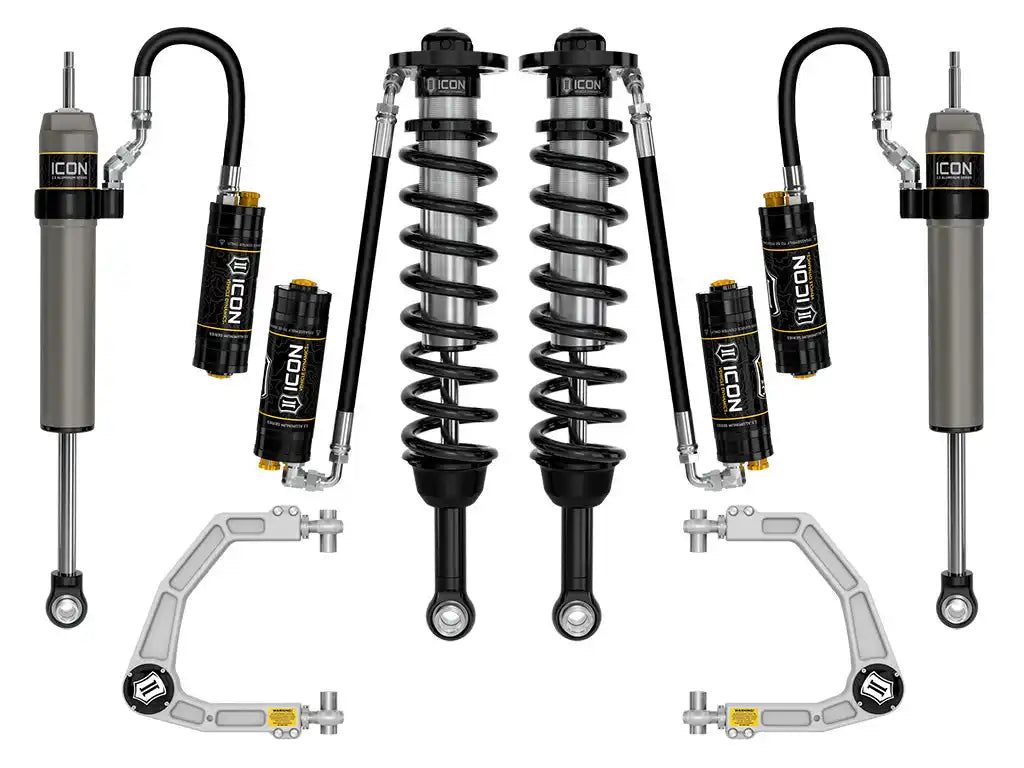

ICON Vehicle Dynamics FRDK_K53263 ICON 2022-2023 Toyota Land Cruiser 300 Series 1-3" Lift Stage 3 Suspension System Billet
ICON Vehicle Dynamics FRDK_K53263 ICON 2022-2023 Toyota Land Cruiser 300 Series 1-3" Lift Stage 3 Suspension System Billet
ICON Vehicle Dynamics FRDK_K53263 ICON 2022-2023 Toyota Land Cruiser 300 Series 1-3" Lift Stage 3 Suspension System Billet
57827CP_LC300 REAR_3QTR_web_large.jpg

ICON Vehicle Dynamics FRDK_K53263 ICON 2022-2023 Toyota Land Cruiser 300 Series 1-3" Lift Stage 3 Suspension System Billet

Vendor: ICON Vehicle Dynamics
SKU: FRDK_K53263
Availability: Out of stock. Chat\Call to Order
Product Type: Suspension Lift Kit
$6,811.93 CAD
$7,135.32
$6,811.93 CAD
Found Better Price? Get Price Match!
Take 10% off select products at checkout.
Savings auto-applies on selected products at checkout. Exclusions apply.
  • TruckPoint
Description
Description
x

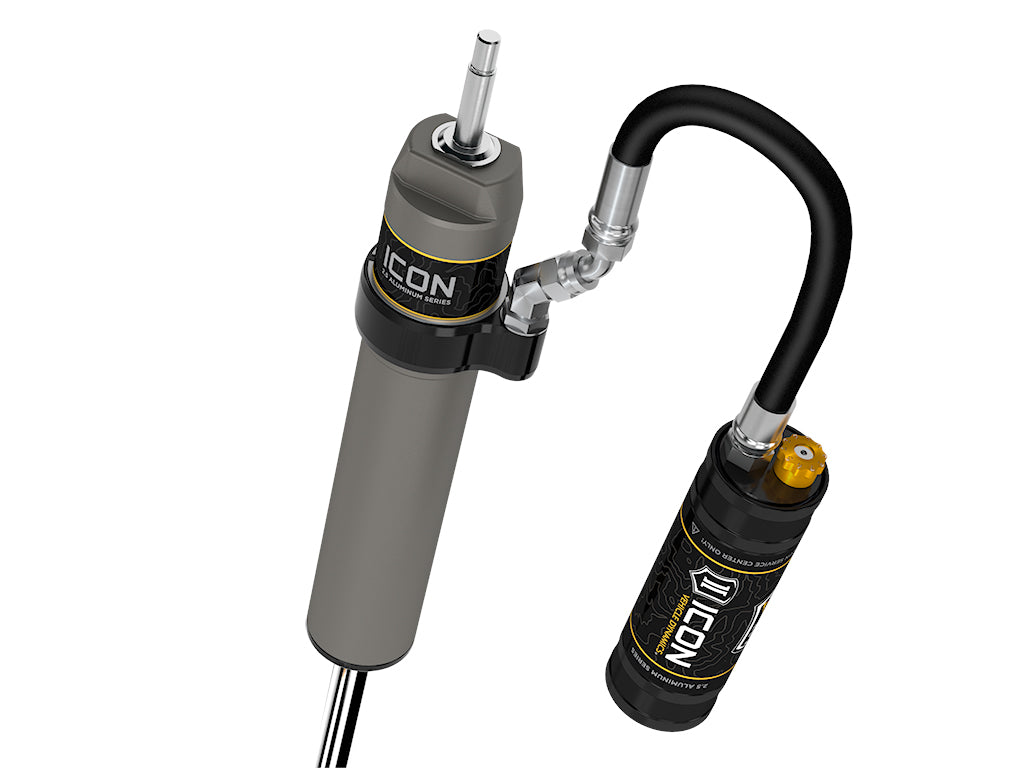

Rounding out the Stage 3 suspension system are 2.5 Aluminum Series rear remote reservoir shocks specially tailored for the 2022-2023 Land Cruiser 300 Series. The 2.5 Aluminum Series shocks’ larger diameter offers outstanding performance off-road and a smooth ride on the street. Remote reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. They also feature a unique internal Bump Zone that when used creates an additional 20% of damping force to help better control hard bottom outs. Also equipped with CDC Valves, these offer 10 settings of compression damping adjustment from soft to hard. Their pairing with the ICON V.S. 2.5 Series CDCV front coilovers results in balanced vehicle control from front to rear and an excellent overall driving experience for your Land Cruiser.
  • Bolt-on design means no cutting or welding necessary for install
  • 2.5 Aluminum Series rear shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
  • Remote reservoirs improve heat dissipation to reduce shock fade during prolonged use
  • All shock absorbers equipped with CDC Valves for 10 settings of compression damping adjustment, from soft to hard
  • Shocks are fully rebuildable and revalveable
  • Increased wheel travel and ride quality over stock
  • Improved vehicle dynamics and decreased body roll

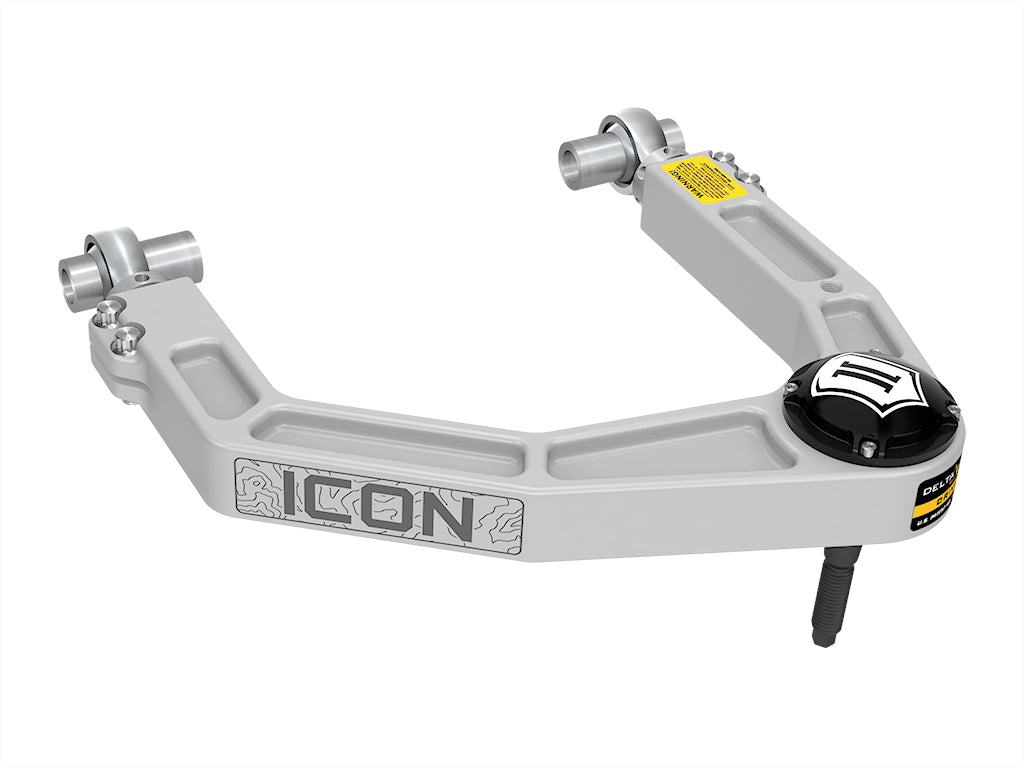

  • Billet aluminum UCAs for added strength, durability, and on-vehicle caster/camber adjustment for optimum drivability
  • UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
  • Height adjustable coilovers provide 1-3" of front lift height

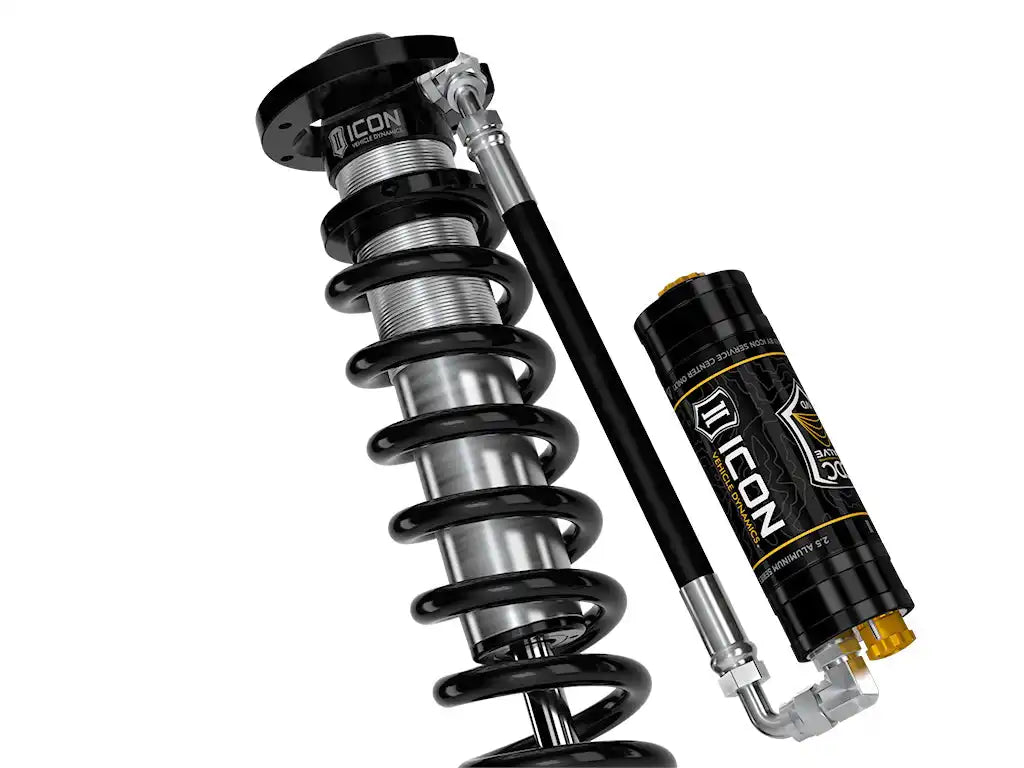

  • ICON engineered front coilover springs
  • Vehicle-specific tuned front and rear shocks provide superior damping and control
  • Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts

Attributes:

  • GTIN: 00840103423609
  • Brand Name: ICON Vehicle Dynamics
  • 2064: Steel
  • 2371: Yes
  • 30: Yes
  • 3096: Black
  • 3097: Yes
  • 3390: Performance
  • 7325: 2
  • Add-On Part: 191009 - ICON LONG 2.5 COIL WRAP W/LOGO (14.5-15.5)
  • Dual Rate Coil Springs: Yes
  • Front Spring Rate Type: Linear
  • Maximum Lift Front: 3
  • Minimum Lift Front: 1
  • OEM Wheels & Tires Fitment: Yes
  • Recommended Aftermarket Tires: 35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
  • Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.75” Backspace / 25mm Offset

Extended Information:

  • Country of Origin: US
  • Emissions : Emissions Compliance Exempt
  • Life Cycle Status: Available To Order

Packing Information:

  • Quantity of Each: 1.0
  • Package UOM: EA
  • Dimension: 31.0000 x 13.0000 x 7.0000 inches
  • Weight: 103.0000 lb
