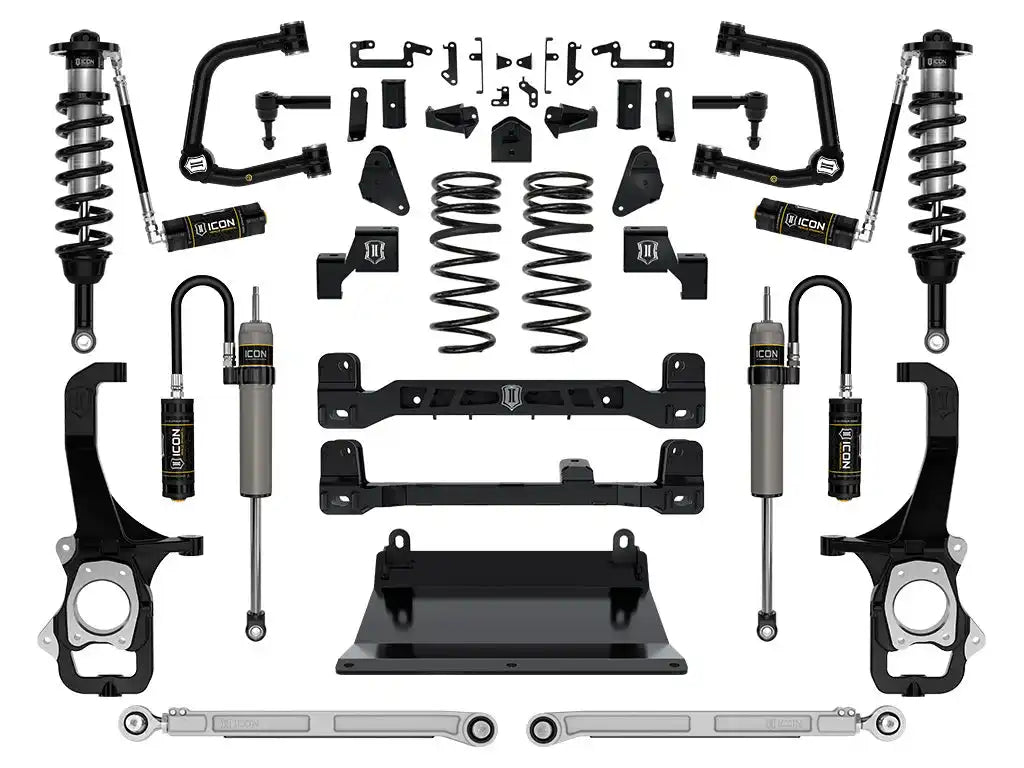

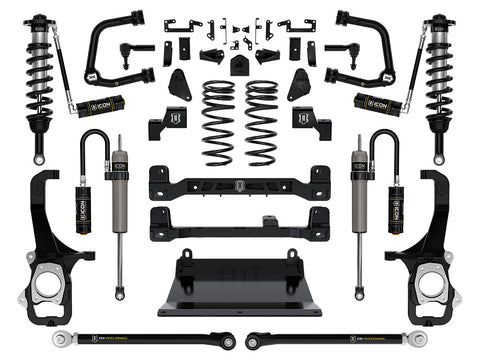

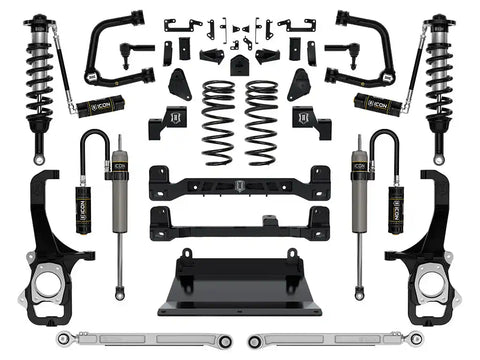

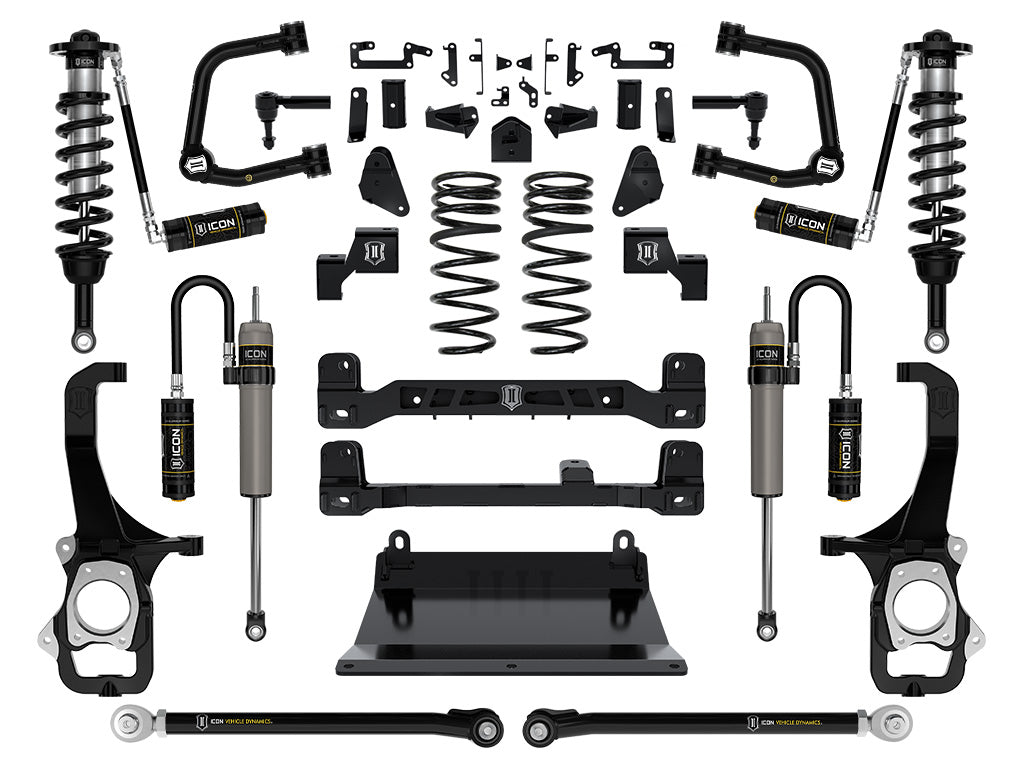

ICON Vehicle Dynamics FRDK_K53275T ICON 2022-2023 Toyota Tundra 6" Lift Stage 5 Suspension System With Tubular Upper Control Arms
ICON Vehicle Dynamics FRDK_K53275T ICON 2022-2023 Toyota Tundra 6" Lift Stage 5 Suspension System With Tubular Upper Control Arms
ICON Vehicle Dynamics FRDK_K53275T ICON 2022-2023 Toyota Tundra 6" Lift Stage 5 Suspension System With Tubular Upper Control Arms

ICON Vehicle Dynamics FRDK_K53275T ICON 2022-2023 Toyota Tundra 6" Lift Stage 5 Suspension System With Tubular Upper Control Arms

Vendor: ICON Vehicle Dynamics
SKU: FRDK_K53275T
Availability: Out of stock. Chat\Call to Order
Product Type: Suspension Lift Kit
$11,206.54 CAD
$11,596.43
$11,206.54 CAD
Found Better Price? Get Price Match!
Take 10% off select products at checkout.
Savings auto-applies on selected products at checkout. Exclusions apply.
  • TruckPoint
Description
Description
x
  • 2.5 Series front coilovers and rear shocks with remote reservoirs for superior damping and vehicle control along with improved shock cooling
  • Hight clearance front crossmembers and front skid plate, CNC Laser Cut and brake-formed from 1/4-inch steel plate
  • Included sway bar drop brackets reduce bind in OE sway bar links
  • Front and rear heavy-duty bump stop brackets
  • High angle outer tie-roads feature durable, metal on metal greaseable tie rod ends
  • ICON engineered custom triple rate rear coil springs provide progressive spring rates for a comfortable ride on-road as well as stability and control during aggressive off-road driving
  • High clearance billet rear lower links with replaceable nylon rock sliders improve rear end articulation and allow on-vehicle adjustment for different ride heights and pinion angles using ICON's double adjuster system
  • Improved rear sway bar links and mounts, and rear track bar bracket to reduce bind in the rear suspension
  • System allows for up to 40% increase in front wheel travel over stock without overstressing OE components
  • Optimized design to fit 37" tires with full articulation (larger tires may fit but fender trimming and modifications will be required)
  • Maintains factory track width
  • Optimized suspension geometry nearly eliminates the bump steer found in stock Tundras
  • Adjustable front ride heights from 5-6” of front lift over stock (up to 6" of lift with only 4" of crossmember drop)
  • Tubular UCAs with Delta Joint Pro for added strength, durability, and caster correction for improved drivability
  • Patented Delta Joint Pro (U.S. Pat. 10,731,700) provides improved durability and serviceability with 90 degrees of total articulation
  • Single piece high-strength ductile iron steering knuckles with built-in 4" drop

Attributes:

  • GTIN: 00840103425399
  • Brand Name: ICON Vehicle Dynamics
  • 2064: Steel
  • 2371: No
  • 30: Yes
  • 3096: Black
  • 3097: Yes
  • 3390: Performance
  • 7325: 2
  • 7326: 2
  • 9900: No
  • Add-On Part: 191013 - NIPPLE GREASING ADAPTER KIT
  • Adjustable Damping: No
  • Front Spring Rate Type: Linear
  • Maximum Lift Front: 6
  • Maximum Lift Rear: 3.5
  • Minimum Lift Front: 5
  • Minimum Lift Rear: 3
  • OEM Wheels & Tires Fitment: No
  • Rear Spring Rate Type: Progressive Triple Rate
  • Recommended Aftermarket Tires: 37" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
  • Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.625” Backspace / 16mm Offset

Extended Information:

  • Country of Origin: US
  • Emissions : Emissions Compliance Exempt
  • Life Cycle Status: Available To Order

Packing Information:

  • Quantity of Each: 1.0
  • Package UOM: EA
  • Dimension: 25.0000 x 24.0000 x 9.0000 inches
  • Weight: 394.0000 lb
