ICON Vehicle Dynamics K53301T ICON 2024 Toyota Tacoma 1.25-3" Lift Stage 11 Suspension System Tubular UCA

Product Description

ICON tubular upper control arm kit is designed to improve the overall performance of the new 2024 Toyota Tacoma with corrected front-end geometry, built in additional caster, and improved suspension component clearance. Replacing the OE ball joint with the all-new, serviceable, and rebuildable ICON Delta Joint PRO allows for full bump and droop travel of the front suspension while eliminating bind. The rear triple-rate coil design provides a softer droop and ride rates with a firmer overload rate that combine to deliver on-road comfort with excellent bottoming resistance and superior off-road performance. ICON tubular rear upper and lower links employ dual-durometer greaseless bushings at one end, and massive FK rod ends at the other to provide the best combination of free articulation while isolating and damping road noise and vibrations. The ICON Billet Adjustable Rear Track Bar helps re-center the rear axle and double adjuster rod end threads allow easy “on-vehicle” fine adjustment of track bar length without requiring removal or disassembly of the track bar. ICON 2.5 Aluminum Series CDCV remote reservoir rear shocks with integrated bump zones provide improved shock damping ability and utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics 2024 Toyota Tacoma Stage 11 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.

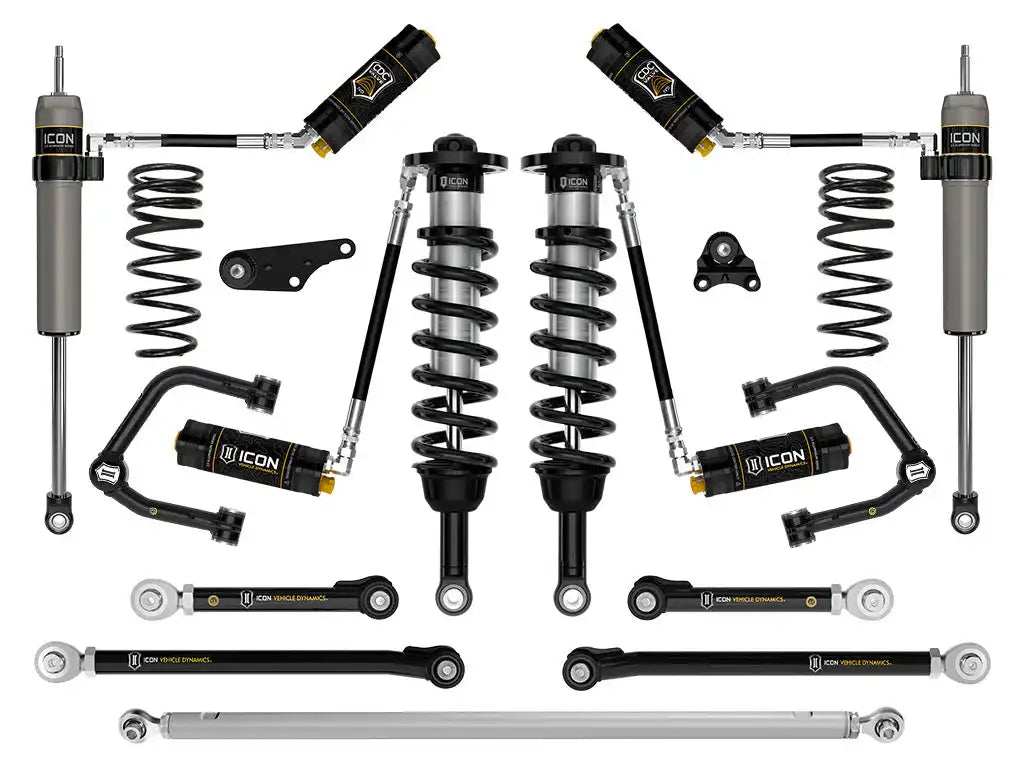

Lift Kit Suspension; Stage 11; 1-1/4 To 3 Inch Front Lift; 1/2 Inch Rear Lift; With Front Coil Over Remote Reservoir Adjustable Valving Shock Absorbers And Rear Remote Reservoir Adjustable Valving Shock Absorbers In Kit; Black/ Silver Components; With Coil Over Mounts/ Rear Coil Springs/ Tubular Upper Control Arms/ Rear Tubular Upper And Lower Control Arms/ Rear Track Bar/ Differential Drop Brackets/ Installation Hardware

Features & Benefits

• 2.5 Series front coilovers with remote reservoirs for superior damping and vehicle control along with improved shock cooling
• Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
• ICON engineered front and rear coil springs
• FK Rod End bearings for extended longevity and minimal deflection
• Tubular rear upper and lower links improve rear end articulation and allow for pinion angle adjustment
• On-vehicle adjustable billet aluminum rear track bar properly centers rear axle while also improve rear suspension performance
• 2.5 Aluminum Series remote reservoir rear shocks with 7/8" shafts provide increased performance and balanced tune with coilovers
• Increased wheel travel and improved ride quality over stock
• Front differential drop provides better maximum operating angle for CV joints and maximizes available wheel travel on 4WD models
• Adjustable coilovers provide 1.25-3" front lift height over stock
• Tubular UCAs for added strength, durability, and alignment correction for better drivability
• UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
• All shock absorbers equipped with CDC Valves for 10 settings of compression damping adjustment, from soft to hard
• Triple rate rear coil springs improve performance and ride quality while providing .5" of rear lift
• 6061 aircraft grade aluminum CNC machined components

Attributes

• Front Lift Amount (IN): 1-1/4 To 3 Inch
• Rear Lift Amount (IN): 1/2 Inch
• Maximum Tire Size: 33 x 11.50
• Front Lift Type: Coil Spring
• Rear Lift Type: Coil Spring
• Shock Type: Nitro Gas Charged
• Wheel Backspacing (IN): 25
• Wheel Offset (MM): 17
• Shocks: With Front Coil Over Remote Reservoir Shock Absorbers And Rear Remote Reservoir Shock Absorbers
• Color: Black/ Silver Components

Additional Attributes:

• GTIN: 00840103429250
• Brand Name: ICON Vehicle Dynamics
• 2064: Steel
• 2371: Yes
• 30: Yes
• 3096: Black
• 3097: Yes
• 3390: Performance
• 7325: 2
• 7326: 2
• Add-On Part: 191013 - NIPPLE GREASING ADAPTER KIT
• Adjustable Damping: Yes
• Coil Quantity Front: 2
• Damping Adjustment Type: Manual
• Front Spring Rate Type: Linear
• Maximum Lift Front: 3
• Maximum Lift Rear: .5
• Minimum Lift Front: 1.25
• OEM Wheels & Tires Fitment: Yes
• Rear Spring Rate Type: Progressive Triple Rate
• Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required)
• Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.75” Backspace / 25mm Offset

Extended Information:

• Country of Origin: United States
• Emissions : Emissions Compliance Exempt
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 27.0000 x 12.0000 x 8.0000 inches
• Weight: 222.0000 lb
