ICON Vehicle Dynamics K53292T ICON 2024 Toyota Tacoma 1.25-3" Lift Stage 2 Suspension System Tubular UCA
Vendor:
ICON Vehicle Dynamics
SKU:
FRDK_K53292T
Availability:
20
In Stock
Product Type:
Suspension Lift Kit
- Regular price
- $3,962.33 CAD
- Regular price
-
$4,474.22 - Sale price
- $3,962.33 CAD
- Unit price
- per
Take 10% off select products at checkout.
Savings auto-applies on selected products at checkout. Exclusions apply.
Couldn't load pickup availability
* Images may differ from actual product.
Description
xProduct Description

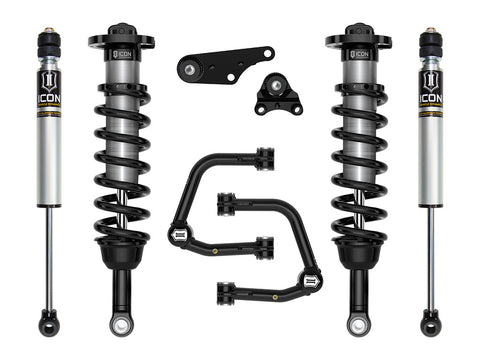

ICON Vehicle Dynamics 2024 Toyota Tacoma suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on- and off-road. This Stage 2 system features vehicle-specific tuned 2.5 Series coilover shocks featuring internal reservoirs for exceptional cooling properties and ICON-engineered coil springs for superior vehicle “feel” through the range of travel. These coilovers are height adjustable from 1-1/4 Inch to 3 Inch of front lift height over stock, allowing the use of larger, more aggressive wheel and tire combinations. The combination of front differential drop brackets and ICON’s specifically designed coilover lengths maximizes the available front suspension travel and prevent CV bind. Additionally, polyurethane differential mounting bushings replace the soft OE bushings to help limit differential movement under load. The provided ICON tubular upper control arm kit is designed to improve the overall performance of the new 2024 Toyota Tacoma with corrected front-end geometry, built in additional caster, and improved suspension component clearance. Additionally, replacing the OE ball joint with the all-new, serviceable, and rebuildable ICON Delta Joint PRO allows for full bump and droop travel of the front suspension while eliminating bind. ICON 2.0 Aluminum Series internal reservoir rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics 2024 Toyota Tacoma Stage 2 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.
Leveling Kit Suspension; Stage 2; 1-1/4 To 3 Inch Lift; Coil Over Shock Absorber; With Coil Over Mounts/ Springs/ Rear Shock Absorbers/ Tubular Upper Control Arms/ Differential Drop Brackets/ Installation Hardware
Features & Benefits
- Vehicle Specific Tuned Front And Rear Shocks For Superior Shock Damping And Control
- Increased Wheel Travel And Improved Ride Quality Over Stock
- Front Differential Drop Provides Better Maximum Operating Angle For CV Joints And Maximizes Available Wheel Travel On 4WD Models
- Adjustable Coilovers Provide 1-1/4 To 3 Inch Front Lift Height Over Stock
- 6061 Aircraft Grade Aluminum CNC Machined Components
- Corrosion Resistant CAD Plated Coilover Shock Bodies With 7/8 Inch Shafts
- ICON Engineered Coil Springs
- FK Rod End Bearings For Extended Longevity And Minimal Deflection
- 2.0 Aluminum Series Internal Reservoir Rear Shocks With 5/8 Inch Shafts
- Limited 1 Year Warranty
Attributes
- Lift Height: 1-1/4 To 3 Inch Lift
- Type: Coil Over Shock Absorber
- Maximum Tire Size: 33 x 11.50
- Includes Shock/Struts: Yes
- Minimum Wheel Diameter: 17
- Wheel Backspacing (IN): 5.75
- Wheel Offset (MM): 25
- Color: Black Components/ Silver Shocks
- Material: Aluminum
- Estimated Install Time (Hours): 2
Additional Attributes:
- GTIN: 00840103428932
- Brand Name: ICON Vehicle Dynamics
- 2064: Steel
- 2371: Yes
- 30: Yes
- 3096: Black
- 3097: Yes
- 3390: Performance
- 7325: 2
- Add-On Part: 191013 - NIPPLE GREASING ADAPTER KIT
- Adjustable Damping: No
- Coil Quantity Front: 2
- Front Spring Rate Type: Linear
- Maximum Lift Front: 3
- Minimum Lift Front: 1.25
- OEM Wheels & Tires Fitment: Yes
- Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required)
- Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.75” Backspace / 25mm Offset
Extended Information:
- Country of Origin: US
- Emissions : Emissions Compliance Exempt
- Life Cycle Status: Available To Order
Packing Information:
- Quantity of Each: 1.0
- Package UOM: EA
- Dimension: 31.0000 x 13.0000 x 7.0000 inches
- Weight: 89.0000 lb
