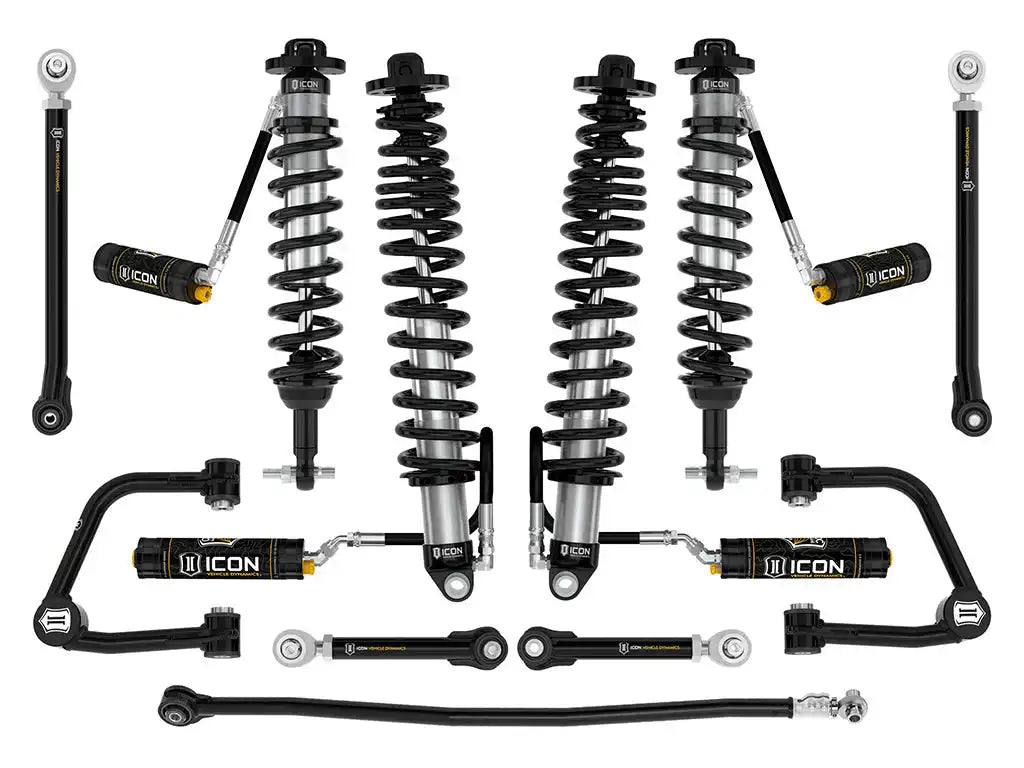

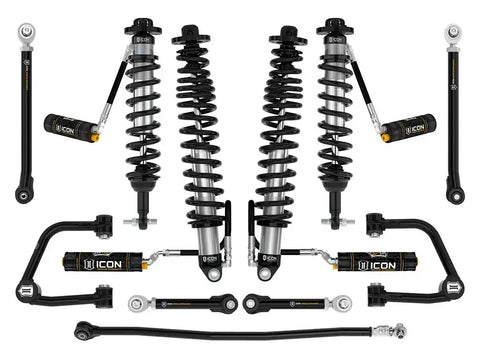

ICON Vehicle Dynamics FRDK_K40007T ICON 21-23 Bronco Non-Sasquatch 3-4" Lift Stage 7 Suspension System Tubular UCA
ICON Vehicle Dynamics FRDK_K40007T ICON 21-23 Bronco Non-Sasquatch 3-4" Lift Stage 7 Suspension System Tubular UCA
ICON Vehicle Dynamics FRDK_K40007T ICON 21-23 Bronco Non-Sasquatch 3-4" Lift Stage 7 Suspension System Tubular UCA

ICON Vehicle Dynamics FRDK_K40007T ICON 21-23 Bronco Non-Sasquatch 3-4" Lift Stage 7 Suspension System Tubular UCA

Vendor: ICON Vehicle Dynamics
SKU: FRDK_K40007T
Availability: Out of stock. Chat\Call to Order
Product Type: Suspension Lift Kit
$7,431.65 CAD
$10,140.99
$7,431.65 CAD
Found Better Price? Get Price Match!
Take 10% off select products at checkout.
Savings auto-applies on selected products at checkout. Exclusions apply.
  • TruckPoint
Description
Description
x
This suspension system is designed to provide up to 11.5" of front suspension travel and 14" of rear suspension travel when used with 35X12.50 tires. It may be safely used with 37" and larger tires if using the optional up-travel limiters (sold separately). The factory crash bars on non-Sasquatch equipped Broncos must be removed to clear 35" and larger tires, but ICON now offers a replacement High Clearance Crash Bar set for those who would like to run larger tires and retain the functionality of the crash bars.
  • Improved suspension performance and ride quality over stock
  • High strength alloy CNC machined lower bar pins
  • Tubular UCAs for added strength, durability, and alignment correction for better drivability
  • UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation.
  • Tubular rear lower links improve rear end articulation and allow for pinion angle adjustment
  • Adjustable tubular rear upper links improve fuel tank clearance under max articulation and help further free up suspension bind
  • Adjustable rear track bar helps to free up bind during rear suspension travel and articulation and offers on-vehicle rear end alignment
  • 100% Bolt-on system - no drilling, cutting, or welding necessary for install
  • Up to 11.5" front / 14” rear wheel travel with 35” tire fitment
  • Vehicle specific tuned remote reservoir front and rear coilover shocks for superior damping and vehicle control, even under hard use
  • Coilovers equipped with CDC Valves for 10 settings of compression damping adjustment, from soft to hard
  • Adjustable coilovers yield up to 3-4" of front lift height and 2-3” of rear lift height over stock 4-door Broncos without the Sasquatch package
  • PTFE lined spherical bearings and application specific mounting hardware
  • 6061 Aircraft grade aluminum CNC machined components
  • Corrosion resistant CAD plated coilover shock bodies with 7/8” diameter shafts
  • ICON engineered coil springs featuring a unique triple rate rear coil design

Attributes:

  • GTIN: 00840103416182
  • Brand Name: ICON Vehicle Dynamics
  • 2064: Steel
  • 2371: Yes
  • 30: Yes
  • 3096: Black
  • 3097: Yes
  • 3390: Performance
  • 5782: Square
  • 5783: Square
  • 7325: 2
  • 7326: 2
  • Add-On Part: 191009 - ICON LONG 2.5 COIL WRAP W/LOGO (14.5-15.5)
  • Front Spring Rate Type: Linear
  • Maximum Lift Front: 4
  • Maximum Lift Rear: 3
  • Minimum Lift Front: 3
  • Minimum Lift Rear: 2
  • OEM Wheels & Tires Fitment: Yes
  • Rear Spring Rate Type: Progressive Triple Rate
  • Recommended Aftermarket Tires: 35" x 12.50" (Recommend high clearance crash bars part number 42000, 37" tires require coilover bump stop spacers along with trimming and modifications)
  • Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.75” Backspace / 25mm Offset

Extended Information:

  • Country of Origin: US
  • Emissions : 4
  • Life Cycle Status: Available To Order

Packing Information:

  • Quantity of Each: 1.0
  • Package UOM: EA
  • Dimension: 38.0000 x 13.0000 x 8.0000 inches
  • Weight: 175.0000 lb
