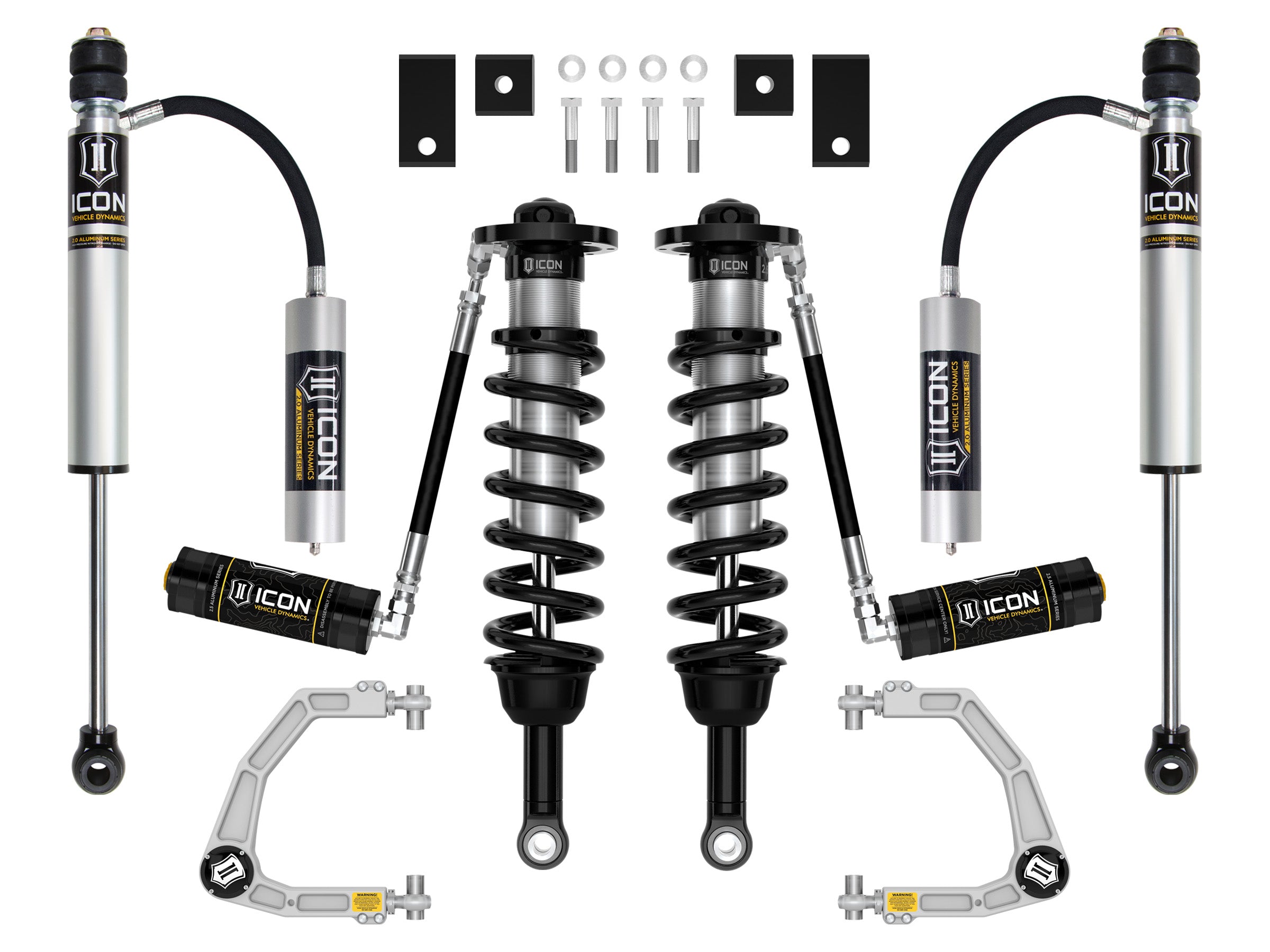

ICON Vehicle Dynamics K53196 ICON 22-23 Toyota Tundra 1.25-3.5" Lift Stage 6 2.5 Suspension System Billet
Vendor:
ICON Vehicle Dynamics
SKU:
FRDK_K53196
Availability:
5
In Stock
Product Type:
Suspension Lift Kit
- Regular price
- $5,342.21 CAD
- Regular price
-
$6,245.53 - Sale price
- $5,342.21 CAD
- Unit price
- per
Take 10% off select products at checkout.
Savings auto-applies on selected products at checkout. Exclusions apply.
Couldn't load pickup availability
* Images may differ from actual product.
Description
xProduct Description
The ICON Vehicle Dynamics Stage 5 complete suspension system for the 2022 to 2023 Toyota Tundra builds upon the Stage 4 system with the upgrade of the 2.0 Aluminum Series rear shocks to remote reservoir versions. This system offers improved on- and off-road performance, with greater rear shock heat dissipation, as well as improved alignment specs and increased front-end lift height range for a proper stance and fitment of up to 35 Inch tires. To compliment the 2.0 remote reservoir rear shocks, a 2.5 Series internal reservoir front coilover shock and billet front upper control arm combo is provided along with a front sway bar drop kit. This Stage 5 system features the 2022 to 2023 Toyota Tundra VS 2.5 Series internal reservoir front coilovers. These adjustable coilovers allow up to 1-1/3 to 3-1/2 Inch of lift height adjustability over stock when using the ICON billet aluminum front upper control arms, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving along with the larger 2-1/2 Inch shock body and increased piston area over stock components yield the maximum travel possible (up to 40 Percent increase over stock) along with superior ride quality and suspension performance both on- and off-road.
Leveling Kit Suspension; Stage 6; 1-1/4 To 3-1/2 Inch Lift; Remote Reservoir Coil Over Shock Absorber; With Front Upper Billet Control Arms/ Coil Over Mounts/ Springs/ Rear Remote Reservoir Shock Absorbers/ Stabilizer Bar Drop/ Installation Hardware
Features & Benefits
- 2.5 Series Front Coilovers With Remote Reservoirs For Superior Damping And Vehicle Control Along With Improved Shock Cooling
- Adjustable Front Ride Heights From 1-1/4 To 3-1/2 Inch Of Front Lift Over Stock When Used With Provided Billet Aluminum UCAs
- Billet Aluminum UCAs For Added Strength, Durability, And On-Vehicle Caster Or Camber Adjustment For Optimum Drivability
- UCAs Feature The Patented Delta Joint Pro With 90 Degrees Of Total Articulation
- Provided Sway Bar Drop Brackets Reduce Bind In OE Sway Bar Links
- Allows For Up To 40 Percent Increase In Front Wheel Travel Over Stock Without Overstressing OE Components
- 2.0 Aluminum Series Rear Remote Reservoir Shocks Provide Balanced Tune With Coilovers And Increased Performance
- All ICON Shock Absorbers Are Fully Rebuildable And Re-Tunable
- 100 Percent Bolt-On System: No Drilling, Cutting, Or Welding Necessary For Install
- Limited Lifetime Warranty
Attributes
- Lift Height: 1-1/4 To 3-1/2 Inch Lift
- Type: Coil Over Shock Absorber
- Maximum Tire Size: 35 x 12.50
- Includes Shock/Struts: Yes
- Minimum Wheel Diameter: 17
- Wheel Backspacing (IN): 5.75
- Wheel Offset (MM): 25
- Color: Silver
- Material: Aluminum
- Estimated Install Time (Hours): 2
Attributes:
- GTIN: 00840103420707
- Brand Name: ICON Vehicle Dynamics
- 2064: Steel
- 2371: Yes
- 30: Yes
- 3096: Black
- 3097: Yes
- 3390: Performance
- 5520: 3.5
- 7325: 2
- Add-On Part: 191013 - NIPPLE GREASING ADAPTER KIT
- Front Spring Rate Type: Linear
- OEM Wheels & Tires Fitment: Yes
- Recommended Aftermarket Tires: 35" x 12.50" (Minor fender trimming and modifications may be required)
- Recommended Aftermarket Wheels: 17x8.5" w/ 5.75” Backspace / 25mm Offset
Extended Information:
- Country of Origin: United States
- Emissions : 4
- Life Cycle Status: Available To Order
Packing Information:
- Quantity of Each: 1.0
- Package UOM: EA
- Dimension: 30.0000 x 13.0000 x 7.0000 inches
- Weight: 106.0000 lb
