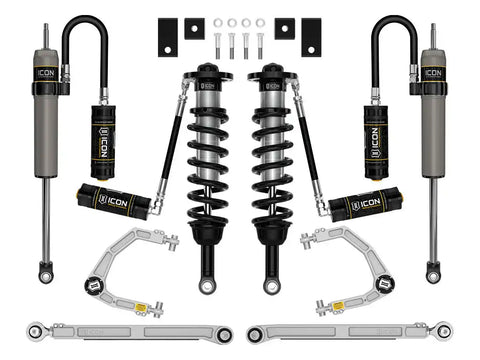

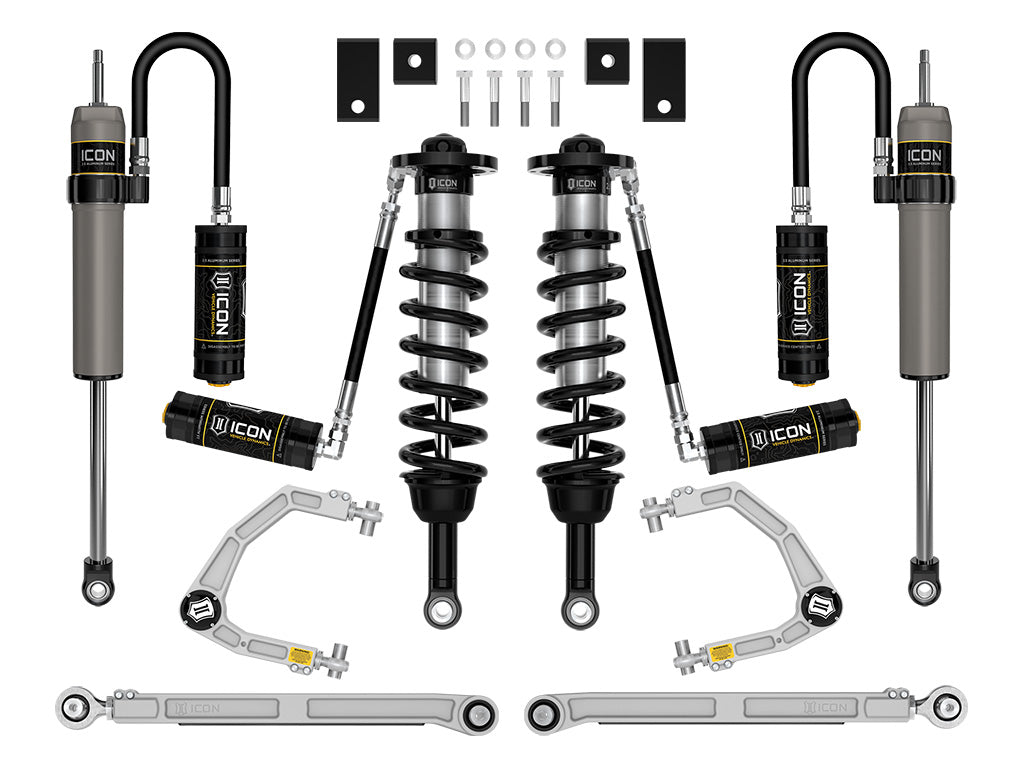

ICON Vehicle Dynamics FRDK_K53198 ICON 22-23 Toyota Tundra 1.25-3.5" Lift Stage 8 2.5 Suspension System Billet
ICON Vehicle Dynamics FRDK_K53198 ICON 22-23 Toyota Tundra 1.25-3.5" Lift Stage 8 2.5 Suspension System Billet

ICON Vehicle Dynamics FRDK_K53198 ICON 22-23 Toyota Tundra 1.25-3.5" Lift Stage 8 2.5 Suspension System Billet

Vendor: ICON Vehicle Dynamics
SKU: FRDK_K53198
Availability: 1 In Stock
Product Type: Suspension Lift Kit
$8,429.66 CAD
$8,301.67
$8,429.66 CAD
Found Better Price? Get Price Match!
Take 10% off select products at checkout.
Savings auto-applies on selected products at checkout. Exclusions apply.
  • TruckPoint
Description
Description
x
Rounding out the Stage 8 suspension system are 2.5 Aluminum Series rear remote reservoir shocks specially tailored for the 2022-2023 Tundra. The 2.5 Aluminum Series shocks’ larger diameter offers outstanding performance off-road and a smooth ride on the street. Remote reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. They also feature a unique internal Bump Zone that when used creates an additional 20% of damping force to help better control hard bottom outs. Their pairing with the ICON V.S. 2.5 Series front coilovers results in balanced vehicle control from front to rear and an excellent overall driving experience for your Tundra.
  • Vehicle specific design for 2022-2023 Toyota Tundra
  • All ICON shock absorbers are fully rebuildable and re-tunable
  • 2.5 Series front coilovers with remote reservoirs for superior damping and vehicle control along with improved shock cooling
  • Adjustable front ride heights from 1.25-3.5” of front lift over stock when used with included billet aluminum UCAs
  • Billet aluminum UCAs for added strength, durability, and on-vehicle caster/camber adjustment for optimum drivability
  • UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
  • Included sway bar drop brackets reduce bind in OE sway bar links
  • Allows for up to 40% increase in front wheel travel over stock without overstressing OE components
  • Billet rear lower links improve rear end articulation and allow for on-vehicle pinion angle adjustment
  • 2.5 Aluminum Series rear remote reservoir shocks provide increased performance and balanced tune with coilovers

Attributes:

  • GTIN: 00840103420738
  • Brand Name: ICON Vehicle Dynamics
  • 2064: Steel
  • 2371: Yes
  • 30: Yes
  • 3096: Black
  • 3097: Yes
  • 3390: Performance
  • 5520: 3.5
  • 7325: 2
  • Add-On Part: 191013 - NIPPLE GREASING ADAPTER KIT
  • Front Spring Rate Type: Linear
  • OEM Wheels & Tires Fitment: Yes
  • Recommended Aftermarket Tires: 35" x 12.50" (Minor fender trimming and modifications may be required)
  • Recommended Aftermarket Wheels: 17x8.5" w/ 5.75” Backspace / 25mm Offset

Extended Information:

  • Country of Origin: United States
  • Emissions : Emissions Compliance Exempt
  • Life Cycle Status: Available To Order

Packing Information:

  • Quantity of Each: 1.0
  • Package UOM: EA
  • Dimension: 30.0000 x 13.0000 x 7.0000 inches
  • Weight: 138.0000 lb
