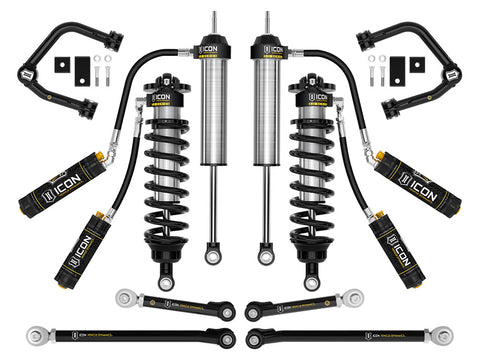

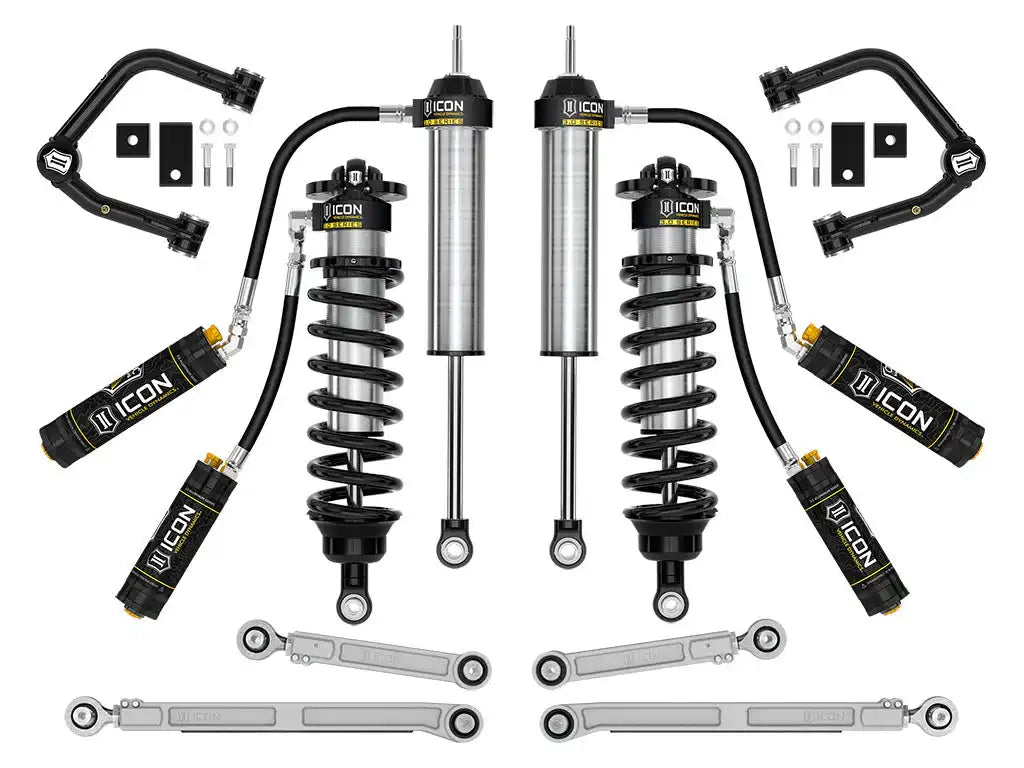

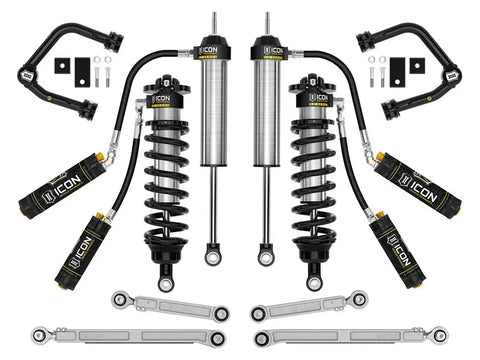

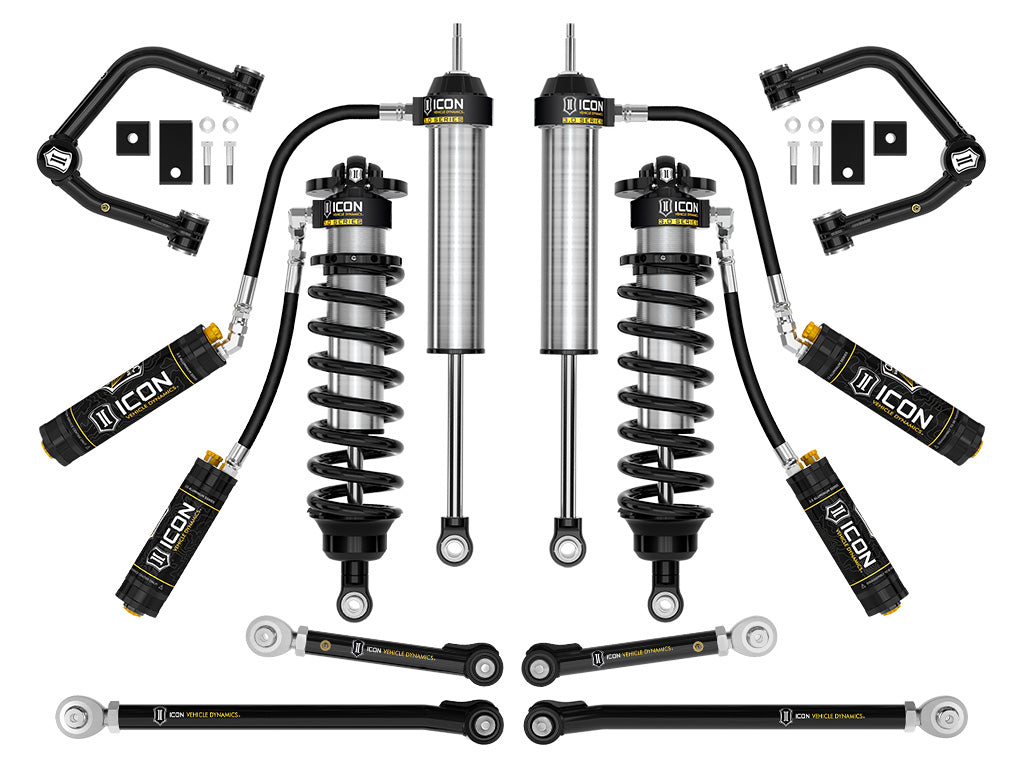

ICON Vehicle Dynamics FRDK_K53212T ICON 22-23 Toyota Tundra 2-3.25" Lift Stage 2 3.0 Suspension System Tubular
ICON Vehicle Dynamics FRDK_K53212T ICON 22-23 Toyota Tundra 2-3.25" Lift Stage 2 3.0 Suspension System Tubular
ICON Vehicle Dynamics FRDK_K53212T ICON 22-23 Toyota Tundra 2-3.25" Lift Stage 2 3.0 Suspension System Tubular

ICON Vehicle Dynamics FRDK_K53212T ICON 22-23 Toyota Tundra 2-3.25" Lift Stage 2 3.0 Suspension System Tubular

Vendor: ICON Vehicle Dynamics
SKU: FRDK_K53212T
Availability: Out of stock. Chat\Call to Order
Product Type: Suspension Lift Kit
$10,809.34 CAD
$12,003.99
$10,809.34 CAD
Found Better Price? Get Price Match!
Take 10% off select products at checkout.
Savings auto-applies on selected products at checkout. Exclusions apply.
  • TruckPoint
Description
Description
x
Rounding out the Stage 2 suspension system are 3.0 Series rear remote reservoir shocks specially tailored for the 2022-2023 Tundra to yield 20% increase in wheel travel over stock. 3.0 Series shocks also boast 50% more piston surface area compared to 2.5 Series shocks, offering outstanding performance off-road and a smooth ride on the street. Increased internal oil volume and more external surface area compared to 2.5 Series Shocks, plus their remote reservoirs, offer even greater heat dissipation and resistance to shock fade under hard use. Also equipped with CDC Valves, these offer 10 settings of compression damping adjustment from soft to hard. Their pairing with the ICON V.S. 3.0 Series CDCV front coilovers results in balanced vehicle control from front to rear and an excellent overall driving experience for your Tundra.
  • Vehicle specific design for 2022-2023 Toyota Tundra
  • 3.0 Series rear remote reservoir shocks provide maximum performance, 20% increase in wheel travel, and balanced tune with coilovers
  • All ICON shock absorbers are fully rebuildable and re-tunable
  • 3.0 Series front coilovers with ICON’s multi-stage, tunable hydraulic “Bump Zone”
  • Adjustable front ride heights from 2-3.25” of front lift over stock when used with included tubular UCAs
  • All shock absorbers equipped with CDC Valves for 10 settings of compression damping adjustment, from soft to hard
  • Tubular UCAs for added strength, durability, and alignment correction for better drivability
  • UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
  • Included sway bar drop brackets reduce bind in OE sway bar links
  • Allows for up to 40% increase in front wheel travel over stock without overstressing OE components
  • Billet rear upper and lower links improve rear end articulation and allow for on-vehicle pinion angle adjustment

Attributes:

  • GTIN: 00840103420820
  • Brand Name: ICON Vehicle Dynamics
  • 2064: Steel
  • 2371: Yes
  • 30: Yes
  • 3096: Black
  • 3097: Yes
  • 3390: Performance
  • 5520: 3.5
  • 5782: Closed
  • 5783: Closed
  • 7325: 2
  • Add-On Part: 191010 - ICON RAPTOR 3.0 COIL WRAP W/LOGO PAIR
  • Front Spring Rate Type: Linear

Extended Information:

  • Country of Origin: US
  • Emissions : Emissions Compliance Exempt
  • Life Cycle Status: Available To Order

Packing Information:

  • Quantity of Each: 1.0
  • Package UOM: EA
  • Dimension: 33.0000 x 15.0000 x 10.0000 inches
  • Weight: 178.0000 lb
